Машина для текстильного окрашивания
Низкая производственная цена высокотемпературная машина для окрашивания вязания под высоким

Низкая производственная цена высокотемпературная машина для окрашивания вязания под высоким

Категория: Машина для текстильного окрашивания >>>
Поставщик: Wuxi,Sunsky,Machinery,Co.,Ltd.

Цена:20 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	23800.78 $*	24990.38 $*
Aug-16-2025	23600.79 $*	24780.25 $*
Jul-16-2025	19800.51 $*	20790.51 $*
Jun-16-2025	23200.5 $*	24360.34 $*
May-16-2025	20200.62 $*	21210.58 $*
Apr-16-2025	22800.31 $*	23940.3 $*
Mar-16-2025	22600.98 $*	23730.87 $*
Feb-16-2025	22400.54 $*	23520.17 $*
Jan-16-2025	22200.87 $*	23310.92 $*

Характеристики

Product Description

Applicable to various fabrics:Cotton,Modal,Viscose,Tencel,Rayon,Wool,Acrylic,Lyocell,Nylon,Polyester blended and lycra blended.With a specially-designed nozzle structure, it enables the fabrics in loose and expanded conditions during the dyeing process. It has an excellent performance in dyeing tight and heavy fabrics and can eliminate the crease mark problem, which is usually seen in other dyeing machines.

Technical Data

Low Liquor Ratio; 1:3.5~4.5(1:4.5 maximum for cotton)

Operating Speed: 450M per minute

Maximum working temperature: 140'C

Maximum working pressure: 0.36Mpa

Temperature increase rate: 5'C per minute on average from 25 to 100'C, 2'C per minute on average from 100 – 130'C (Pressure of dry saturated vapor: 0.7Mpa)

Temperature deduction rate: 30C per minute on average from 130 to 100'C, 2'C per minute on average from 100 to 85'C (Cooling water pressure: 0.3Mpa, 25'C).

Model	Nrs of Tubes	Load (KG)	Length(mm)	Width(mm)	Height(mm)	MainPump	Running Power(KW)
Model	Nrs of Tubes	Load (KG)	Length(mm)	Width(mm)	Height(mm)	Power(KW)	Running Power(KW)
OH-300-1	1	300	3500	5400	3400	5.5	13
OH-300-2	2	600	4800	5400	3400	7.5	19
OH-300-3	3	900	5900	5400	3400	15	26
OH-300-4	4	1200	7100	5400	3400	18.5	34
OH-300-6	6	1800	9500	5400	3400	37	54
OH-300-8	8	2400	12500	5400	3400	45	56

Flow chart comparasi

QQ20150930085628

Eco-friendly

Min running liquor ratio (does not include water in the material) is as low as 1:1.5. The water consumption of the whole dyeing process for cotton fabric (per KG) by using reactive dyes is analyzed as follows.

Light Color: 27.2kgs

Medium Color: 37.5kgs

Dark color: 47.4kgs

Good and stable repeatability

Leading dyeing control system, in combination with dually balancing flow feeding system as well as constant pressure and flow rate nozzle control enhance fabrics dyeing to achieve a good dye uniformity and high repeatability.

Ergonomics Vat Design

The height of machine and operation platform is lowered and size of the operation platform is resized much smaller than usual, which makes operation much more convenient. The bottom of the dye vat is specially designed so as to reduce water storage and liquor ratio effectively.

With unique main vat circulation system, the temperature difference of entire dye vat from top and bottom and evenness of feeding is controlled at optimum conditions.Rotating spray is adopted for main vat cleaning and the whole vat is within the range of cleaning, ensuring more complete cleaning.

Company Information

Sunsky is an experienced machinery manufacturer since 2004,it's located in Wuxi,JiangSu Province,China(50mins by train from Shanghai).We're focusing on dyeing and finishing machines for various textiles.After a decade of innovations and development, Sunsky becomes an expert in the field of textile dyeing machines, including normal temperature dyeing machine, high temperature dyeing machine, pre-treatment and after-treatment machines. We make designs according our customer's requirement, continuously improve our techniques, optimize designs and also take the issue of environment into consideration. Sunsky dyeing machine has been well received by domestic and foreign customers.On the basis of 10years professional manufacturing experience,we have successfully developed a new generation of liquor ratio 1:3.5~4.5, energy saving type OH/UH,and 1:2.8~3.5 yarn dyeing machine.

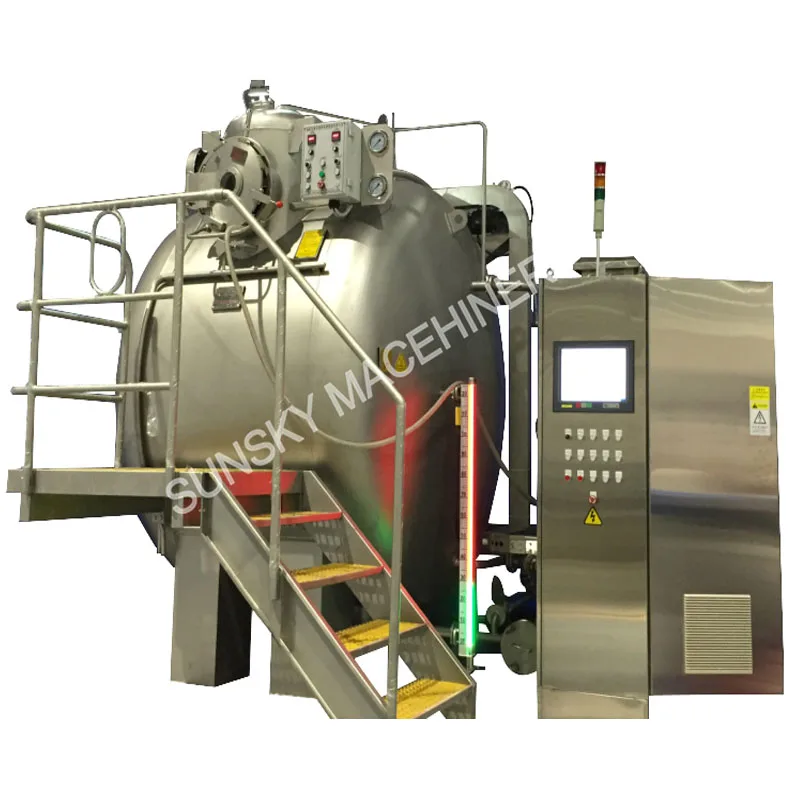

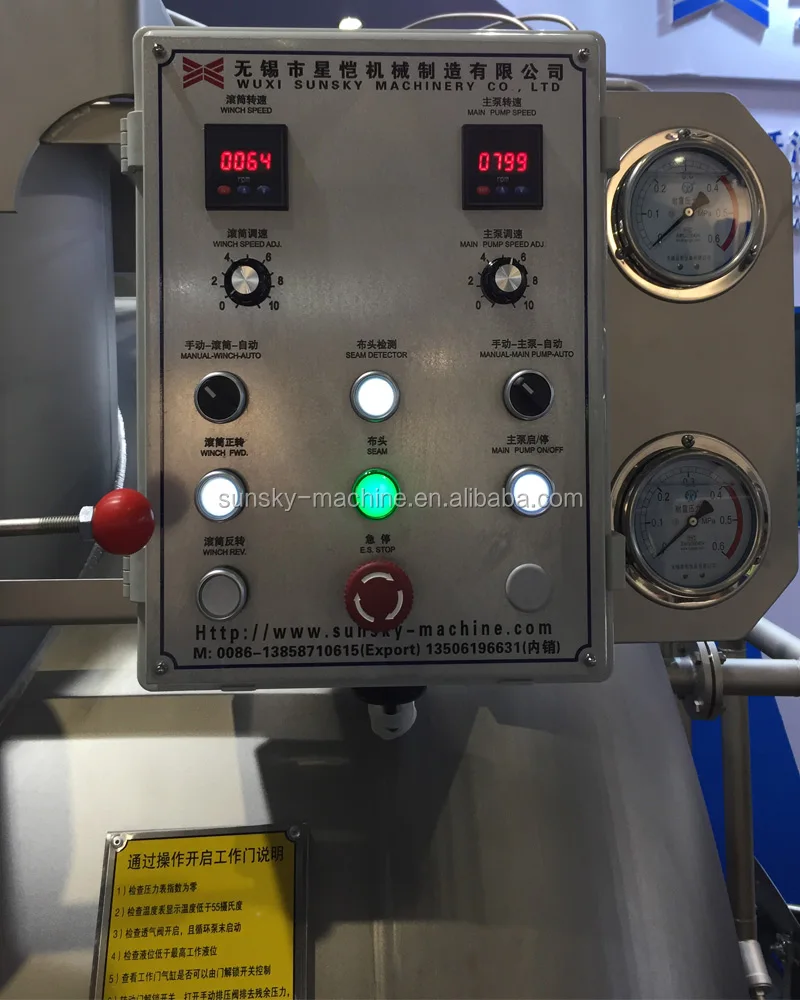

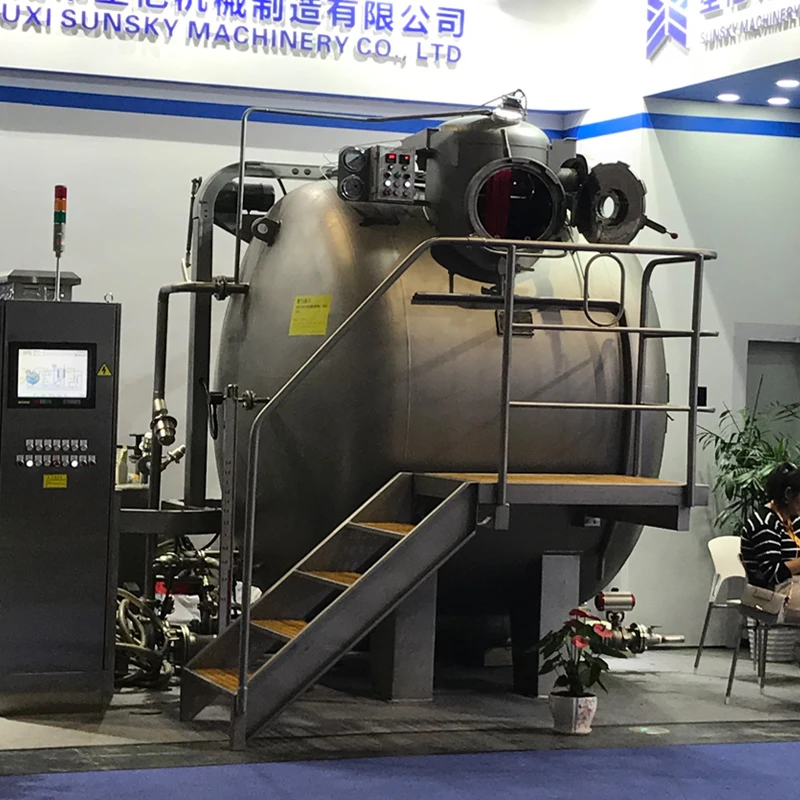

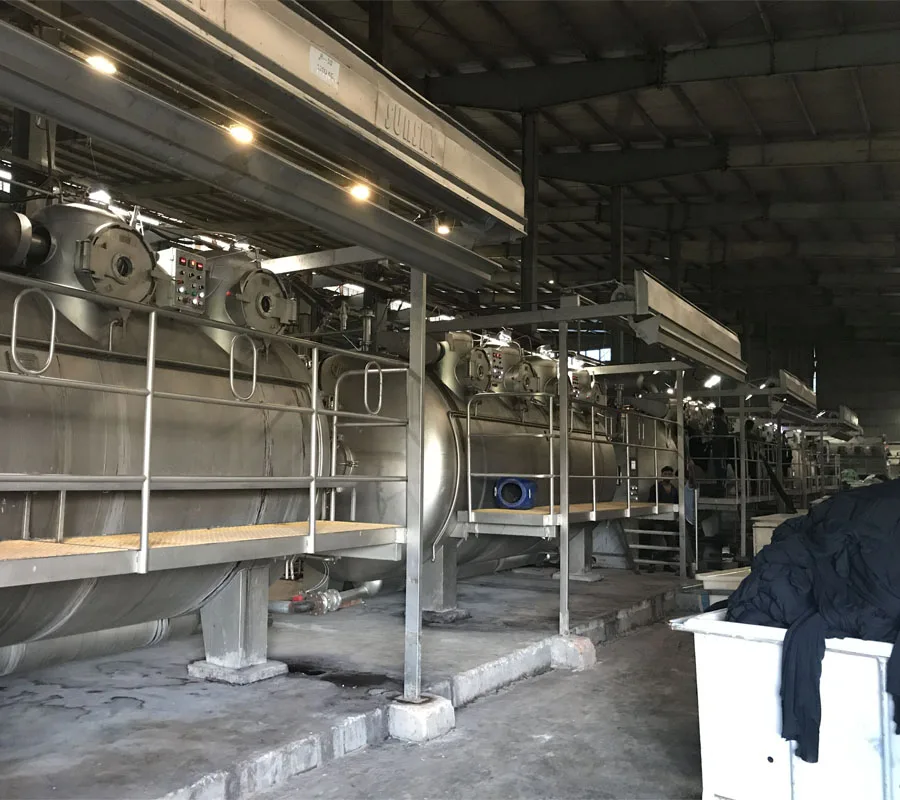

Detailed Images
