Сверло со шнеком для буровых работ

Категория: Другие инструменты >>>
Поставщик: TYSIM,PILIING,EQUIPMENT,CO.,LTD

Цена:744 494,82 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	885948.66 $*	930245.71 $*
Aug-15-2025	878503.7 $*	922428.48 $*
Jul-15-2025	737049.49 $*	773901.96 $*
Jun-15-2025	863613.57 $*	906794.53 $*
May-15-2025	751939.3 $*	789536.4 $*
Apr-15-2025	848723.58 $*	891159.76 $*
Mar-15-2025	841278.82 $*	883342.2 $*
Feb-15-2025	833833.42 $*	875525.50 $*
Jan-15-2025	826388.91 $*	867707.88 $*

Характеристики

Earth and clay drilling (Complete with Earth Teeth and Earth Pilot) Diameter: 100mm, 150mm, 200mm, 225mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm, 750mm, 900mm etc

Technical Specification of Auger Drill
Type	C	KA2500	KA3000	KA3500	KA6000	KA8000	KA8000
Suitable Excavator	T	1.5-3T	2-4T	2.5-4.5T	4.5-6T	5-7T	5-7T
Torque	Nm	790-2593	1094-3195	1374-3578	2570-6917	3163-8786	3163-8786
Pressure	Bar	70-240	80-240	80-240	80-240	80-240	80-240
Flow	Lpm	25-65	25-70	40-80	50-92	40-89	48-110
Rotate Speed	Rpm	36-88	30-82	35-75	35-68	20-46	20-45
Output Shaft	mm	65Rnd	65Rnd	65Rnd	65Rnd	75Sq	75Sq
Weight	Kg	95	100	105	110	105	110
Max Auger Diameter Earth	mm	300	300	350	350	500	600
Max Auger Diameter Earth	mm	350	400	450	500	600	800
Technical Specification of Auger Drill
Type	Unit	KA9000	KA15000	KA20000	KA25000	KA30000	KA59000
Suitable Excavator	T	6-8T	10-15T	12-17T	15-22T	17-25T	20-35T
Torque	Nm	3854-9961	5307-15967	6715-20998	8314-25768	15669-30393	27198-59403
Pressure	Bar	80-240	80-260	80-260	80-260	80-260	160-350
Flow	Lpm	70-150	80-170	80-170	80-170	80-170	100-250
Rotate Speed	Rpm	23-48	23-48	15-32	12-26	12-21	10-22
Output Shaft	mm	75Sq	75Sq	75Sq	75Sq	75Sq	110Sq
Weight	Kg	115	192	200	288	298	721
Max Auger Diameter Clay/Shale	mm	800	900	100	1100	1200	1500
Max Auger Diameter Earth	mm	1000	1200	1400	1500	1600	2000

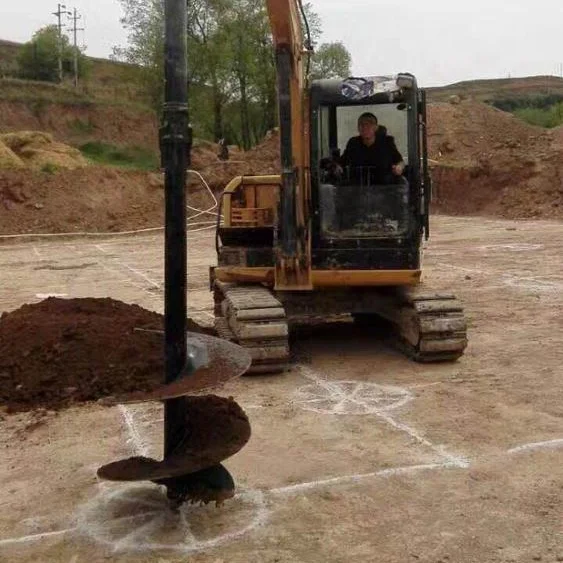

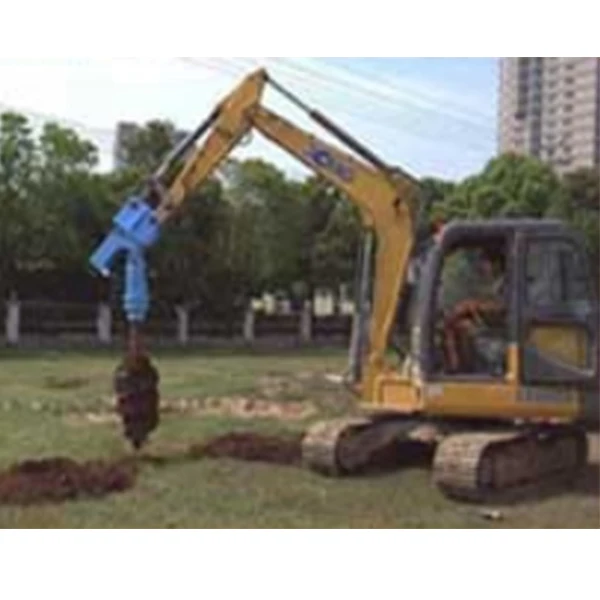

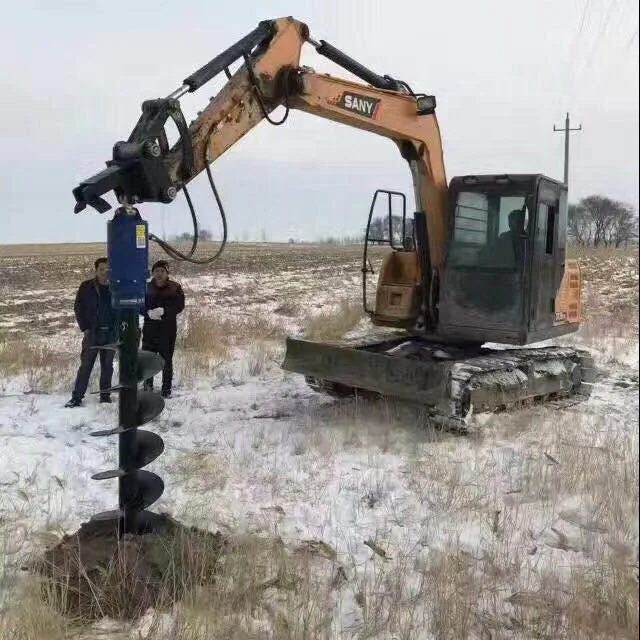

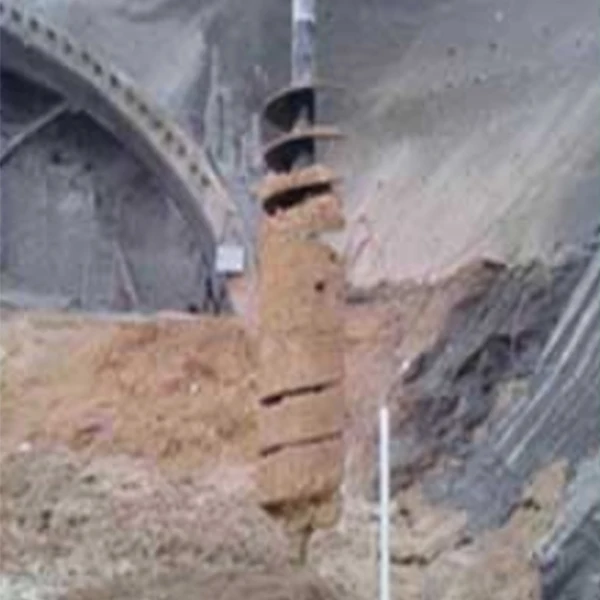

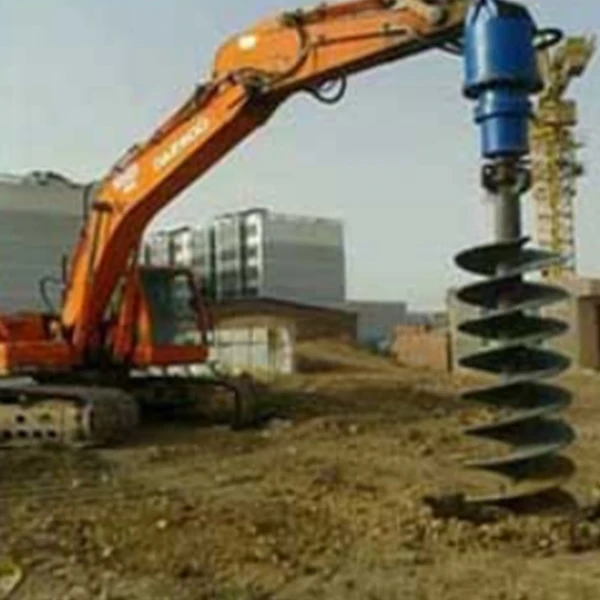

Construction Photos

Packing & Shipping

Product Advantage

Hose &Couple options
All earth drills come standard with high quality hoses and couples (excludes large units).
Epicyclic gearbox
Torque is amplified by using the unique auger torque planetary gearbox. This system allows the motors output torque to be
multiplied with extreme efficiency as well as ensuring the durability and reliability you need.
Non-dislodgement shaft Unique to Auger Torque, the non-dislodgement shaft is a single piece drive shaft assembled top down and
locked into the earth drill housing. This design guarantees that the shaft will never fall out, making for a safer work
environment, not only for the operator but also any surrounding workers a Must-Have Feature for any safety conscious company.

FAQ

Q1: How to choose a suitable model?
Pls kindly let us know your following information, and then we recommend right model for you.
1 Brand and model of Excavator/Backhoe/Skid Steer loader 2.Hole diameter 3.Hole depth 4.Soil condition
Q2: Can earth drill fit a variety of machines?
Yes.as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue
Q3: Do I need to purchase spare parts when ordering an earth drill?
It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow
the service schedule as outlined in the operator manual. It is advisable to purchase spare wearing parts (teeth and Pilots).
Q4: How about the delivery time?
Within 5-10 working days after receiving T/T payment.
