Совершенно новая гибридная солнечная энергетическая система 5000 Вт высококачественный ветрогенератор 240 В с сертификатом

Совершенно новая гибридная солнечная энергетическая система 5000 Вт высококачественный ветрогенератор 240 В с сертификатом

Категория: Other Solar Energy Related Products >>>
Поставщик: Zhangjiagang,Great,Energy,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.54 $*	0.26 $*
Aug-16-2025	0.7 $*	0.26 $*
Jul-16-2025	0.26 $*	0.66 $*
Jun-16-2025	0.39 $*	0.88 $*
May-16-2025	0.76 $*	0.95 $*
Apr-16-2025	0.59 $*	0.62 $*
Mar-16-2025	0.44 $*	0.94 $*
Feb-16-2025	0.61 $*	0.60 $*
Jan-16-2025	0.88 $*	0.90 $*

Характеристики

Introduction

Features
*Low start up steed, high wind energy utilization;
*Easy installation, tube or flange connection optional;
*Blades using new art of precision injection molding, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output;
*Body of casting aluminum alloy, with 2 bearings swivel, making it survive stronger wind and run more safety;
*Patented permanent magnet ac generator with special stator, effectively reduce torque, well match the wind wheel, generator and ensure the performance of whole system;
*Using MPPT control can adjust the voltage more effectively.

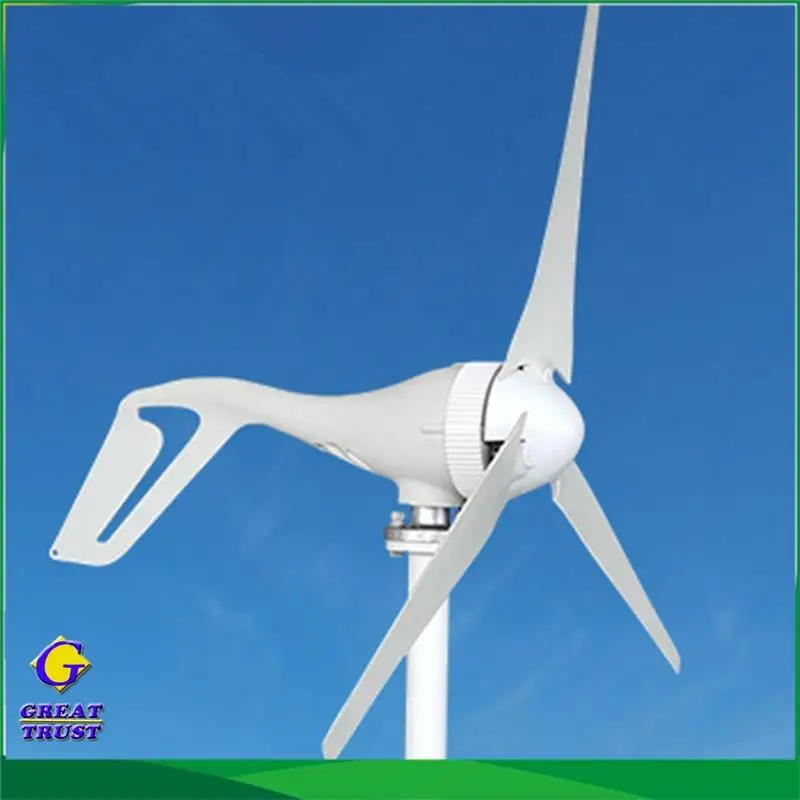

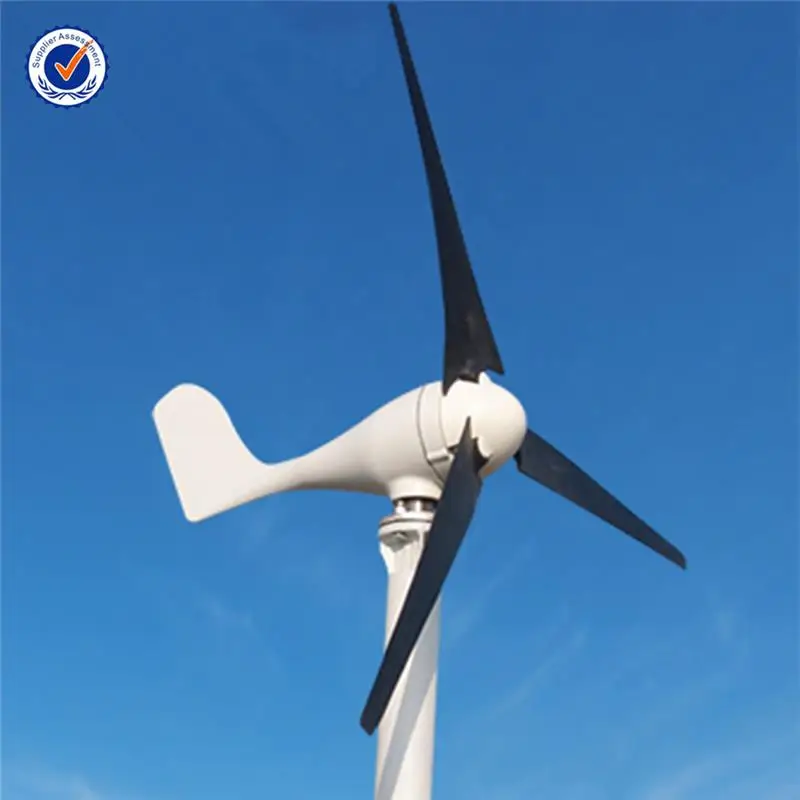

S Style Wind Turbine

S Type Wind Turbine

Model	NE-100S	NE-200S	NE-300S	NE-100S2	NE-200S2	NE-300S2	NE-400S2
Rated Power	100W	200W	300W	100W	200W	300W	400W
Maximum Power	130W	220W	310W	130W	220W	310W	410W
Rated Voltage	12/24V	12/24V	12/24V	12/24V	12/24V	12/24V	24V
Start-up Wind Turbine	2M/S
Rated Wind Speed	10M/S	11.5M/S	13M/S	10M/S	11.5M/S	13M/S	13M/S
Safety Wind Speed	55M/S	55M/S	50M/S	55M/S	55M/S	50M/S	50M/S
Top Net Weight	6KG	6.2KG	6.5KG	5KG	5.2KG	5.6KG	5.8KG
Wheel Diameter	1.2M	1.3M	1.35M	1.2M	1.3M	1.35M	1.4M
Number of Blades	3/5
Blades Material	Nylon fiber
Generator	Three phase permanent magnet ac synchronous generator
Magnet	NdFeb
Generator Case	Casting Aluminum Alloy
Control System	Electromagnet
Speed Regulation	Automatically adjust wind ward direction
Work Temperature	-40~80℃
Design Life	20 years

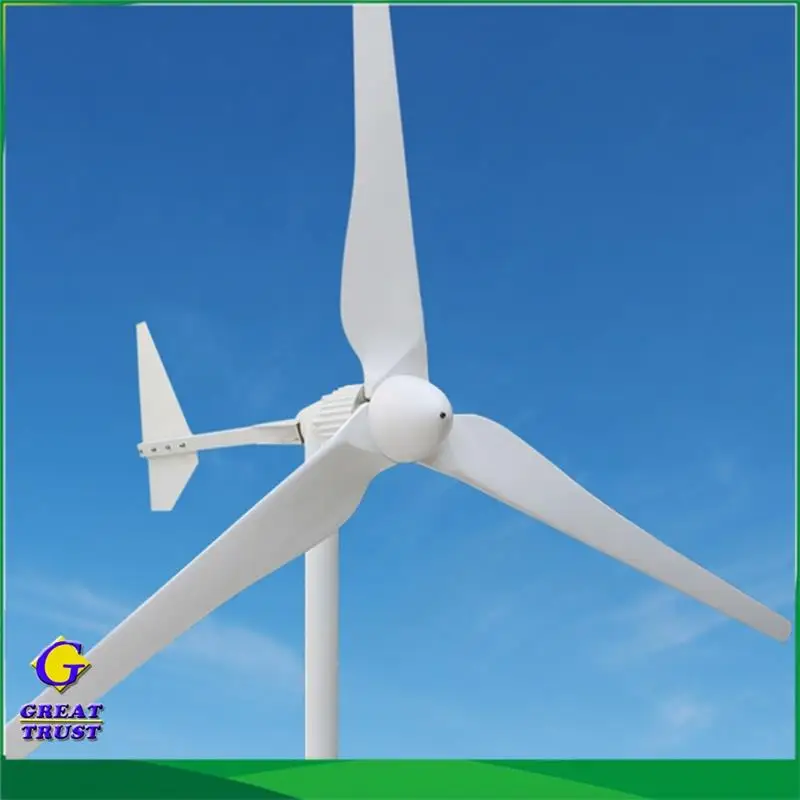

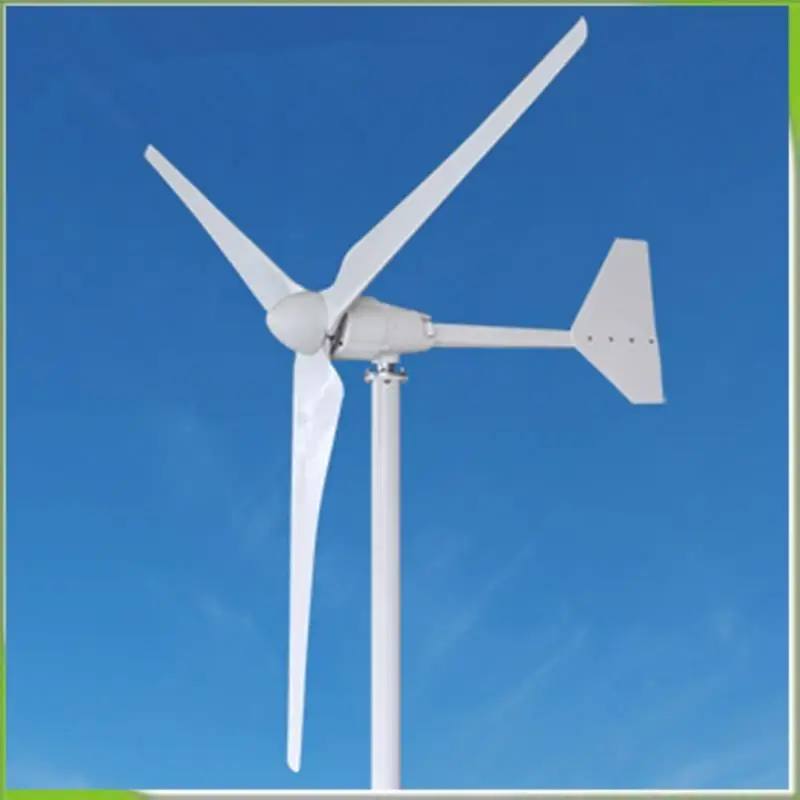

M Style Wind Turbine

M Type Wind Turbine

Model	NE-300M	NE-400M	NE-400M2	NE-500M2	NE-500M3	NE-600M4	NE-700M4	NE-800M5	NE-1000M5
Rated Power	300W	400W	400W	500W	500W	600W	700W	800W	1000W
Maximum Power	320W	410W	420W	520W	510W	630W	720W	820W	1050W
Rated Voltage	12/24V	12/24V	24V	24/48V	24V	24/48V	24/48V	24/48V	48V
Start-up Wind Turbine	2M/S	2M/S	2.5M/S	2.5M/S	2M/S	2.5M/S	2.5M/S	2.5M/S	2.5M/S
Rated Wind Speed	11M/S	11.5M/S	11M/S	11M/S	11M/S	11M/S	11M/S	12M/S	12.5M/S
Safety Wind Speed	50M/S	50M/S	45M/S	45M/S	45M/S	45M/S	45M/S	40M/S	40M/S
Top Net Weight	9.2KG	9.5KG	14.5KG	15KG	11.5KG	20KG	21KG	29KG	30KG
Wheel Diameter	1.35M	1.55M	1.7M	1.75M	1.75M	1.85M	1.85M	2.2M	2.4M
Number of Blades	3/5	3/5	3/5	3/5	3	3	3	3	3
Blades Material	Nylon fiber
Generator	Three phase permanent magnet ac synchronous generator
Magnet	NdFeb
Generator Case	Casting Aluminum Alloy
Control System	Electromagnet
Speed Regulation	Automatically adjust wind ward direction
Work Temperature	-40~80℃
Design Life	20 years
