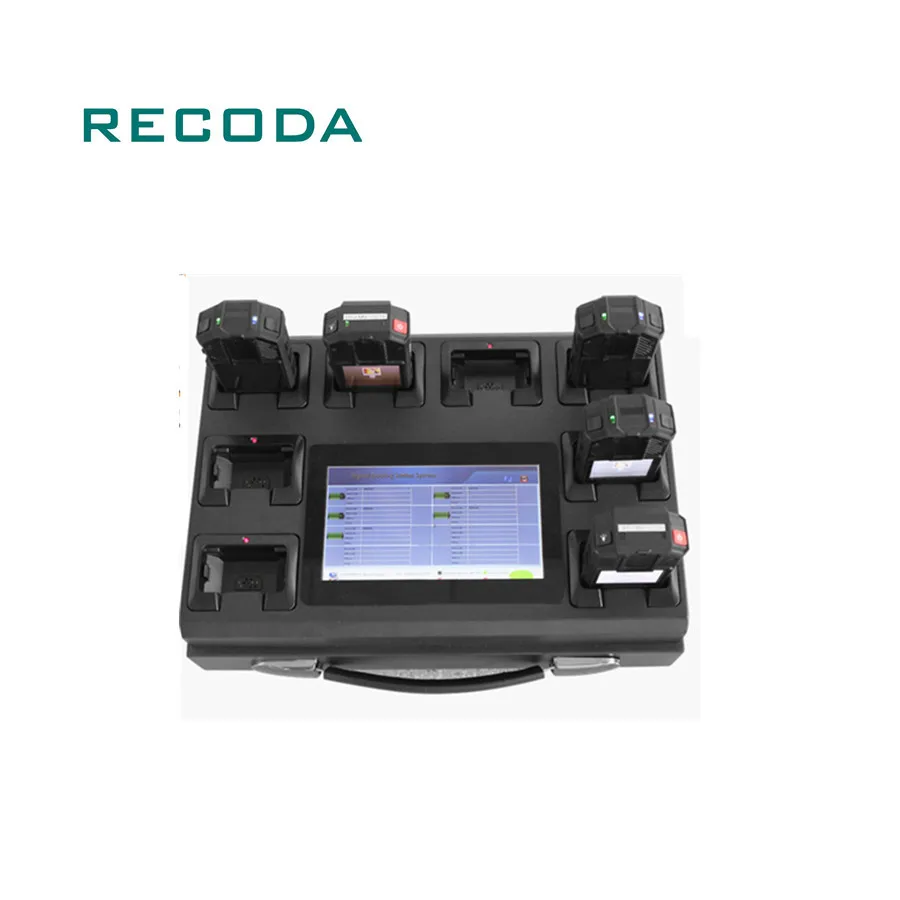

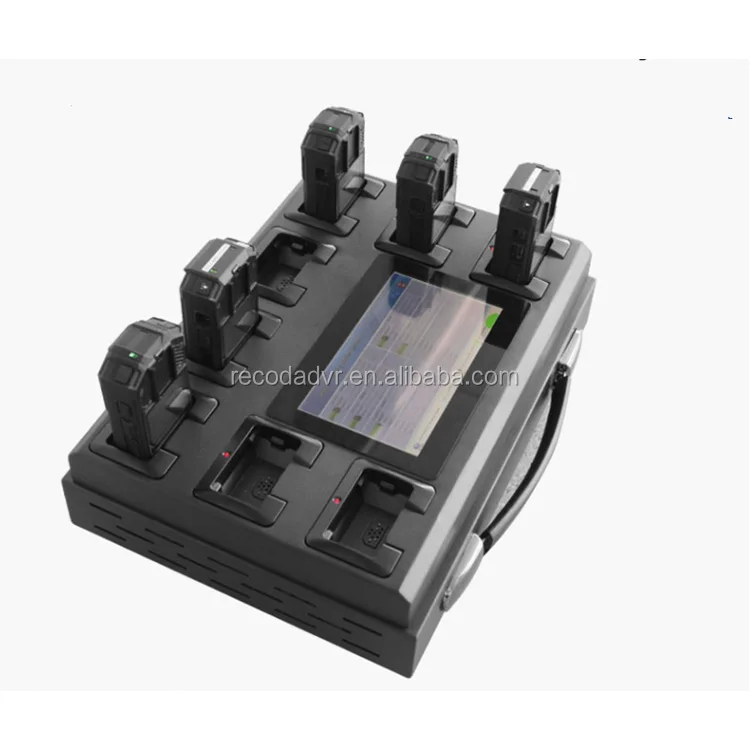

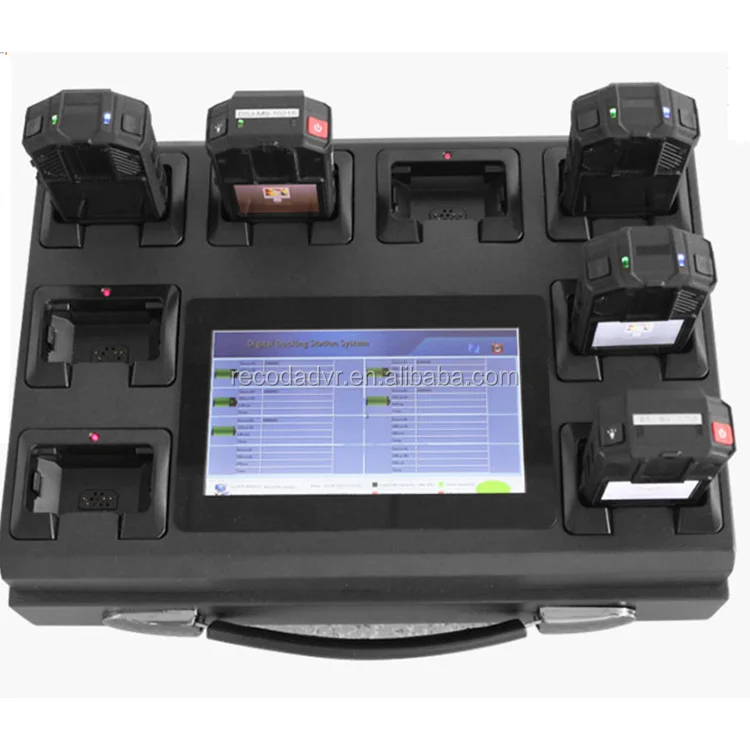

8 ports docking station with screen for  body worn camera



Features:



1. With  7 inch LCD Monitor  to check the  status for charging and  recording output

2. Support touch screen
3 . Connect 8 body worn cameras to work together

4. With One removable Hard disk box ,support connect 2TB-10TB hard disk .
 5. memory: 4GB;
 6.J1900 industrial motherboard design ,more stable

7.Support connect keyboards or Mouse to operate.

8.Including Digital evidence management system software provided

9.17 Inch Monitor  with 20 ports( for 20 body worn cameras) optional





Specifications:

Item	specification
House	dimension 38CM*43CM*49CM(L*W*H) 8 usb ports
Screen size	7 inch LED
Screen Resolution	1024X600
Screen contrast	1000:01:00
Screen colur	16.2M
Screen brightness	250cd/m2
Touch Screen	Capacitive touch screen
Morthboard	J1900 Industrial Motherboard
CPU	Intel Turbo Boost  2.42 GHZ double cores
RAM	DDR3 1600L  4GB
SSD	SSD 60G
Hard drive bay	One bay for inserting a hard disk
Hard disk	optional hard drive 2T /4T/ 6T /8T hard drive
Power	Industrial power supply output rating 85W
USB interface	10 usb ports HUB   output current 1.2A  for every port
Ouside USB interface	2 USB2.0 ports
Audio	ALC662 chip,supply 6 channel output
Speaker	two 8 OHM 3W speaker
Lan interface	Onboard Realtek RTL8111F  1000M Lan card
WIFI	Intel 5100 Wifi module,6dbWifi antenna
Work temperature	subzero 20 ---+80 degree temperatures,
Storage Temperature	subzero 20℃——60℃
Storage Humidity	Humidity:10%~90%
Lan cable	RJ45 100M cable
Power cable	Optional power cable: China standard, European standard, American Standard, British Standard
Power supply	AC power source  110-220V  AC
Operation system	Default optional XP/Win8/Win10 the system Win7 system
Docking station system	Optional installation  docking station system









Recoda Systems:











RECODA is one of the leading vehicle surveillance system providers in China nowadays. We specialize in manufacturing, R&D of Mobile DVRs &Car Cameras for public transit, school buses, Ambulances, Trucks, Taxi, Vans & Police law enforcement vehicles and body-worn Camera Recorder.

Currently, all items are exported to America, Europe ,Australia and other Asian countries. RECODA have over30,000 systems installations all over the world.

All items were verified by European CE and ROHS, US FCC, IEC Security test.

With plenty skill workers, professional hardware and software engineer, and carefully component choosing, we are confident of our quality. Our mission is to provide you tested and qualified auto security products.

With over 10 years R&D team and full trained technical team to supply reliable products, effective after-sales service.  We Looking for product regional or country agent . Once long term cooperation established, we will try our best to share benefit with you. Aim is simple: to share win-win future with all distributors worldwide.
