Product Description
Title
MOQ: 2000 meters
OEM and ODM available
OEM and ODM available
Introduction
FSR self-regulating heating cable is constructed of a semi-conductive heater matrix extruded between parallel bus wires, a
self-regulating heating cable adjusts its output to independently respond to ambient temperatures all along its length. As
temperature increases, the heater’s resistance increases, which lowers the output wattage. Conversely, as the temperature
decreases, the resistance decreases and the cable produces more heat. So thermostat is not necessary in some applications. It will never overheat or burnout even when overlapped. The cable can also be cut to any length. As the result, we got an energy efficient heating cable. With optional outer jackets, the heating cable is resistant to watery and inorganic chemicals and protected against abrasion and impacted damage. Typical application is heat trace designs and applications.
self-regulating heating cable adjusts its output to independently respond to ambient temperatures all along its length. As
temperature increases, the heater’s resistance increases, which lowers the output wattage. Conversely, as the temperature
decreases, the resistance decreases and the cable produces more heat. So thermostat is not necessary in some applications. It will never overheat or burnout even when overlapped. The cable can also be cut to any length. As the result, we got an energy efficient heating cable. With optional outer jackets, the heating cable is resistant to watery and inorganic chemicals and protected against abrasion and impacted damage. Typical application is heat trace designs and applications.
Technical data
Power output: 11, 17, 23, 31 (W/m)
Max. maintain temperature: 65°C
Max. exposure temperature: 85°C
Min. installation temperature: -40°C
Rated voltage: 110V-120V / 220V-240V
Max. maintain temperature: 65°C
Max. exposure temperature: 85°C
Min. installation temperature: -40°C
Rated voltage: 110V-120V / 220V-240V
Applications
FSR is designed for commercial and residential metal and plastic pipe process temperature maintenance and frost protection of regular pipelines, tanks, valves, flanges, roof & gutter de-icing and other applications of low temperature working conditions. A UV stabilized thermoplastic elastomer outer jacket is provided to cover the braid for wet
applications and exposure to the sun. It is suitable for non-hazardous area, then cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area.
applications and exposure to the sun. It is suitable for non-hazardous area, then cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area.
Product Parameters
FSR series: | ||
FSR-P | Tinned copper braid provides additional mechanical and ground protection. | |
FSR-PB | Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage. | |
FSR-PF | Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions. | |
Max. resistance of braid | ≤18.2Ω/km | |
Bus wire gauge | 18 AWG | |
Certificates | UL CE EAC EAC-ex ATEX | |
Technical Summary | ||||||||||||||
Part Number | Output power @+10°C (W/m) | Max. maintain temperature (°C) | Max. length @+10°C 16/25A (m) | Max. length @+0°C 16/25A (m) | Max. length @-20°C 16/25A (m) | Dimension (mm) | Weight (kg/100m) | |||||||
11FSR-PB | 11 | 65 | 120/145 | 121/140 | 108/120 | 10.4×5.3 | 8.4 | |||||||
11FSR-PF | 11 | 65 | 120/145 | 121/140 | 108/120 | 10.1×5.0 | 8.0 | |||||||
17FSR-PB | 17 | 65 | 115/120 | 106/120 | 95/115 | 10.4×5.3 | 8.4 | |||||||
17FSR-PF | 17 | 65 | 115/120 | 106/120 | 95/115 | 10.1×5.0 | 8.0 | |||||||
23FSR-PB | 23 | 65 | 75/100 | 72/91 | 65/84 | 10.4×5.3 | 8.4 | |||||||
23FSR-PF | 23 | 65 | 75/100 | 72/91 | 65/84 | 10.1×5.0 | 8.0 | |||||||
31FSR-PB | 31 | 65 | 51/65 | 45/61 | 40/55 | 10.4×5.3 | 8.4 | |||||||
31FSR-PF | 31 | 65 | 51/65 | 45/61 | 40/55 | 10.1×5.0 | 8.0 | |||||||
Our Advantages
Product Characters
1.Long life time: PTC semi-conductive matrix with high quality and excellent technology.
2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature.
3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation cross linking reaction. High insulation
resistance.
4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required.
5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped.
6.Low starting current: PTC 3 layer co-extruded technology, low starting current and low Attenuation rate.
7.Cable durable: UV protection, high and low temperature resistant, weather resistant.
2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature.
3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation cross linking reaction. High insulation
resistance.
4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required.
5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped.
6.Low starting current: PTC 3 layer co-extruded technology, low starting current and low Attenuation rate.
7.Cable durable: UV protection, high and low temperature resistant, weather resistant.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

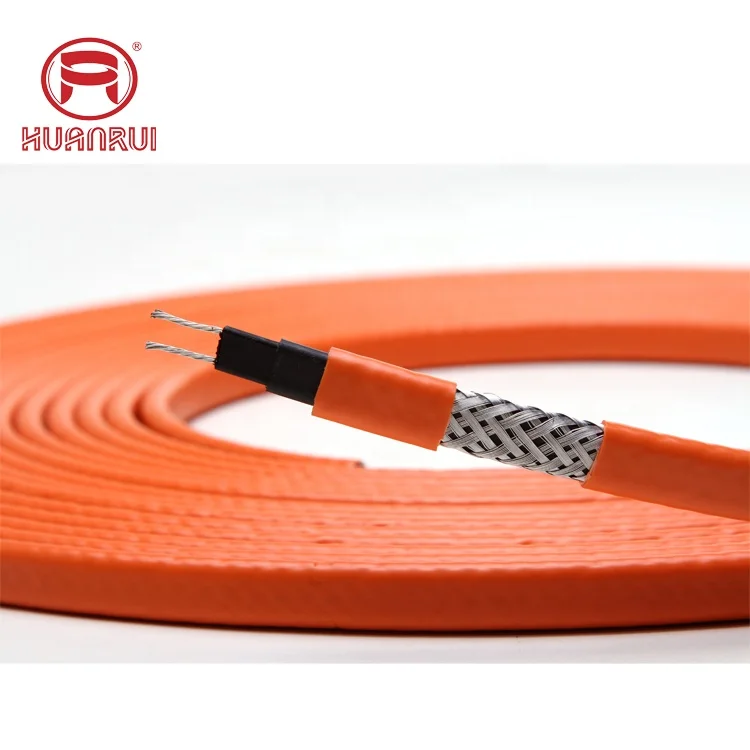

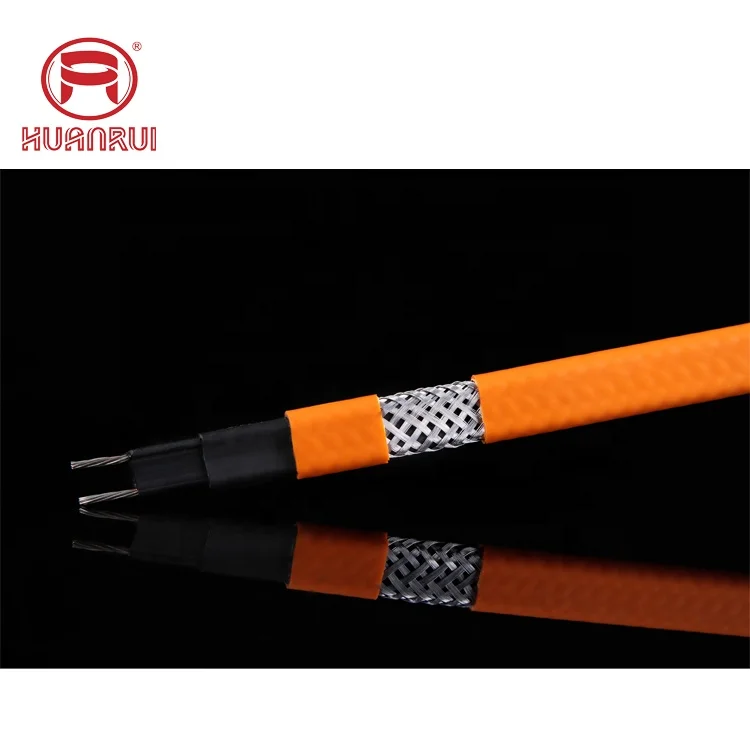

Three layer co-extrusion technology
1. Conductor
2. Low resistance transition layer
3. PTC Semi-conductive
4. Inner insulation layer
5. Outer insulation layer
6. Metal braid
7. Outer jacket
2. Low resistance transition layer
3. PTC Semi-conductive
4. Inner insulation layer
5. Outer insulation layer
6. Metal braid
7. Outer jacket
1. Definition
Three-layer co-extrusion technology of self-regulating heating cables is characterized in: the cables consist of two conductive
wires with a low resistance transition layers, PTC semi-conductive matrix, inner insulating layer and outer insulating layer,
metal braid and outer jacket. Among them the three layers — low resistance transition layer, PTC Semi-conductive matrix and inner
insulting layer are extruded in one step.
2. Advantages
A. Owing to three-layer co-extrusion technology, the inner insulating layer wrapped the PTC semi-conductive matrix tightly. No gap, no air, no water, no oil and no impurities will contaminate the matrix, which reduces the cable decay rate.
B. Low resistance transition layer contacts the PTC semi-conductive matrix tightly, effectively reducing the current impact to the material of PTC, reducing the start current, prolonging service life.
C. Most of out-sourcinginsulation resin will damage the PTC matrix on the performancesuch as life-span and insulation safety. Huanrui improved it by using self-made special modified insulation resin, the resin matches the PTC well and avoids the damaged to both layers, with longer life-span and higher performance.
Material properties:
Excellent weather resistance and ultraviolet radiation.
High and low temperature resistance, -50°C—140°C.
Great insulating property. 2000MΩ per 100 meters.
Three-layer co-extrusion technology of self-regulating heating cables is characterized in: the cables consist of two conductive
wires with a low resistance transition layers, PTC semi-conductive matrix, inner insulating layer and outer insulating layer,
metal braid and outer jacket. Among them the three layers — low resistance transition layer, PTC Semi-conductive matrix and inner
insulting layer are extruded in one step.
2. Advantages
A. Owing to three-layer co-extrusion technology, the inner insulating layer wrapped the PTC semi-conductive matrix tightly. No gap, no air, no water, no oil and no impurities will contaminate the matrix, which reduces the cable decay rate.
B. Low resistance transition layer contacts the PTC semi-conductive matrix tightly, effectively reducing the current impact to the material of PTC, reducing the start current, prolonging service life.
C. Most of out-sourcinginsulation resin will damage the PTC matrix on the performancesuch as life-span and insulation safety. Huanrui improved it by using self-made special modified insulation resin, the resin matches the PTC well and avoids the damaged to both layers, with longer life-span and higher performance.
Material properties:
Excellent weather resistance and ultraviolet radiation.
High and low temperature resistance, -50°C—140°C.
Great insulating property. 2000MΩ per 100 meters.
