Коаксиальный кабель питания Rg59 для камеры 75 Ом RG59 Сиамский

Описание и отзывы

Трекер стоимости

Характеристики

Foam PE Rg59 with power coaxial cable





Product Description

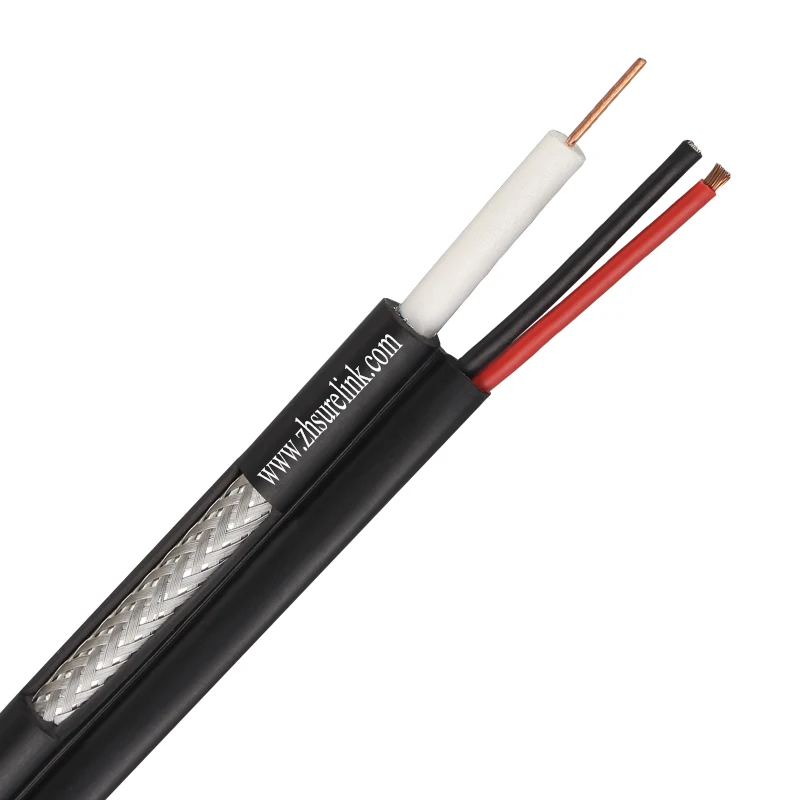

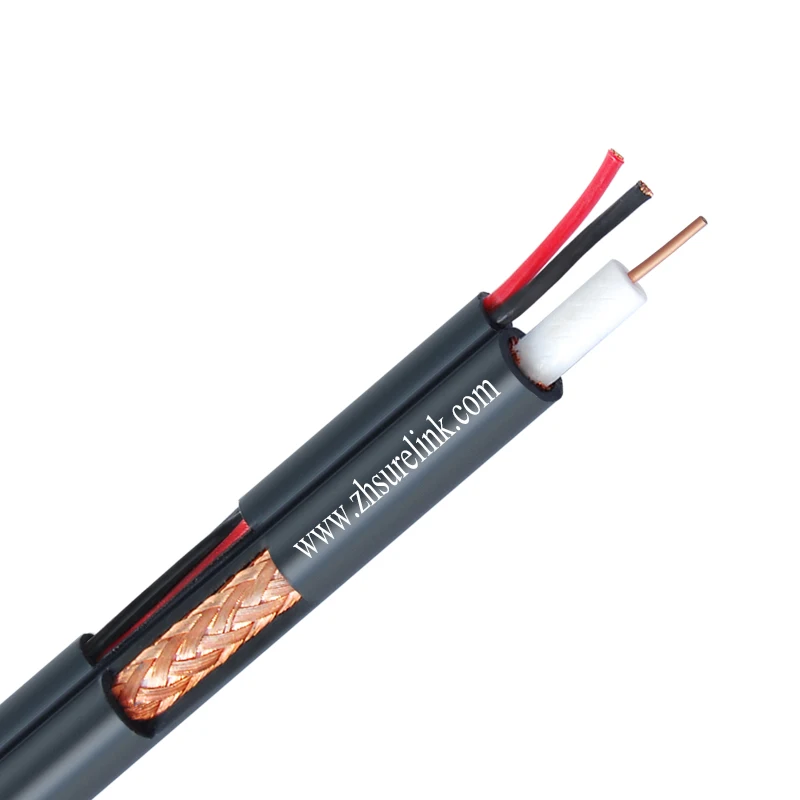

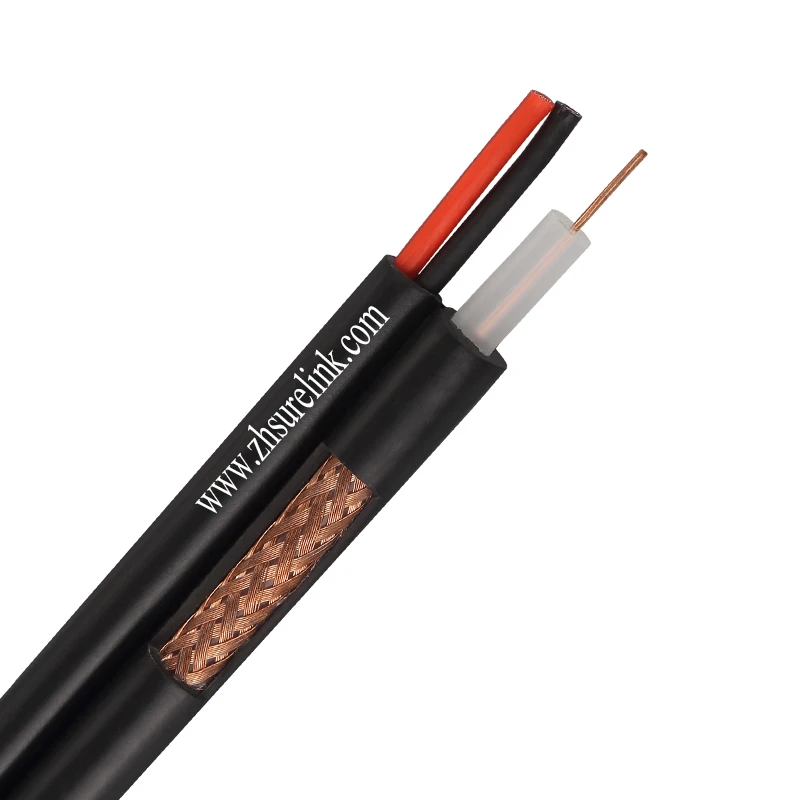

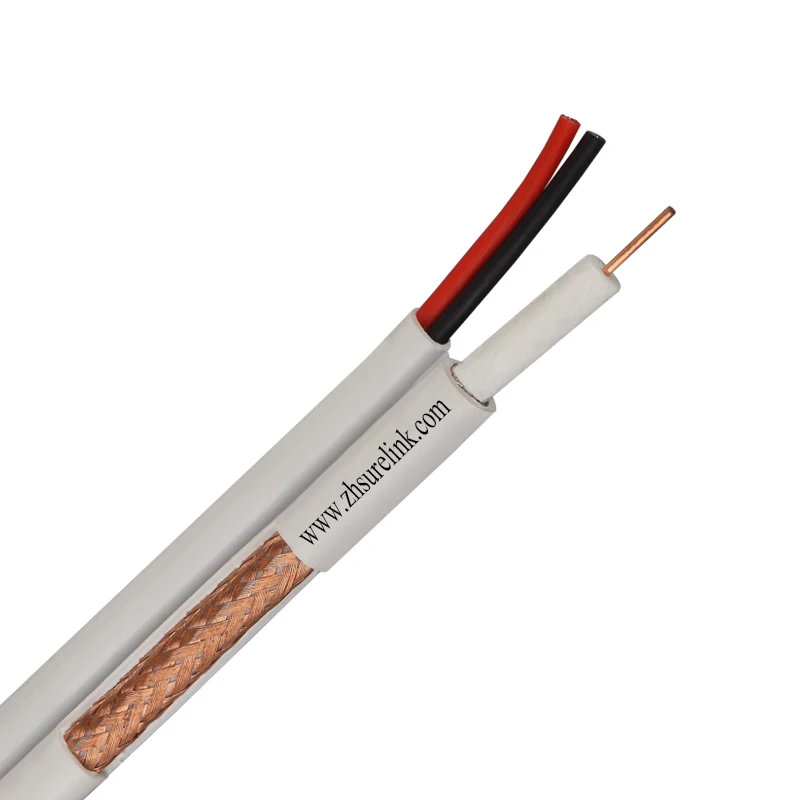

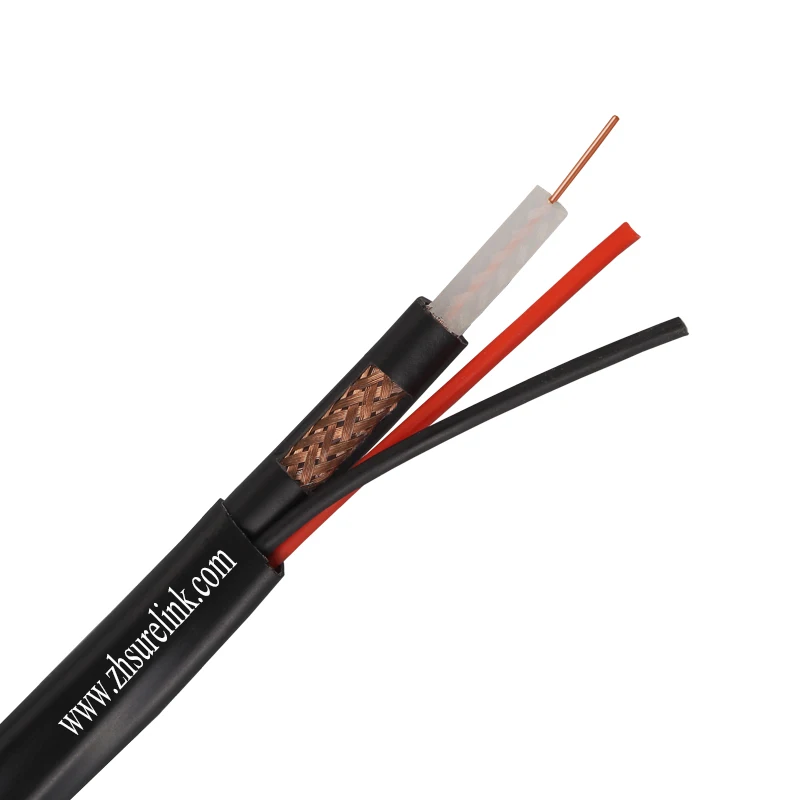

 RG59 with power cable

0.64Cu/CCS+3.66SPE+90%Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2  power

0.81Cu/CCS+3.66FPE+Bonded foil+90% Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2  power



Description for RG59 with power cable

Mainly used for the distribution and access of electronic communication equipment, RF transmitter unit of communication system, building cabling and CATV; the most striking features are broadband and high speed; currently, also widely used in the multimedia transmission field; conforms to RG59.



Features

Specificaitons
Physical dimensions
component	Standard-shield		Tri-shield		Quad-shield
	inchs	mm	inchs	mm	inchs	mm
Nominal center  conductor diameter	0.032	0.81	0.032	0.81	0.032	0.81
Nominal diameter  over dielectric	0.144	3.66	0.144	3.66	0.14	3.66
Nominal diameter  over first shield	0.151	3.84	0.151	3.84	0.151	3.84
Nominal diameter  over jacket	0.24	6.1	0.24	6.1	0.265	6.73
Nominal jacket  wall thickness	0.03	0.76	0.032	0.81	0.034	0.86
Nominal diameter of	0.051(single)	1.3	0.051(single)	1.3	0.051(single)	1.3
steel messenger	0.072(dual)	1.83	0.072(dual)	1.83	0.072(dual)	1.83
Electrial Characteristics
Nominal impedance				75ohms
Nominal Velocity of propagation				0.85
Attenuation(20℃)
Frequency(MHz)		Maximum(dB/100ft)		Maximum(dB/100m)
55		2.05		6.73
211		3.8		12.47
350		4.8		15.75
450		5.4		17.72
550		5.95		19.52
750		6.97		22.87
865		7.52		24.67
1000		8.12		26.64



Related Hot Models



Manufacturer Introduction



Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories.  We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.



Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.



Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.



We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.





Main Cable Categories Provided by Us



1.Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.



Company Show





Certificate





Workshop and Quality Test





Package and Delivery





Payment and Shipping



Payment

We usually use T/T

T/T deposit before production and balance when shipment.

Payment terms: Western Union, Escrow, Paypal, T/T ,L/C

Shipping

If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.

For big order,we will ship the goods by air or by sea.



Just Talk To Us!
