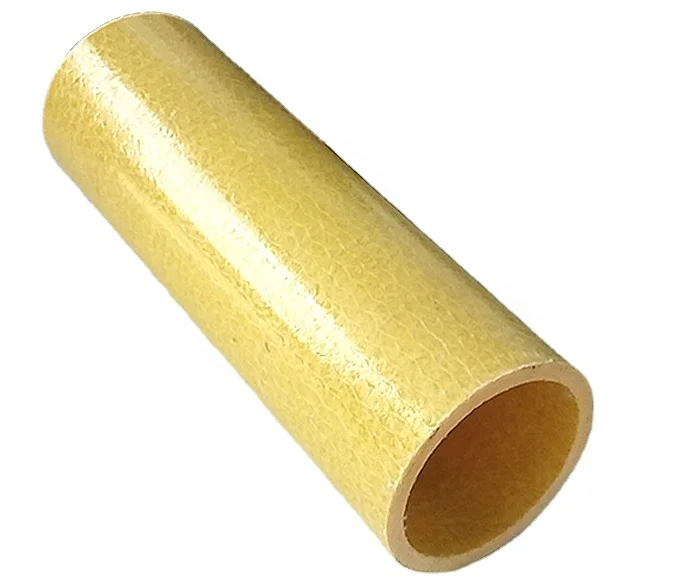

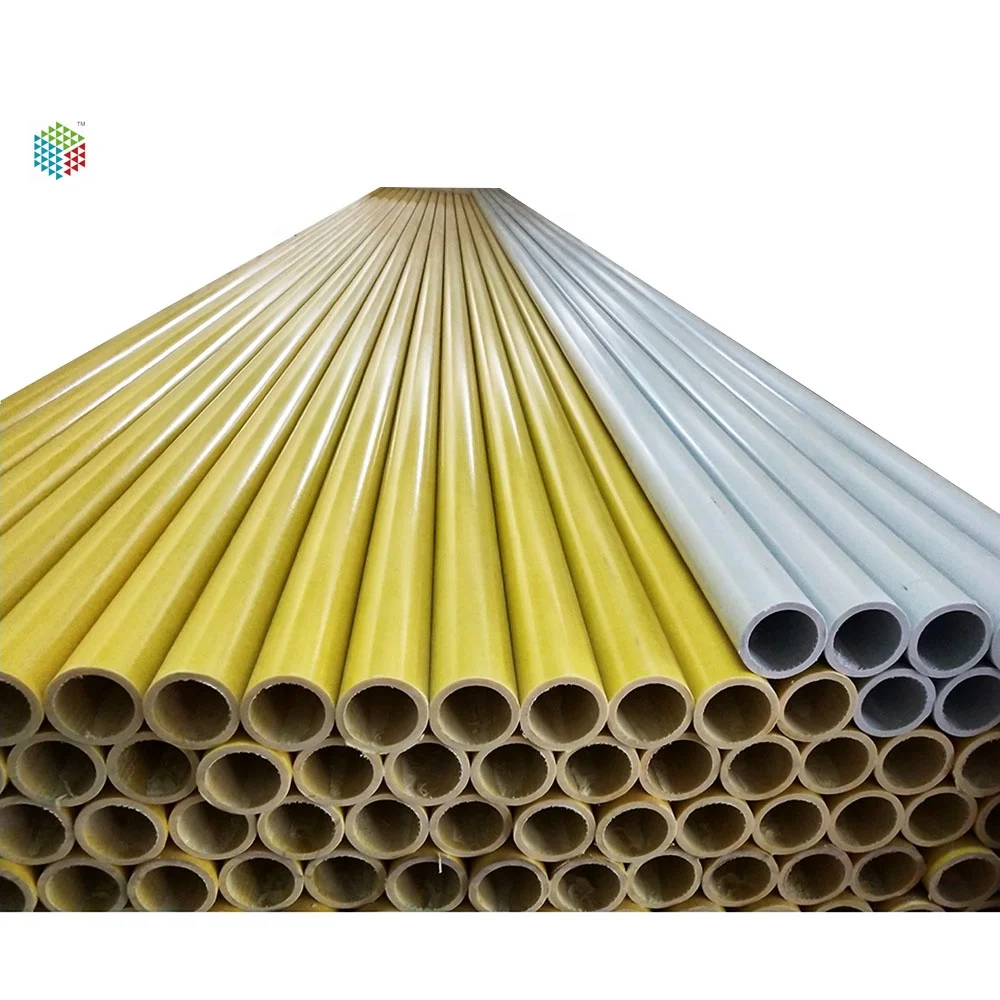

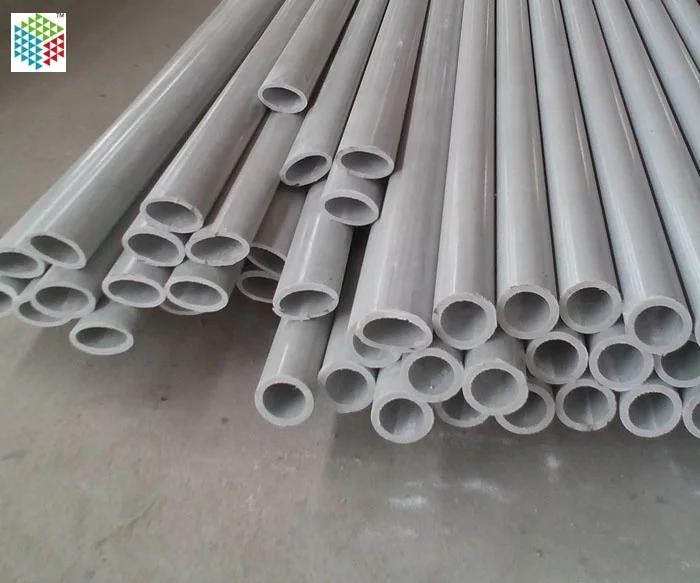

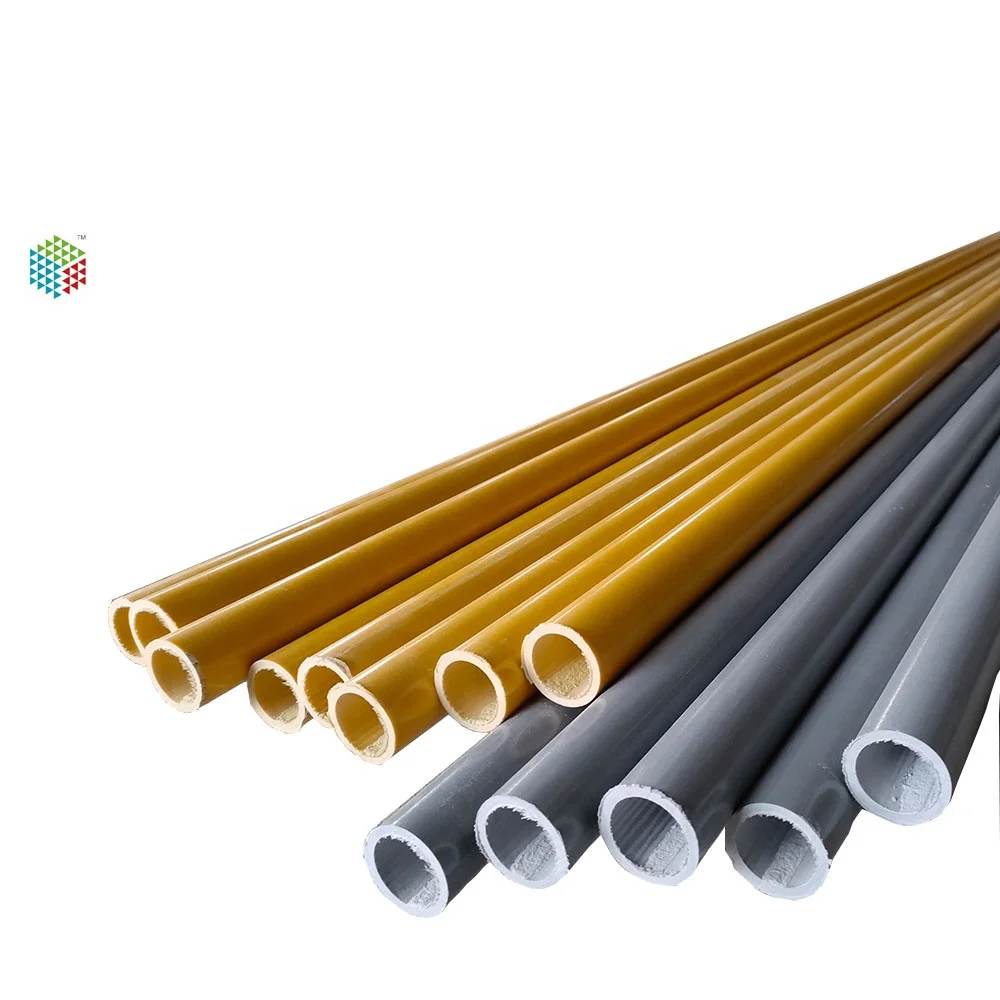

Коррозионной стойкости FRP GPR полая штанга для
- Категория: Fiberglass Products >>>
- Поставщик: Nantong,Wellgrid,Composite,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.88 $* | 0.8 $* |
| Aug-19-2025 | 0.24 $* | 0.44 $* |
| Jul-19-2025 | 0.3 $* | 0.44 $* |
| Jun-19-2025 | 0.22 $* | 0.74 $* |
| May-19-2025 | 0.95 $* | 0.84 $* |
| Apr-19-2025 | 0.64 $* | 0.93 $* |
| Mar-19-2025 | 0.91 $* | 0.32 $* |
| Feb-19-2025 | 0.40 $* | 0.88 $* |
| Jan-19-2025 | 0.45 $* | 0.55 $* |
Характеристики
Products Description
FRP Pultrusion production is a continous production process to produce fiberglass reinforced polymer profiles of any length and
contstant section.Reinforce-ment fibers may be roving,continous mat,woven robing,carbon or others.The fibers are impregnated with
polymer matrix (resin,minerals,pigments,additives) and passed through a pre-forming station that produces the stratification
necessary to give the profile the desired properties,After the pre-forming step,the resin-impregnated fibers are pulled through a
heated die to polymerize the resin.
contstant section.Reinforce-ment fibers may be roving,continous mat,woven robing,carbon or others.The fibers are impregnated with
polymer matrix (resin,minerals,pigments,additives) and passed through a pre-forming station that produces the stratification
necessary to give the profile the desired properties,After the pre-forming step,the resin-impregnated fibers are pulled through a
heated die to polymerize the resin.
Angle | I&H Beams | Channel | Square Tube | Stair Nosing | ||||
25*25*3.2 | 76*38*6.4 | 40*20*4.0 | 15*15*2.5 | 40*25*4 | ||||
30*20*4.0 | 102*51*6.4 | 41*50*5.0 | 25.4*25.4*3.2 | 50*30*4 | ||||
30*30*3.0 | 120*70*8.0 | 50*14*3.2 | 30*30*5.0 | 70*10*4 | ||||
30*30*5.0 | 152*76*6.4 | 50*30*4.0 | 38*38*3.2 | 70*25*4 | ||||
40*22*4.0 | 152*76*9.5 | 55*47*6.4 | 38*38*5.0 | 70*30*4 | ||||
40*40*4.0 | 160*80*8.0 | 64*32*4.8 | 38*38*6.4 | 76*25*4 | ||||
40*40*8.0 | 200*150*10.0 | 75*25*5.0 | 40*40*4.0 | 152*25*4 | ||||
50*50*5.0 | 203*102*9.5 | 80*30*3.1 | 40*40*6.0 | 228*25*4 | ||||
50*50*6.4 | 203*102*12.7 | 100*85*3.5 | 44*44*3.2 | 381*50*4 | ||||
76*76*6.4 | 76*76*6.4 | 100*60*5.5 | 44*44*6.4 | 55*55*4 | ||||
76*76*9.5 | 102*102*6.4 | 101.6*30*6.4 | 45*45*4.0 | 345*55*4 | ||||
102*51*9.5 | 100*100*8.0 | 101.6*44*6.4 | 50*50*4.0 | |||||
152*152*6.4 | 101.6*35*3.2 | 50*50*5.0 | Flat strip | |||||

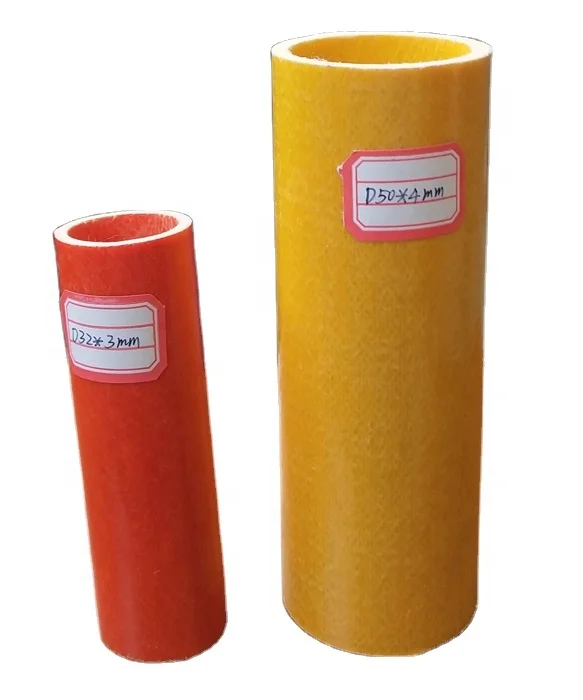

Round Tube | 203*203*9.5 | 101.6*48*3.2 | 50*50*6.4 | 50*4 | ||||
D25.4*2.5 | 203*203*12.7 | 110*50*5.0 | 64*64*6.4 | 60*3 | ||||
D32*3.0 | 305*127*12.7 | 150*50*6.0 | 64*64*6.4 | 90*4 | ||||
D38*3.0 | 305*152*12.7 | 152*35*4.8 | 120*4 | |||||
D40*4.0 | 254*254*12.7 | 152*48*4.8 | Omega TopRail | |||||
D50*4.0 | 305*305*12.7 | 152*42*6.4 | 71*60*4.5-50 box | |||||
D50*5.0 | 203*55*9.5 | 88*76*5.5-60 box | ||||||
D76*6.4 | 254*72*12.7 | |||||||
Note: please contact us for more customized profiles | ||||||||

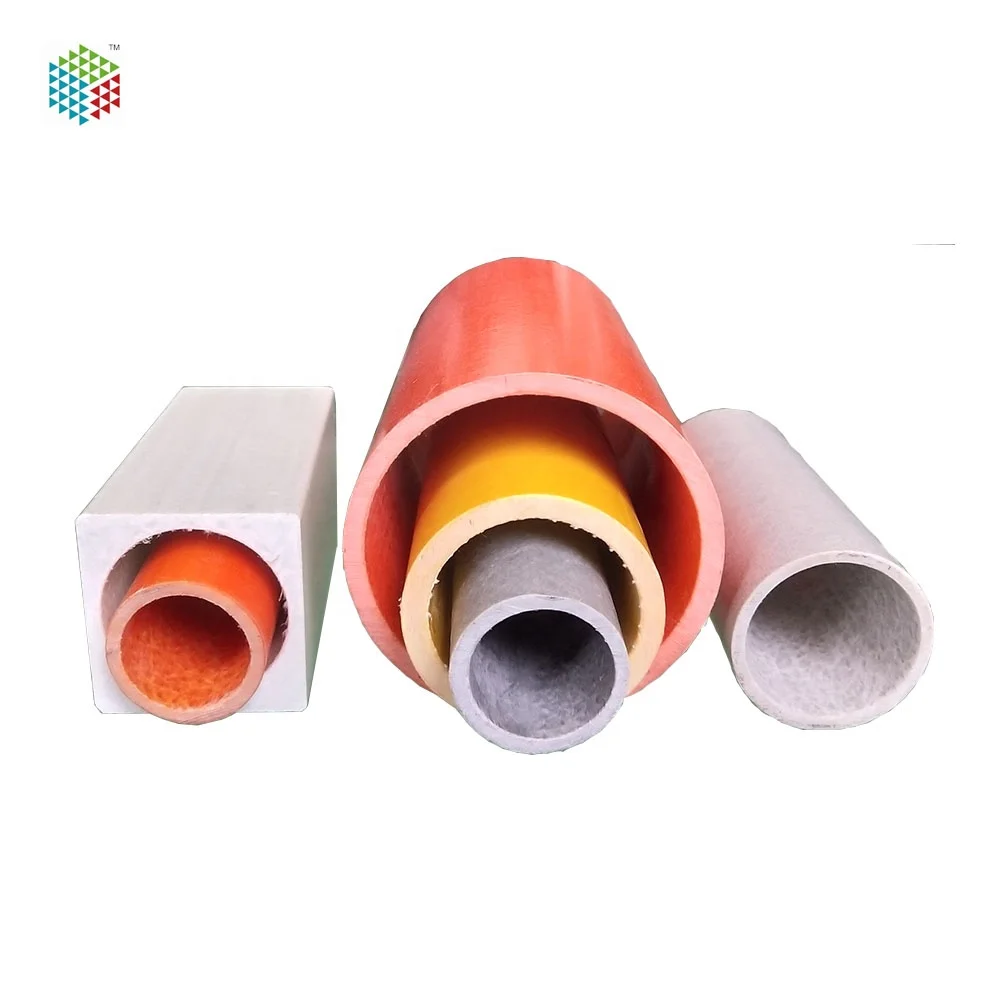

Series of our pultrusion profiles include square tube, rectangular tube, round tube, angel, I-beam, Channel, rod and other custom profiles. After proper combination and connection, they could be widely used in many fields such as: FRP grating platforms, Walkways, ladders, guardrails, supporting structures of cooling tower, sporting profiles, tool handles and other load structures, etc.
Advantage of pultrusion profile:
1. High strength & Light weight
2. Chemical resistance and No rust
3. Fire Retardancy
4. Dimensional stability
5. High dielectric properties
6. No need maintenance
2. Chemical resistance and No rust
3. Fire Retardancy
4. Dimensional stability
5. High dielectric properties
6. No need maintenance
Our Company
Factory
Production site
FACTORY DISPLAY
1.Covering an area of 8000 square meters manufacturing base
2.Annual sales figure that exceeds USD3,500,000 and are currently exporting 75% of our production worldwide.
3.Over 10 years rich experience in FRP industry
4.Custom-made service
2.Annual sales figure that exceeds USD3,500,000 and are currently exporting 75% of our production worldwide.
3.Over 10 years rich experience in FRP industry
4.Custom-made service
Certifications
Packing and Delivery
Packing Details : Pallets are often used for safety transportation
Delivery Details : 10-45 days according order
Delivery Details : 10-45 days according order
Carton Box
Wood Pallet
Container Shipping
Widely Application
Pultruded Structural Shapes are good alternative over conventional metal structural shapes & Offers ideal solution against
corrosion problems failed in industrial environment.
CURRENTLY DEVELOPED APPLICATIONS
* Walkways & Bridges * Electrical Insulating Sections
* Cooling Tower Sections * Cable Tray Systems
* Maintenance Platforms * Ladders and Hand Rails
* Fencing & Signboards * Buildings and Sheds
* Mezzanines * Baying Platforms
* Pipe and Equipment Racks * Tank Loading Platforms
* Trash and Bar Screens * Decks
* Tank Covers and Supports
corrosion problems failed in industrial environment.
CURRENTLY DEVELOPED APPLICATIONS
* Walkways & Bridges * Electrical Insulating Sections
* Cooling Tower Sections * Cable Tray Systems
* Maintenance Platforms * Ladders and Hand Rails
* Fencing & Signboards * Buildings and Sheds
* Mezzanines * Baying Platforms
* Pipe and Equipment Racks * Tank Loading Platforms
* Trash and Bar Screens * Decks
* Tank Covers and Supports
