Product Description

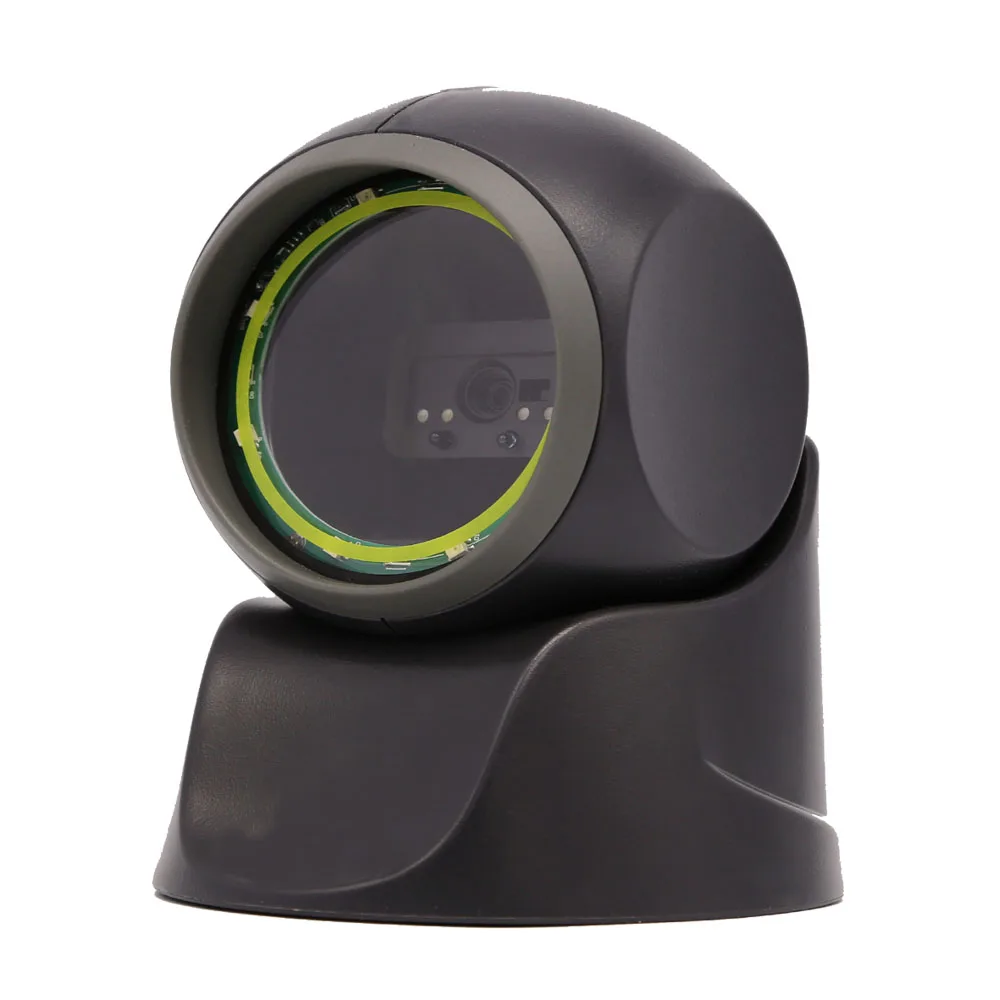

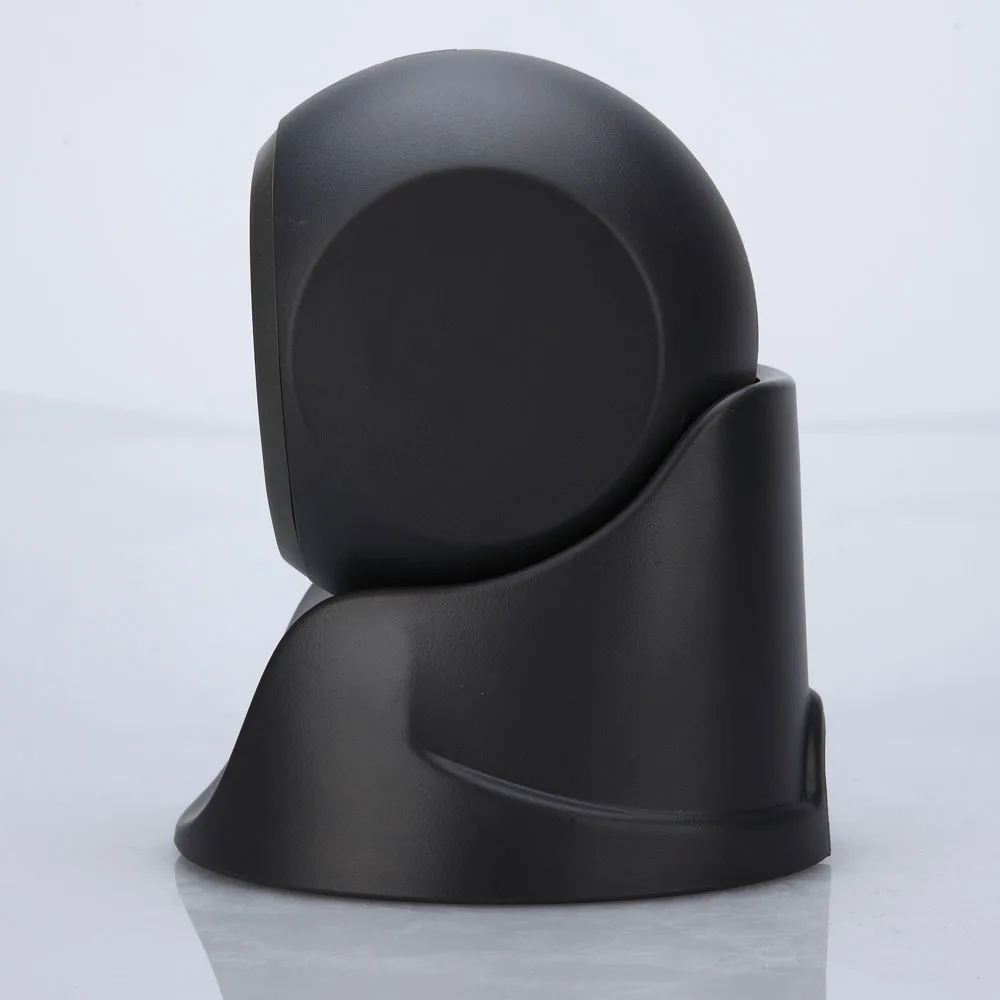

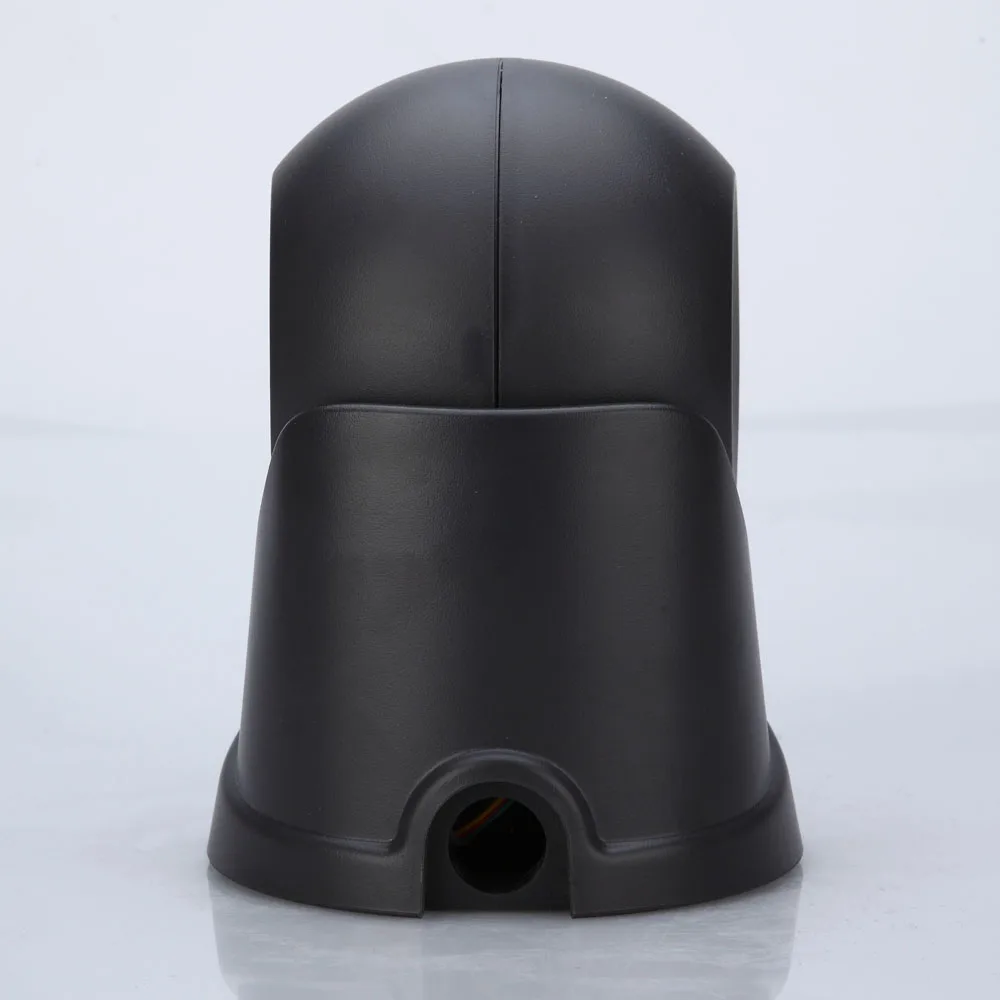

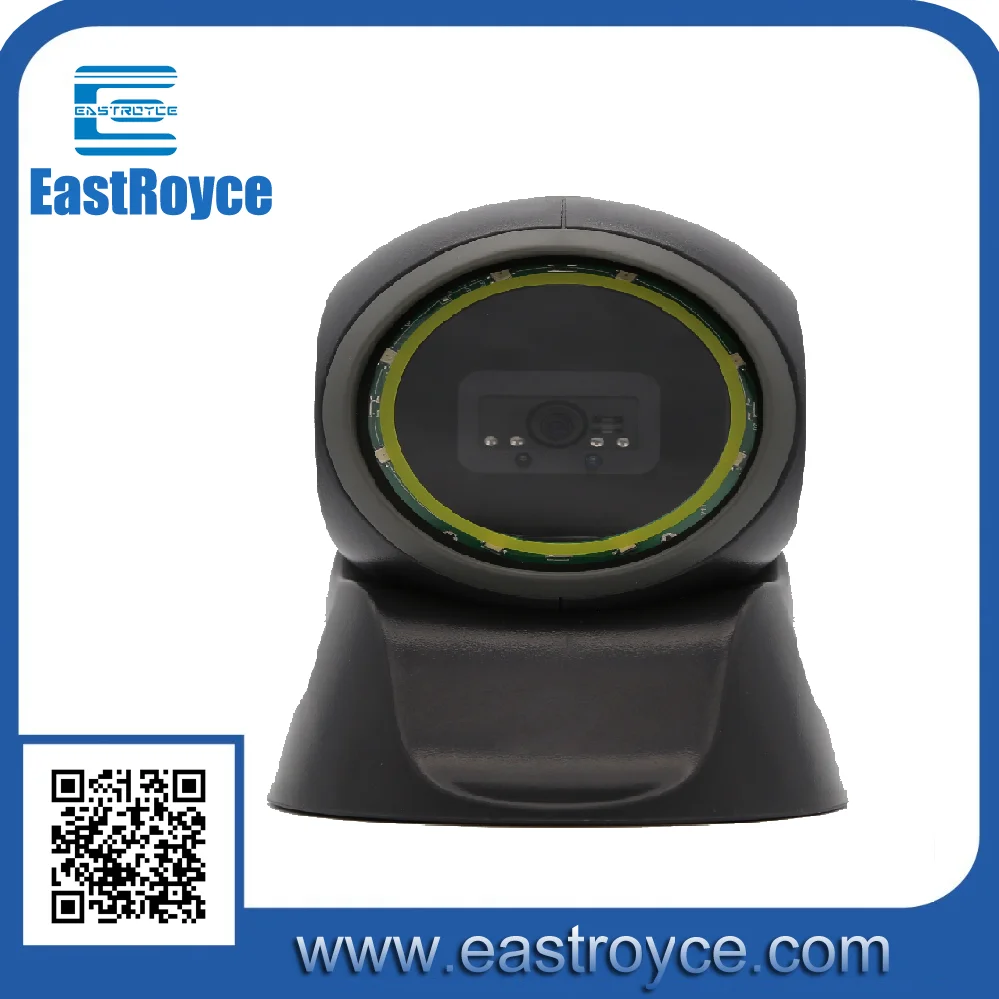

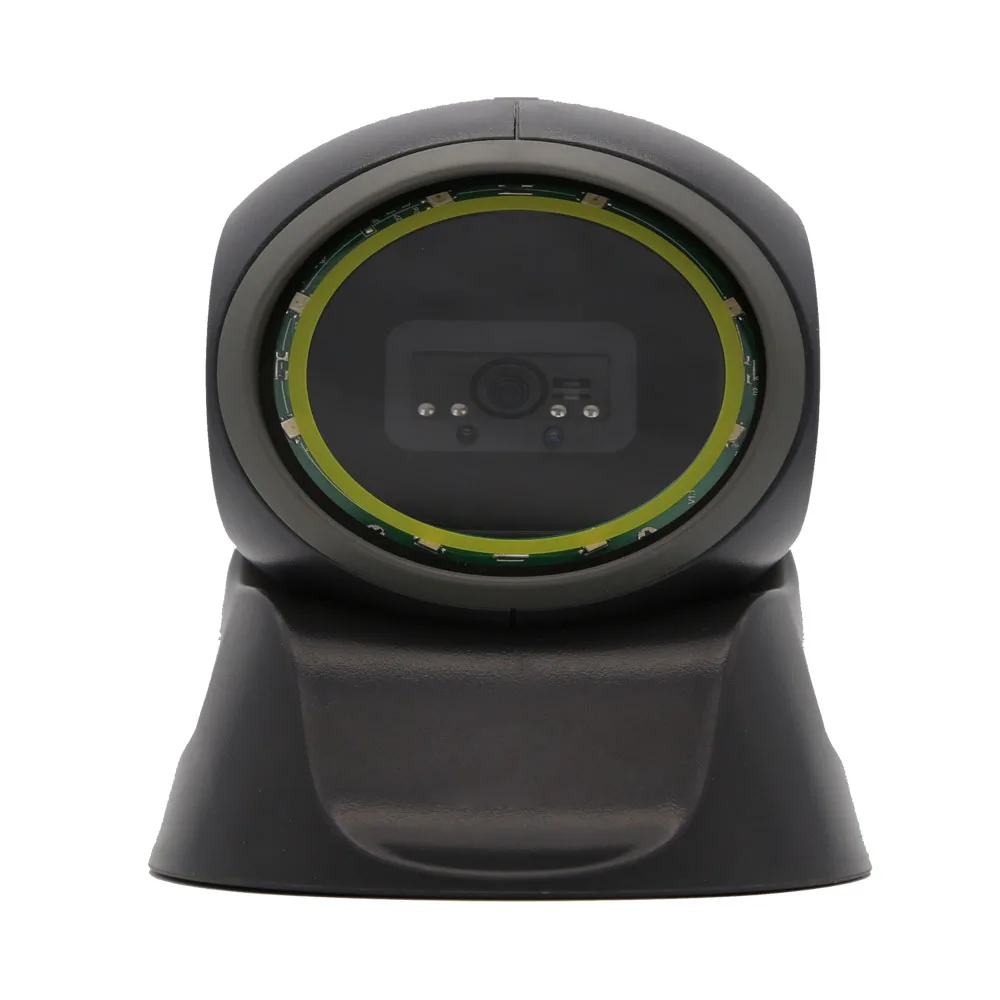

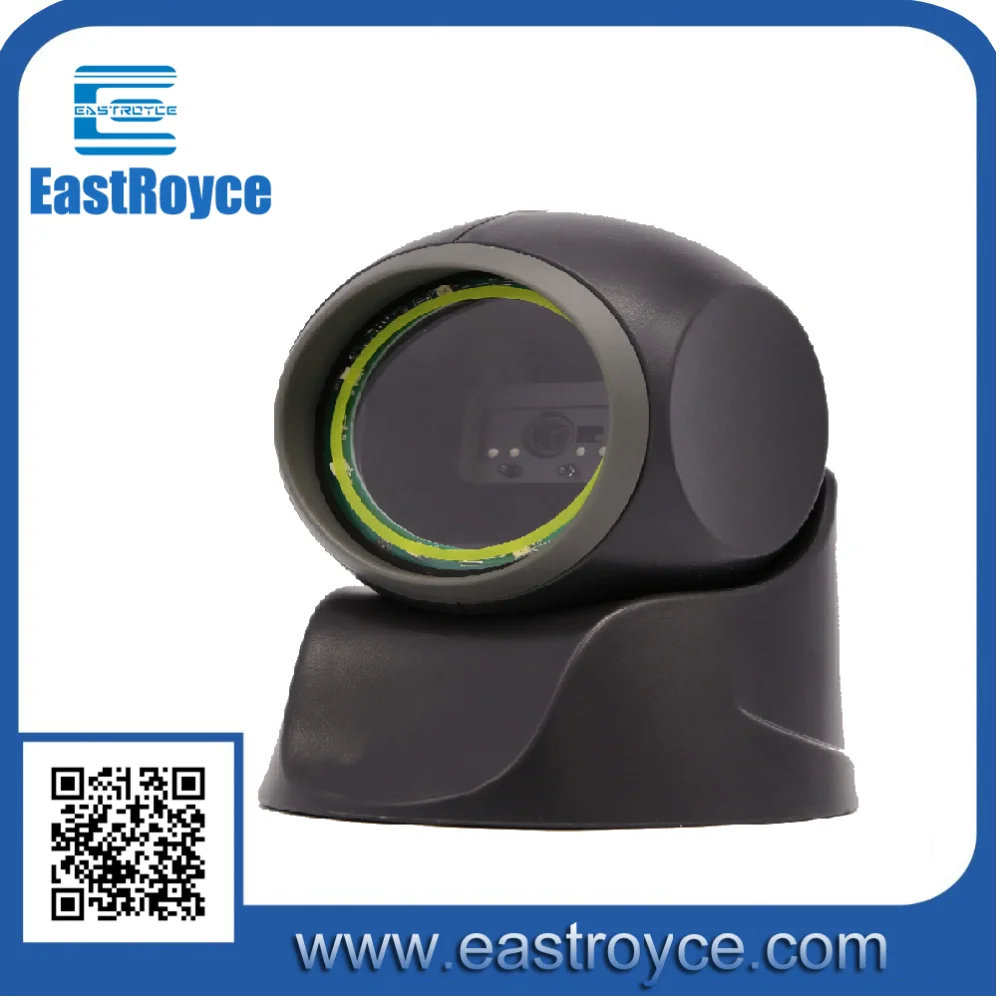

High Quality Desktop POS 1D and 2D Omni-directional Barcode Scanner supporting Screen Code Reading-PDF417 Data QR Code reader


ER-B91-2D is one of our omnidirectional scanners which could both read the 1D barcodes and 2D codes. It is suitable for conditions that requires high decoding ability and performance. Its excellent durability makes it ideal for any retail systems environment.



Technical Specs


Scan Performance
Product  Name
Desktop POS 1D and 2D Omni-directional Barcode Scanner
Material
ABS + EVA
Light Source
Red LED 650±10 nm
Indicator
Beeper and LED
Revolve Angle
±36° Left-right, ±23° Top-down
Resolution
>=5mil
Read Rate
200 scans/sec
Bit Error Rate
1/800 million
Scan Angle Roll
360°; Pitch: ±50°; Skew: ±50°
Image Sensor
752x480 CMOS
Field of View
Horizontal 36°; Vertical 23° Mechanical
Depth of Field
UPC-A (13mil) 55mm - 270mm
Code 39 (20mil) 50mm - 340mm
PDF 417 (6.67mil) 70mm - 165mm
Data Matrix (10mil) 55mm - 180mm
QR Code (20mil) 35mm - 275mm
symbol contrast
>= 20%
Interface
TTL-232, USB (HID-KBW, USB COM Port Emulation, DATAPIPE, HID-POS)

Decode Type
2D:PDF417, QR Code (Model 1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140)
1D:Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.
Electrical
Power adapter Input
AC100~240V, 50~60Hz
Power adapter Output
DC5V, 2A
Operating Voltage
3.0 ~ 3.6VDC
Current
Operating: 230mA Standby: 40mA
Dust-proof and waterproof Grade
IP65
ESD Protect
15KV
Environmental
Operating Temperature
-20°C ~ 60°C
Storage Temperature
-40°C ~ 80°C
Humidity
5% ~ 95% RH (non-condensing)
Ambient Light
0 ~ 100000 lux (natural light)
Mechanical
Dimensions
112mmL x 102mmW x 147mmH
Weight
Average 360g
Color
White, Black
Cable
2m
Other
Language
Support multiple kinds of language
Interface Type
RJ-45
Accessories:
Scanner, Manual, Cable, Neutral Packing Box


Cautions

Please make sure the operating voltage is enough and not over the technical specification.
Please do not scan the laser with eyes.
Please protect the scanner once touching the corrosive, chemical, dangerous, toxic or high voltage material.
Please read the configuration guide before using.



Related Products






Our Company


Shenzhen Eastroyce Technology Co., Ltd.,born with mature technology accumulation, one of Apple Authorized MFi Program Members that provides solutions for MFi related products. with 10-years powerful Thermal Receipt printer /Mobile Printer/Pos printer/Barcoe printer/Barcode Scanner/Touch POS Terminal industry experiences.



We have been always focusing on product designing&quality&service, Our target is make sure every product designed/manufactured and sold by us is best and with long lasting life. With our innovation R&D team and responsible/professional manufacturing team,we successfully provided a lot of solutions to customer around the world. One of our customer even got Germany Red Dot Award with our solutions.



The amount of printers developed or manufactured by us which are widely used by users all over the world is more than 1 million pieces.We believe faith,honesty will finally bring us real partners ,good co-workers,even close friendship.When you stop here, don't hesitate to contact us, we will provide the best solution that exceed your expectation.





Our advantages




QUALITY ASSURANCE
To provide quality products at the same time to improve after-sales support.
ONE-STOP SERVICE
We have competent R&D Group and expe- rienced engineers.
INDEPENDENT FACTOR
We have own assem- bling factory and mold factory.


PROFESSIONAL TEAM
Professional team to provide you with efficient service.


Packing & Delivery


Packing
One Carton : 20pcs
Carton size: 68cm x 47.5cm x 33cm
Carton Gross Weight: 13.4Kg
Package Size/piece: 112mmL x 102mmW x 147mmH

Delivery

ship within 1~5 days for samples.
ship within 3~15 days for batch order.





Contact






FAQ


Q: Are you a Trading Company or Manufacturer ?

EastRoyce: We are manufacturer and developer of barcode scanners. We have innovative R&D team and professonal manufacturing team.



Q: What is the scanning area of ​​the barcode scanners? (A lot of light comes out like a barcode scanner in a supermarket)

A: Our barcode scanner is single line.



Q: What is the service life of the barcode scanner?

A: Our gun can scan more than 3 million times.



Q: What is the difference between laser and red CCD?

A: The laser has high sensitivity and fast scanning speed. It can only scan barcodes on paper or plastic, but does not support scanning screen barcodes. Red light supports scanning screen barcodes, fuzzy barcodes, barcodes on paper and plastic, red light scanning speed is not as fast as laser!

Our company's current product categories:

laser: ER-B006X, ER-B007X, ER-B10X, ER-B88BT, ER-B88W, ER-B90, ER-B90A, ER-B91, ER-B71, ER-B71BT.

Red light: ER-B006H, ER-B007H, ER-B008X, ER-B91-2D, ER-B70-CCD.



Q: What is the auto-sense/auto-scan function? What are the models?

A: The auto-sense/auto-scan function can be realized by setting. The company is equipped with a stand-it can automatically recognize and read the barcode without pressing the button.

Model:ER-B007X ,ER-B10X ,ER-B91-2D



Q: What battery does the barcode scanners use, and is there a certification report?

A: The bar code gun uses 18650 lithium batteries, which have the latest MSDS and UN38.3 battery reports.


Q: Why can't some barcodes be scanned?

 A: Because some infrequently used barcodes are disabled by default at the factory, you only need to enable the corresponding type of barcode to scan normally. If you don't know the barcode type, you can contact our technicians to help you solve it.



Q: Why Choose US ?

A: We are factory/company developing/manufacturing barcode scanners with our professional R&D/Production team, all the products are 100% QC inspected and passed before shipment.Years ago, EastRoyce joined the Apple MFi licensing Program and became one of MFi Members, we are serious on our technology capability.


Q:Why Your Product Price is Higher than some other brand ?

A: We always believe that Best Product is basing on Best Design first , then Best Materials Control, finally Best Quality(Manufacturing) Control. A best product with long lasting life must be made by much better performance components/materials with higher cost. We don't want to sell a product which you can only use for 1 year , half a year , even a few months.
