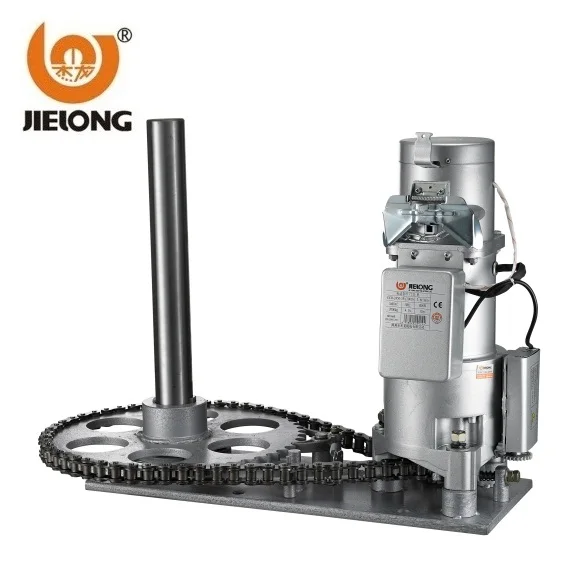

Автоматические роликовые дверные двигатели Jielong 2000

Описание и отзывы

Трекер стоимости

Характеристики



 JIELONG Shutter Motors Ltd established in 1988, Focus on Industrial shutter door opener, Fireproof door motor, Rolling shutter door motor and their accessories. Following accumulated technical experience, management system for more than 29 years, JIELONG has become the leading manufacturer of rolling shutter door in China.





PRODUCTS FEATURES:

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

• Pleasing designs with powerful drive.


• With 120 ℃ overheat protection, overload protection.


• Safety Brake, accurate limited control positioning, with double limit switches protection.


• Manual operation when power-off.


• Easy to install, easy to maintain and long product life.


• With the national patent of Chian-break protection device.



TECHNICAL PARAMETERS:

Model	Rated output forque (N.m)	Rated output speed (r/min)	Motor power (W)	Rated voltage (V/Hz)	Rated current (A)	Continuous working time (min)	Durm dube outer diameter (mm)	Max. lifting power (kg.f)	Max. lift height (m)
									Profile thickness (mm)
									15	20
Single phase motor
ECR-84-1P	84	5.0	75	220/50	2.8	7	89	200	4	4.5
ECR-168-1P	168	5.0	250	220/50	2.8	7	114	300	6	7
ECR-225-1P	225	4.2	180	220/50	1.8	7	114	400	6	7
ECR-343-1P	343	4.8	370	220/50	3.2	7	140	500	6	7
ECR-412-1P	412	4.8	370	220/50	3.3	7	140	600	6	7
ECR-647-1P	647	4.0	400	220/50	4.7	7	165	800	7	7
ECR-809-1P	809	3.5	400	220/50	4.9	7	165	1000	6	7
ECR-1617-1P	1617	3.3	700	220/50	8.2	7	219	1500	9	10
Three phase motor
ECR-168-3P	168	5.0	250	380/50	1.5	15	114	300	6	7
ECR-225-3P	225	4.2	180	380/50	0.75	15	114	400	6	7
ECR-343-3P	343	4.8	250	380/50	1.5	15	140	500	6	7
ECR-412-3P	412	4.8	250	380/50	1.5	15	140	600	6	7
ECR-647-3P	647	4.0	370	380/50	2.3	15	165	800	7	8
ECR-809-3P	809	3.5	370	380/50	2.8	15	165	1000	6	7
ECR-1401-3P	1401	4.4	850	380/50	3.2	15	219	1300	7	8
ECR-1617-3P	1617	5.2	1000	380/50	3.8	15	219	1500	8	9
ECR-2450-3P	2450	3.6	1000	380/50	4.1	15	245	2000	12	13

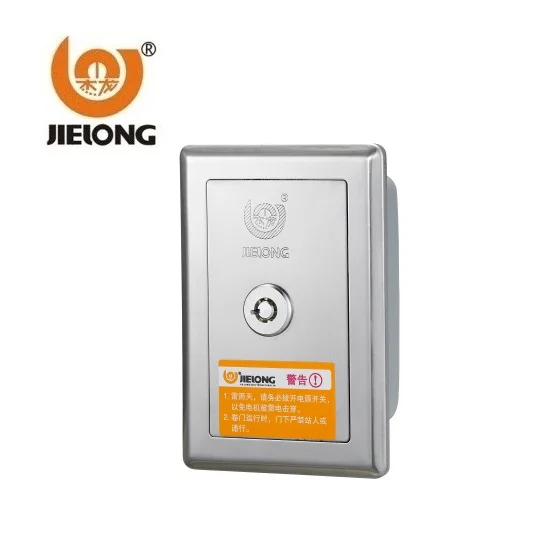

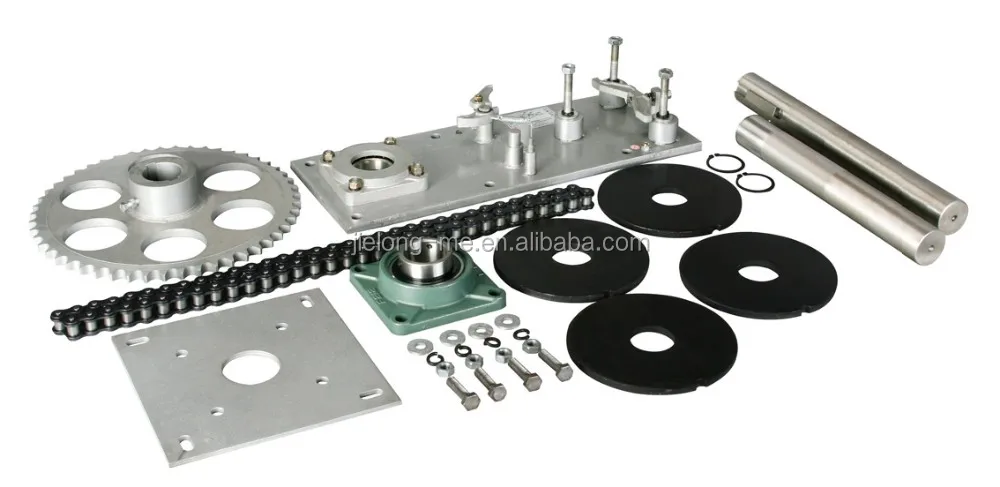

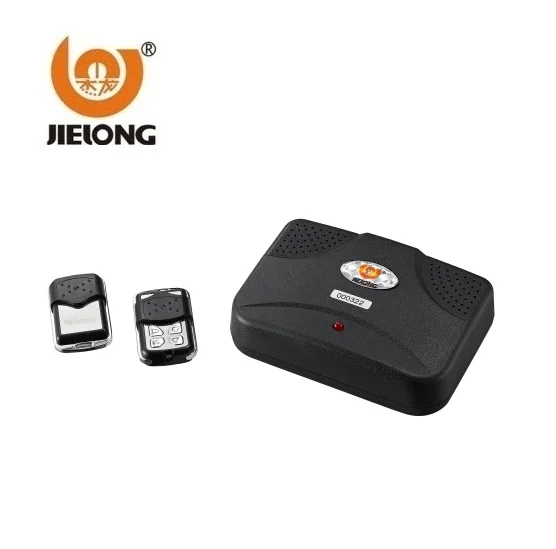

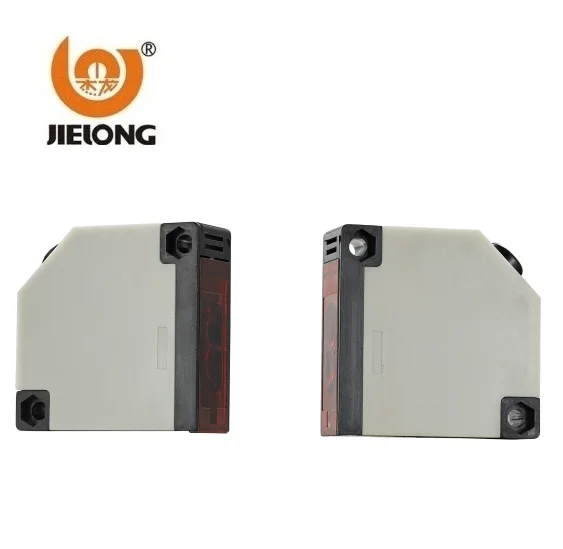

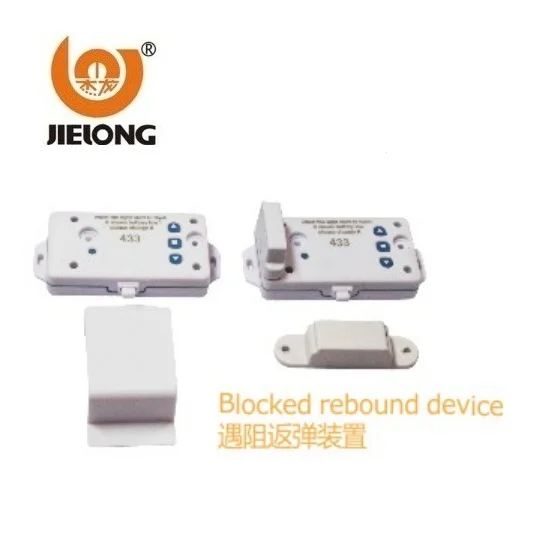

OPTIONAL DEVICES:
