50 л центробежный дисковый полировальный станок для удаления заусенцев/полировальный металла/станок заусенцев на

Introduction
Lucky Bridge centrifugal disc finishing machines provide 10 times effective faster grinding speed compared with conventional vibratory finishing machine. Centrifugal disc finishing machines are typically in small to medium size component surface finishing application.

For special finishing requirement, the centrifugal disc finishing machine especially used for super fine and mirror finishing of specific component or component of special surface requirement

Processing unit (work bowl)
The processing bowl is casted with DuPont hot moulded PU lining with thickness 20-25mm for long service time and high durability

Working principal
The rotating disc with speed 60-250 RPM pushes the media and components mixture upward to the wall of processing bowl and downward to the processing bowl centre. With reduced acceleration force and enhanced gravity force mixture slides back down to the disc where it is again accelerated. Depending on disc rotation speed, the water level as well as media/compound combination, the finishing applications vary from fast grinding to super fine mirror polishing.

The high energy centrifugal disc finishing machine offer productivity 10-30 times higher compared with conventional vibratory finishing process.

Application
The area of application including deburring, surface grinding, radiusing, and polishing of components with thickness around 0.2mm and larger gear components with more than 150mm. Typically stampings parts, casting parts as well as machined parts and tuned parts processed with high speed of the centrifugal disc finishing machine can achieve desirable performance in relative short processing times. Besides, it can achieve a high degree of automation with combination of different of other finishing technology according to user requirement.

Feature

1. Tilting angle of processing bowl up to 135°
2. Optional circular pipe to rinsing and compound dosing
3. Gap adjustment for machine for disc and ring
4. Manual control unloading
5. Possible install of separator screen with customized screen size and shape available
6. Optional double layer screen available for remove undersize media
7. Economical model for low budget application

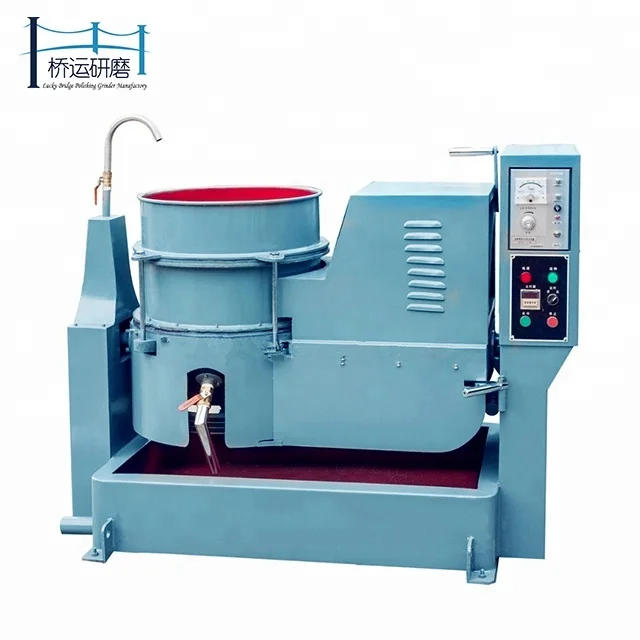

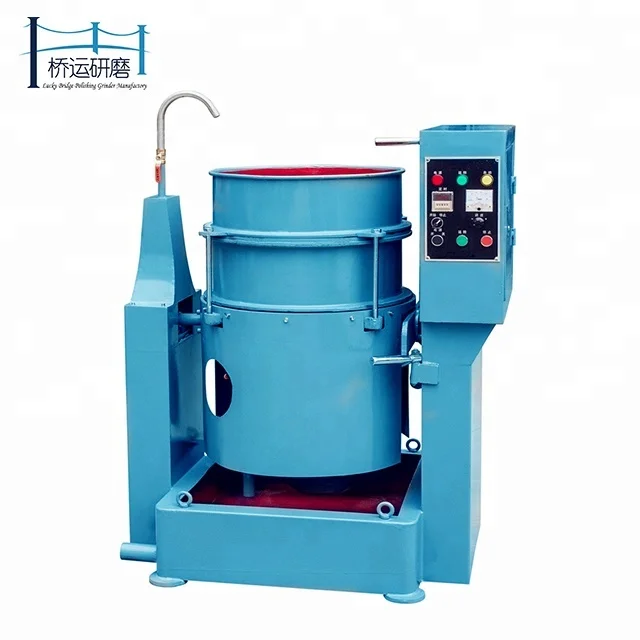

A: Manual Discharge                              B: Automatic Discharge with Separator

COMPANY PROFILE
Huzhou Lucky Bridge Polishing Co., Ltd. was established in 2009. We have been working on the surface of the product for 15 years. We can provide a complete set of solutions for customers, according to the material performance, structure shape, size, surface state and final requirements to select the best machine and materials.

Our company is located in the developed area along the east coast of China, close to the international metropolis - Shanghai. Not only is the transportation convenient, but also the communication between us is more convenient.

Let us prove how good our technology is. We will be happy to put the performance of technology and the CF series to the test. We will give you detailed advice and develop a finishing concept tailored to your needs and formulate the best grinding and polishing media for your application. In addition, we offer to finish a sample workpiece for you with no obligation and to provide you wth a process log documentng all key process parameters.
