Характеристики
Product Description
IPTV HEVC decoder up to 8 channels HD SDI H.264 network live transmit over internet

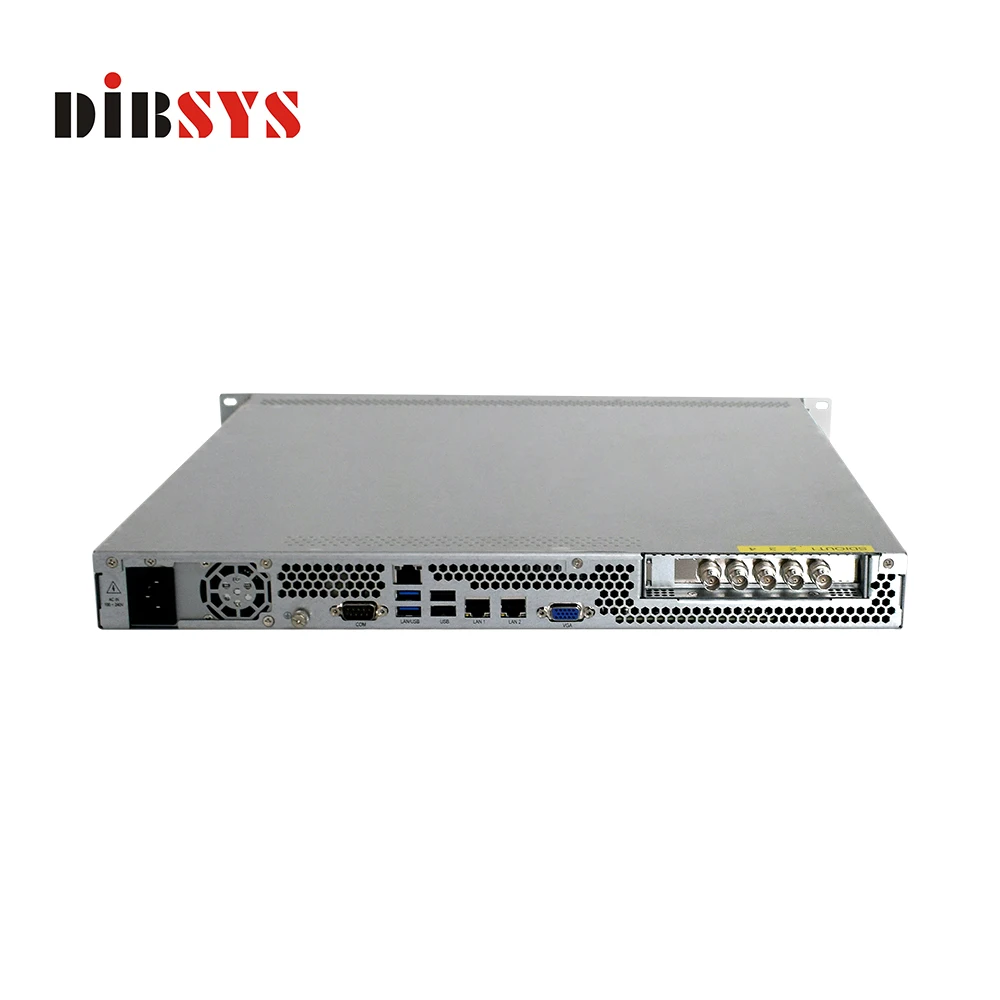

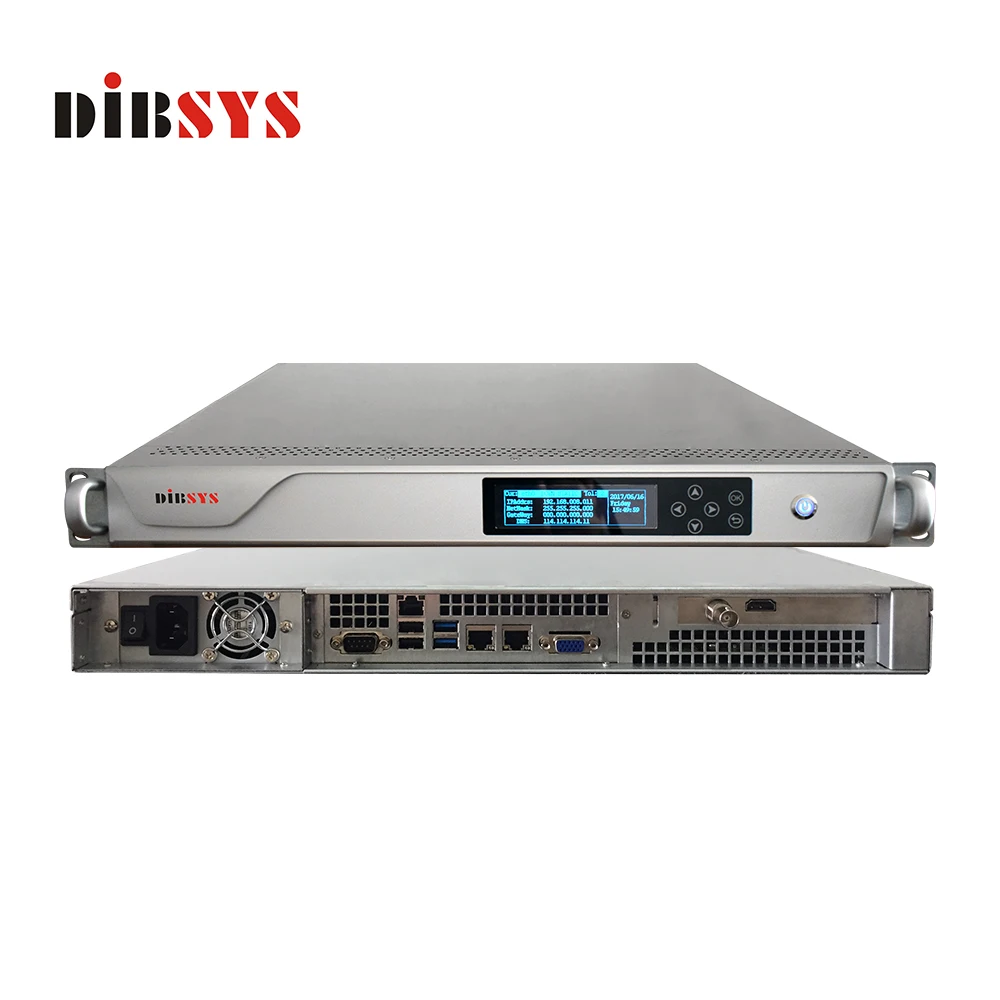

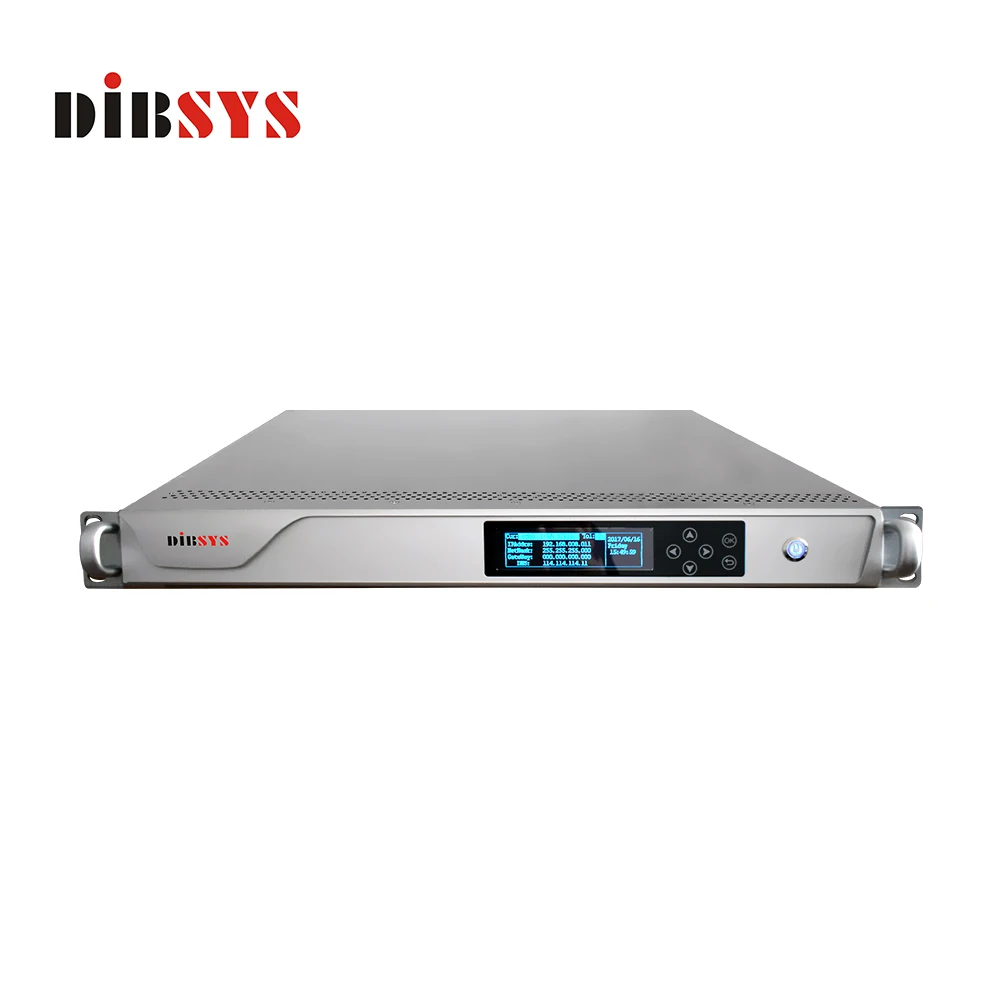

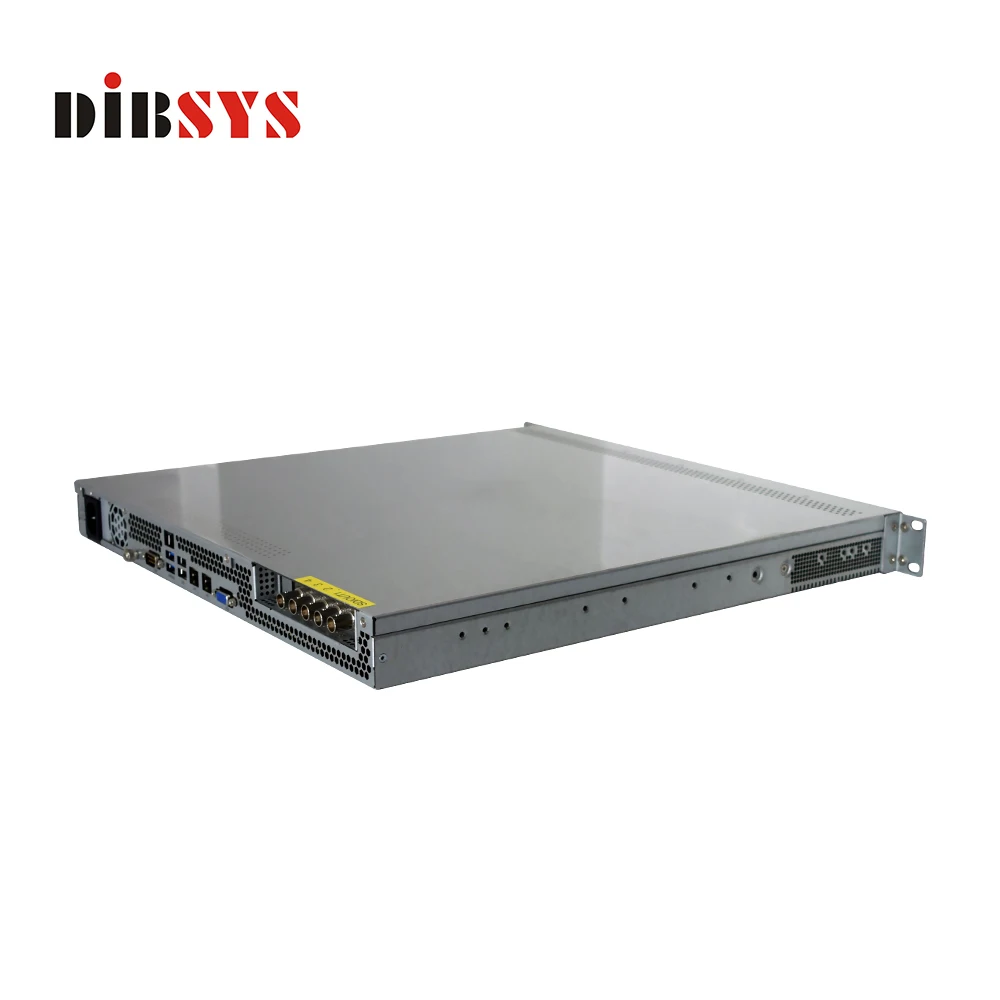

Caster-R315 is a real time H.264 (H.265 option) or MPEG-2 decoder that receives IP transport streams and decodes them to SDI/HD-SDI/HD MI. Embedded Linux Based, Remotely Manageable, SD or HD, H.264/AVC (H.265 option) TS Video and Audio Decoder for Receiving Live Streams with Most Any Protocol or Wrapped IP Input coming from IP Cameras or any make and model of encoder.
Supports HTTP Live (HLS), UDP, RTP, RTSP, HTTP, RTMP Multicast, Unicast IP streaming in LAN, WAN and Converts the H.264 AVC (H.265 option), MPEG-2 Compressed Digital Video and Audio into Professional Digital SDI or HD-SDI Output. Audio Support for AAC. Decodes at .1 to 15 Mbps.
Ideal Decoder for Receiving and Professional Decoding of "Poor" Video from IP Cameras, Remote Sites, Content Delivery Networks (CDNs), or IPTV Compatible Appliances or Players. Uses Proprietary Algorithms to Decode Video from Bursty IP Cameras via our "IP CAM Smoother". It allows rendering of high quality video content to deliver high performance digital user experience, and is suitable for applications such as Video on Demand, converged communication, gaming consoles and proliferating smart CE devices.
Feature
▶Supports both HD and SD H.264/MPEG-4 AVC or MPEG-2 decoding, H.265 decoding option
▶Input: Bursty or smooth IP (H.264, MPEG-2, H.265 option)
▶Output: SD/ HD-SDI; support simultaneously SDI/HD MI output
▶Security scanned for vulnerabilities
▶IP Input protocols: HTTP Live (HLS), UDP, RTP, RTSP, HTTP, RTMP (pushed from Flash server)
▶Supports H.264 High Profile @ Level 4.0 (HP@L4), MPEG-2, H.265 option
▶Supports 1080i, 1080p, 720p, 480i, 480p, CIF, QCIF, qHD, H.264up and many others, and custom resolutions
▶Picture-in-picture (PIP) operation supported
▶DVB subtitles can be included in transcoded streams (burned-in), offers subtitles with 100% compatibility with all existing devices
▶Supports HDTV output formats SMPTE-274M/SMPTE- 296M-2001, ITU-R BT.656
▶Color Space: 4:2:0 for H.264
▶Audio Input: AAC, MPEG-1 Layer II, AC3
▶Audio Output: Embedded pass-through
▶Remote GUI includes some scheduling
▶Can be used to store or time-delay incoming stream with optional storage add-on
▶Compatible with external MPEG-DASH packager for OTT delivery (option)
▶Supports logo insertion and text overlay on outputs
▶Designed for 24*7*365 uninterrupted working
▶Web management
Application
1. Converting IP streams to SD/HD-SDI wherever they may come from
2. Streaming video from remote sites from HTTP Live (HLS), UDP, RTP, RTSP, HTTP, RTMP compatible sources such as IP cameras or YouTube
3. TV studio SD/HD-SDI programs point to point transmision in ethernet
4. IP Camera Decoder
Specifications
Input | ||
IP Input protocols | Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 | |
MPEG-1 Layer II, AAC, AC3, AMR, WMA , | ||
TS Over UDP/RTP/HTTP | ||
3GP Over RTP FLV Over HTTP/RTMP | ||
HTTP Live streaming Apple HLS (m3u8) | ||
Audio Input | Type | |
Bit rate mode | IP-multicast, IP-unicast | |
VBR, CBR, ABR, NearCBR | ||
SPTS (IP streaming) | ||
MPEG-2 TS/pS Unicast and Multicast | ||
TS/RTP/UDP streaming | ||
Adobe Flash / RTMP | ||
Apple HTTP Live streaming/HLS | ||
Microsoft Smooth streaming | ||
Unicast and multicast | ||
MPEG-DASH(Option) IGMP V2 & V3 | ||
IPV4 support | ||
Output | ||
1/2/4/8 SD/HD-SDI out SMPTE ST-2082 | ||
Resolution | 1920 x 1080P\t1280x720P, 720x576P,720x480P, 704x480P, 854x480P(16:9) 640 x 480P, 480 x 320P, 320 x 240P | |
Decoding level | level 1, level 2, level 3, level 4, level 4.1,level 5.1 | |
More Settings | Field mode, GOP Align, Video Delay,Enhance Delay | |
TS | PIDs (PMT/Video/Audio), PCR delay (ms),disp interval | |
Video decoding | ||
Smart de-interlacing | ||
Picture resizing | ||
Logo/graphics overlays | ||
Crawling text | ||
Picture aspect ratio: | 4:3, 16:9, 1:1, automatic mode | |
Codec Format: | H.265/HEVC Main and Main-10 | |
Bit Depth: | 8/10-bit | |
Video Bitrate: | 100k~50Mbps | |
Frame Rates: | 25/30fps , Adjust 5-30fps | |
Automatic detection of | ||
Switching | ||
GOP adjustable | ||
Audio decoding | ||
Audio decoding | LC-AAC, HE-AAC and HE-AACv2 (including Parametric Stereo) MPEG-1 Layer, AC3,MP3 | |
Sample rate | 8khz to 48khz | |
Data rate | 8kbps to 384kbps | |
Pre-processing | ||
Image setting | Video adjustments (Brightness, contrast, Saturation, Hue) | |
Frame rate | from 2fps to 30fps | |
Aspect ratio | 4:3 and 16:9, WSS control | |
Image insertion | LOGO insertion | |
Subtitle Overlay | Static or roll subtitle, up to 3 way (optional) | |
PID Configuration: | Depending on the configuration, it forwards selected programs via IP datacasting; PAT, PMT, video PID, audio PID(s) and PCR,information are transmitted. | |
DB Management | Backup, Restore, Update, Initialization | |
Management | ||
User Interfaces | Full control via web GUI | |
Management | Web interface | |
Firmware Updates | Via Web UI | |
Environment | ||
Size | 1 RU | |
Power Supply | 110 ~ 240 VAC | |
Operation Temperature | 0 ~ 50℃ (32 ~ 122°F) | |
Storage temperature | -40 ~ 70℃ (-40 ~ 158°F) | |
Power Consumption | 200W | |
Supported Resolutions – Input |
1920 x 1080, 1280x720, 720x576 |
720x480, 704x480, 854x480(16:9) |
640 x 480, 480 x 320, 320 x 240 |
