New arrival  waste tire pyrolysis plant



Model of Pyrolysis plant :

Model	Reactor size	Material	Handling capacity/batch	Weight	Seaworthy packing
LJ-8	2200*6000mm	Q245R /Q345R boiler steel ,16mm thickness	5 tons	24tons	2*40HQ
LJ-9	2200*6600mm	Q245R /Q345Rboiler steel ,16mm thickness	8tons	26tons	2*40HQ
LJ-10	2600*6600mm	Q245R /Q345Rboiler steel ,16mm thickness	10tons	30tons	1*40FR+1*40HQ
LJ-12	2800*6600mm	Q245R/Q345R boiler steel ,18mm thickness	12tons	32tons	1*40FR+1*40HQ
LJ-15	2800*7700mm	Q245R/Q345R boiler steel ,18mm thickness	15tons	40tons	1*40FR+1*40HQ





Working process of New arrival waste tire pyrolysis plant tire recycle to oil:

First, the raw materials are put into the reactor, and then seal the feeding in door, later start the machine and the reactor will be rotating and heated by coal, natural gas, wood or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 350-460°C; oil steam will flow through oil gas separator, light component will enter the condensers and meanwhile the heavy oil will be discharged automatically into in heavy oil tank. The liquefied part will be condensed as crude oil, and the part which cannot be liquefied will be transferred by the water seal back to the burning chamber to be reused as heating material.



End of Product from scrap tire recycling pyrolysis plant:

NO.	Name	Percentage	Usage
1	Tyre oil	40%~45%	* can be sold directly as fuel. * can be refine to diesel and gasoline by oil distillation plant
2	Carbon black	37%	* can be sold directly. * can be refined by carbon black processing machine to make it finer (1500mesh finer). *can be made into pellet by pellet machine
3	Steel wire	13%	*can be sold directly as steel or iron.
4	Waste gas	5%	* can be recycled to heat up the reactor

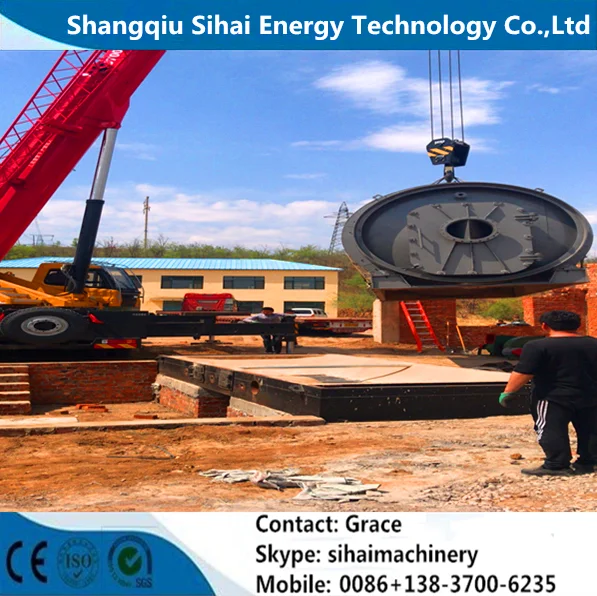

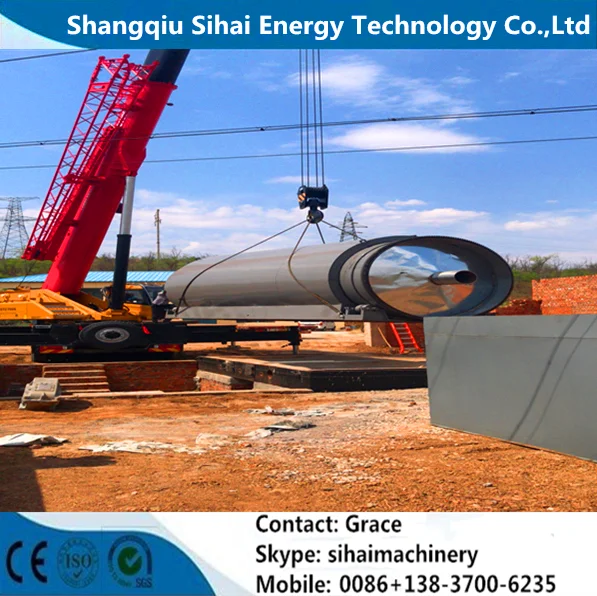

Installation: We will be in charge of arranging our engineer to go to your place to guide the installation and train your workers how to operate the  tire oil pyrolysis plant.



Oil refining production Line Land requirement:  300sq meters(10m*30m)



New Energy Tire to Fuel oil Exporting Experience:

America:	Brazil, Canada, Colombia, USA,
Middle East:	Dubai, Jordan, Saudi Arabia, Turkey
Europe:	Albania , Bosnia and Herzegovina
Asia:	Afghanistan, India, Malaysia, Pakistan, Philippines, South Korea, Vietnam, Myanmar, Thailand, Uzbekistan
Africa:	Ghana, Mozambique, Zambia
