Полностью автоматическая флексографская печатная машина для гофрированного картона/флексографский принтер

Описание и отзывы

Трекер стоимости

Характеристики

1-5 Colors Full Automatic High speed Flexo ink Printing Slotting Die cutting machine

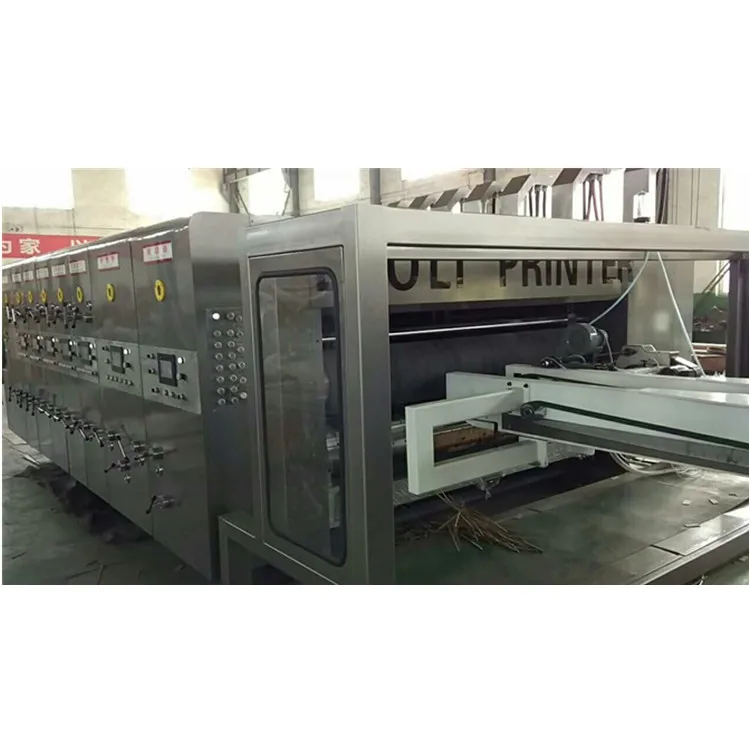

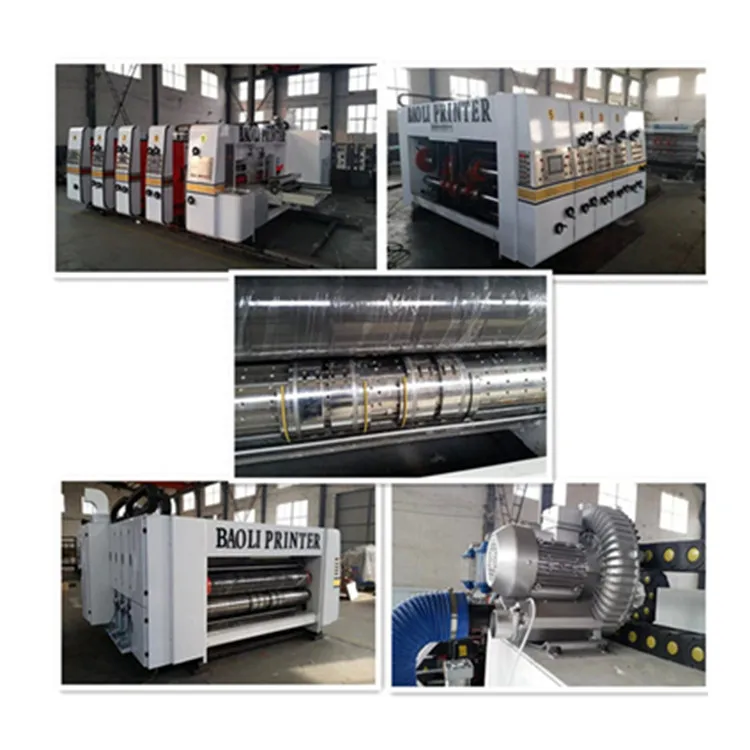

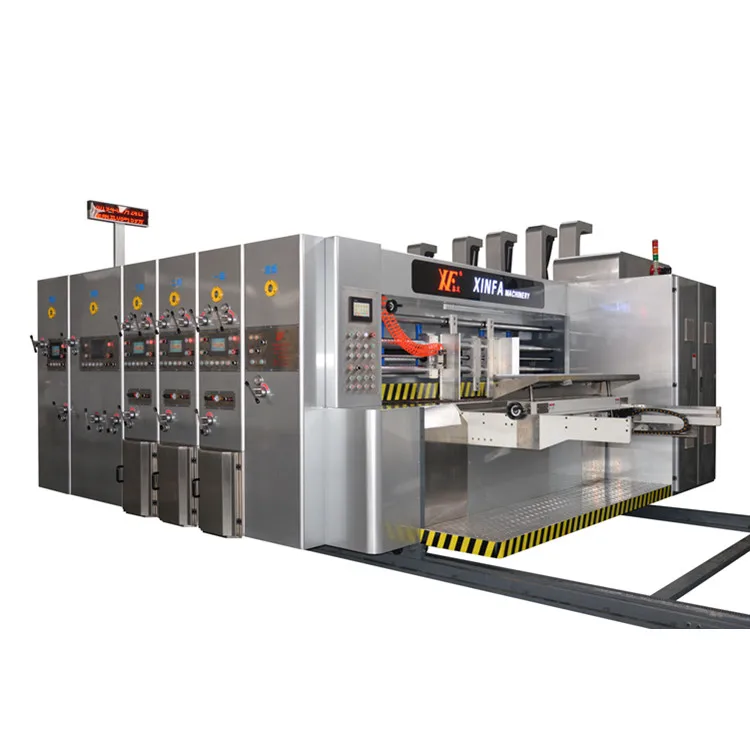

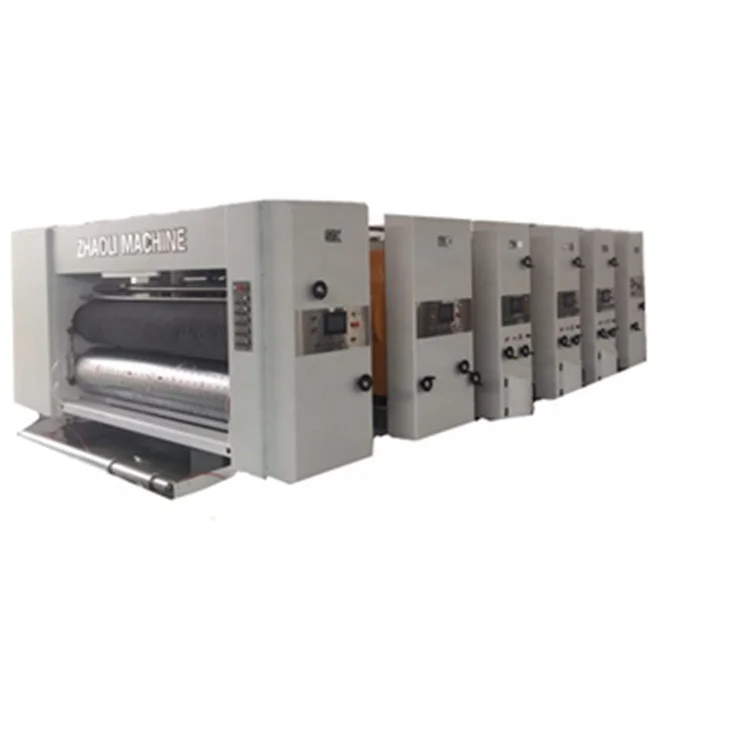

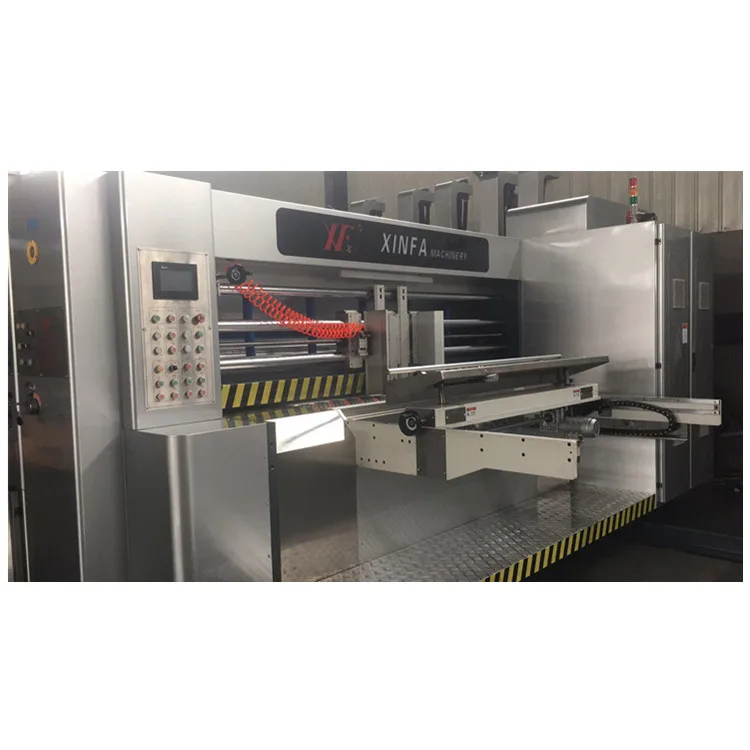

Real Machines Photos









Technological Parameter

Name of Parameter	Unit	Specification
		GYK900X1800	GYK1200X2200	GYK1600X2400
Inside Width	mm	2100	2500	2700
Working speed	Pieces/min	180	160	150
Max Feed size	mm	900x1800	1200x2200	1600x2400
Min Feed size	mm	280x600	350x600	420x700
Feed paper skip	mm	1100x1800	1500x2200	1700x2300
Max print size	mm	840x1700	1150x2200	1600x2200
Print Precision	mm	+-/0.75	+-/0.75	+-/0.75
Standard print plate thickness	mm	7.2	7.2	7.2
Print board Thickness	mm	3-9	3-9	3-9
Min slot space	mm	300x100x300x100	300x100x300x100	300x100x300x100
Max slot depth	mm	210	300	300
Power	kw	18.5	22	22
Weight	kg (about)	16000	19000	22000



Function and characteristics:

1. The electric appliances of the whole machine adopt the product of SCHNEIDER made in FRANCE (optional).

2. Straight gear drive.The gears are after high frequency quenching and grinding

3. All the rollers are plated with chromium to encrease their hardness.

4. Spray circulated oil lubrication.

5. Return to zero and adjust printing plate automatically.

6. Module-designed. Multicolor printing sections can be combined as your requests.

7. The side baffle of feeder and slotter are all adjusted electrically.

8. PLC, touch screen and frequency-variable controller are adopt,accurate and reliable.



Feeding-unit:

1. Lead edge feeding type.

2. Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard.

3. Front baffle can be electrically adjusted with scale on it, easily understood.

4. Side baffle can be adjusted electrically, with digital setting and pneumatic appliance.

5. Clutch of the machine is controlled electrically. With alarm.

6. Equipped with brust to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface improve printing quality

7. Skip feeding device with continuous feed or spacing feed options.

8. Pneumatic interlocking mechanism.

9. Equipped with dust clean device for the printing side of the paperboard and improve the printing quality

10. PLC and color touch screen. Lower failure and higher efficiency, and is easy to learn and operate.

11. The main machine and fan motor applies transducer speed regulation,stable and energy saving.



Printing unit

1. The printing roller and trace pressing roller: good quality SSTU, grinded and hard chrome-plated.

2. Hang printing plate system, it is easy to install and change printing plate. Foot switch operate.

3. International standard high-precision harmonic phasing device,PLC and touchscreen controlled 360 degree adjustment.

4. Special planet gear design enables long service life.

5. Equipped with auto braking device with braking mechanism to lock rotation of press plate roller and maintain the fixing point of original gears when the printing machine breaks away

6. With auto reset system after cleaning

7. Computerized digital axis adjustment,with adjustmental distance of ±10mm

8. Equipped with auto raising device on the reticulate roll,separated the printing board when stopping feed paper

9. All the intervals adopt computerized adjustment and digital setting

10. Installed with ink roller rotation electrical machinery to prevent water ink drying while main machine stopping.



Slotting unit

1. The function of the double shaft slitting unit(Adopt units). Big size carton box or kicking paperboard slitting can save loading knife time.

2. Slitting phase and the height carton box adjusting, computer and the electrical number can be controlled.

3. Slitting knife a move transversely structure, screw with linear axis that moble more flexible and accurate.

4. The up and down knife move at the same time, keep the linkage of the knife, accurate, extend the service life tools.

5. Slitting knife shaft space, computers and digital electronic adjustments.

6. The slitting knife move transversely double prevent collision protection device (electronic and mechanical). Elastic and corner cutting blade structure, three layer, five layer board and corner cutting no adjustment and operation more convenient.

7. Line wheel, slitting knife a move transversely adjustment, computer and electric control.

8. Creasing gap adjusting, computers and digital electronic control (choose configuration).





Our services:

1) All the equipments are offered with one year quality warranty. After the guarantee is expired, we offer long-term maintenance services and supply of parts and components at cost price.

2)The equipments will be delivered accompanied with detailed installation and operation manual and related information.
