Product Description


Product Application

This series machine is used for extruding insulated wires and sheathed cables with PVC,PE and PP,etc which mainly applicated in the wire and cable industry.

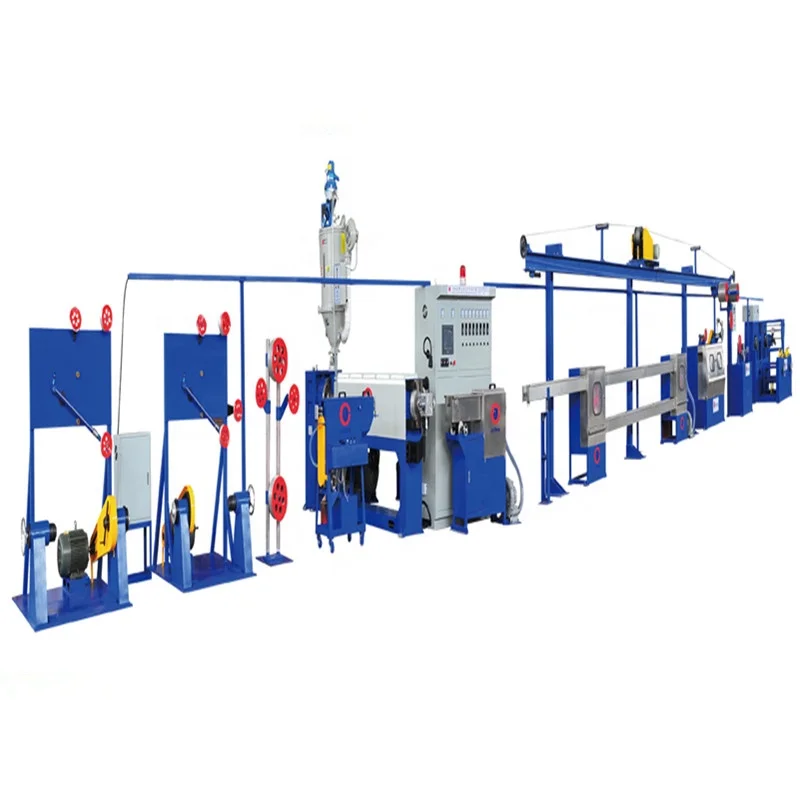

CHINA SUPPLIER HIGH SPEED COPPER WIRE ELECTRICAL WIRE INSULATION EXTRUSION MACHINE PRODUCTION CABLE SHEATH PRODUCTION LINE
Model No.
JCJX-70
JCJX-90
JCJX-150
Screw Dia. (mm)
70
90
150
Screw L/D Ratio
25:1
PVC Extrusion Capacity (kg/h)
130
240
780
Finished Dia. (mm)
2-12
5-35
15-120
Wire Speed (m/min)
10-500
10-250
10-60
Total Power (kw)
50
75-113
160


Main Features

1) Save labor
2) High productivity
3) High quality
4) Low noise
5) One stop station services



Detailed Images

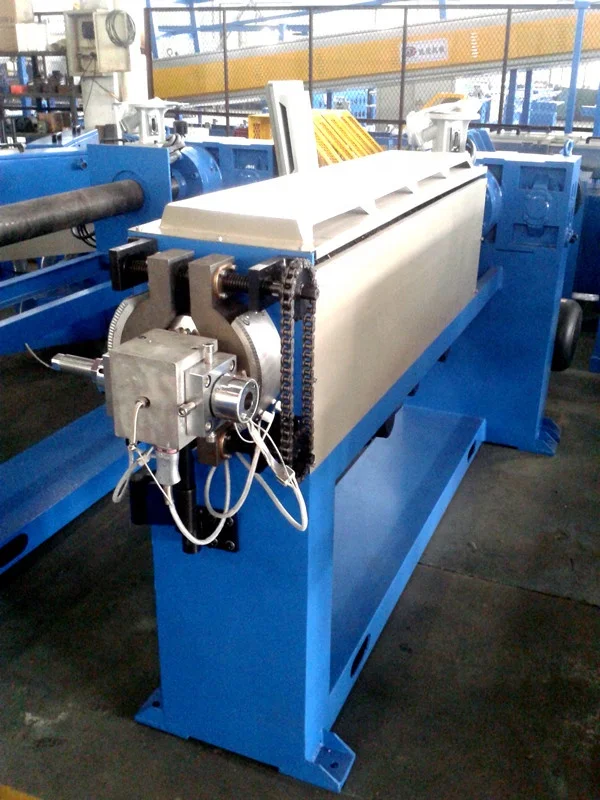

Main machine:

a. Screw Dia.: 20, 30, 40, 50, 60, 70, 80, 90, 100, 120 & 150mm
b. Suitable for free adjustable nose or adjustable nose
c. Suitable for free adjustable mould or adjustable mould

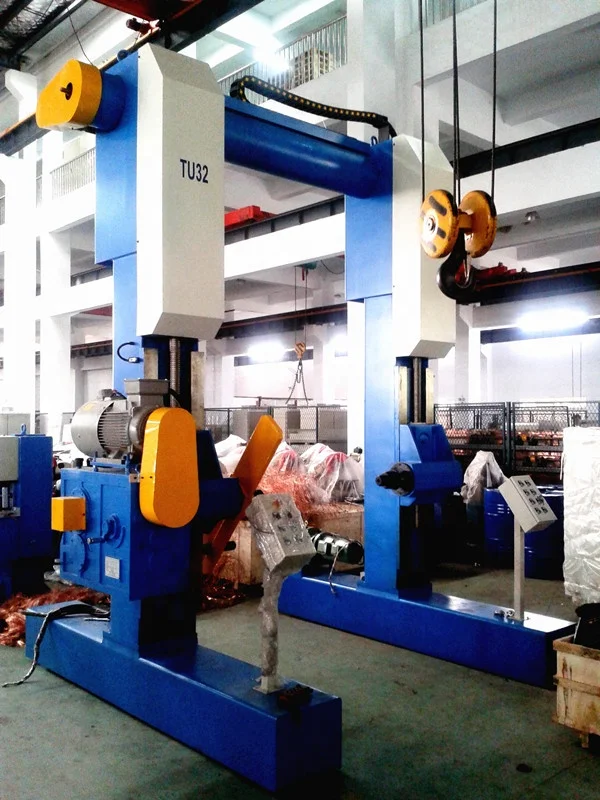

Take-up type: gantry take-up

Advantages:
a. large capacity cable storage
b. improve quality
c. easy to operate



Electric control system: touch-screen

Advantages:
a. improve quality
b. easy to operate



Main electric appliance brand:

1) PLC: SIEMENS
2) Bearing: NSK
3) Low voltage apparatus: SCHNEIDER
4) Thermostat & Meter counter: FOTEK



Finished Products








Packing & Delivery




Our Services


One Stop Station Services

1) Stand-by engineers team to provide overseas installation and commissioning service
2) 1 year warranty. During warranty, we provide free of charge for repairing cost
3) Lifetime maintenance. After-sales department can provide life long maintenance service



Our Certifications




Our Clients




About Us






JIANGSU JIACHENG GROUP(Stock Code: 830957) - As a TOP 3 professional manufacturer in wire & cable making machinery based in China, we have 31 years experience since 1990(founded) and 16 years export experience on ALIBABA since 2004, over 300 workers and 7000 square meters factory rooms, and all products passed CE, BV, TUV & ISO 9001:2008 certifications.

Our main products are Wire Drawing Machine(including Copper/Brass/Aluminium/Al-alloy/Al-Mg Alloy/Stainless Steel/Mild and Low Carbon Steel Wire Drawing Machine Series), 40 Heads Tubular Type Annealing & Tinning Machine, Copper Electroplating Machine, Stranding & Bunching Machine, Extruder, etc. And our products have exported to U.K, Russia, Ukraine, Uzbekistan, Kazakhstan, Turkmenistan, India, Pakistan, Bangladesh, Vietnam, Thailand, Laos, Cambodia, Malaysia, Brazil, Peru, Chile, Dominican, Ecuador, Israel, Morocco, Egypt, Kenya, Syria, Iraq, etc.

Our factory is located in Zhangjiagang city, It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
