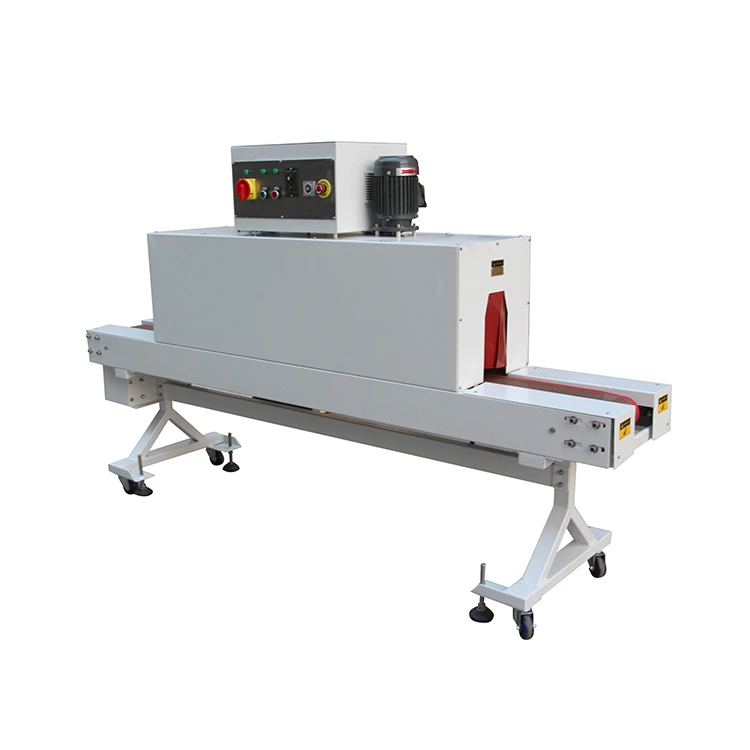

SF-1230 этикетки надеваются на бутыли и пр. тару различной формы как рукав термоусадочная

Описание и отзывы

Трекер стоимости

Характеристики



Model	SF-1230
Power	12kw
Power Supply	AC 415V 3PH 50Hz
Max Packing Size Dia×H	100×280mm
Tunnel Size L×W×H	1500×120×300mm
Packing Speed	20-40m/min
Shrink Film	PET/PVC
Machine Size L×W×H	1500×850×1516mm
Packaging Size L×W×H	1550×900×1616mm
G./N. Weight	270/240kgs

l  This machine is an unique design for all kinds of bottles and cups. The label will be smooth without deformation after shrinking;

l  Multi axis type conveyor to ensure smooth conveying;

l  Imported components which makes sure the stability of the equipment;

l  These series of models use hot air circulationshrink systems, mainly for shrink labelbottle-shaped, jars, cups etc. But also can shrink the bottle neck or mouth;

l  It is widely used in the bottle or cup body of beverages, pharmaceuticals,cosmetics, pesticides and other industries glass bottles, plastic bottles, cups and other containers.

Shrink Tunnel	Brand	Country
Solid State Relay	Fotek	Taiwan
Circulation Motor	SURFON	Taiwan
Intermediate Relay	Siemens	Germany
Temperature Controller	Autonics	Korea
Switching Power Supply	Schneider	France
Thermal Overload Relay	Schneider	France
AC Contactor	Schneider	France
All Switches	Siemens	Germany
