Характеристики
Product description
1.Vulcanized fiber sheet is a material manufactured by gelatinizing several plies of high purity cellulose papers.
2.Wood pulp as its material unique and modern paper-making technology and advanced equipments .High dielectric strength and elasticity, strong oil resistance, wear resistance, corrosion resistance and heat resistance.Color | red, gray,green ect. |
Size | 1000*1200 mm |
Thickness | 0.2-8 mm |
Density | 1.2g/cm3 |
Dielectric Breakdown | 7.2KV |
Product Keywords | red vulcanized fiber sheet |
Product parameters
Items | Unit | Standard | Result | ||||
Thickness | mm | 0.6±0.05 | 0.634 | 420 | 0.634 | ||
Density | g/cm3 | 0.5mm-0.9mm 1.0mm-2.0mm 2.1mm-5.9mm ≥6.0mm | 610 | ≥1.1 ≥1.15 ≥1.15 ≥1.20 | 1.17 | ||
Breakdown Voltage (In (23±1)°Ctemperature) | KV/mm | 0.5mm-0.9mm | 1200 | ≥6.0 | __ | ||
1.0mm-2.0mm | ≥5.0 | ||||||
2.1mm-5.0mm | ≥3.0 | ||||||
5.1mm-12.0mm | ≥2.5 | ||||||
Cross-section tensile strength | kN/m2 | 0.5mm-0.9mm | MD | ≥5.5X104 | MD 1.31X105 CMD 6.31X105 | ||
Brown | 0.23 | 205 | CMD | ≥3.5X104 | 1.2 | ||
Black | 0.24 | 1.0mm-2.0mm | MD | ≥6.0X104 | 1.2 | ||
White | 0.24 | 205 | CMD | ≥3.5X104 | 1.2 | ||
Brown | 0.24 | 2.1mm-3.5mm | MD | ≥6.0X104 | 2.6 | ||
Brown | 0.28 | 293 | CMD | ≥4.0X104 | 2.6 | ||
Brown | 0.32 | ≥6.0mm | MD | ≥5.0X104 | 1.2 | ||
Black | 0.32 | 255 | CMD | ≥3.0X104 | 1.2 | ||
Elongation percentage | % | __ | 3200 | 2200 | 2.1 | ||
Brown | __ | 3200 | 2100 | 2.6 | |||
Volume Resistance | Ω.cm | ≥108 | 3000 | 2000 | 1.9x1011 | ||
Water Absorption | % | ≤65 | 3500 | 2400 | 82.5 | ||
Gluing Coefficient | N/m | ≥200 | 4200 | 3500 | 231 | ||
Zinc chloride content | 0.63 | ≤0.20 | 4500 | 3800 | 0.07 | ||
Moisture content | 0.78 | 6-10 | 5500 | 4000 | 6.5 | ||
Ash content | 0.9 | ≤2.5 | 6800 | 5500 | 0.59 | ||

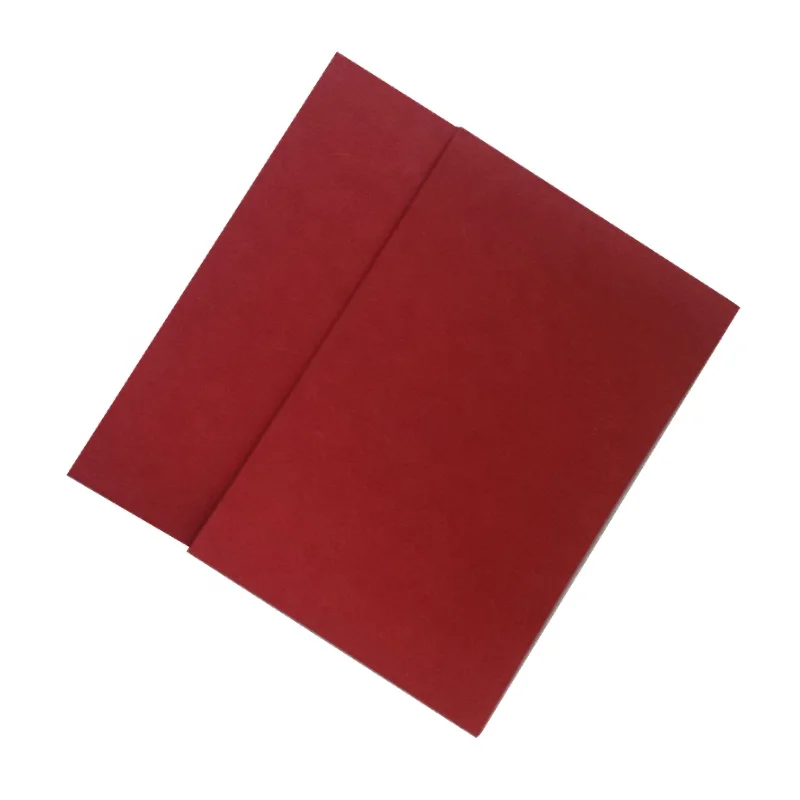

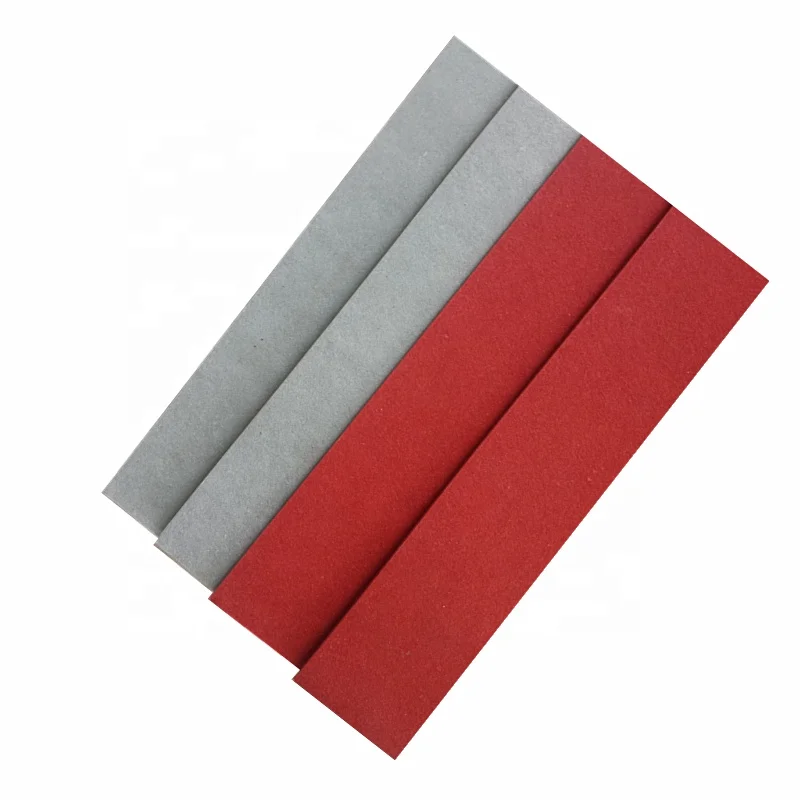

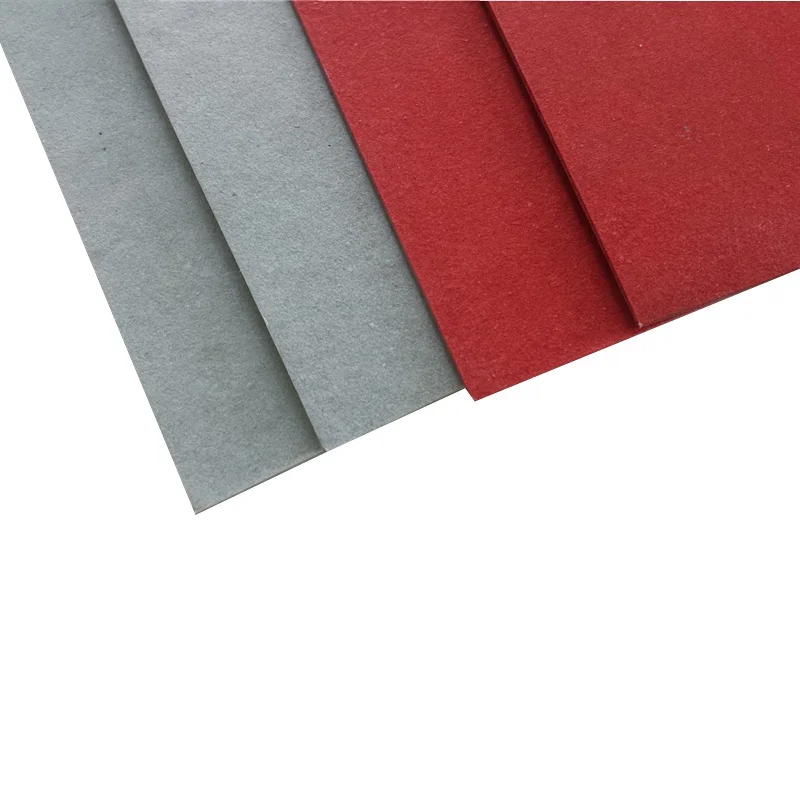

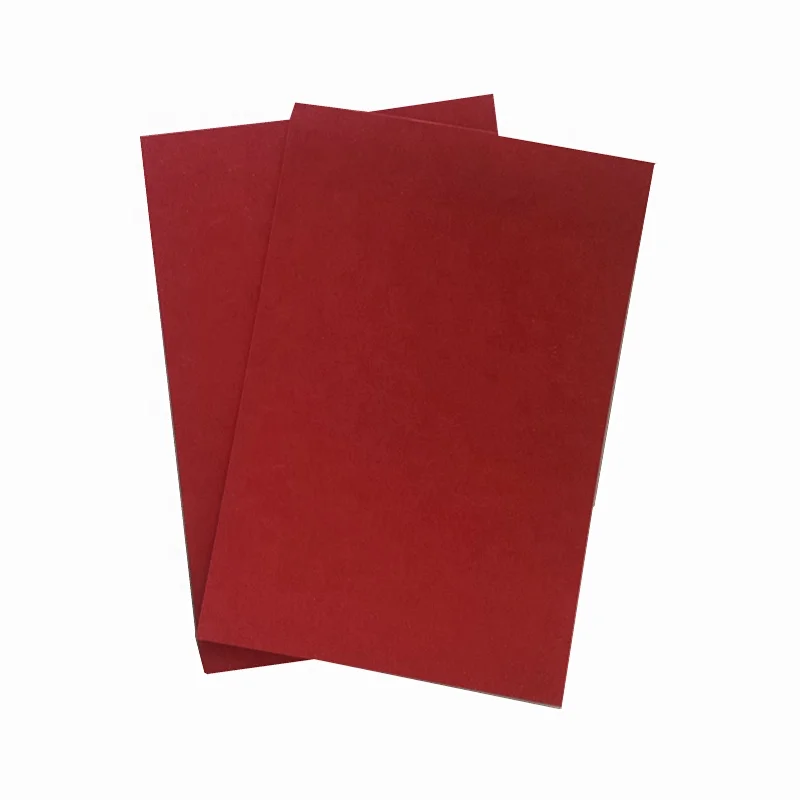

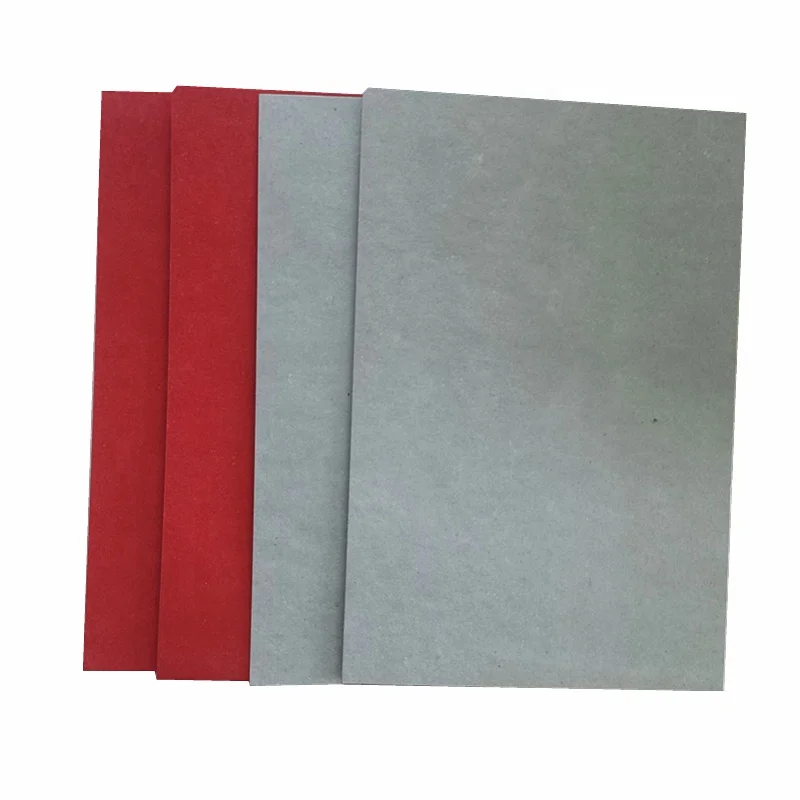

Product Photograph
