1/4 в такой стране как. Латунный невозвратный обратный клапан с наружной резьбой
- Категория: Valves >>>
- Поставщик: Hubei,Hi-Tek,Valve,And,Fitting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.10 $* | 0.52 $* |
| Aug-17-2025 | 0.68 $* | 0.48 $* |
| Jul-17-2025 | 0.82 $* | 0.49 $* |
| Jun-17-2025 | 0.34 $* | 0.94 $* |
| May-17-2025 | 0.82 $* | 0.75 $* |
| Apr-17-2025 | 0.62 $* | 0.91 $* |
| Mar-17-2025 | 0.79 $* | 0.65 $* |
| Feb-17-2025 | 0.34 $* | 0.47 $* |
| Jan-17-2025 | 0.26 $* | 0.58 $* |
Характеристики
Products Description
Product name | Check valve, one way valve |
Body material | Brass |
Size | 1/4" * 1/84" |
Thread | NPT |
Flow direction | Male to Male |
Working pressure | 1000 psi |
Cracking pressure | 3 psi to 5 psi |

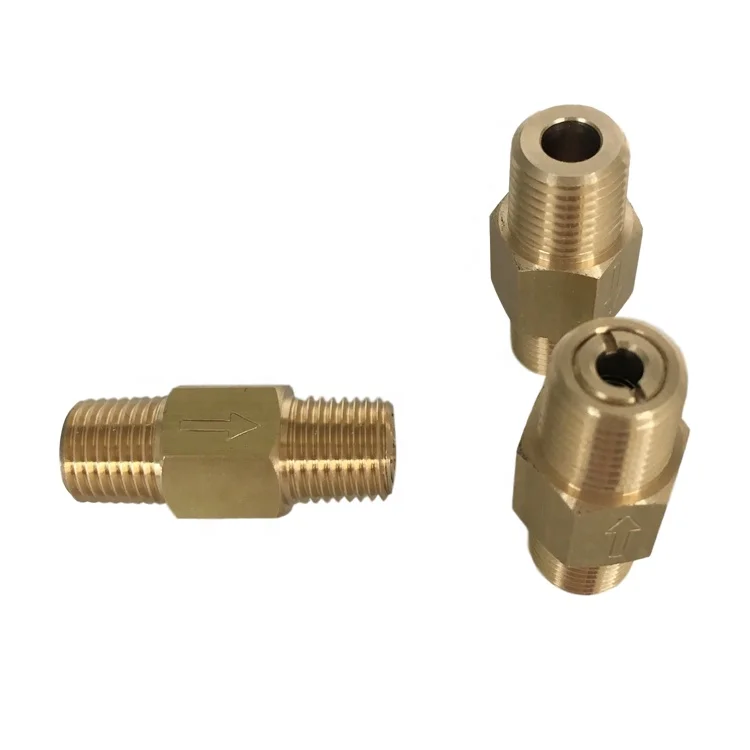

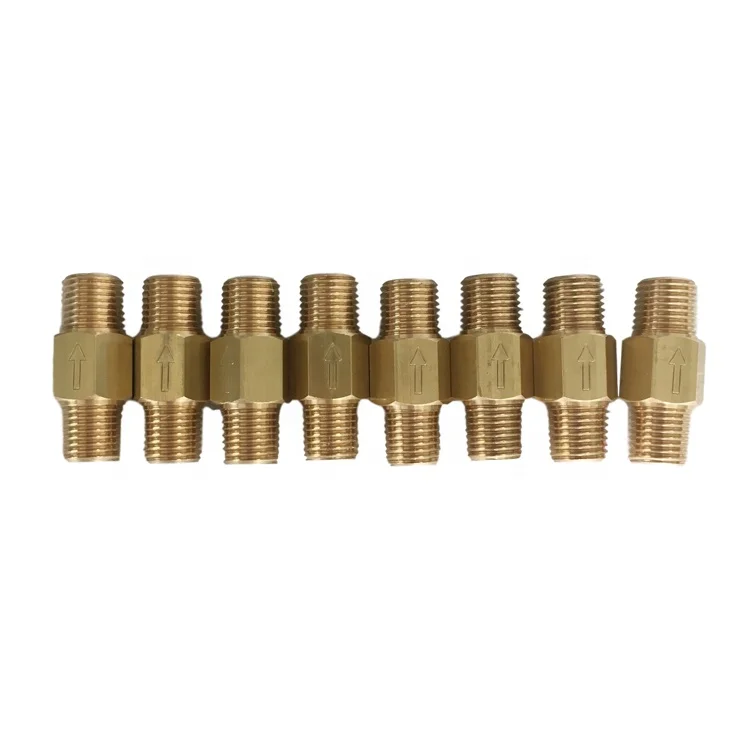

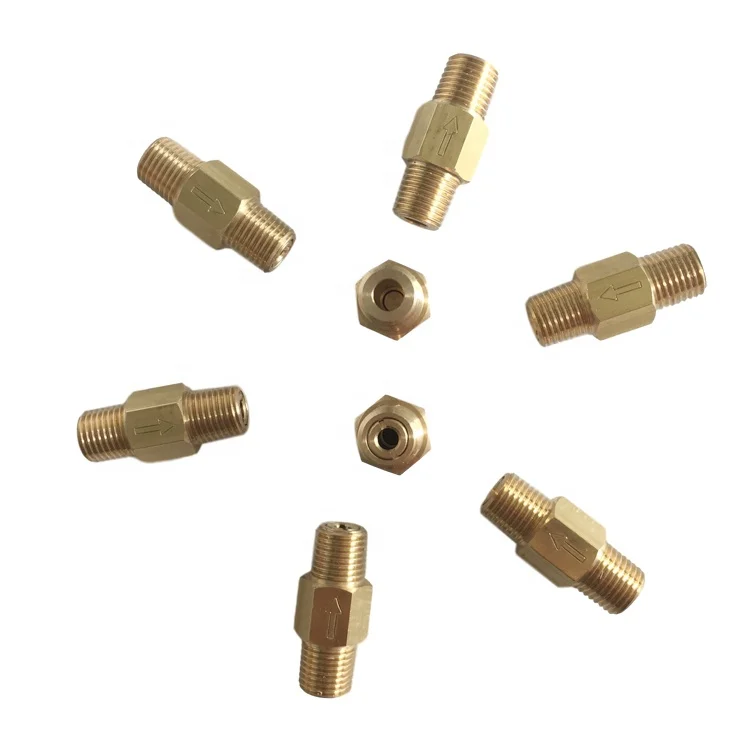

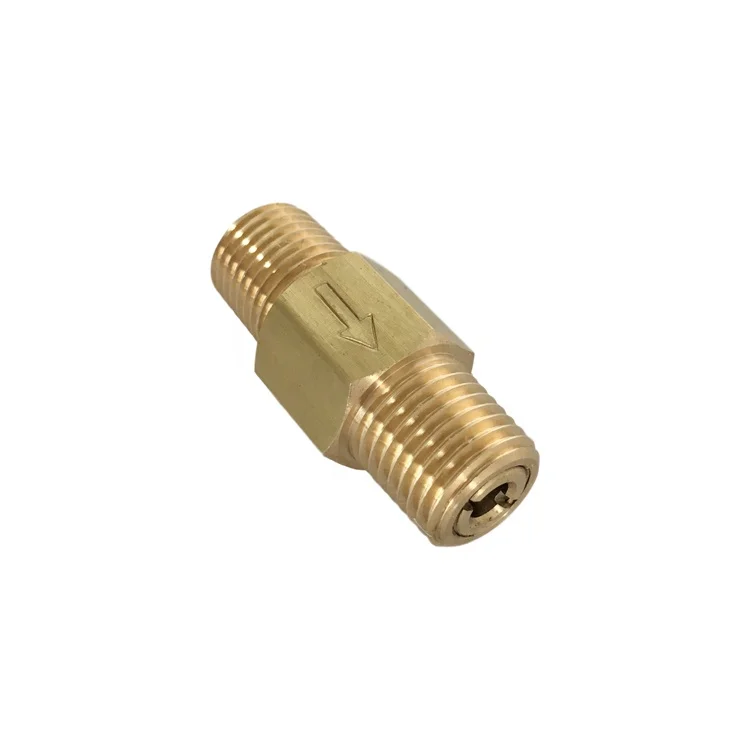

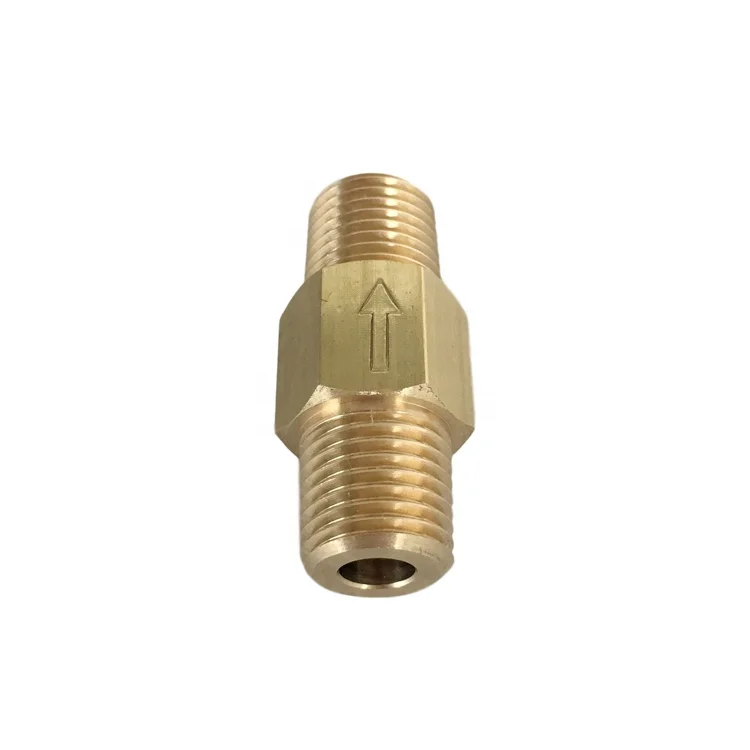

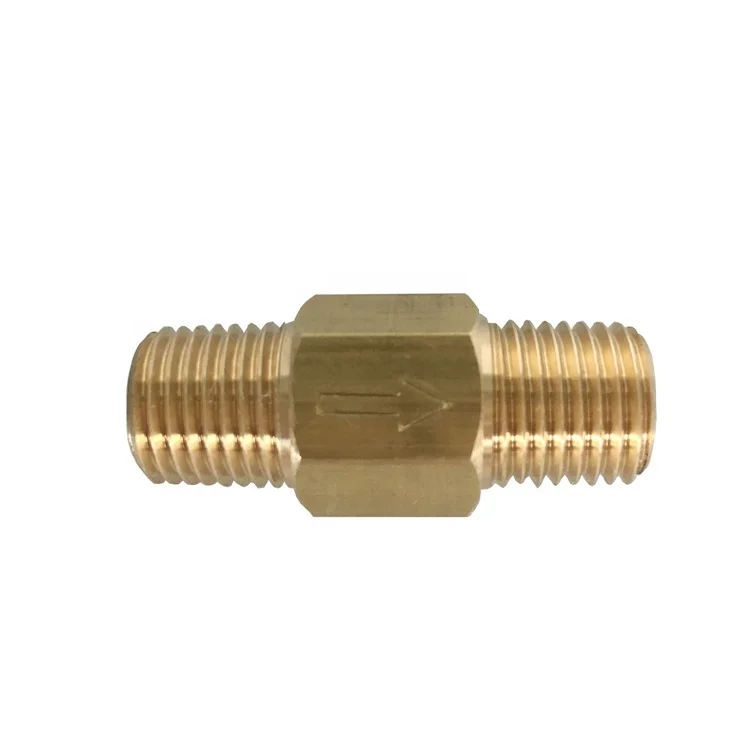

The Brass One Way Valve is a spring loaded, check valve for use in liquid systems where the flow is required in one direction with no return flow. These check valves are able to be installed in vertical, horizontal or oblique pipe lines, and have threads on both the inlet and outlet.
Feature:
Feature:
1. Zero Reverse Leakage
2. Maximum Working Pressure 1000 psi (6.9 Mpa) (Standard type)
Acceptable customization: Up to 3000 psi
3. Size: 1/8" to 1/2"
4. Thread: NPT BSPP BSPT Metric and other threads
5. Connection type: Male/Female/Flare/Nut
6. Standard Size External Hex for Installation
7. Cracking Pressure 3 to 5 psi (Standard type), acceptable customization
8. Minimum Flow Rate: 3.5 SCFM at 5 psi
9. Working Temperature: -40° C to 120° C (Standard type)
Detailed Pictures
