frp высокое напряжение ружье палки
US $0.01-$0.50
Плата усилителя TDA7498 Class D 2X100W Двухканальная аудио стерео 80 Вт + плата цифрового
- Категория: Other Electronic Components >>>
- Поставщик: Shenzhen,Mingdewei,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.97 $* | 0.42 $* |
| Aug-19-2025 | 0.35 $* | 0.76 $* |
| Jul-19-2025 | 0.95 $* | 0.22 $* |
| Jun-19-2025 | 0.39 $* | 0.20 $* |
| May-19-2025 | 0.76 $* | 0.44 $* |
| Apr-19-2025 | 0.29 $* | 0.51 $* |
| Mar-19-2025 | 0.86 $* | 0.30 $* |
| Feb-19-2025 | 0.11 $* | 0.0 $* |
| Jan-19-2025 | 0.43 $* | 0.94 $* |
Характеристики

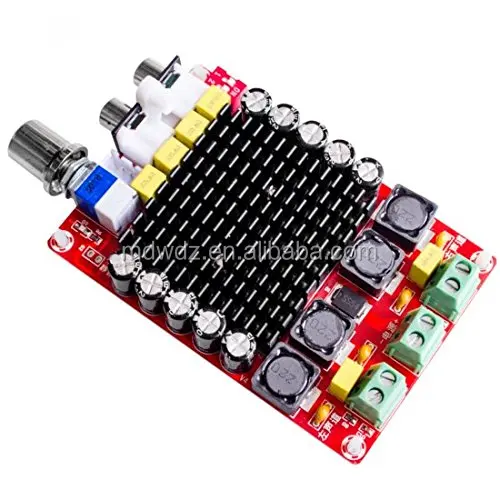

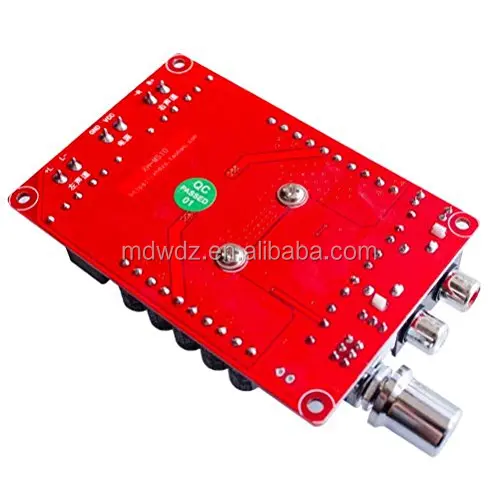

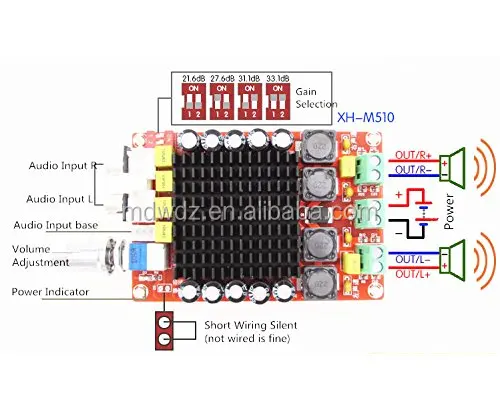

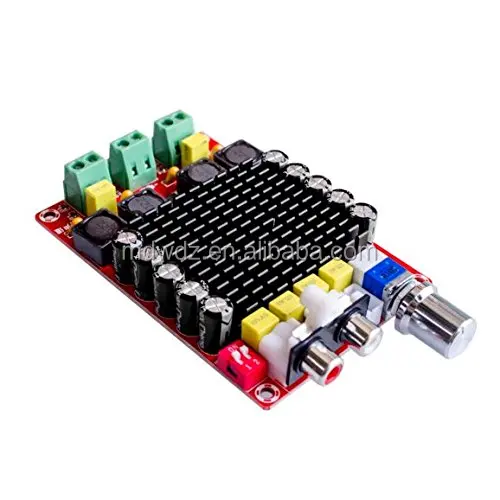

Amplifier Board of TDA7498 Class D 2X100W Dual Channel Audio Stereo 80W + 80W Digital Amplifier Board Module
- High-Power Class D digital amplifier.
- Operating voltage: 15 - 34VDC (generally using the recommended voltage 24V),Efficiency: 90%
- It requires an 8-ohm speaker, input voltage 34V DC output power 80W + 80W (dual-channel).
- It requires a lot of power to use recommended power supply: 24V voltage output current over 5A (power shortage in power is a major dynamic phenomenon will appear when the staccato).
- Recommended speaker impedance: 8 ohms Best (4 ohms or 6ohms in Europe also work).
Product description
1. Product name:Audio Amplifier
2. Product number:XH-M510
3. Input voltage:DC 14-32V
4. Input power:100W+100W
5. Input resistance:4-8ohm
6. Types:D class
7. Chip:TDA7498
8. Frequency Range:18-100KHz
9. Switching Frequency:360KHz
10. Noise ratio:110db
11. Size:96*64*25mm
Attention:
Size may be slight inaccuracy due to different batches of the products, or hand measurement;
Color may be little different due to monitors. Please take real product as standard, thanks for your understanding!
Package Includes:
1 * TDA7498 Amplifier Board
