Shytger 3-тонный дизельный грузоподъемник с вильчатый подъёмник Гидравлический масляный для продажи
- Категория: >>>
- Поставщик: Shanghai,Hytger,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 8925.57 $* | 9371.63 $* |
| Aug-19-2025 | 8850.8 $* | 9293.39 $* |
| Jul-19-2025 | 7425.32 $* | 7796.34 $* |
| Jun-19-2025 | 8700.35 $* | 9135.63 $* |
| May-19-2025 | 7575.96 $* | 7954.5 $* |
| Apr-19-2025 | 8550.87 $* | 8978.59 $* |
| Mar-19-2025 | 8475.11 $* | 8899.46 $* |
| Feb-19-2025 | 8400.41 $* | 8820.36 $* |
| Jan-19-2025 | 8325.68 $* | 8741.23 $* |
Характеристики
SHYTGER 3 Ton Diesel Forklift With Forklift Hydraulic Oil For Sales In Singapore

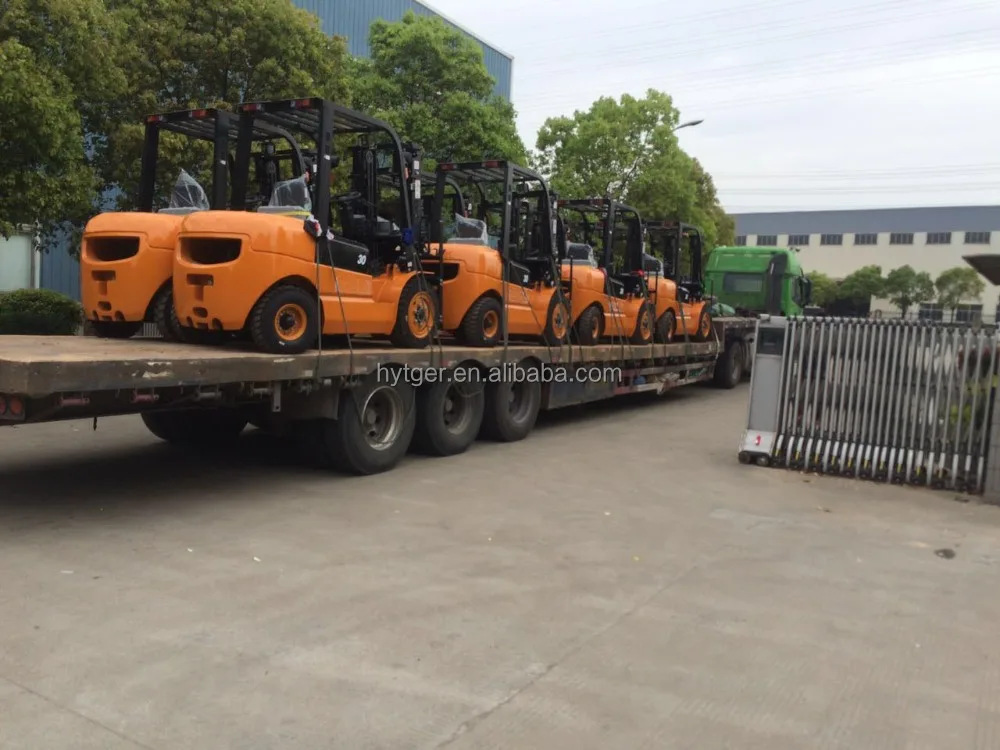

Packaging & Shipping
| Model | FD30 | |||
| FD30-S4S | ||||
| Power Type | 10 | Diesel | ||
| Rated Capacity | kg | 3000 | ||
| Load Centre | mm | 500 | ||
| Lift Height | mm | 3000 | ||
| Free Light | mm | 120 | ||
| Fork Size | L×W×T | mm | 1070×125×45 | |
| Mast Tilt Angle | F/R | Deg | 6\\12 | |
| Front Overhang | mm | 481 | ||
| Rear Overhang | mm | 590 | ||
| Overall Dimension | Length to face of fork (Without fork) | mm | 2762 | |
| Overall Width | mm | 1200 | ||
| Mast Lowered Height | mm | 2005 | ||
| Mast Extended Height (With backrest) | mm | 4210 | ||
| Overhead Guard Height | mm | 2180 | ||
| Turning Radius (Outside) | mm | 2450 | ||
| Min.Right Angle Asile Width | mm | 2950 | ||
| Speed | Travel (Unladen) | km/h | 20 | |
| Lifting (Full load) | mm/sec | 400 | ||
| Lowering(Full load) | mm/sec | 400 | ||
| Max.Traction | N | 21000 | ||
| Max. Gradeability | % | 18/20 | ||
| Tire Specification | Front | 28×9-15-12PR | ||
| Rear | 6.50-10-10PR | |||
| Tire Tread | Front | mm | 1010 | |
| Rear | mm | 980 | ||
| Wheelbase | mm | 1700 | ||
| Ground Clearance | Bottom of Mast | 140 | ||
| Bottom of Frame | 175 | |||
| Service Weight | kg | 4450 | ||
| Shaft Load | Full Load | Front | 6488 | |
| Rear | 962 | |||
| Unloaden | Front | 1810 | ||
| Rear | 2640 | |||
| Battery | V/AH | V/Ah | 12/60 | |
| Engine | Model | S4S-DPC | ||
| Manufacture | Mitsubishi | |||
| Rated Output | kw/rpm | 34.4/2250 | ||
| Rated Torque | N·m/rpm | 165/1700 | ||
| No. of Cylinder | 4 | |||
| Bore×Stroke | mm | 94×120 | ||
| Displacement | cc | 3331 | ||
| Fuel Tank Capacity | L | 70 | ||
| Transmission | Place of Origin | China | ||
| Type | T means Torque Converter, C means Clutch | |||
| Stage | FWD/RVS | 1/1(2/2) | ||
| Working Pressure | Mpa | 17.5 | ||

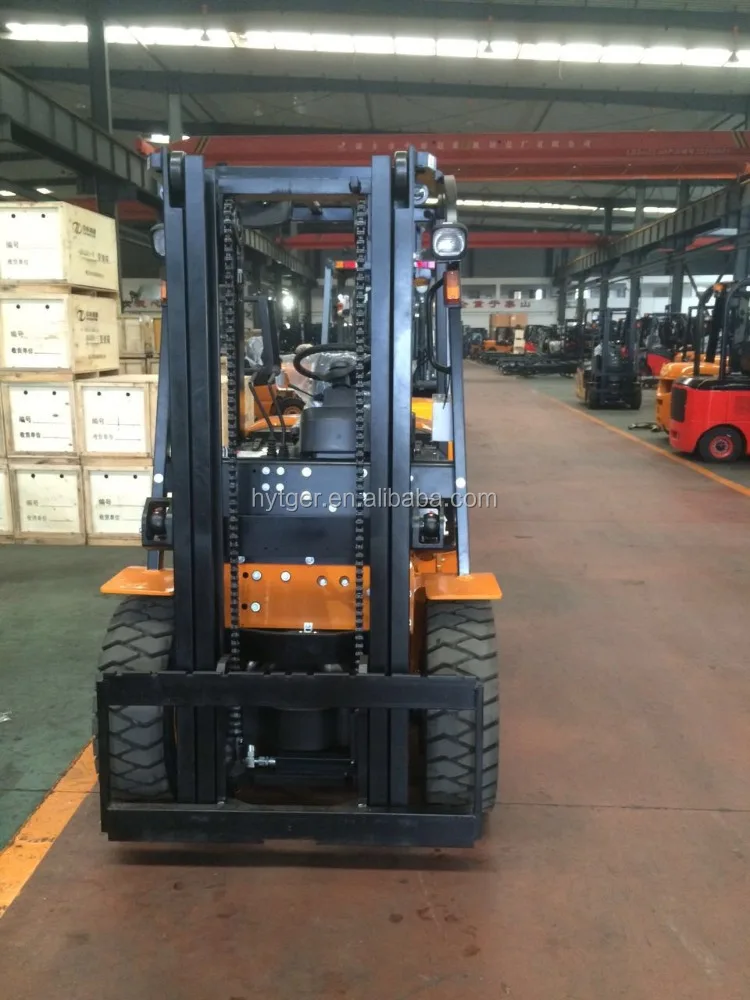

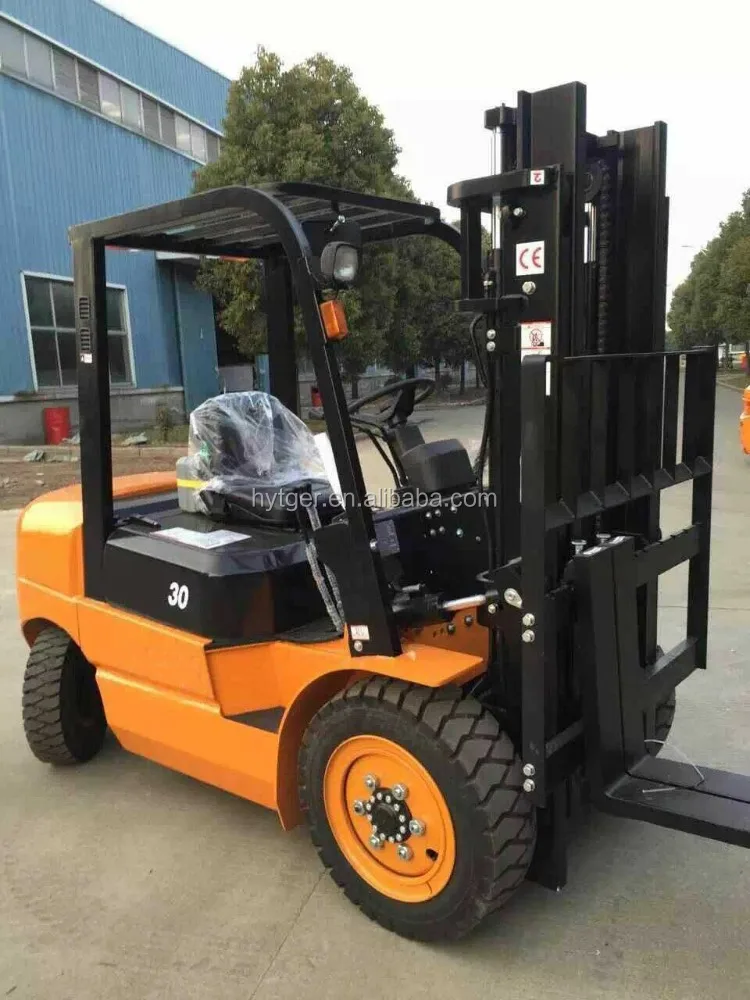

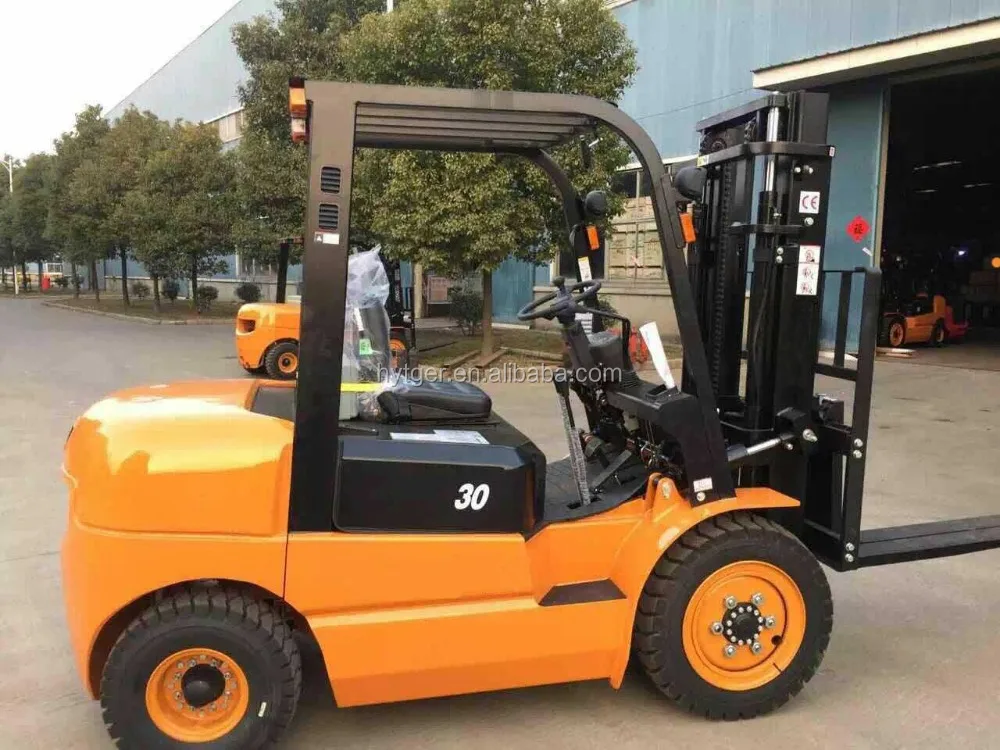

Detailed Images
| 1.What kinds of Engine available? | |||||||
| China local & Japan imported | |||||||
| 2.What kinds of mast lift avilable? | |||||||
| Double,triple mast 3000-6000mm | |||||||
| 3.Can you supply the spare parts? | |||||||
| Yes,air,oil filter & paper roll,side shifter attachment etc | |||||||
| 4.What Kind of Payment you can accept? | |||||||
| T/T,L/C,Western Union,Paypal etc. |
Company Information
Since the foundation, Shanghai SHytger Industry & Trade Co., Ltd. has striven to offer you high-class material handling solutions and high-class services. SHYGTER has specialized in manufacturing and selling forklift trucks, stackers, pallet trucks, loader trucks, container cranes, tire presses, dock ramps, aerial work platforms and other hydraulic equipment and their parts. After many years of successful development, SHYGER has grown to be a strong global supplier of material handling equipment and construction machinery. |
