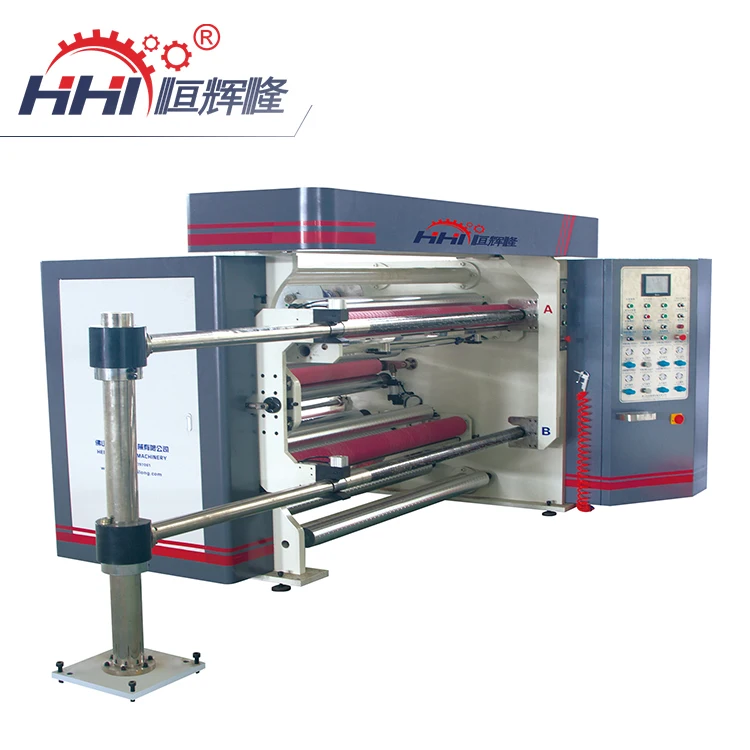

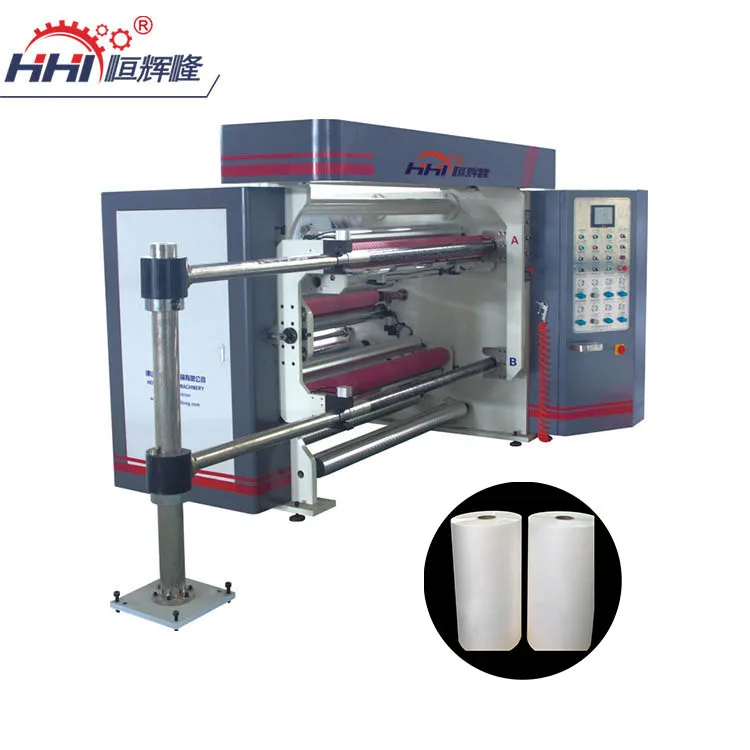

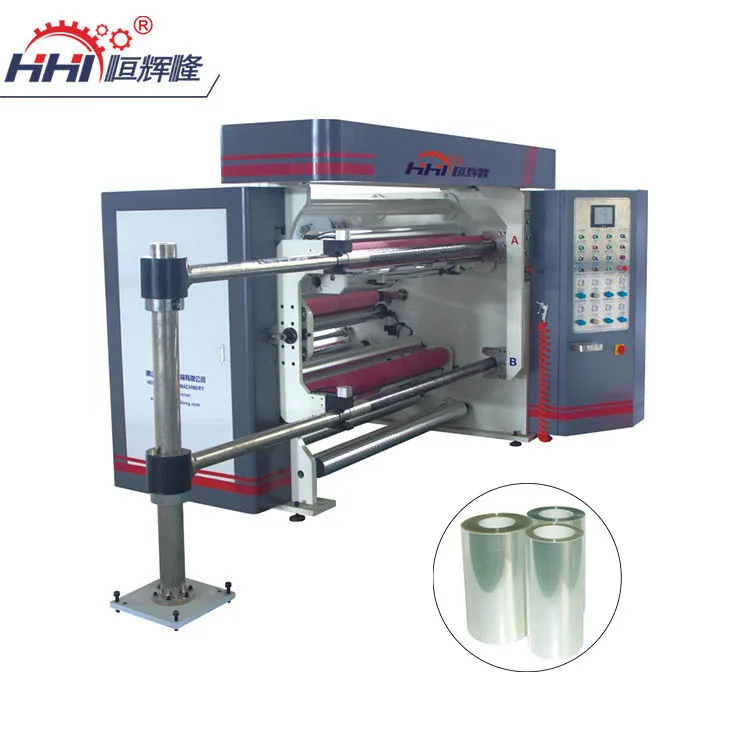

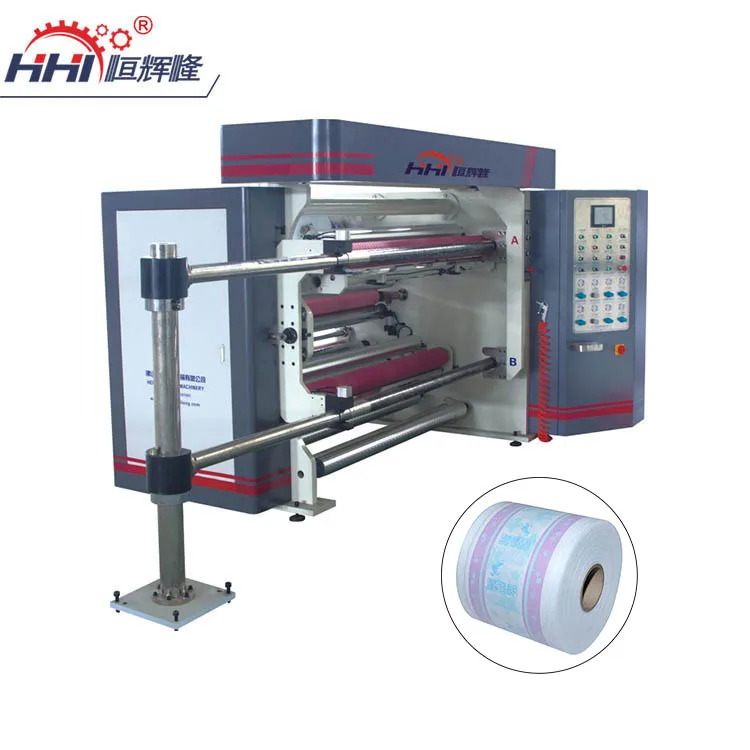

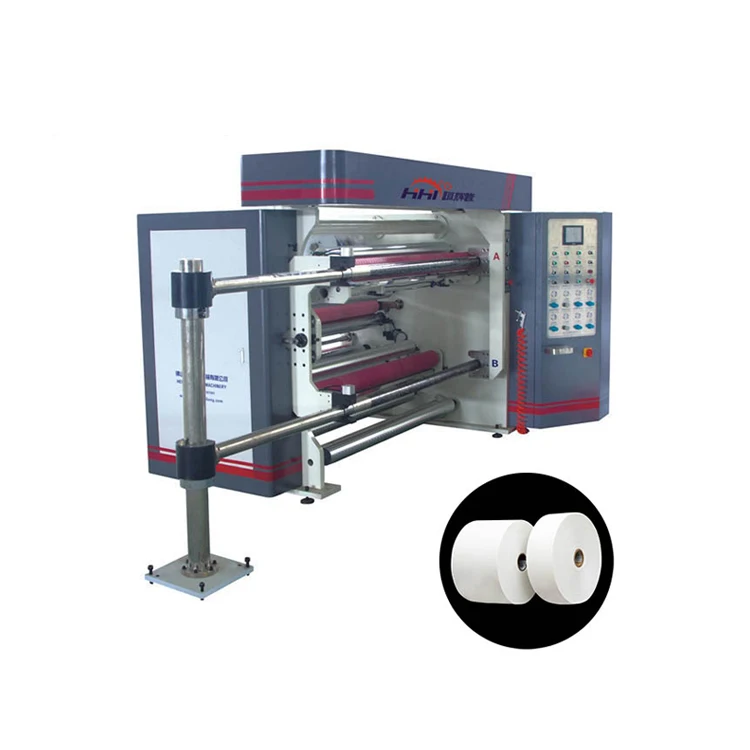

Воздухопроницаемая и недышащая машина для продольной резки койлов ПЭТ

Категория: Машины для нанесения покрытия >>>
Поставщик: Guangdong,Henghuilong,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.37 $*	0.72 $*
Aug-16-2025	0.81 $*	0.92 $*
Jul-16-2025	0.63 $*	0.99 $*
Jun-16-2025	0.12 $*	0.50 $*
May-16-2025	0.70 $*	0.14 $*
Apr-16-2025	0.35 $*	0.20 $*
Mar-16-2025	0.64 $*	0.52 $*
Feb-16-2025	0.3 $*	0.42 $*
Jan-16-2025	0.31 $*	0.79 $*

Характеристики

Main Purpose:
Apply to the breathable PE film and PET ect coil slitting.

Type	HFQL1600
Machine speed[m/min]	10-320
Core diameter[mm]	76/3'
Width of raw material[mm]	50-1250
Max OD for film[mm]	700
Tension control	frequence motor or sets servo
Max winding OD[mm]	600
Rated power[kw]	12
WHL[mm]	2550X1450X3200
Total weight[KG]	2000

Mian Feathers:
1. Main machine is drove by the frequency motor
2. Unwinding tension control use the magnetic power brake/ servo
3. Winding tension control use frequancy elecrtic motor/ servo
4. Auto calculation of the length
5. Circular slitting knife or flat slitting knife
6. Web-guider

Comparison of the properties for Dot transfer lamination & Suspension scraping lamination

Item	Dot transfer lamination（other used）			Suspension scraping lamination（we used）
Post-maintenance	Frequently changing the width of the rubber baffle will result in a short life of the rubber baffle. The rubber baffle needs to be replaced frequently. The scraper blade is replaced in about 30 days. The rubber roller is often repaired and replaced, which is troublesome to disassemble.			Since the width of the glue is changed, there is no need to adjust the rubber baffle, and the rubber baffle has a long life. The pressure of squeegee for suspension scraping coating is 2-3KG air pressure relative to the squeegee for dot transfer coating, so the life of the squeegee is relatively long.
		Frequently change the width of the glue coating, the baffle is easy to damage	The rubber roller is easy to be deformed and needs maintenance, and the accuracy must be well controlled.
Glue coating material	Not suitable for high air permeability and perforated materials, and not suitable for low weight materials, such as (8-15g non-woven fabric, etc.)			Breathable and non-breathable materials, both high and low weight materials are available, and mesh materials can also be coated

For More Details, Please Click Here！

Q1: What Industry is your product suitable for?

A1:Our machines are widely used in the fields of disposable hygienic products,disposable medical products, clothing, textile fabrics, self-adhesive labels, medical tape, plaster backing, and various othercoating compounds.

Q2：What if the machine fails during use?

A2:Our machines will be carefully inspected and ensured before delivery,and we will provide the correct instructions for use of the products. In addition, our products support lifetime warranty service, if there any question during using our products please consult our work personnel.

Q3: When can I get the machine after payment?

A3:The product production time about 45-60 days. We will deliver it on time as the date we agreed both side.

Q4: How can I install my machine when it arrives?

A4:We will provide installation videos and tutorials, or send our engineer to your side ASAP
you get all your machines ready, for testing and teaching your technicians how to run the machine.

Q5: What payment do you accept?
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
