Эмульсионный однородный насос из нержавеющей стали с высоким
- Категория: Mixing Equipment >>>
- Поставщик: Wenzhou,Qiangzhong,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.41 $* | 0.13 $* |
| Aug-16-2025 | 0.50 $* | 0.25 $* |
| Jul-16-2025 | 0.81 $* | 0.39 $* |
| Jun-16-2025 | 0.4 $* | 0.34 $* |
| May-16-2025 | 0.64 $* | 0.23 $* |
| Apr-16-2025 | 0.44 $* | 0.64 $* |
| Mar-16-2025 | 0.88 $* | 0.80 $* |
| Feb-16-2025 | 0.98 $* | 0.39 $* |
| Jan-16-2025 | 0.12 $* | 0.6 $* |
Характеристики
Products Description
Features

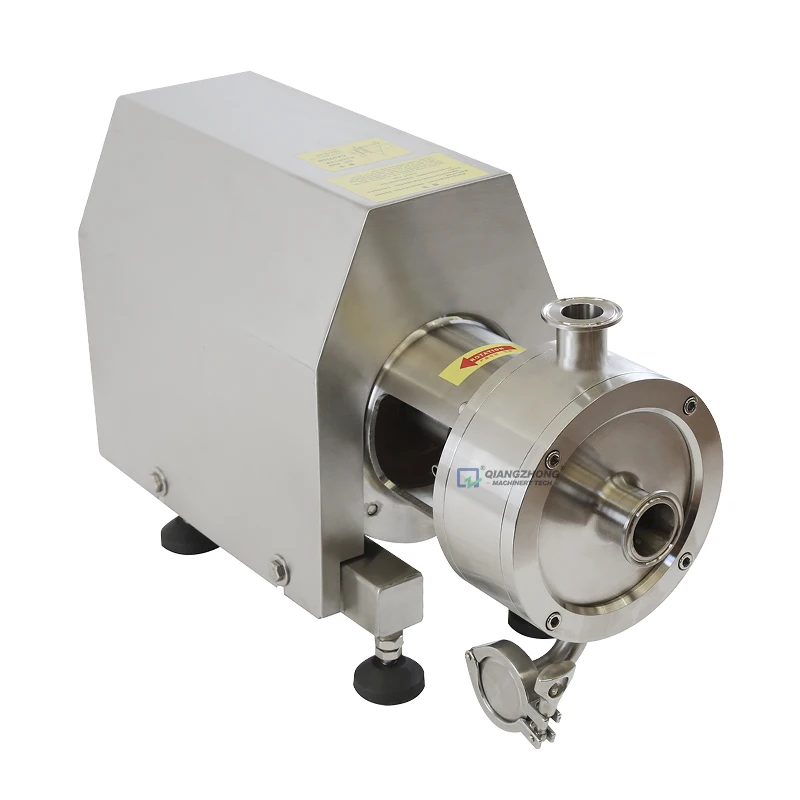

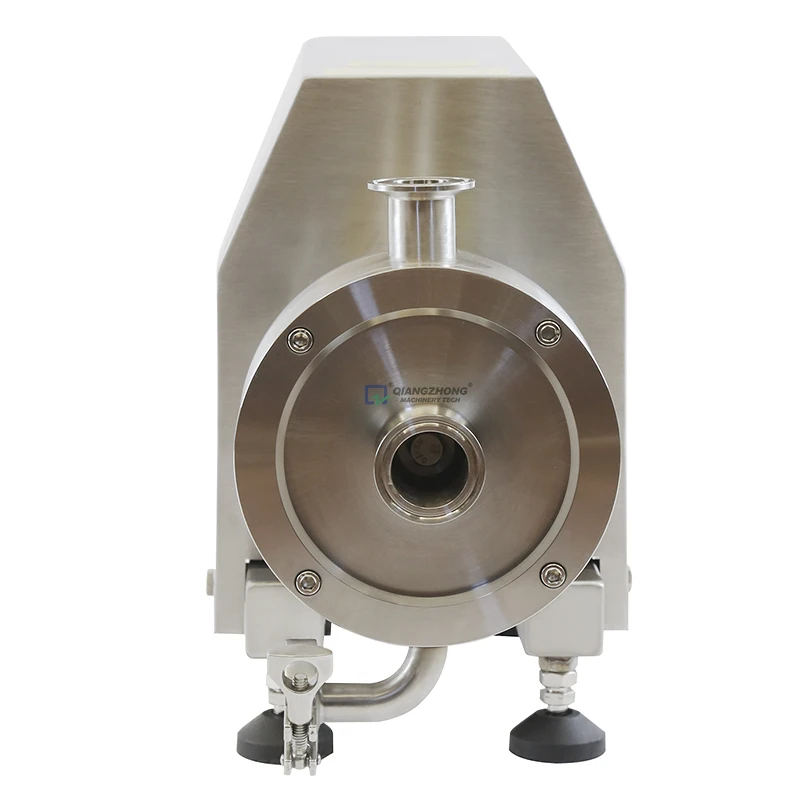

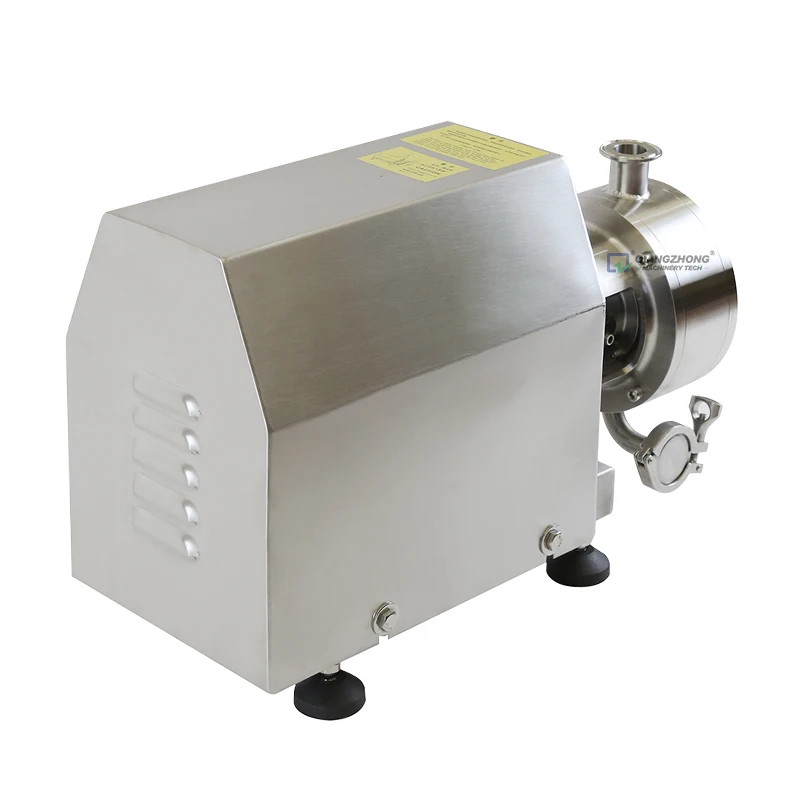

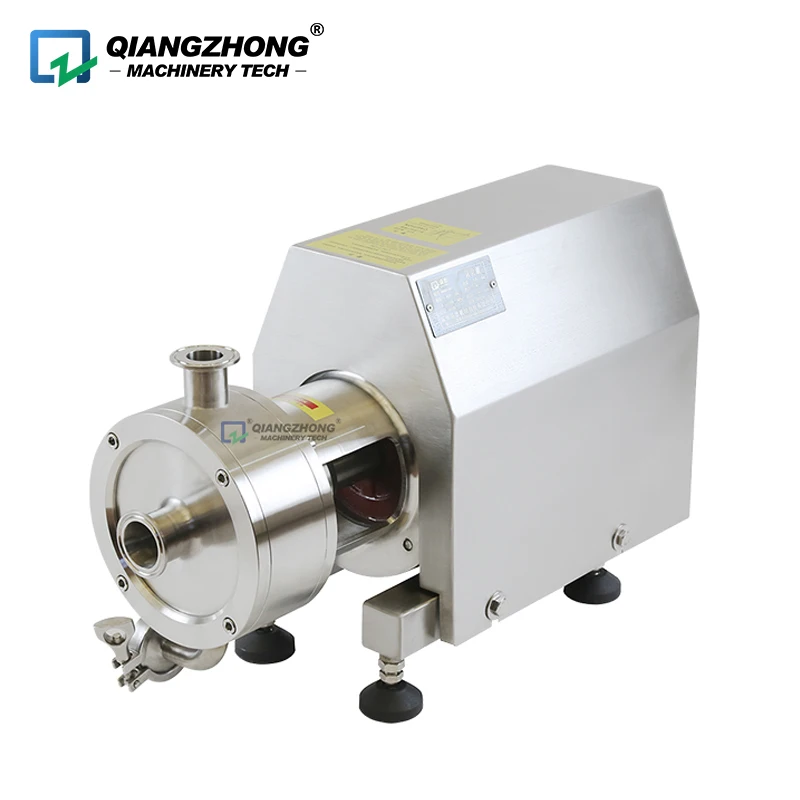

The emulsification pump (also called in-line high-shear dispersion mixer) is a high-efficient fine mixing equipment which integrates mixing, dispersion, crushing, dissolution, fine, depolymerizing, homogenization and emulsification, whose working components are mainly stator and rotator. The rotor rotates rapidly to produce centrifugal force and hydraulic force and the stator remains stationary. Through the precise combination of the rotor and the stator, a strong shear force is generated during high-speed rotation, and the material is subjected to strong shear, centrifugal extrusion, impact rupture, liquid friction, and uniform turbulence. Thus, various media such as immiscible solid phase, liquid phase, and gas phase are uniformly and finely dispersed and emulsified in an instant. After a reciprocating cycle, a stable and high-quality product is finally obtained.
Product Parameters
*The above information is for reference only and can be customized according to customer requirements.
*This equipment can be customized according to customer's materials to meet the needs of the process, such as requiring greater viscosity, enhanced homogenization function, heat sensitive materials and other requirements.
*This equipment can be customized according to customer's materials to meet the needs of the process, such as requiring greater viscosity, enhanced homogenization function, heat sensitive materials and other requirements.
Stator/Rotor Type
● Narrow particle size distribution, high uniformity
● With short distance, low lift transmission function
● Elimination of quality differences between batches
● Time-saving, high-efficiency, energy-saving
● Low noise and stable operation
● Easy to use, easy to maintain
● can achieve automatic control
● No dead ends, the material 100% pass through and is dispersed and sheared
● With short distance, low lift transmission function
● Elimination of quality differences between batches
● Time-saving, high-efficiency, energy-saving
● Low noise and stable operation
● Easy to use, easy to maintain
● can achieve automatic control
● No dead ends, the material 100% pass through and is dispersed and sheared
Fine Teeth：
Ultra-fine dispersion, pulping homogeneous emulsification
Middle Teeth:
Dispersion, refinement, accelerated dissolution, emulsification
Dispersion, refinement, accelerated dissolution, emulsification
Coarse teeth:
Impact, crushing, shearing, dissolution, coarse dispersion
Impact, crushing, shearing, dissolution, coarse dispersion
Working Principle
The emulsification pump/in-line high-shear dispersion mixer can efficiently, quickly, and evenly distribute one or more phases into another continuous phase, while in the usual case the phases are mutually insoluble. By high shear linear velocity generated by high-speed rotation of rotor and high kinetic energy brought by high-frequency mechanical effect, the material in the narrow gap of rotor and stator is forced by a strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tear and turbulence and other comprehensive effects. That makes incompatible solid phase, liquid phase and gas phase instantly homogenized, dispersed and emulsified under combined action of corresponding mature technology and proper amount of additives. Finally stable and high-quality products are available after repeated cycles of high-frequency.

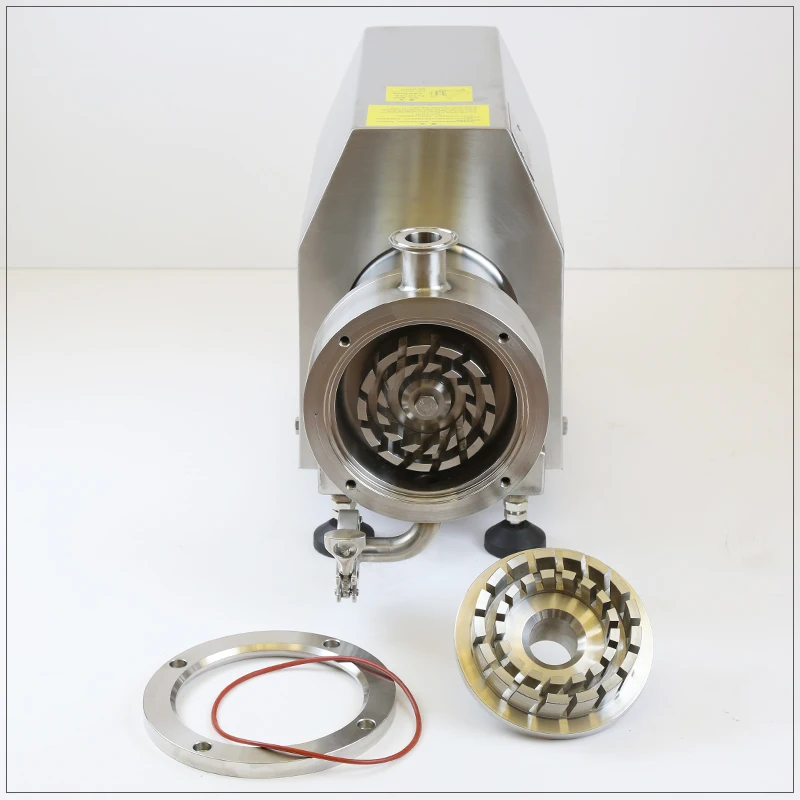

Three groups of stator and rotor are installed in the working chamber of the emulsification pump. The transmission shaft in the working chamber is cantilevered. The elastic coupling connects the motor and the spindle in the bearing housing to improve the operating quality of the transmission shaft. The sealing forms are optional based on different work conditions. It is suitable for medium and large batches of on-line continuous production or recycling processing production.
Three groups of stator and rotor are installed in the working chamber of the emulsification pump. The transmission shaft in the working chamber is cantilevered. The elastic coupling connects the motor and the spindle in the bearing housing to improve the operating quality of the transmission shaft. The sealing forms are optional based on different work conditions. It is suitable for medium and large batches of on-line continuous production or recycling processing production.
Product details
Product Paramenters
Common Structural Types According to the characteristics of the materials and the user's process requirements, we will choose the appropriate structural type and speed.
Advantages
Certification | 25 National Patents, Audited by SGS/TUV/CE/ISO9001 |
Quality Guarantee | Complaint rate as low as 5‰ for 15 years. If you decide to purchase from us, any malfunction happened, once you enquiry us, we will reply you solution within 48 hours except the special reasons |
Short Lead Time | Lead time is flexible. Short turnaround of replacement parts made by substantial storage, Normally we are 20% faster than others. If you have urgent orders, pls feel free to contact us. We will get the job done with 100% satisfaction. |
24/7 Available | All your inquiry will be responded within 1 hour. All your quotation will be satisfied within 12 hours. |
Why choose us？ | •100% manufacturer • Rich production experience •Strict Quality Control System •Flexible MOQ •Punctual delivery •Excellent and Experienced Team |
Company Profile
Wenzhou Qiangzhong Machinery Technology Co., Ltd. is a professional manufacturer of processing machines, located in Wenzhou City, China, near Longwan International Airport. Our main products include the high shear mixer, mixing tank, colloid mill, sanitary pump, sanitary filter, sanitary pipe, and valve. They are widely used in industries such as brewery, dairy product, beverage, chemicals, cosmetics, pharmaceuticals, and biopharmaceuticals.
We offer complete sets of service from research and development, production, sales, after -sales to maintenance, in accord with GMP, QS, and HACCP. As a pioneer and innovator, Obtain 25 National Patents, Audited by SGS / TUV / CE / ISO9001.
Thanks to advanced technologies and production equipment, strict meeting industry standards, our quality is well-developed continuously. So far, our products have been sold not only all around China but also globally, such as Europe, America, Australia, Southeast Asia, Middle East, etc.
Packaging & Shipping
Strict packing process to ensure the safety and completeness of the goods
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require.
