Кабель питания промышленной камеры Basler, PoCL, SDR/MDR, P, 10 м, 3 м, 5 м
US $100.00-$340.00
Бесплатный образец бескислородная медная проволока 14AWG ПВХ или силиконовый кабель высокотемпературный нагревательный
- Категория: Other Wires, Cables & Cable Assemblies >>>
- Поставщик: Donggaun,Yuezhen,Wire,And,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.44 $* | 0.39 $* |
| Aug-19-2025 | 0.93 $* | 0.29 $* |
| Jul-19-2025 | 0.83 $* | 0.71 $* |
| Jun-19-2025 | 0.6 $* | 0.90 $* |
| May-19-2025 | 0.82 $* | 0.56 $* |
| Apr-19-2025 | 0.38 $* | 0.93 $* |
| Mar-19-2025 | 0.24 $* | 0.18 $* |
| Feb-19-2025 | 0.97 $* | 0.29 $* |
| Jan-19-2025 | 0.93 $* | 0.18 $* |
Характеристики
Product Description

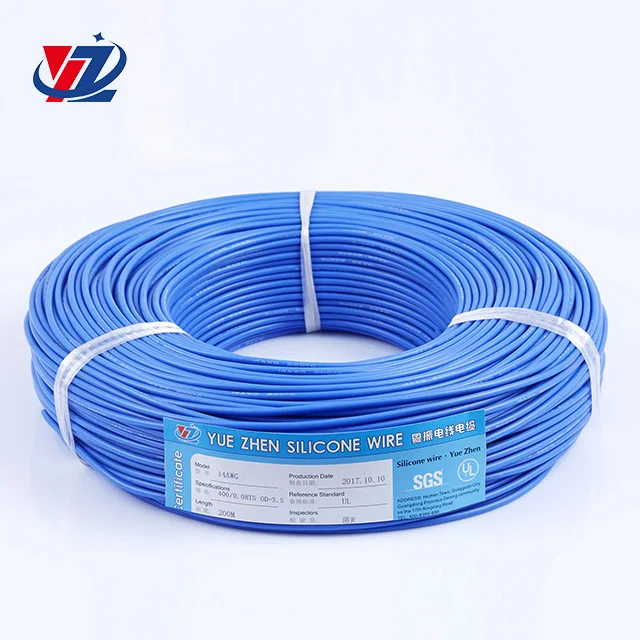

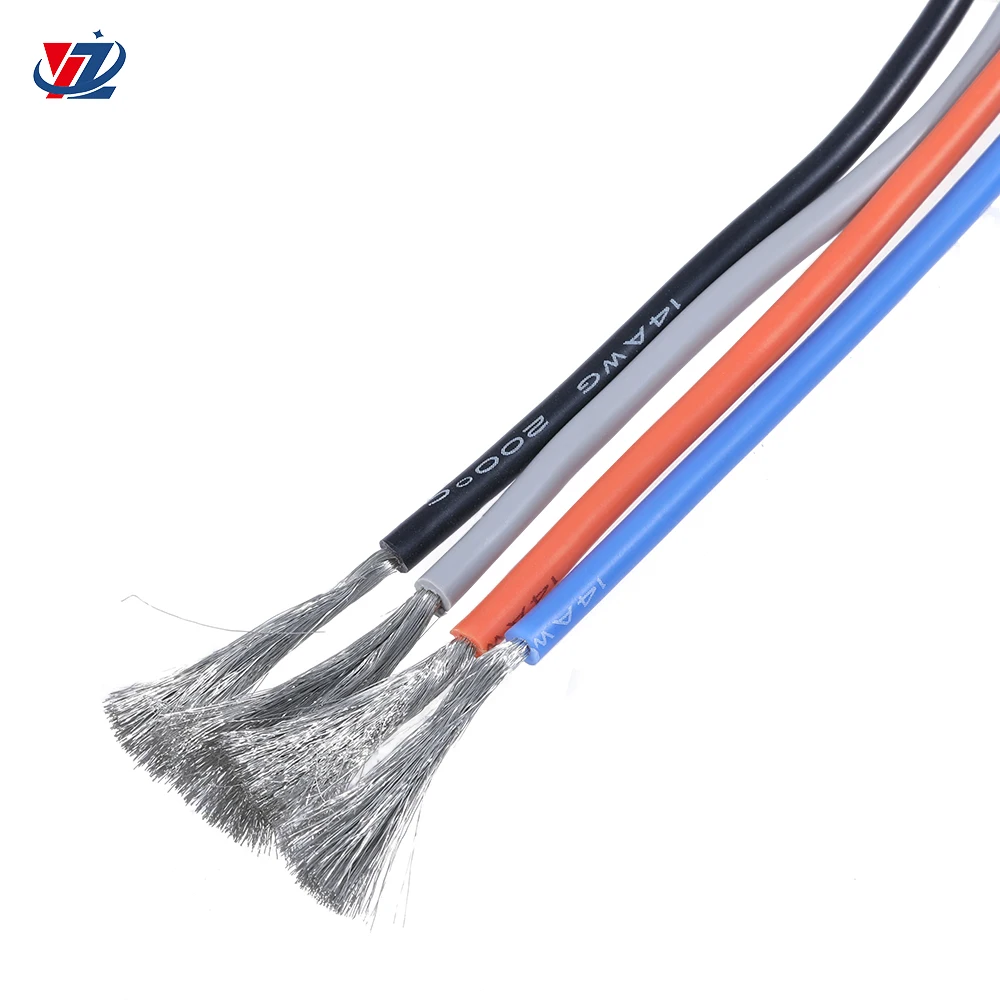

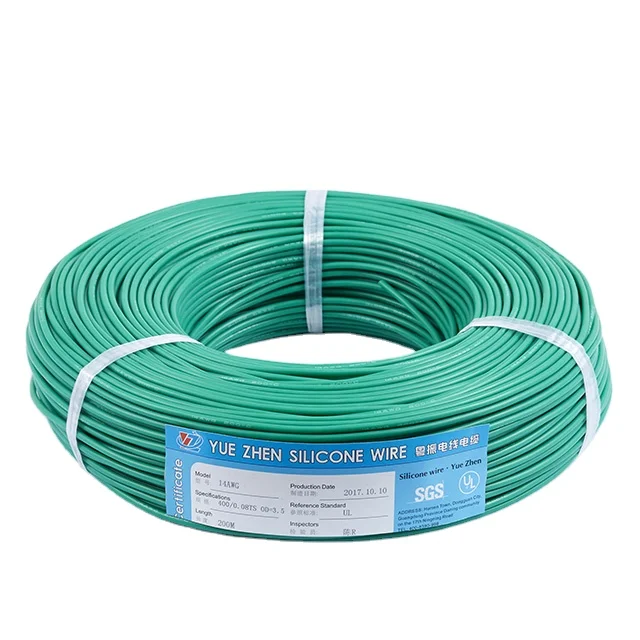

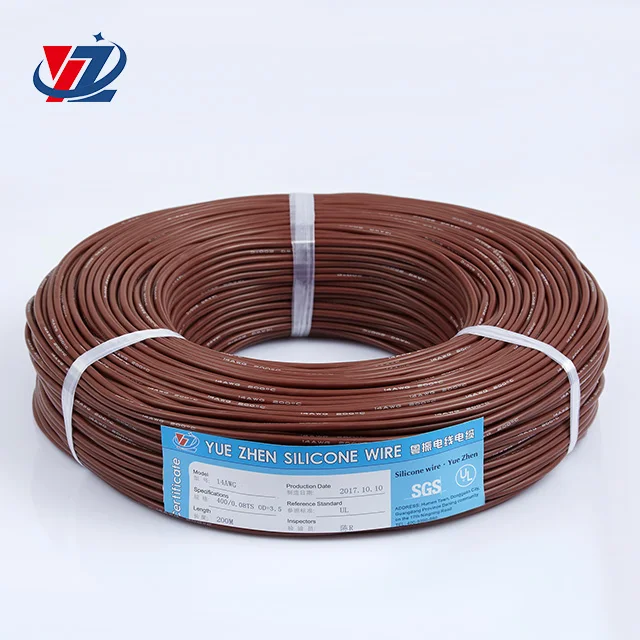

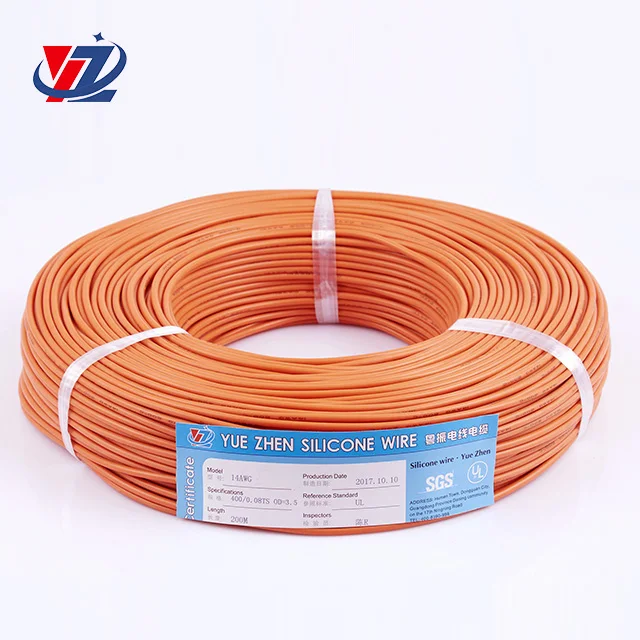

Free Sample Oxygen free copper wire 14AWG PVC or silicone cable high temp heating wire
| Product Name: | Free Sample Oxygen free copper wire 14AWG PVC or silicone cable high temp heating wire |

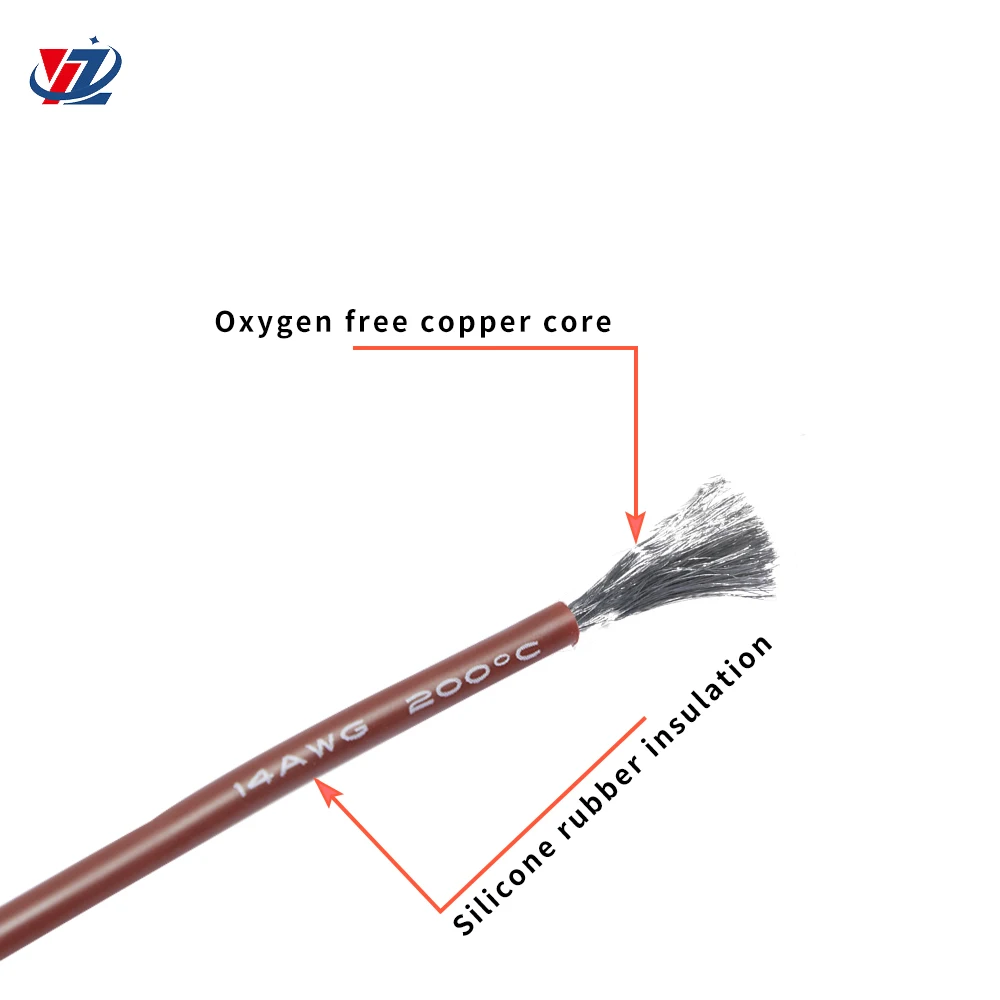

| Conductor : | 400/0.08 TS Tinned Copper |
| Insulator : | Silicone |
| Over Diameter : | 3.5 mm |
| Nominal Temperature : | 200℃ |
| Nominal voltage : | 600v |
| Section : | 2.0 aq mm |
| Package: | 200M/Roll |
| Weight: | 5.6KG |
Features:
1.Characteristics : Anti - acid & alkali, oil - resistant, moisture-proof, anti - mildew, etc. Easy to peel and cut.
2.Flammability Test : pass the UL VW - 1 and CSA FT1 vertical flame test
3.Over Diameter tolerance: ±0.1mm
4.It's usually 400 meters per roll
Application:
It's widely used in internal wiring of electronic, battery, RC batteries, model wiring, electric appliance and instrument equipment, external wiring of Large transformer, lighting and motor.
More specifications:
| Conductor | Insulator | Packing | |||
| AWG | Conductor Construction NO.×(Diameter)mm | Diameter mm | Insulator Thick mm | Over Diameter Mm | Mt/coils |
| 30 | 11×0.08 | 0.3 | 0.55 | 0.8 | 2500 |
| 28 | 16×0.08 | 0.36 | 0.38 | 1.2 | 1500 |
| 26 | 30×0.08 | 0.46 | 0.55 | 1.5 | 400 |
| 24 | 40×0.08 | 0.61 | 0.55 | 1.6 | 400 |
| 22 | 60×0.08 | 0.72 | 0.49 | 1.7 | 400 |
| 20 | 100×0.08 | 0.92 | 0.44 | 1.8 | 400 |
| 18 | 150×0.08 | 1.13 | 0.59 | 2.3 | 200 |
| 16 | 252×0.08 | 1.47 | 0.77 | 3.0 | 200 |
| 14 | 400×0.08 | 1.78 | 0.83 | 3.5 | 200 |
| 13 | 500×0.08 | 2.0 | 1.0 | 4.0 | 100 |
| 12 | 680×0.08 | 2.41 | 1.05 | 4.5 | 100 |
| 11 | 750×0.08 | 2.53 | 1.20 | 5.0 | 100 |
| 10 | 1050×0.08 | 2.90 | 1.30 | 5.5 | 100 |
| 8 | 1650×0.08 | 3.50 | 1.50 | 6.5 | 100 |
| 7 | 2400×0.08 | 4.5 | 1.35 | 7.2 | 100 |
| 6 | 3200×0.08 | 5.2 | 1.65 | 8.5 | 100 |
| 4 | 5000×0.08 | 6.53 | 3.73 | 12 | 100 |
| 3 | 7000×0.08 | 7.73 | 2.13 | 12 | 100 |
Feature
Infornation
Packing and Shipping
Certification
Hot Products
FAQ
Q1:How to get the best price?
A:Send enquiry me and you will get the best price.
Q2:When I want customized products, how to do?
A:We have professional equipment, technicians and skilled employees. OEM & customized service is welcome. Drawings or samples are required.
Q3: The quality and variety of your products are very attractive indeed. How do you insure the quality control?
A: All products are in strict accordance with the standards of production and inspection processes in order to ensure stability of product quality.
Q4: Can I get the samples?
A: Yes. Sample is available.
Q5: How long can I expect to get the sample?
A: The samples will be ready for delivery in 7 days.The samples will be sent via express and arrive in 3-5 days.
Q6:After I pay, what about the lead time and shipping method?
A:Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish. As for the Lead time, 10~20 days.
