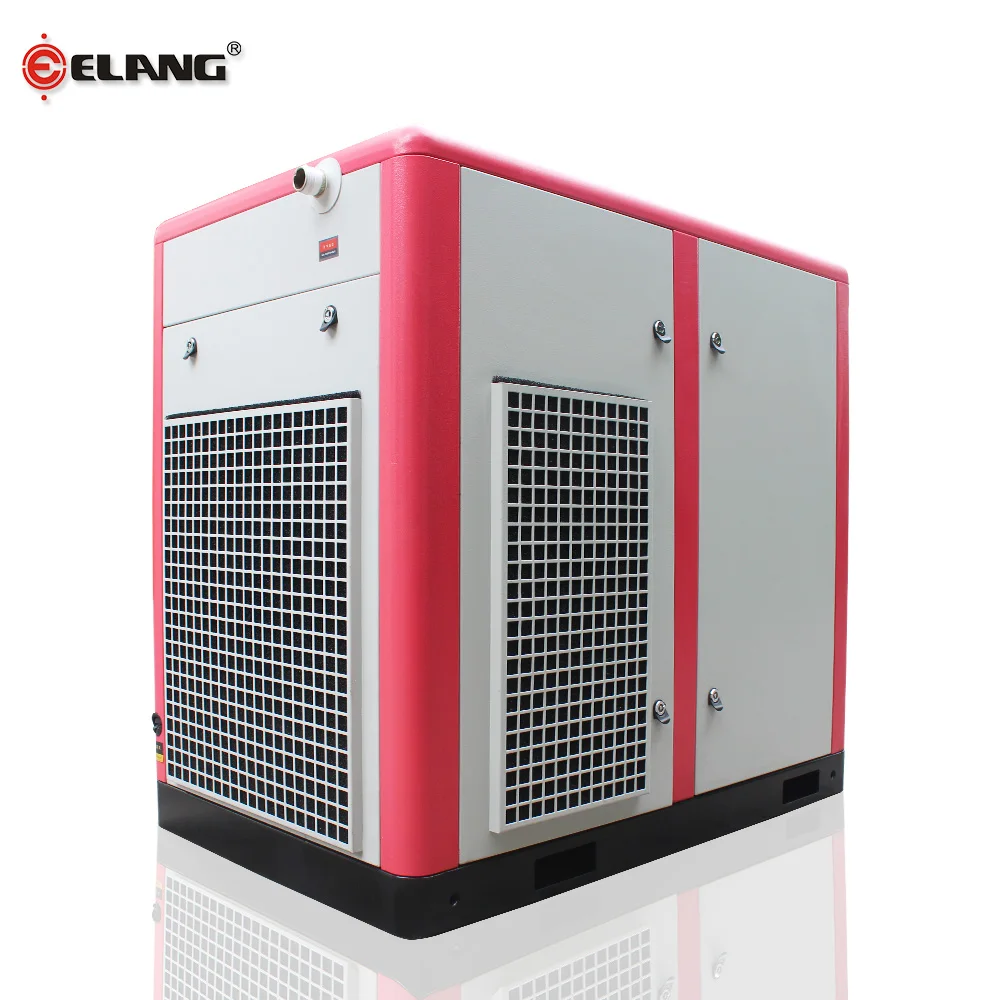

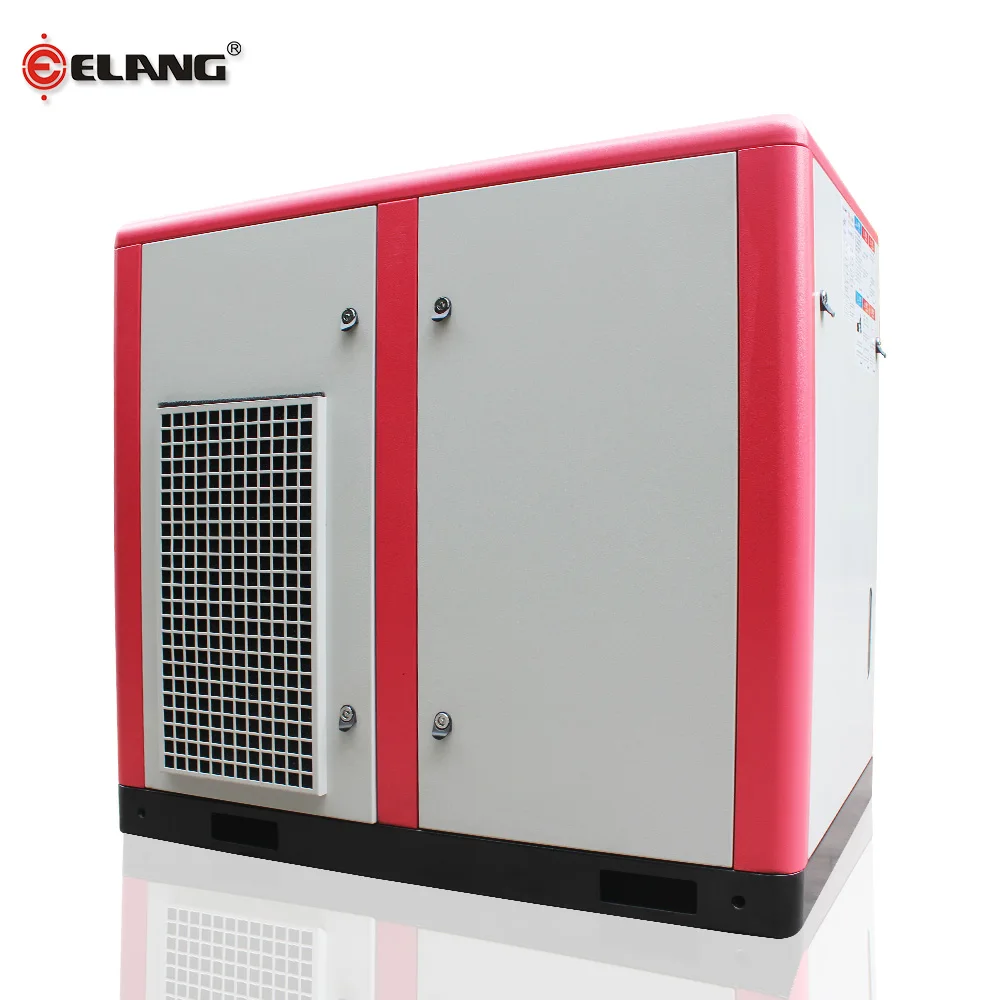

30Hp 22Kw Energy Saving Low Noise Permanent Magnet Motor Inverter Screw Air Compressor
Product Name: 30Hp 22Kw Energy Saving Low Noise Permanent Magnet Motor Inverter Screw Air Compressor Working Pressure: 8 - 12.5bar (116 - 181psi) Air Delivery: 0 - 3.6m3/min Motor Power: 22kw/30hp Type of Driving: Direct Driven Type of Cooling: Air Cooling/Water Cooling Dimension: 1200*850*1280mm Weight: 665kg Output pipe Diameter: 1"
There are more parameters below.
Description
The servo variable frequency compressor is a competitive product among the high-grade machines, the quality of air end of servo variable frequency compressor is excellent. The advanced molded lines ensure the minimum specific power. It is designed in the FEM strength analysis, to ensure the stability and reliability of each part, and to realize long term operation with no faults, low noise and long life.
Advantages
Rotor:
Rotors are asymmetric in profile, backed up by ball bearings and roller bearings. Operates at a low speed, thereby low in abrasion and maintenance expenses, air end is long service life. Helical gears can produce axial force to kill some acting force, which reduces the load of the bearing of air end.

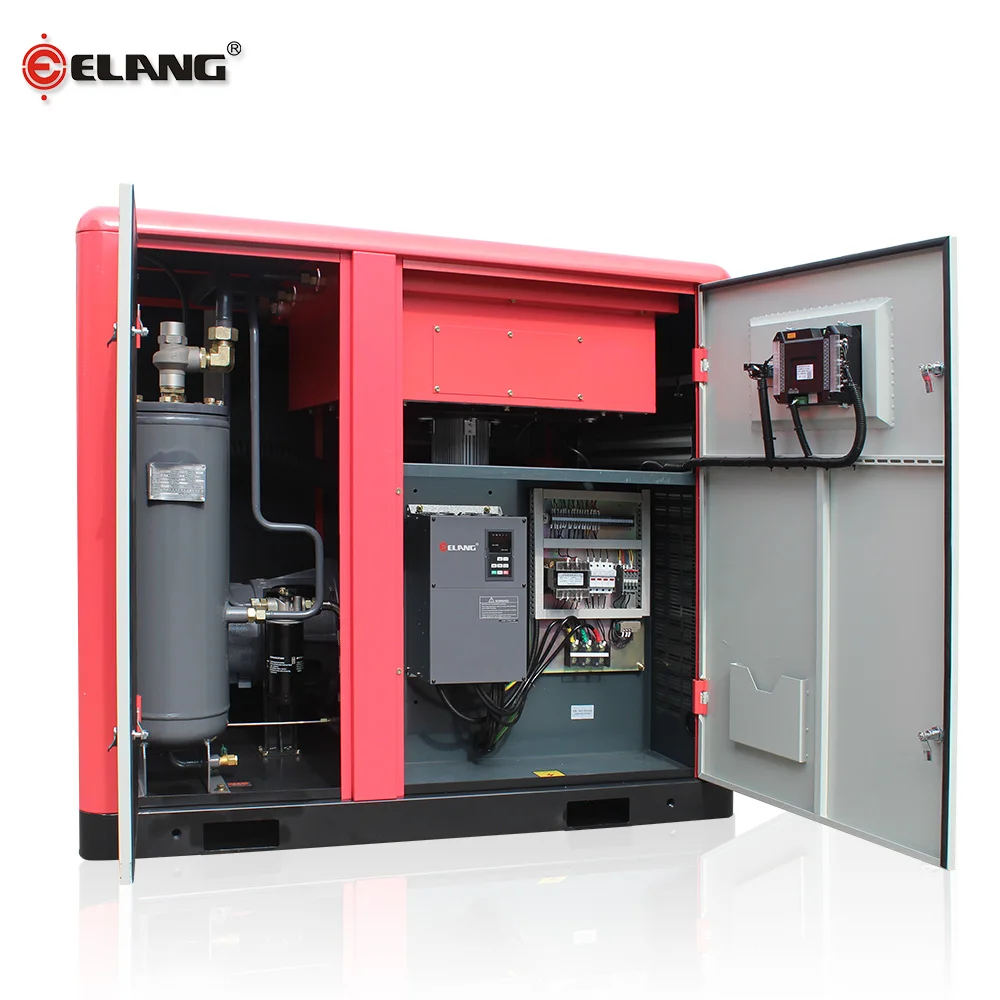

Control panel:
Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following your instructions, remote control realizes unattended operation, and the user-friendly human-machine interface displays instructions and parameters in written form also, it can function to self diagnose faults, give warning and automatically regulate the capacity.
Oil filter:
Rotary filters are applied to completely remove the impurities in the lubricating oil, easy to replace and free of oil impregnate.
Cooler:
It is designed for low temperature difference to increase heat exchange area, and ideal to be applied to high-humidity operating environment.
Excellent quality of motors:
Compared to normal motors, Servo motors have smaller dimensions and more excellent energy saving.It will exert incomparable energy saving effect than normal inductive motor when installed with the special frequency convectors.

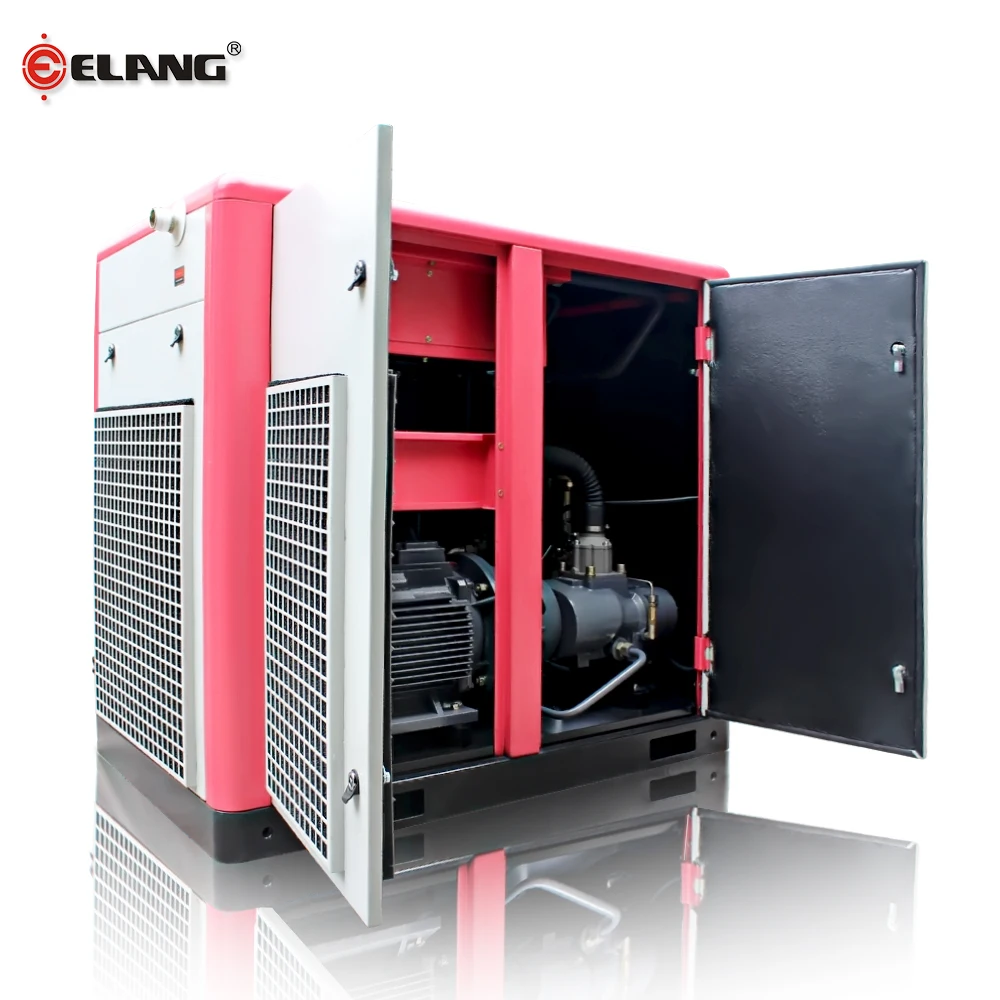

The host machine of compressor is of high efficiency and long life:
The quality of host machine of permanent magnet synchronizing variable frequency compressor is excellent. The advanced molded lines ensure the minimum specific power.It is designed in the FEM strength analysis.to ensure the stability and reliable of each part,and to realize long term operation with no faults,low noise and long life.
Model
Working Pressure
Air Delivery
Motor Power
Type of Driving
Type of Cooling
Dimension(mm)
Weight (kg)
Output pipe Diameter
psig
bar
cfm
m3/min
kw/hp
L
W
H
ERC-20SA
100
7
33.9-84.7
0.96-2.4
15/20
Direct driven
Air Cooling / Water Cooling
1200
850
1280
665
1"
116
8
31.1-77.6
0.88-2.2
145
10
29.7-74.2
0.84-2.1
181
12.5
25.4-63.6
0.72-1.8
ERC-25SA
100
7
47.8-109.5
1.2-3.1
18.5/25
1200
850
1280
665
1"
116
8
41.0-102.4
1.2-2.9
145
10
38.1-95.3
1.1-2.7
181
12.5
32.5-81.2
0.9-2.3

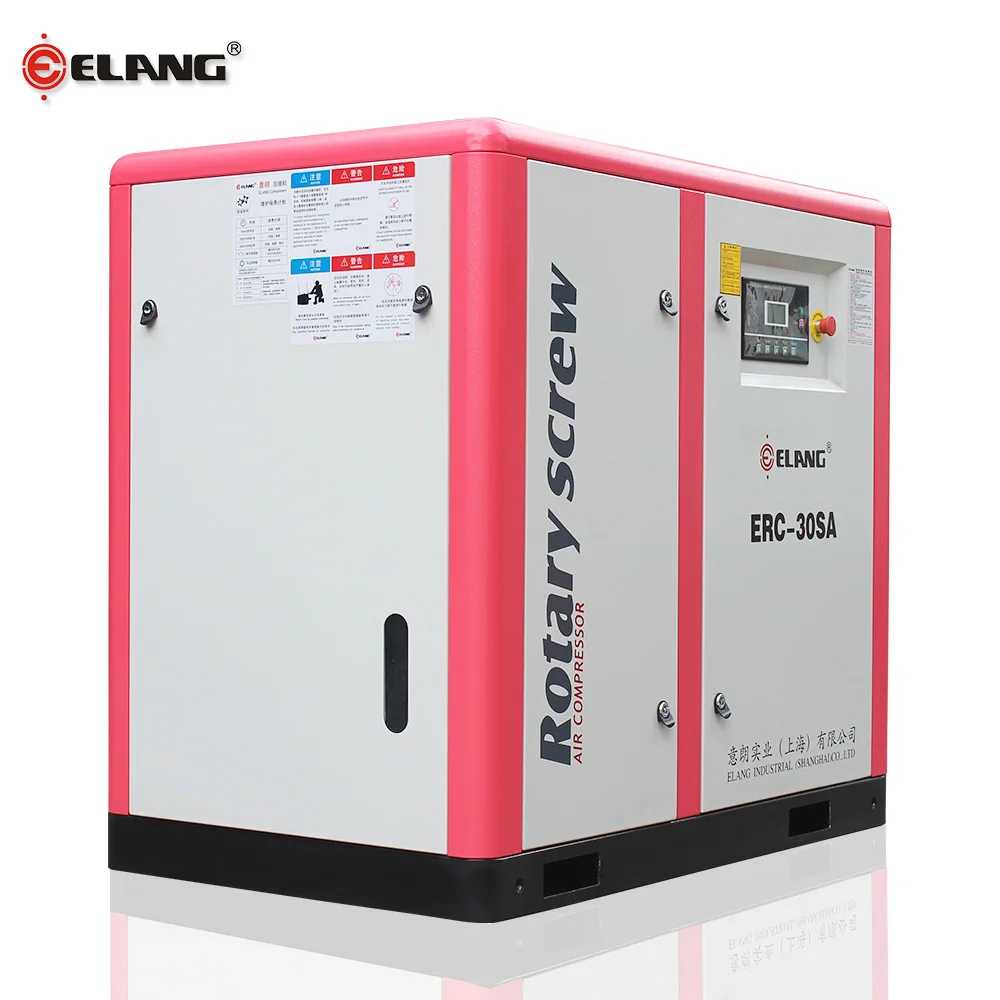

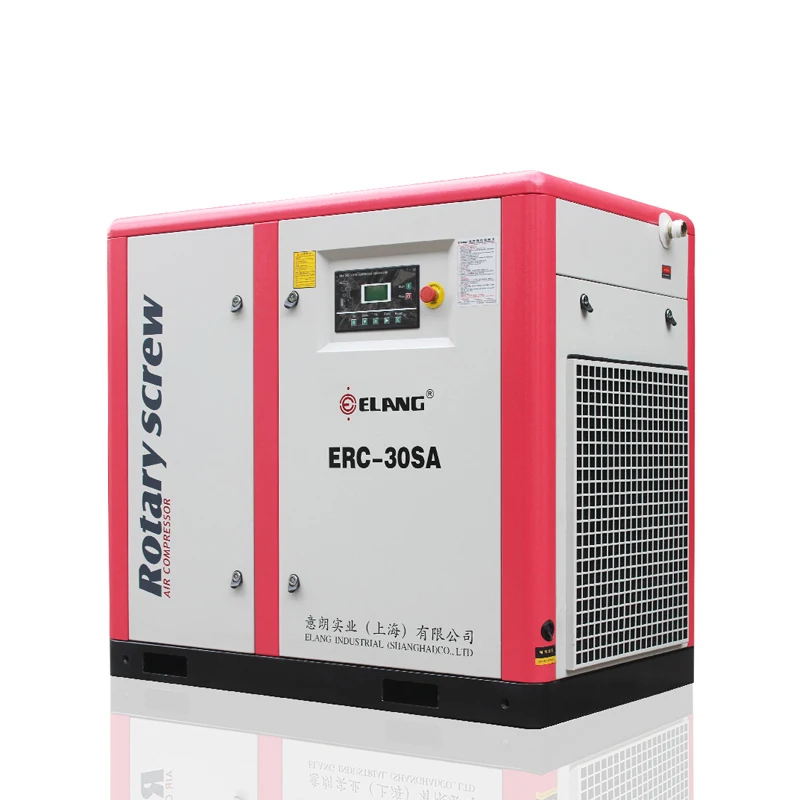

ERC-30SA
100
7
53.7-134.2
1.5-3.8
22/30
1200
850
1280
665
1"
116
8
50.8-127.1
1.4-3.6
145
10
45.2-113.0
1.3-3.2
181
12.5
39.5-88.3
1.1-2.8
ERC-40SA
100
7
74.9-187.1
2.1-5.3
30/40
1450
1000
1465
1110
11/4"
116
8
70.6-176.6
2.0-5.0
145
10
60.7-151.8
1.7-4.3
181
12.5
50.8-127.1
1.4-3.6
ERC-50SA
100
7
93.2-233.0
2.6-6.6
37/50
1450
1000
1465
1110
11/4"
116
8
87.6-218.9
2.5-6.2
145
10
80.5-201.3
2.3-5.7
181
12.5
65.0-162.4
1.8-4.6
ERC-60SA
100
7
113.0-282.5
3.2-8.0
45/60
1450
1000
1465
1750
2"
116
8
108.8-271.9
3.1-7.7
145
10
94.6-243.6
2.7-6.7
181
12.5
84.7-211.9
2.4-6.0
ERC-75SA
100
7
148.3-370.8
4.2-10.5
55/75
2100
1250
1700
1750
2"
116
8
138.4-346.0
3.9-9.8
145
10
122.9-307.2
3.5-8.7
181
12.5
103.1-257.8
2.92-7.3
ERC-100SA
100
7
192.1-480.2
5.4-13.6
75/100
2100
1250
1700
1840
2"
116
8
183.6-459.0
5.2-13.0
145
10
159.6-399.0
4.5-11.3
181
12.5
142.7-356.6
4.0-10.1
ERC-120SA
100
7
228.8-572.0
6.5-16.2
90/120
2170
1320
1750
2030
2"
116
8
217.5-543.8
6.2-15.4
145
10
186.4-466.1
5.3-13.2
181
12.5
158.2-395.5
4.5-11.2
ERC-150SA
100
7
293.8-734.45
8.3-20.8
110/150
2545
1500
1900
3100
DN65
116
8
275.4-688.5
7.8-19.5
145
10
233.0-582.6
6.6-16.5
181
12.5
193.5-483.7
5.5-13.7
ERC-175SA
100
7
339.0-847.4
9.6-24
132/175
2545
1500
1900
3400
DN65
116
8
324.9-812.1
9.2-23
148
10
282.5-706.2
8-20
181
12.5
218.9-547.3
6.2-15.5
ERC-200SA
100
7
392.6-981.6
11.1-27.8
160/200
2545
1500
1900
3400
DN65
116
8
367.2-918.1
10.4-26
145
10
331.9-829.8
9.4-23.5
181
12.5
275.4-688.5
7.8-19.5
Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required Motor Protection Class: IP23/IP54/IP55 or as per your required Certification: CE/ISO9001/TUV/UL/SGS/ASME Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok
Q1: Why customer choose us?
A: ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 18 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and 10years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Shanghai,China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions. 2. Well-trained engineers available to overseas service. 3. Worldwide agents and after service avaiable.
