Пластинчатый и mmo смешанный оксид металла рутений иридий титановый электрод анод для электролиза щелочной

Описание и отзывы

Трекер стоимости

Характеристики

platinized and mmo mixed metal oxide ruthenium iridium titanium electrode plate titanium anode for alkaline water electro

About Titanium Anode

Titanium Substrate	Grade	N	C	H	Fe	O	Ti
	1	0.03	0.08	0.015	0.2	0.18	bal
	2	0.03	0.05	0.015	0.3	0.25	bal
Regular Coating	Platinum:0.5um/1um; Mixed Iridium and Platinum:0.5um/1um; Mixed Ruthenium and Iridium:6-8um; Mixed Iridium and Tantalum:6-8um.
Characteristics	Coating: Mixed Ruthenium and Iridium; Chlorine evolution potential: <1.13V; Polarizability: ≤40mv; Accelerated life:   ≥3000min under current density 1000A/m2; Anode strengthening weightlessness: ≤10mg; Suitable working environment: Solution contains Cl-, PH<=7
Coating contents & life span	8 grams/m2:  >6,000  hours; 10 grams/m2:  > 8,000 hours; 12 grams/m2:  >10,000 hours; 15 grams/m2:  >12,000 hours; 20 grams/m2:  >15,000 hours
Working parameters	Current density: <600A/m2; Temperature: 40-60°C; Chlorine concentration: About 30~50grams/liter; Polarity reversal: suitable; Reversal frequency: 2-4 hours
Regular sizes	63.5*150mm, 13pcs/set; 64*110mm, 7pcs/set; 80*120mm, 1pcs/set; 30*183mm, 7pcs/set; 80*185mm, 7pcs/set

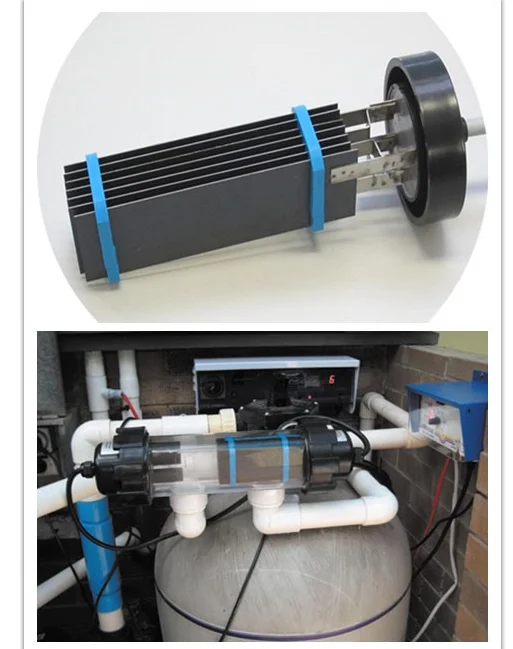

Applications	1.Water ionizer or water electrolysis a. Making alkaline and acidic water   2.Waste water treatment a.Organic sewage treatment, b. Chemical sewage treatment, c. Pesticide sewage treatment, d. Drinking water disinfection, e. Bleaching & dyeing, f. Swimming pool g. Hospital sewage treatment, h. Food industry disinfection etc.   3.Sodium Hypochlorite Generator & Chlorinator a. Swimming pool water treatment b. Water sterilization & water purification,    4.Sea water electrolysis or Electrodialysis a. Desalination, b. Material recycling in the waste water, c. Paper making, *Chemical, medical industry, d. Light industry, *Metallurgy, e. Making fresh water, etc.   5.Chlor-Alkali Industry   6.Electroplating a. Electrolating Au,Cr,Zn,Cu.etc     7.MMO Cathodic Protection

Quality Contro

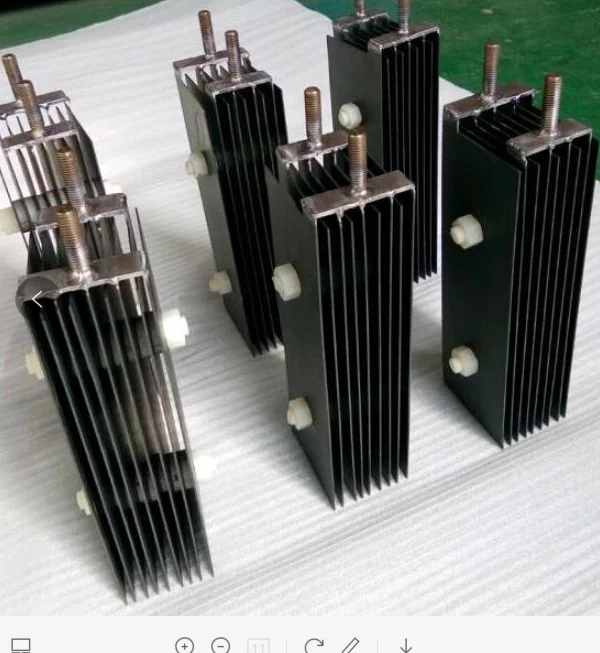

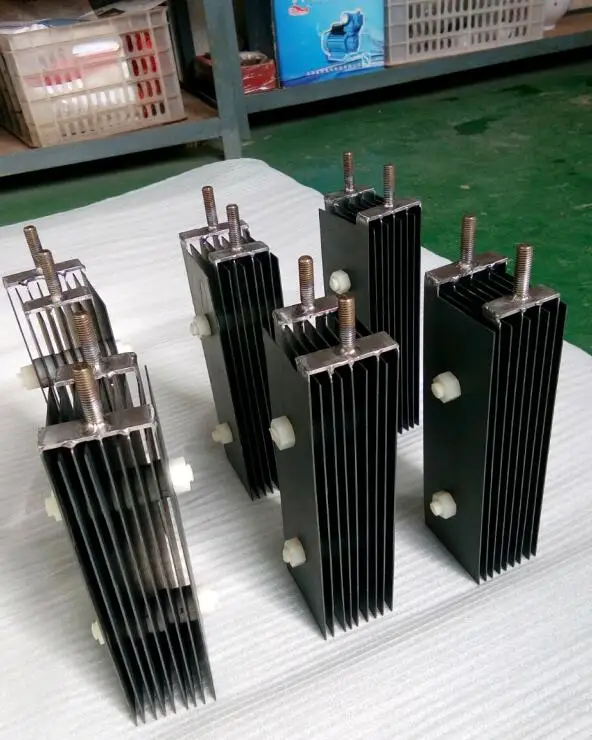

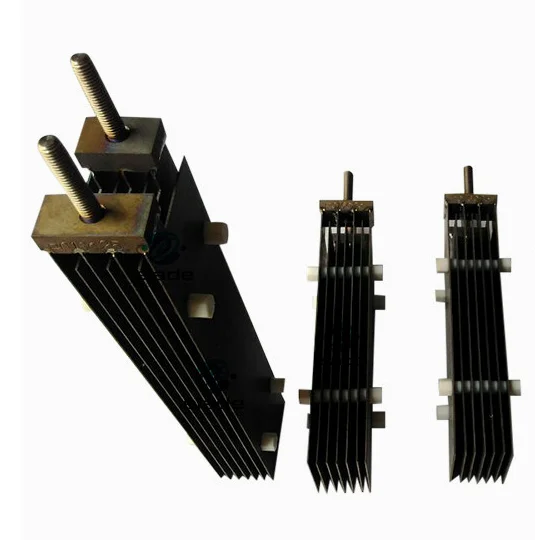

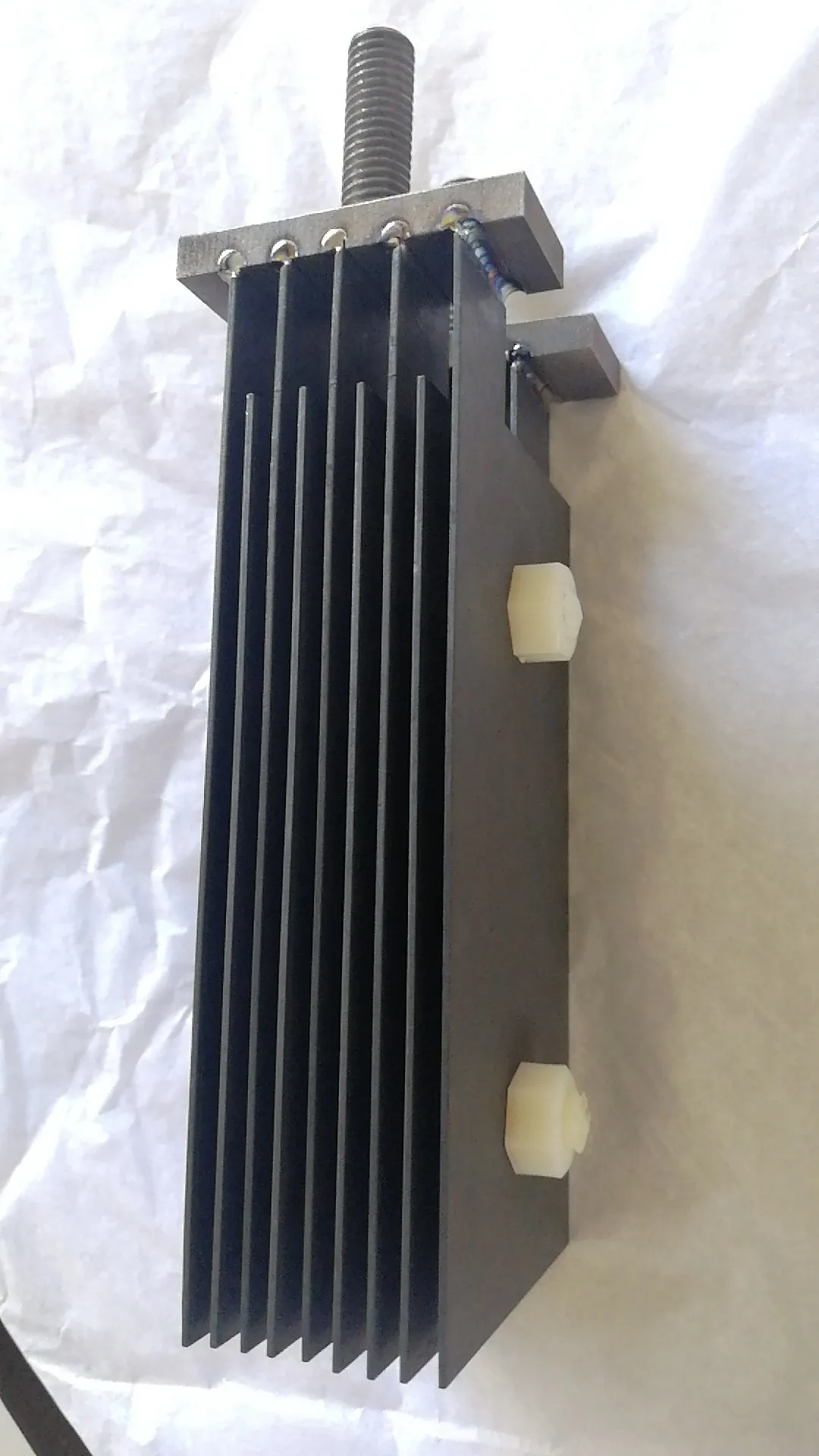

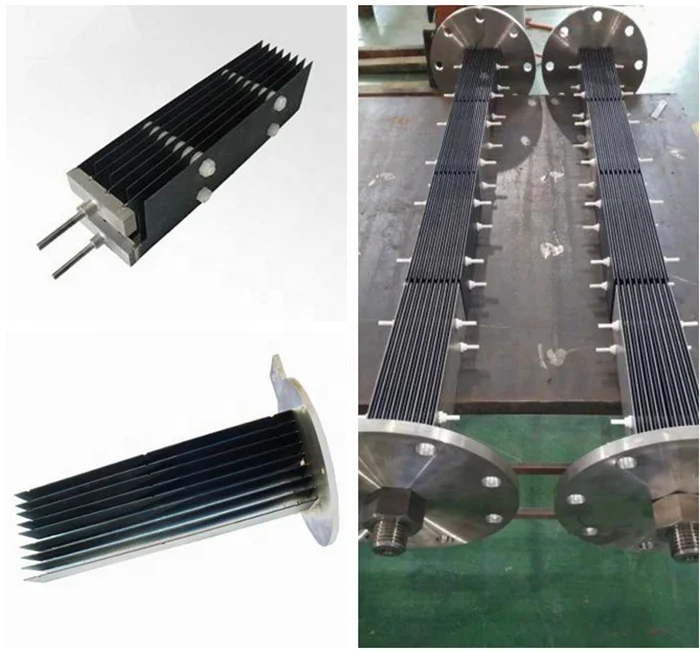

Product coating show

Titanium anode is a kind of electro-catalysis electrode in electro-chemistry, which is composed by substrate that is pure titanium and coated that is precious metal oxide.

1. Substrate treatment: it needs to be treated by roughing, cleaning and removing oil, which can increase the compactness of catalytic.

2. Brushing & Drying:After substrate treatment, it will be proceeded brush coated. The main coated content is platinum group metal, which is a kind of mixed solution.

3. Heat Treatment:Heat treatment will be proceed after drying.

The whole procedure need to be repeated many times. This method is better to form thin oxide catalytic that is lamellar adhere to substrate surface.



Our company

FAQ

1, Are you manufacturer or Trading company?
we are manufacturer, started from 2001. We have our own factory.
2, How can i get a sample?
we have free sample, the size is 100x100x1(mm). they are meshes and plates.
3, How long is your warranty?
Lasts for one year.
4, What kind of anode is suitable for us?
It is up to your current density, Voltage, PH, working temperature, electrolyte composition, electrode work purpose etc.
