OEM все бренды пластинчатых теплообменных модулей рамы детали

OEM все бренды пластинчатых теплообменных модулей рамы детали

Категория: Пресс-формы >>>
Поставщик: TIANJIN,JINFAN,MOULD,CO.,LTD

Цена:9 000,00 $ - 10 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	10710.78 $*	11246.44 $*
Aug-18-2025	10620.26 $*	11151.64 $*
Jul-18-2025	8910.90 $*	9356.99 $*
Jun-18-2025	10440.89 $*	10962.91 $*
May-18-2025	9090.73 $*	9545.42 $*
Apr-18-2025	10260.9 $*	10773.23 $*
Mar-18-2025	10170.5 $*	10679.35 $*
Feb-18-2025	10080.21 $*	10584.12 $*
Jan-18-2025	9990.19 $*	10490.15 $*

Характеристики

Mould Description

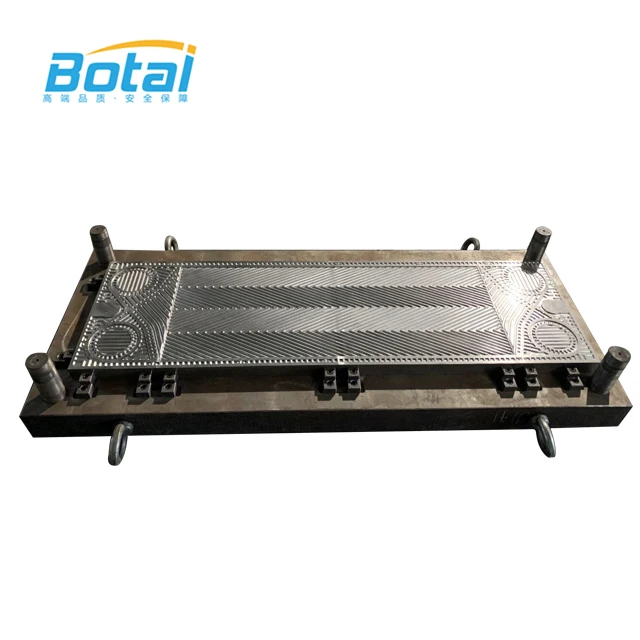

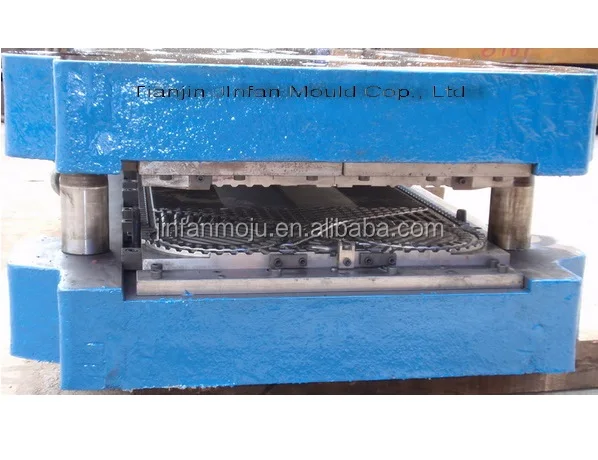

PLATE HEAT EXCHANGER MOULD

Production Ability:

We manufacture about 400 plate heat exchanger mould since 2004,and we are always making new moulds every month according to the need of clients.

Many brands such as: APV,Sondex，GEA,Tranter，Vicarb ,Funke，Thermowave，API,exc. The plates produced by our mould can be exchanged with original plates,and we have exported largen quantity in the past 10 years.It taks our client big benefit by saving a lot on the plate heat exchanger maintenance.

Types:

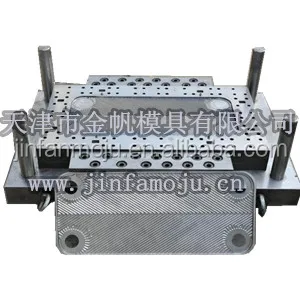

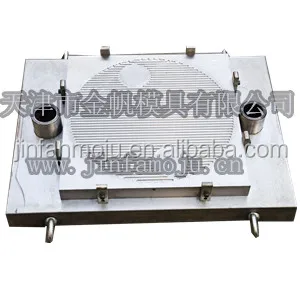

Our plate heat exchanger mould types includ:common Gasketd plate mould ; Free flow Wide Gap plate mould ; Semiweld plate mould ; Double Wall Plate mould ; Plate Shell Plate mould ; Evaporater mould ; Condenser mould,and fully welded mould,etc.

As long as client provide a plate sample,we can make mould accordingly.We also design mould ourselves.

High quality and Quality control to gurantee Long life time:

We have a strick quality control procedure for the whole production,from raw material choose Cr12 or Cr12MoV,to milling,grinding,CNC maching,assembling,to the final pressing test in the press macihine.,
Application:

Our moulds can match with different sizes of press machines,like press machine of 2000kg,3000kg,4000kg,5000kg,8000kg,10000kg,and 45000kg.We can offer the correct press size for clent.

Other Models

we can supply whole set plate heat exchanger, plates, mould, gaskets of following models.

AL	M3 M6 M6MX-R M6MX-L M10B M10M M10BW M15B M15M M15BLip MK15BW MX25B MX25M M30 M30M MA30M TL6B TL10B T135 T20B T20P T20M TS6M TS20M TS60 TS60L TS200M P16 P22 P26 P31-P P31-D P32 P36 H10 A10 A10B-R A10B-L AM10 A15 A15B A20 A20B AK20 AM20B AM20M AM20S AX30 AX30BW Clip6 Clip8 Clip10 JWP26 JWP36 EC50 EC150A EC150B EC350 EC500
APV Series	A055 A085 H12 H17C H17G J060 J092 J107 J185 Sr1 Sr2 Sr3 Sr6 Sr14 Sr95 M60 M92 M107 U2 T4 N25 N35-C N35-G Q030D Q030E Q055 Q080 K34 K55 K71G R5-R R5-L N50 P105 P190 E201 RS3
GEA Series	VT04P VT10F VT20-C VT20-G VT20P VT40-C VT40-G VT40P/M VT40P VT80-C VT80-G VT80M VT80P VT805 VT130F VT130K VT405 VT1306 VT2508 NT10 NT50T NT50X NT50M NT100T NT100M NT100X NT150S NT150L NT250S NT250L NT350S FA184 FE184 LWC100T N40 VT2508
Tranter Series	GXP018 GXP026 GXP042 GXP051 GXD012 GXD026 GXD042 GXD051 GXD060 GXD085 GXD145 GCD030 GCD054 GCP016 GCP026 GCP051 GFP050 GFP100 GLD013 S3/GFP030 S8/GFP080 GL13 GX12 GX13 GC26 GX26 GC30 GC42 GX42 GX51 GC51 GC54 GC60 GX60 GX100 GX180
Vicarb Series	V4 V8 VU8 V10 V13C V13G V20C V20G V28C V28G V45C V45G V60C V60G V60A V60B V85G V100A V100B V110A V130 V170 V280
Sondex Series	S4A S7A S8 S8A S14A S15 S19A S20 S20A S21 S21A S22 S27A S30 S35 S37 S37B S38 S39 S41 S41A S42 S43B S47B S50 S62 S64 S65B S65C S65G S81 S100B S121 S188 SFD13
Thermowave Series	TL90SS TL90PP TL150SS TL150PP TL200PP TL200SS TL250SS TL250PP TL500SS TL500PP TL650SS TL650PP TL850PP TL850SS
Hisaka Series	LX00A LX10A LX20 LX20A LX30A LX40 LX40A LX50A UX01 UX10 UX10A UX20 UX20A UX30 UX30A UX40 UX40A UX80 UX90 RX10A RX11A RX30A RX70 SX40(41) SX40A EX11 EX15
Funke Series	FP04,FP08,FP10,FP14,FP20,FP16,FP22,FP205,FP31,FP40,FP50,FP41,FP60,FP80
Botai Series	FM10MC, FM10MD, FM6MC, M15MC, FMX25MA, FMX25B, FBR08,FBR06 ,FBB1.2 ,FBB09, FBB05,FBB08,FBB06, FBB04, FBB06X, FBB045,FBB03,FBR005,FBR007, FM30MC

Material	Suitable Media
Stainless Steel(304/316)	Pure Water, River Water, Edible Oil, Mineral Oil
Ti, Ti-Pd	Seawater, Brine, Salt Substance
20Cr,18Ni,6Mo(254MO)	Dilute Sulfuric Acid, Dilute Salt Substance Aqueous Solution, Inorganic Aqueous Solution
Ni	High Temperature, High Density Caustic Soda
Hastelloy(C276,D205,B2G)	Concentrated Sulfuric Acid, Hydrochloric Acid, Phosphoric Acid

Gasket Material	Operating Temperature	Suitable Media
NBR	-20°C - +110°C	Water,sea water,mineral oil,Salt,Brine
EPDM	-50°C - +150°C	Hot water steam, Acid, Alkali
HNBR	-15°C - +160°C	High temperature,mineral oil,water
VITON/FKM	-35°C - +180°C	High temperature,high resistance,strong oxidants,oil,acid,alkali, etc

Our Company

BIG SCALE IN WORLDWIDE FIELD:

Tianjin Jinfan mould co.,ltd is a professioanl plate,gasket,plate heat exchanger manufacturer since 2004.

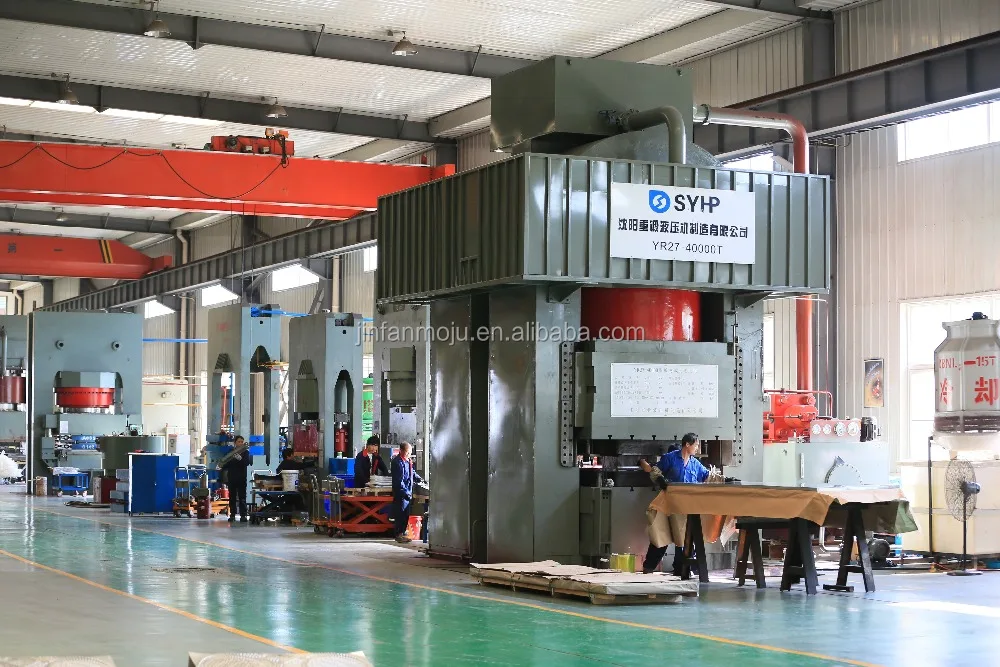

The factory occupies 25000㎡，owing 13 press machines like 45000T,15000T,5000T,10 big cutting&shearing machine,NC cutting,laser,cutting machine，welding machine etc.

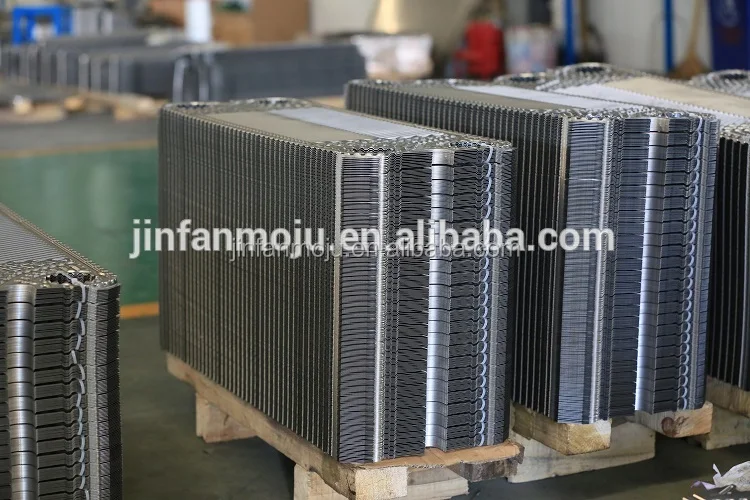

We produce about 300 plate heat exchanger models with plate area of 0.03㎡ to 3㎡，and port fromφ28 toφ480.

HIGH POSITION IN PHE MARKET:

As the first and biggest plate & mould source in China,90% of the plates moulds are made by us in China, and majority of the plates are from us in Chinese market.

We exported large quantity of plates, gaskets, plate heat exchanger and moulds to Europe, Asia, Middel East, USA, Australia, South Afric, owing to equivalent quality with OEM spares, competitive price, large stock, short deliver, technical support (software and experience), certificate suppoert (ISO9001 ,FDA,EN 3.1 and SGS,etc), as well as after work service.

Quality Control System;

We have long time cooperation with big raw material supplier and imported special material like Titanium 245SMO,etc.

The plates ,plate heat exchangers, and facilities are all stictly traceable to meet the need of after sale service.The strong manufactring ability and full quality control enable us to provide you world class products.

The Special and Sole Service:

We produce the most complete PHE ranges,including every brands.

Besides our molde list,we make all the brands and models.Because we made moulds ourselves,so no matter you need any model,we can provide and support to you for any possibility!

Quality Test&Packing

Payment & Shipping

Payment Term

*Our normal payment term is 30% deposit,and 70% before shipping.

* We can also accept other payment term according to the request of our clients.

Delivery Time

* Our normal delivery time is 3-15days.

* If there is any urgent order,we would like to help finish it in 1-2day,because we're the real source in Chinese market.

Our Service &Contact

Service
1.We're the real source of PHE plates in China.We are always making new moulds each month according to the need of clients,and produce plates everyday by 13 sets of press machines and 300 sets of moulds.So we can provide you the most complete range of PHE and spares. 2.We kept large stock of raw material like SS304,316L,Titanium,even C276 and254SMO.Delivery time is short.No matter you have any emergency,we can help and support you.Our material all from the famous supplier in USA,Japan,and Korea.Thickness is at least 0.47mm for 0.5mm plate,and at least 0.57mm for 0.6mm plate. 3.Our complete production and quality control system enable us to provide 100% guarantee to the customers. 4.We have software of APV,Tranter,GEA,Sondex,Funke,API,etc.And can provide you technical sheet and PHE drawing.We can support you for the new unit for your PHE project. 5.Most important is high quality and good price.That's why we win more and more customers and friends in worldwide and gain the international position in the PHE field. 6.We work 24hours to service for you.
