Машина для производства льда в пресноводных хлопьях 500 кг

Машина для производства льда в пресноводных хлопьях 500 кг

Категория: Ледогенераторы >>>
Поставщик: Shenzhen,Iceups,Refrigeration,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.22 $*	0.64 $*
Aug-15-2025	0.6 $*	0.73 $*
Jul-15-2025	0.9 $*	0.51 $*
Jun-15-2025	0.64 $*	0.72 $*
May-15-2025	0.81 $*	0.83 $*
Apr-15-2025	0.47 $*	0.76 $*
Mar-15-2025	0.95 $*	0.68 $*
Feb-15-2025	0.43 $*	0.71 $*
Jan-15-2025	0.93 $*	0.22 $*

Характеристики

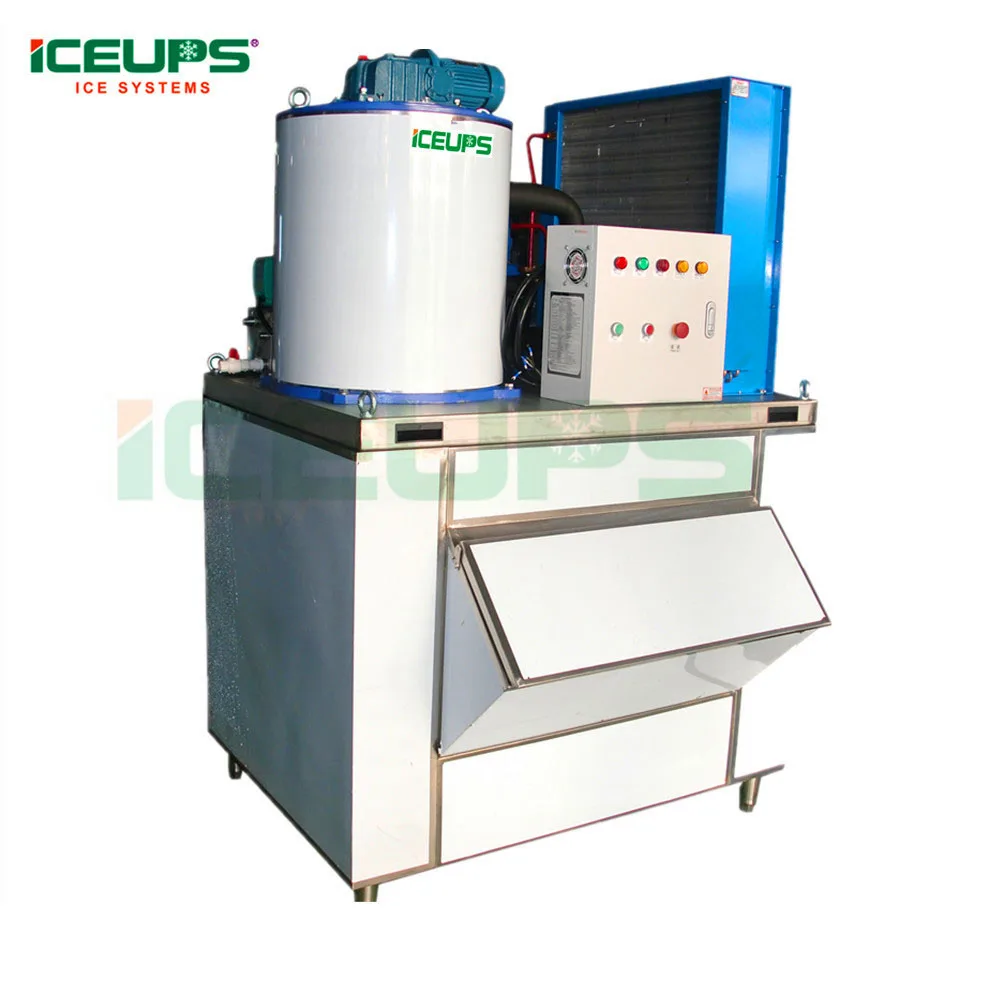

Hot freshwater flake ice making machine 500kg per day

Iceups introduction

Product Description

KMS-2T 1.jpg

High Quality Flake Ice

The flake ice is dry, pure, clean, not easy to block, thickness is about 1.2mm--2.2mm, without edges or corners which would avoid damage to products. So it is widely used in refreshing vegetable/fruit and freezing fish and meat, and other field like slaughter processing, fishing, concrete cooling etc.

Main Refrigeration Parts are all use international Famouse brand like Bitzer, Danfoss,

Hanbell, Copeland, D&F etc.

Main configuration list:

NO.	Component name	Brand name	Country
1	Compressor	Bristol	USA
2	Refrigeration parts	Danfoss	Danmark
3	Ice Drum(Evaporator)	ICEUPS	Shenzhen
4	Air cooling condenser	Maer	Wuhan
5	Electrical components	LS	South Korea
6	PLC controller	LS	South Korea

009

007

Technocial Parameters of KMS-0.5T:

NAME	PARAMETERS
DAILY CAPACITY(24H)	500KG/day
REF.CAPACITY(KW)	3/h
EVAPORATING TEMP.	-22℃
CONDENSING TEMP.	40℃
COMPRESSOR TYPE	scroll
COMPRESSOR BRAND	Bristol
TOTAL POWER(KW)	2.62
COMPRESSOR IN-POWER(KW)	1.9
POWER SUPPLY	380V-50Hz-3P (Other voltage also available)
WATER PRESSURE	0.1-0.5Mpa
REFRIGERANT	R404a
ICE TEMP.	-5℃
FLAKE ICE THICKNESS	1.5-2.2mm
AMBIENT TEMP.	25℃
WATER TEMP.	18℃
SUPPLY WATER WAY	Fresh water
COOLING WAY	Air cooling
RUNNING NOISE(dB)	≤40dB
ICE DENSITY	400-450KG/m3
ICE MACHINE DIMENSION(LxWxH)	1310x890x780 (separate from ice storage)
ICE STORAGE DIMENSION(LxWxH)	1320X1180X1100mm (separate from ice machine)
ICE STORAGE CAPACITY	300KG
GROSS WEIGHT	500KG (including ice storage)

Configuration explanation:

1) Actual ice-making capacity will be changed according to variance of water as well as the chiller power and the working enviroment and dosing temperature.

2) Referance power supply is dynamice electricity with 380v /50HZ, however, If necessary, It can be changed into 60hz/220v/200v/440v/400v/415V/480V according to different requirement of clients.

3) If you have any demand for the refrigerant agent, we can supply as your requested, however, you should inform us in advance .

4) If you have any other special request, please inform in advance, we will give our best advice and try our best to meet with your request.

Warranty:

12 Months after B/L date. Any failure occurred within the period due to our responsibility, we’ll supply you the spare parts for free, and permanent technical support & consultation all life long for the machines.

Flake ice application fields:

Aquatic products processing

Meat processing

Fishery industry

Long range fishing

Vegetable preservation

Supermarket or other commercial usage

Cold storage project

Temperature reduction project

Artificial snow ice skating rink

Slaughter processing

Concrete cooling
