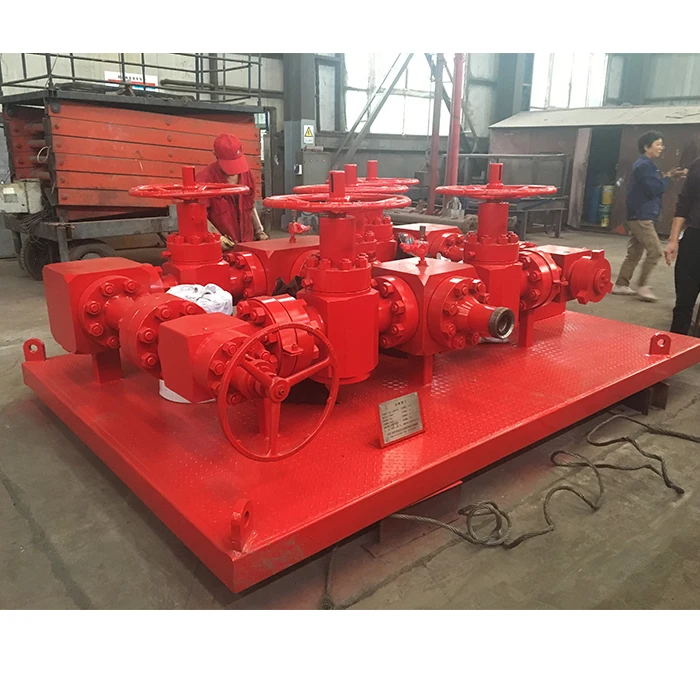

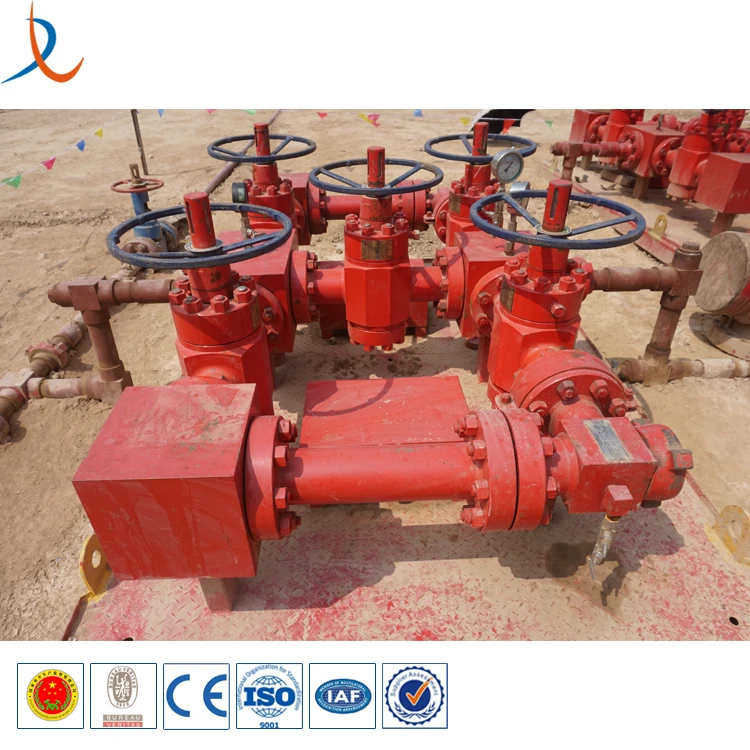

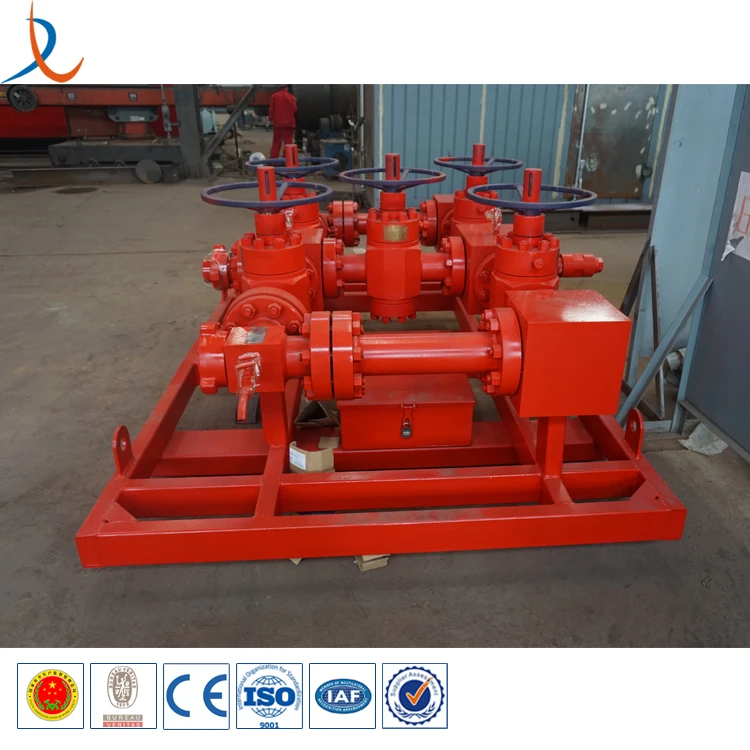

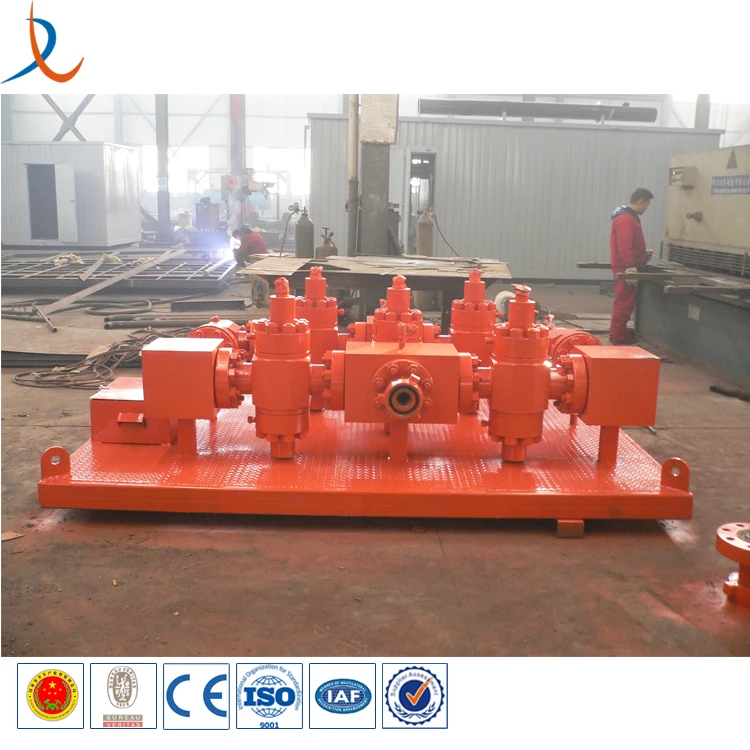

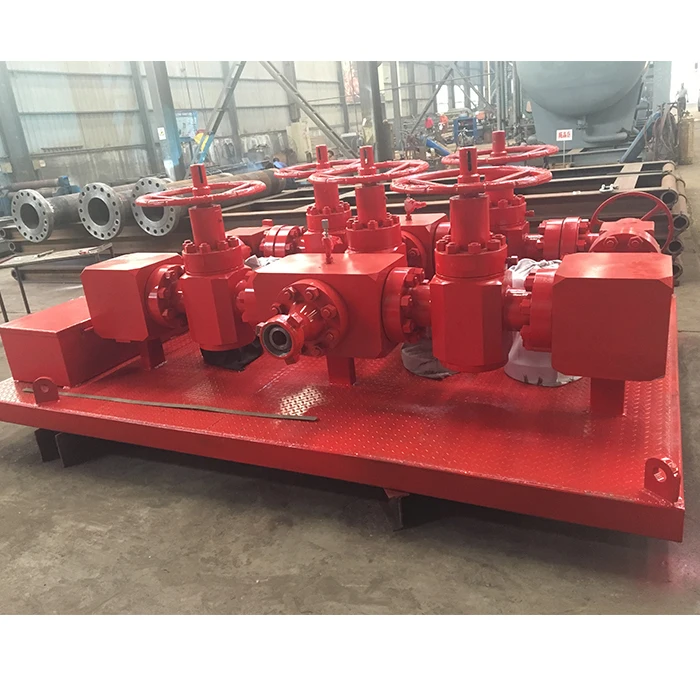

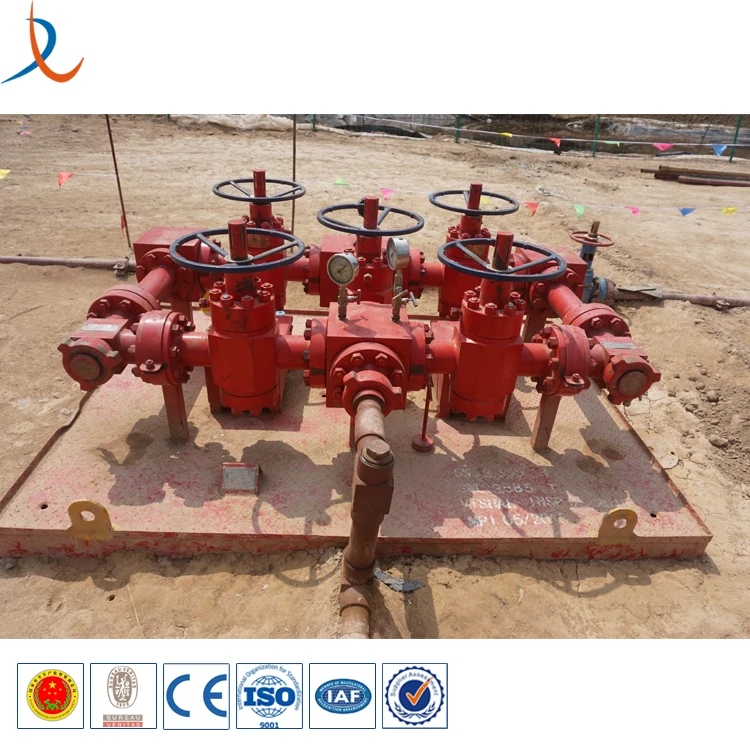

Wellhead control kill manifold / high pressure choke manifold / hydraulic choke manifold for oil drilling
Product Description
Choke manifold consists of four manual gate valves (five gate valves if a bypass valve is included). It is the necessary equipment to control the flow rate and reduces well pressure before the flow enters the processing equipment for protecting the well. It can be equipped with hydraulic control panel for remote control.
The thchnical paramerers about our wellhead control kill manifold / high pressure choke manifold :
Pressure
35MPa(5000psi)
70MPa(10000psi)
105MPa(15000psi)
Color
Blue
Yellow
Red
Model
JG/S52-35
JG/S78-70
JG/S78-105
Design Pressure
35MPa
70MPa
105MPa
Weight
2530kg(5578lb)
3580kg(7892.5lb)
4630kg(10260lb)
Dimension(L×W×H)
1802×1339×680mm
2516×1824×799mm
3270×2371×1038.7mm
Material Level
EE
EE
EE
Product specification level
PRL3
PRL3
PRL3
Working Temperature
PU(-29℃~121℃)
PU(-29℃~121℃)
PU(-29℃~121℃)
Product performance level
PR1
PR1
PR1
Nozzle
Fixed and adjustable nozzle
Fixed and adjustable nozzle
Fixed and adjustable nozzle
Characteristics
Five gate design
Five gate design
Five gate design
work medium
Mud,oil and drilling fluid
Mud,oil and drilling fluid
Mud,oil and drilling fluid
Connection type
Flange
Flange
Flange
Main features of our wellhead control kill manifold / high pressure choke manifold / hydraulic choke manifold for oil drilling as below:
1.Control the well fluid flow
2.Built-in Cameron style gate valves which can be redressed on pipeline
3.Standard two flow system: one through a positive choke and the other through an adjustable choke that can be converted into a positive choke
4.Provides a means for fluid sampling, real-time pressure and temperature monitoring, and chemical injection
5.Metal-to-metal, double seal to ensure reliability in harsh environments
