Биореактор микробной культуры из нержавеющей стали 100
- Категория: Reactors >>>
- Поставщик: Wenzhou,Flowtam,Light,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.88 $* | 0.82 $* |
| Aug-15-2025 | 0.53 $* | 0.41 $* |
| Jul-15-2025 | 0.68 $* | 0.4 $* |
| Jun-15-2025 | 0.68 $* | 0.35 $* |
| May-15-2025 | 0.69 $* | 0.61 $* |
| Apr-15-2025 | 0.47 $* | 0.14 $* |
| Mar-15-2025 | 0.12 $* | 0.72 $* |
| Feb-15-2025 | 0.75 $* | 0.94 $* |
| Jan-15-2025 | 0.19 $* | 0.9 $* |
Характеристики

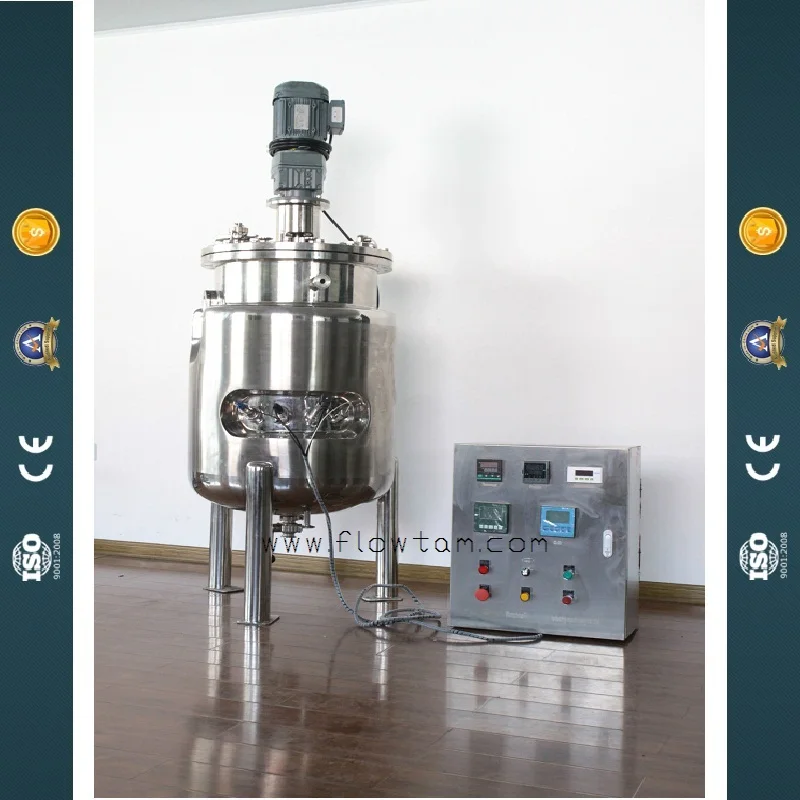

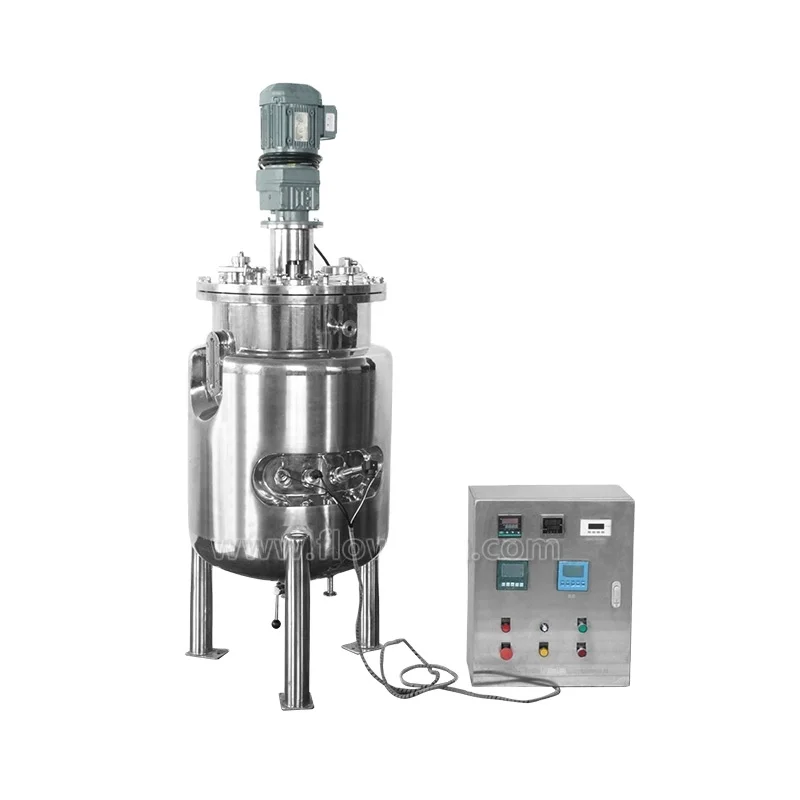

100L stainless steel microbial culture bioreactor
Details
| Product Name | Bioreactor |
| Description | Designed according to 3A standard,widely used for transfer viscous media in food-processing,beverage,chemical,cosemtics and pharmaceutical industries |
| Construction | Horizontal and vertical; Open lid, flat,disc,conical,shell cover; |
| Material | SS304/SS316L/1.4301/1.4404 |
| Seal Ring | Fluorine Rubber,EPDM,PTFE,Silicone(Standard,approval) |
| Mechnical Seal | SIC,Hard alloy,graphite |
| Volume | 50-50000L |
| Pressure | 0-20 bar |
| Working temperature | 300 C / 572 F |
| Jacket | Coil,dimple jacket,hollow jacket |
| Cooling | water,coolant, compressor |
| Heating | electric(water,oil), steam |
| Agitator | stirrer,high shear homogenizer,scrap mixer |
| Agitator Speed | Constand speed and variable speed; Range: 0-4000rpm |
| Motor power | 0.37kw-100kw |
| Voltage | 110v/220v/240v/380v/415v/460v (50/60hz) |
| Motor | SIEMENS,ABB,Domestic |
| Automitac | PLC/HMI control,display,store,transfer |
| Surface treatment | Inner and externel polished and brushed,good weldings and joints; |
| Accessories | Customizable support |
| Availably connection | Clamp, Thread, Butt weld, Flange |
| Availably standard | DIN, SMS, 3A, RJT, ISO/IDF |
| Application scope | Dairy, food, beverage, chemical,pharmacy, cosmetic, etc |
| Packaging Details | Plywood case or customerized. Or as per the request of customers |
| Delivery details | Usually within 25 days after receiving T/T down payment,special customized need negotiation. |
Technical parameters
| Effective volume | Dimension of tank | Total height | Diameter of inlet&outlet | Heat preservation layer |
| (L) | (mm) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2250 | 38 | 60 |
| 600 | 920*1000 | 2300 | 38 | 60 |
| 700 | 990*1000 | 2300 | 38 | 60 |
| 800 | 950*1220 | 2500 | 38 | 60 |
| 900 | 1010*1220 | 2500 | 38 | 60 |
| 1000 | 1060*1500 | 2850 | 51 | 60 |
| 1500 | 1160*1500 | 2850 | 51 | 60 |
| 2000 | 1340*1500 | 2900 | 51 | 60 |
| 3000 | 1410*2000 | 3400 | 51 | 60 |
| 4000 | 1620*2000 | 3450 | 51 | 60 |
| 5000 | 1810*2000 | 3500 | 51 | 60 |
| 6000 | 1980*2000 | 3550 | 51 | 60 |
| 7000 | 1930*2440 | 4000 | 51 | 60 |
| 8000 | 2060*2440 | 4000 | 51 | 60 |
| 9000 | 2180*2440 | 4050 | 51 | 60 |
| 10000 | 2300*2440 | 4050 | 51 | 60 |
| 12000 | 2270*3000 | 4600 | 51 | 60 |
| 15000 | 2530*3000 | 4700 | 51 | 60 |
| 20000 | 2640*3660 | 5400 | 51 | 60 |
Product-Related
Company Info
Supply Mixing tank,Reactor tank,fermentation tank,Inline homogenizer,High shear emulsifier mixer,Colloid mill,Jacket cooking kettle,Rotor pump,screw pump,emulsion pump,transfer pump etc.
Widely used in many fields, such as dairy, beer, food, pharmacy, beverage, cosmetic etc.,exported to America, Europe, the Middle East
