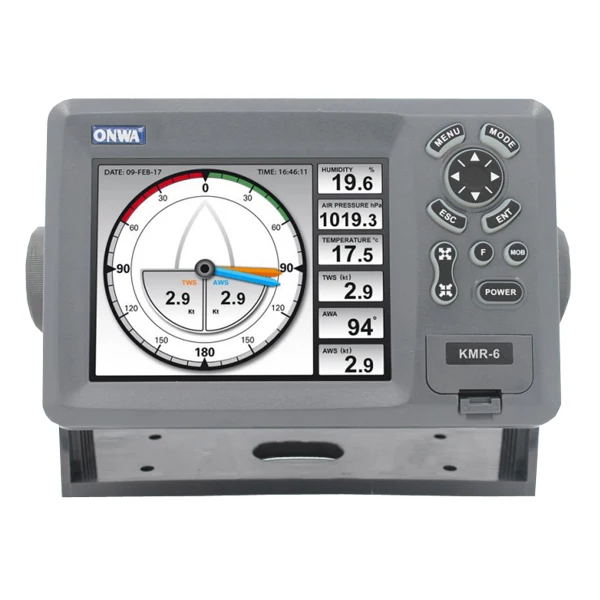

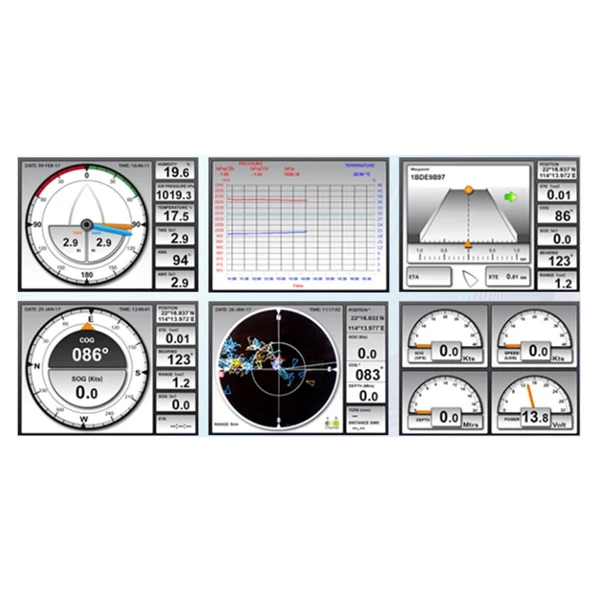

KMR-6 5 6-дюймовый мульти-функциональный дисплей с NMEA

Output/Input (IEC61162-1)

Input: 5 x NMEA0183

Input port 1
a) Support sentences: AAM, APB, BOD, BWC, DBT, DPT, GGA, GLL, GSA, GSV, HDG, MTW, MWV, RMB, RMC, VHW, VTG, WPL, XTE, ZDA, HDM, HDT, MWD, VPW, VWR, VWT, XDR, ZDL.
b) Baudrate: auto scan up to 38400
c) Electrical: opto-isolated

Input port 2
a) Support sentences: AAM, APB, BOD, BWC, DBT, DPT, GGA, GLL, GSA, GSV, HDG, MTW, MWV, RMB, RMC, VHW, VTG, WPL, XTE, ZDA, HDM, HDT, MWD, VPW, VWR, VWT, XDR, ZDL.
b) Baudrate: 4800
c) Electrical: opto-isolated

Input port 3
a) Support sentences: AAM, APB, BOD, BWC, DBT, DPT, GGA, GLL, GSA, GSV, HDG, MTW, MWV, RMB, RMC, VHW, VTG, WPL, XTE, ZDA, HDM, HDT, MWD, VPW, VWR, VWT, XDR, ZDL.
b) Baudrate: 4800
c) Electrical: opto-isolated

Input port 4
a) Support sentences: AAM, APB, BOD, BWC, DBT, DPT, GGA, GLL, GSA, GSV, HDG, MTW, MWV, RMB, RMC, VHW, VTG, WPL, XTE, ZDA, HDM, HDT, MWD, VPW, VWR, VWT, XDR, ZDL.
b) Baudrate : 4800
c) Electrical: opto-isolated

AIS input port 5
a) Support sentences: AAM, APB, BOD, BWC, DBT, DPT, GGA, GLL, GSA, GSV, HDG, MTW, MWV, RMB, RMC, VHW, VTG, WPL, XTE, ZDA, HDM, HDT, MWD, VPW, VWR, VWT, XDR, ZDL, VDO, VDM
b) Baudrate: 38400
c) Electrical: RS232

Output: 2 x NMEA0183

Output port 1
a) Output sentences: mix of all inputs from Input port 1 through port 4
b) Baudrate: 4800
c) Electrical: RS232

Output 2
a) Output sentences: mix of all inputs from Input port 1 through port 5
b) Baudrate: 38400
c) Electrical: RS232

POWER SUPPLY

Electrical

10.5 – 35VDC

Power consumption

0.3A at 12VDC

Protection

overcurrent, overvoltage, power transient and accidental reverse polarity protection

ENVIRONMENTAL CONDITIONS

Ambient temperature

-15°C to +55°C

Humidity

93%±3% on 40°C

Waterproofing

IPX5

EQUIPMENT LIST

Standard

1.     Display unit KMR-6

2.     Mounting brackets

3.     Manuals (quick start and quick installation manual)

4.     Standard accessories pack (one power cable, one data cable, 2 spare fuses, 4 mounting screws)

Optional:
KMR-JB : For easy wire connections from external equipment, User can order Junction box (KMR-JB) for KMR-6. KMR-JB has a clear label of all input and output ports with baud rate and polarity. For more details, please consult your local ONWA distributor.
