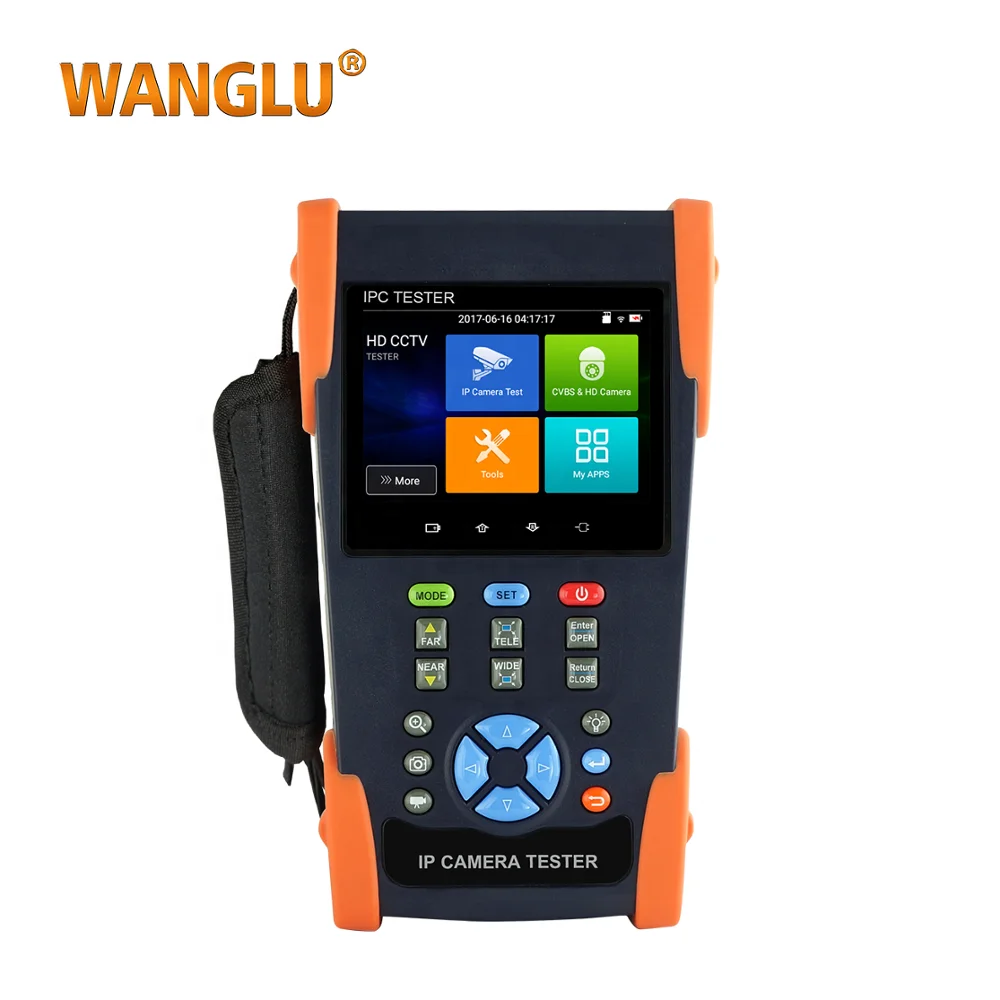

3 5 дюймовый портативный 4K TVI CVI AHD IP аналоговый cctv видеокамеры монитор

LCD

Item series

                                  IPC-3500ADH Plus

Display

New 3.5 inch wide angle touch screen ,480*320 resolution

  Video Mode

     CVBS

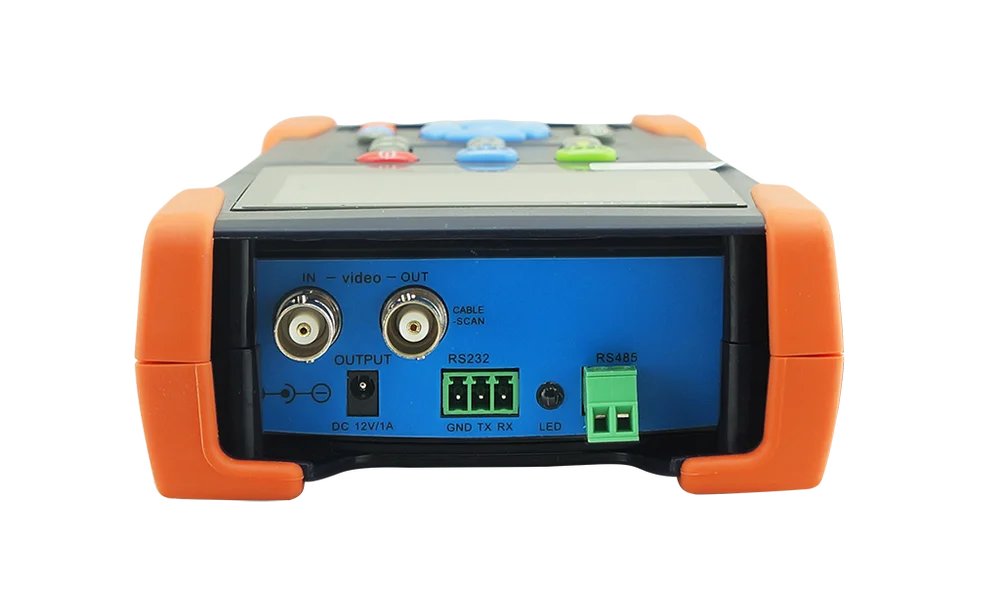

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

CVBS loop test

the tester send and receive color bar generator signal , check BNC cable

IP camera test

4k/H.265/H.264

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video

Auto view the video, create testing report

Hik test tool

pressing just one key to activate  camera , Image test, can modify the user name, password and IP parameters

DH test tool

ip camera test, modify the user name, password and IP parameters

IP& CVBS test

IP& CVBS test at the same time ,converter test from analog to digital with dual test window

Coaxial HD test

8MP TVI CVI AHD test

Zoom Image

4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back

Analog Video out

color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable

12V/2A power

Output DC12V/2A power out ,supply temporarily power for the camera

Power output

PoE power output

48V PoE power output, max power 24W

 Cable test

UTP cable test

Test UTP cable connection status and display on the screen. Read the number on the screen

RJ45 cable TDR test

test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M.

TesterPlay

screen projection:tester, mobile phone and PC display at the same time (For android version mobile phone)

Network test

Trace route, Link monitor , DHCP server, port flashing , Ping test

Wi-Fi

Built in WIFI,speeds150M,display wireless camera image

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling device,also can send hexadecimal

PoE test

Measurement POE switch or PSE power supply voltage and cable connection status

Drop-down menu

You can select CVBS,IP setting, WLAN switch etc in any interface

External power supply

DC 12V 2A

Battery

Built-in 7.4V Lithium polymer battery ,2800mAh

Rechargeable

After charging 3-4 hours, normal working time 8 hours

Operation setting

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto off

1-30 (mins)

Working Temperature

-10℃---+50℃

Working Humidity

30%-90%

Dimension/Weight

194mm x 112mm x 48mm / 540g
