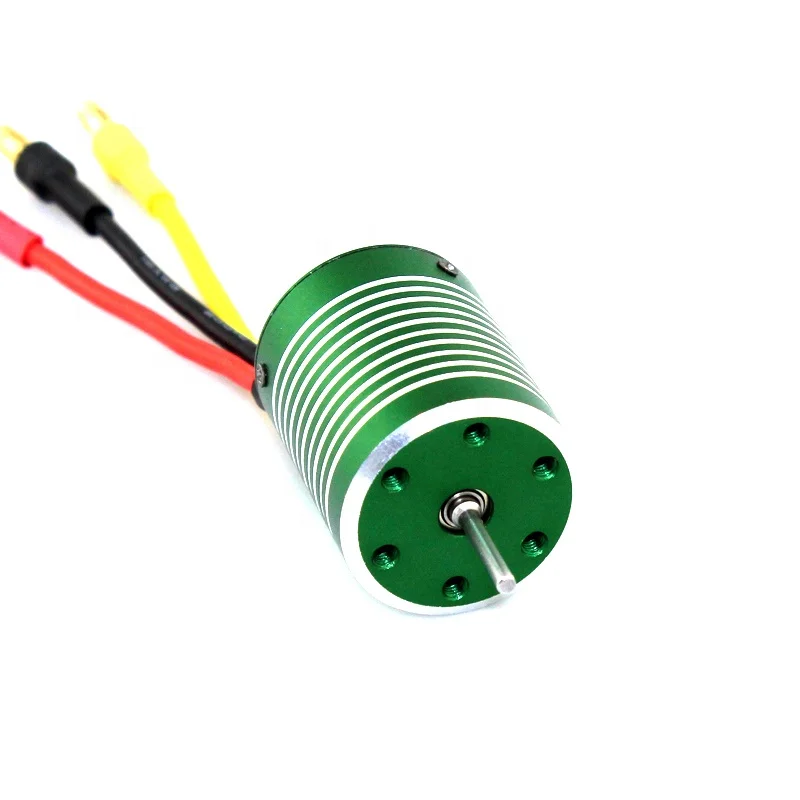

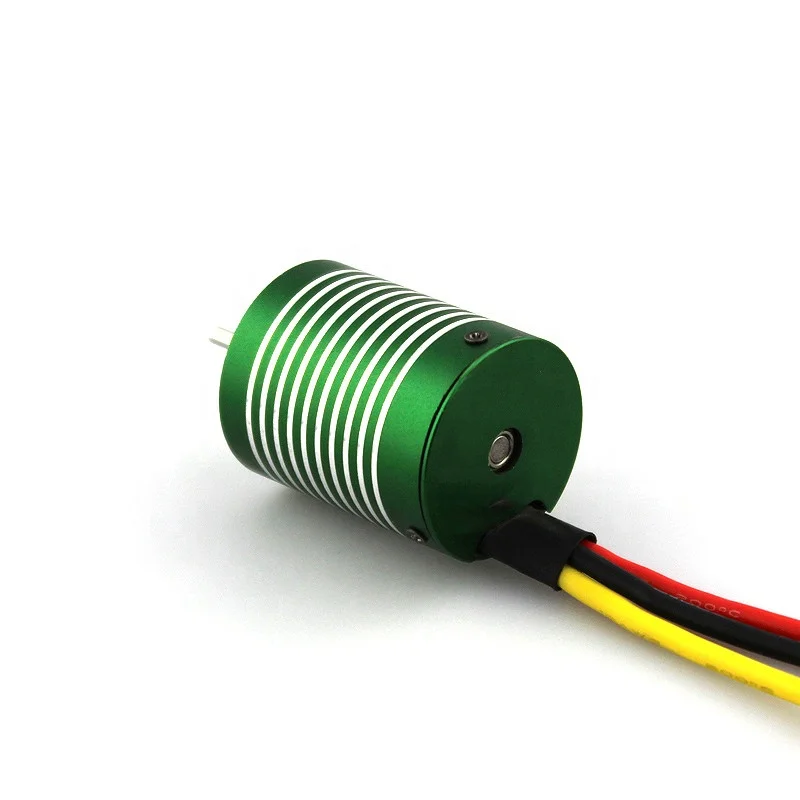

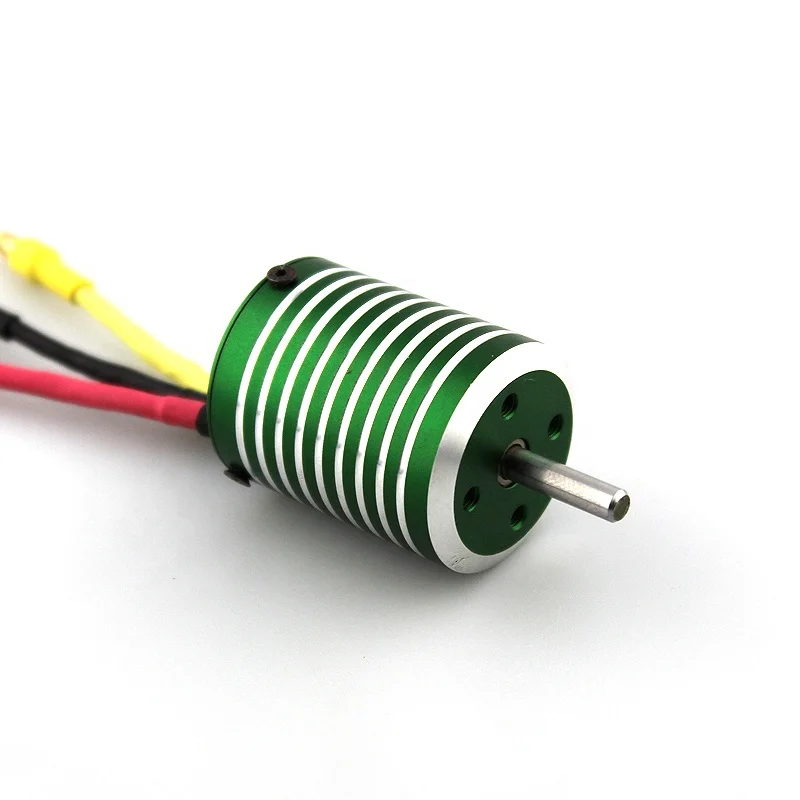

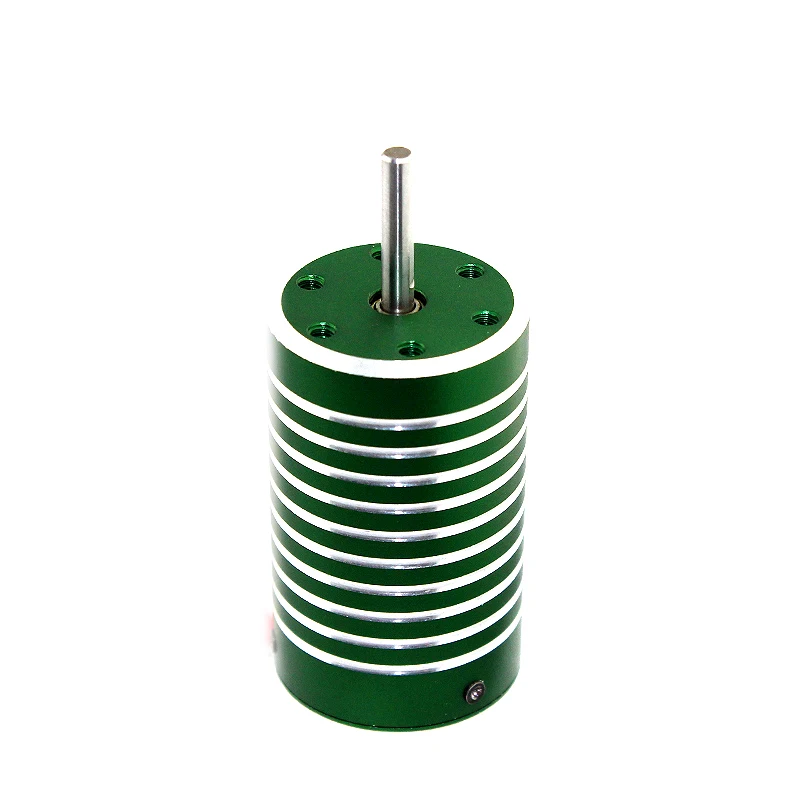

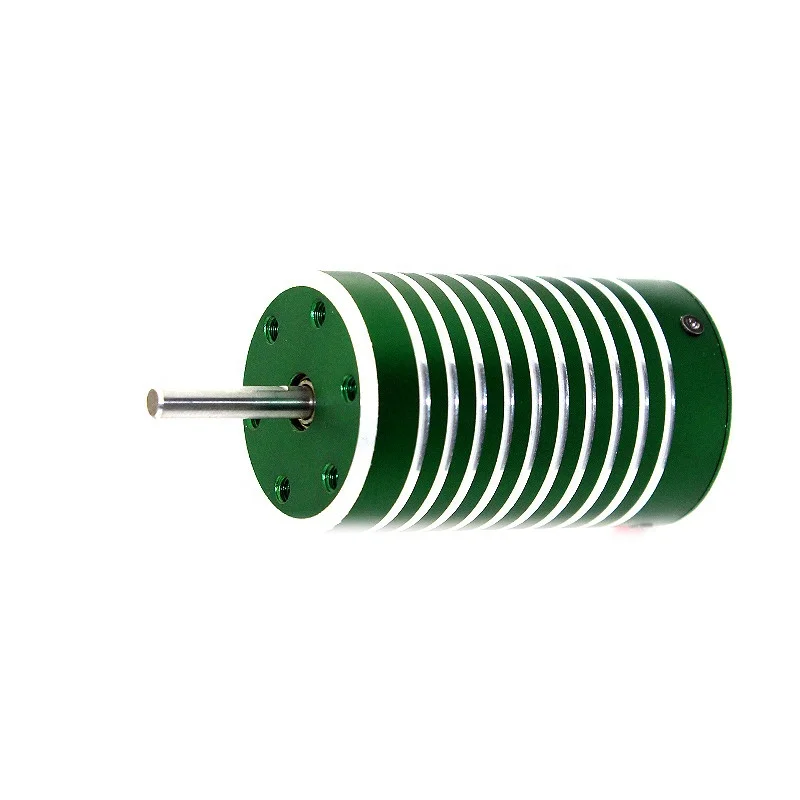

Бесщеточный двигатель постоянного тока 12 В 200 Вт л.с. с низким оборотом 24

Бесщеточный двигатель постоянного тока 12 В 200 Вт л.с. с низким оборотом 24

Категория: Детали игрушек >>>
Поставщик: Hangzhou,Reacher,Technology,Co.,Ltd.

Цена:8,60 $ - 10,25 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	10.68 $*	11.2 $*
Aug-15-2025	9.93 $*	9.92 $*
Jul-15-2025	8.6 $*	8.92 $*
Jun-15-2025	9.90 $*	9.10 $*
May-15-2025	8.79 $*	8.79 $*
Apr-15-2025	9.19 $*	9.85 $*
Mar-15-2025	9.25 $*	9.95 $*
Feb-15-2025	9.75 $*	9.91 $*
Jan-15-2025	9.84 $*	9.18 $*

Характеристики

12v 200w dc motor bldc motor 0.5hp low rpm gear motor 24v 5000kv 6000kv dc brushless motor

Product Description

Feature:

• Precise tuming tuning.

• High quality CNC aluminum case,ensure lightweight and optimized air flow.

• High RPM,precision ball bearing(NMB bearing,import from japan)

• Low Resistance, High Power ,silver plated solder tabs.

• Hand-wound for maximum copper fill,High Purity copper windings ensure maximun conductivity.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.
• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.

Product Parameters

Brand: Reacher (Support OEM&ODM)

Weight: 50g

Number of stator slot: 4P

Sensored or sensorless: Sensorless

Shaft Diameter: Φ2mm

Shaft Length: 15mm

Motor size: Diameter Φ24 / Length 30mm

Stator diameter: Φ22.5mm

Available winding: Delta/Star (Δ/Y)

Available for class 370-1/16th or 1/12th scale vehicles

Model	Max Amps	Max Voltage	Max Power	KV (RPM/V)	Mounting hole depth	Mounting Screw	Shaft Diameter	Shaft Length	Diameter× Length	Plug	Weight
RT-2435/4.5D	32A	7.5V	260W	7450KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/2.5Y	27A	7.5V	260W	7250KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/5D	26A	8V	260W	6900KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/5.5D	25A	9V	260W	6000KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/3Y	24A	10V	260W	6000KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/6D	22A	10V	260W	5550KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/7D	21A	12V	260W	4750KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/4Y	18A	12V	260W	4600KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/8D	16A	13V	260W	4100KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/5Y	13A	16V	260W	3650KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
