Генератор природного газа Camda 40


Поделиться:


Цена:25 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 29750.2 $* 31238.38 $*
Aug-19-2025 29500.45 $* 30975.65 $*
Jul-19-2025 24750.84 $* 25988.91 $*
Jun-19-2025 29000.13 $* 30450.21 $*
May-19-2025 25250.72 $* 26513.66 $*
Apr-19-2025 28500.67 $* 29925.43 $*
Mar-19-2025 28250.74 $* 29663.3 $*
Feb-19-2025 28000.1 $* 29400.14 $*
Jan-19-2025 27750.83 $* 29138.79 $*

Характеристики










Company Profile



Established in 1998, Camda began to engage in manufacturing and servicing DIESEL GENERATOR, supplying a wide range of products, such as Cummins, Perkins, etc. With production reaching 3000 pieces annually, Camda diesel generator includes:




  • Cummins:              prime power 21kw (26kva) - 1320kw(1650kva)

  • Perkins:                prime power 8kw (10kva) - 1800kw ( 2250kva)





For GAS GENERATOR SET, presently Camda can supply natural gas and biogas genset from Jenbacher, Waukesha and Daewoo. We are authorized distributor of GE gas engines in China. Camda patented gas generator, Camda H series, is developed by us based on Cummins engine and has been displayed at Shanghai Expo 2010. Camda is the only company authorized by Cummins to do the conversion. This type is sold to UK, Germany, France, Spain, Sweden, Czech, Netherlands, New Zealand, Italy, Russia, Iran, Turkey and many other countries.

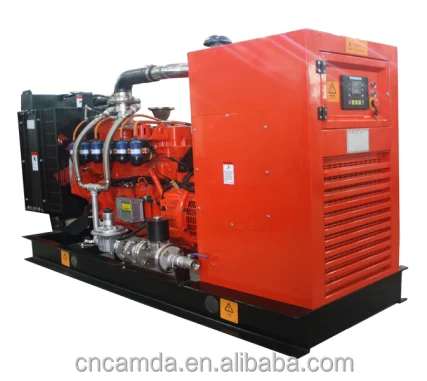

100kw Camda Natural Gas Generator/Biogas Generator/NG Genset/NG Generator/Biogas Genearator




Section A Gas Gen-set











Genset working condition



Ambient Temp 0°C~+40°C, Relative Humidity <90%(20°C), Altitude ≤1000m above sea level.


A.    Natural gas


1. Adapted Gas: Natural gas,


2. Acceptable Natural gas pipeline pressure: 5~12kPa (before Pressure Regulating Valve.)


3. Gas heat value≥37MJ/Nm3 .


B.    Biogas


Acceptable biogas pipeline pressure: 5~12kPa (adjustment required for higher pressure), change ratio≤1kPa/min


CH4 volume content≥30%, adjustment ratio≤2%/min


Gas heat value≥5500kcal/Nm3 (23MJ/Nm3). Genset output power will increase as the gas heat value increase, and if low heat value gas is used (Heat value<5500kcal/Nm3), it could cause power derate.


H2S content≤200mg/Nm3


NH3 content≤20mg/Nm3


Genset Specification




































































































Gas genset data



Genset model



KDGH40-G



Prime power (kW/KVA)



40/50



Continuous Power (KW/KVA)



32/40



Connection type (V)



3 Phases 4 Lines



Power factor cosfi



0.8 lagging



Frequency (Hz)



50



Rated speed (RPM)



1500



Open type Genset Overall Dimension (mm)



2250x820x1500



Soundproof type Genset Dimension (mm)



2900x1200x1800



Net weight without canopy(kg)



1100



Gas Engine Data



Model



HG6B



Brand



CAMDA



Type



4 stroke, water-cooling, dry cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning



Cylinders& Arrangement



6L



BoreXStroke(mm)



102X120



Displacement(L)



5.88



Compression ratio



11.5:1



Aspiration



Natural



Cooling Method



Radiator fan water cooling



Governor type(speed regulating type)



Electronic governing



Starting method



Electric, 24 V motor



The lowest gas consumption(m3/kw.h)



0.3 for natural gas/0.6 for biogas







Section B Optional Equipment

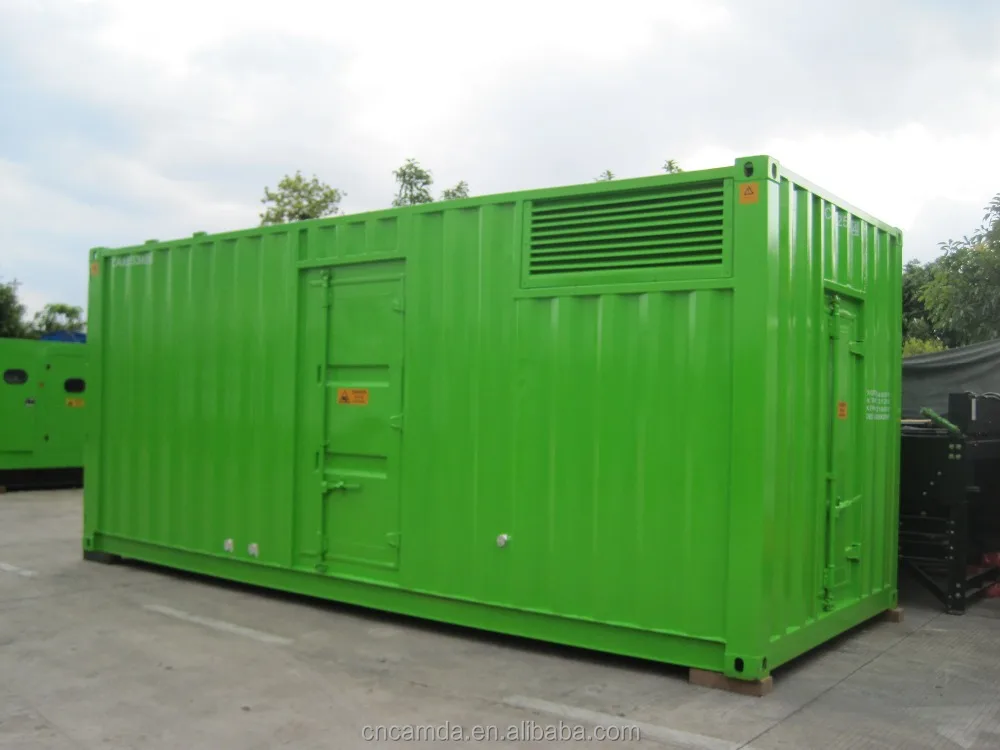

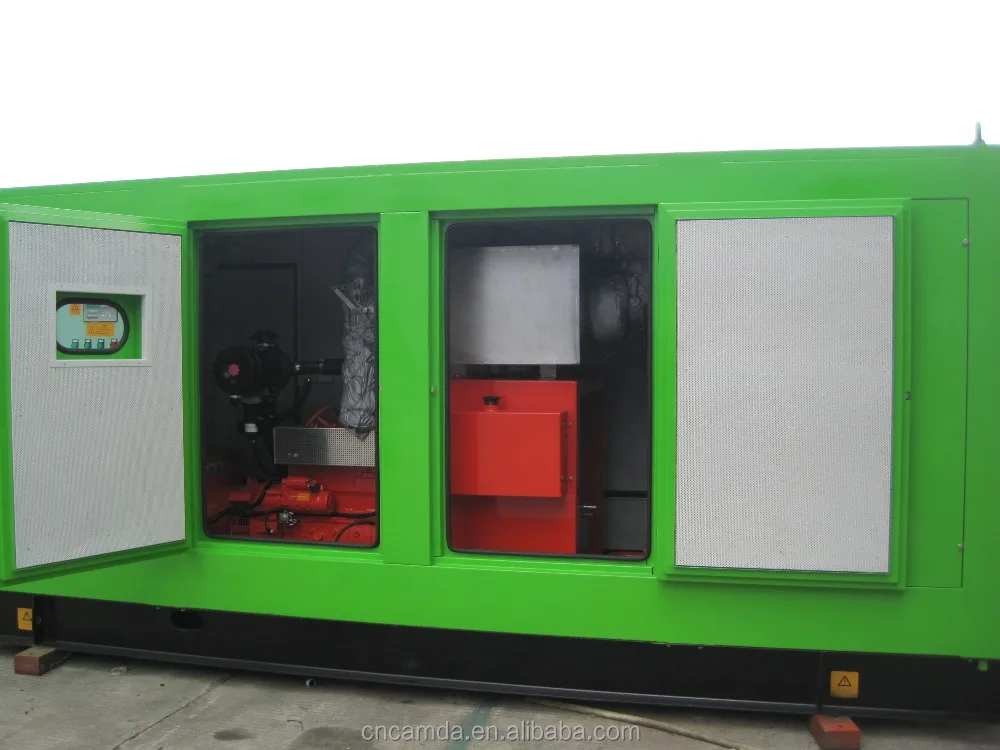

1. Sound-proof canopy


2. CHP system


3. Grid parallel system


4. Remote radiator


5. Auto oil filling system


6. Water heater


7. Oil heater


8. Gas leaking detector


9. Flame detector


10. Gas scrubber
