Машина для прокатки труб из ПВХ/машина расширения

Описание и отзывы

Трекер стоимости

Характеристики

MAIN PARAMETER OF SOCKET BELLING MACHINE FOR PLASTIC PIPE

Model: SGK series of automatic plastic pipe belling machine

Function and characteristic

1, this series can be processed Φ16-1000mm any pipe flaring

2, with automatic delivery tube, flip tube, flaring function

3, with heating, cooling, timing, automatic, manual function

4, the modular design of the components

5, small size, low noise

6, the use of vacuum adsorption, flaring a clear profile, size assurance

7, power (compared with similar products, power-saving 50%)

8, can be customized according to user requirements special specifications

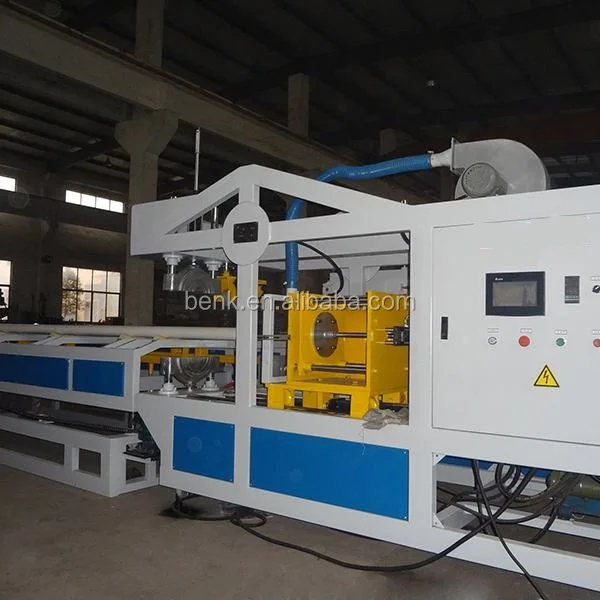

SGK Belling Machine:

Model	Belling Scope	Total Power	G.W.	Overall dimensions (mm)	Belling-type
SGK75S	Φ16mm- Φ75mm	7kw	1500kg	7460×1950×1900	Smooth-type
SGK110	Φ20mm- Φ110mm	7kw	1300kg	7460×1550×1900	Smooth-type
SGK160	Φ40mm- Φ160mm	18kw	2300kg	7000×1530×1963	R-type Smooth-type
SGK250	Φ50mm- Φ250mm	18kw	2500kg	7300×1730×1950	R-type Smooth-type
SGK315	Φ110mm- Φ315mm	25kw	2800kg	7500×1930×2100	R-type Smooth-type
SGK400	Φ160mm- Φ400mm	25kw	3000kg	7900×2140×2125	R-type Smooth-type
SGK630	Φ315mm- Φ630mm	32kw	3500kg	8423×2970×2650	R-type Smooth-type
SGK1000	Φ500mm- Φ1000mm	50kw	8000kg	10000×4600×2570	R-type Smooth-type
