Meanwell SD-1000L-12 1000W 19 ~ 72V вход 24V 36V 48V постоянного тока в переменный работающего на постоянном токе 12 В модуль ldo понижающего


Поделиться:


Цена:14 530,95 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 17291.35 $* 18156.9 $*
Aug-18-2025 17145.69 $* 18002.41 $*
Jul-18-2025 14385.20 $* 15104.61 $*
Jun-18-2025 16855.93 $* 17698.20 $*
May-18-2025 14675.22 $* 15409.74 $*
Apr-18-2025 16564.25 $* 17392.25 $*
Mar-18-2025 16419.34 $* 17240.13 $*
Feb-18-2025 16274.22 $* 17088.20 $*
Jan-18-2025 16128.59 $* 16934.40 $*

Характеристики

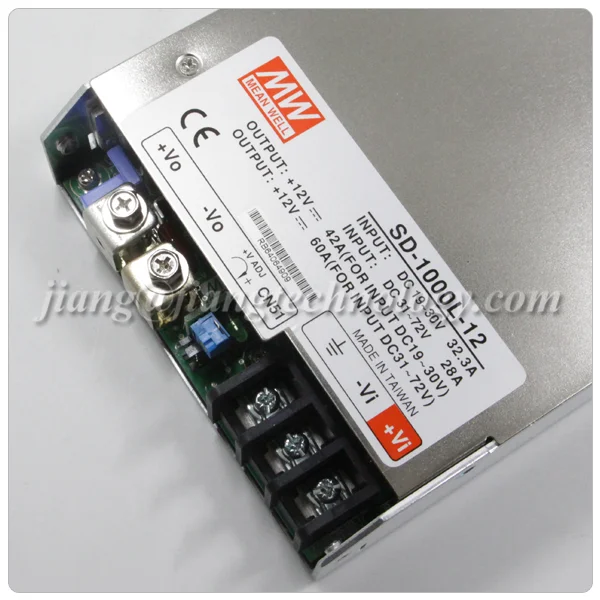

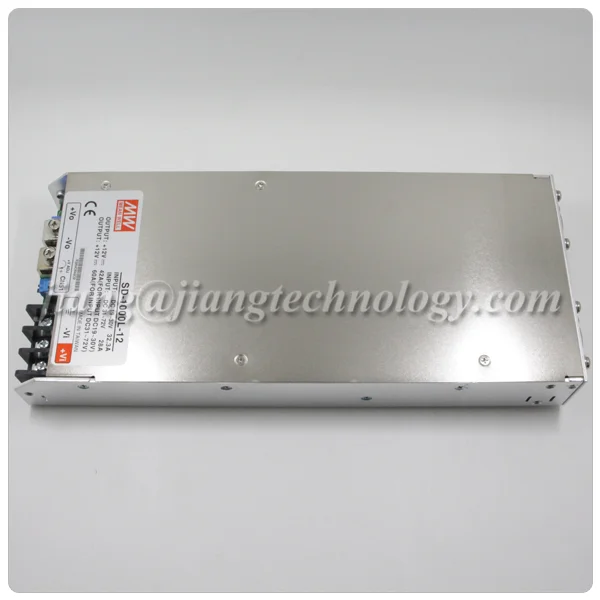

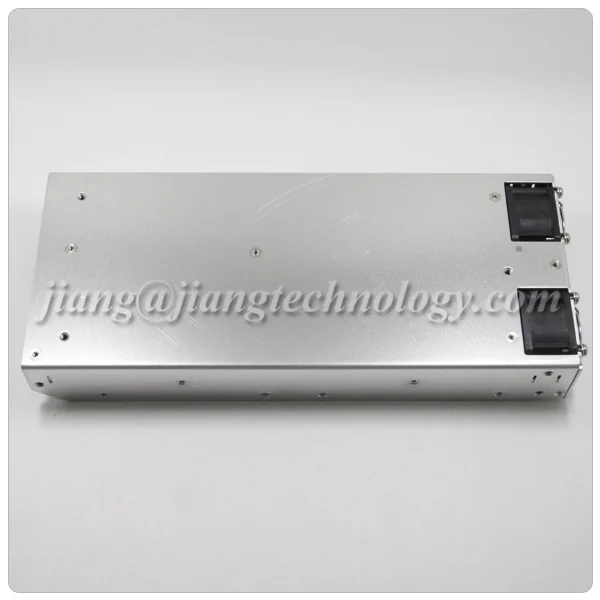

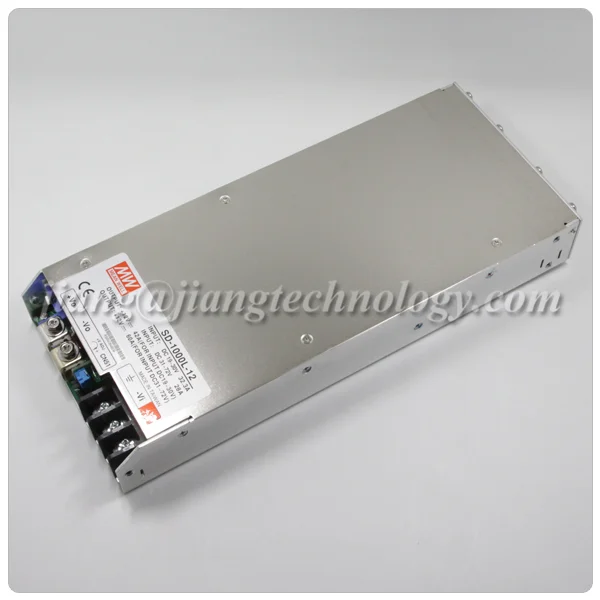

Meanwell SD-1000L-12 1000W 19~72V Input 24V 36V 48V 72V DC To 12V DC Step Down Buck Converter

Meanwell SD-1000L-12 1000W 19~72V Input 24V 36V 48V 72V DC To 12V DC Step Down Buck Converter

Product Overviews

Meanwell SD-1000L-12 1000W 19~72V Input 24V 36V 48V 72V DC To 12V DC Step Down Buck ConverterMeanwell SD-1000L-12 1000W 19~72V Input 24V 36V 48V 72V DC To 12V DC Step Down Buck ConverterMeanwell SD-1000L-12 1000W 19~72V Input 24V 36V 48V 72V DC To 12V DC Step Down Buck ConverterMeanwell SD-1000L-12 1000W 19~72V Input 24V 36V 48V 72V DC To 12V DC Step Down Buck Converter

Features:

  • Meanwell Buck Converter
  • 1U low profile 41mm
  • High power density 10.7w/inch3
  • 2000VAC I/O Isolation
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Output OK signal
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • Forced air cooling by built-in DC fan with fan speed control function
  • 12V, 0.25A auxiliary output
  • 3 years warranty

Model Series:



SD-1000L-12 / SD-1000L-24 / SD-1000L-48 / SD-1000H-12 / SD-1000H-24 / SD-1000H-48



Details:



MODEL NO. SD-1000L-12 SD-1000L-24 SD-1000L-48 SD-1000H-12 SD-1000H-24 SD-1000H-48
DC INPUT VOLTAGE 12V 24V 48V 12V 24V 48V
CURRENT RANGE 0 ~ 60A 0 ~ 40A 0 ~ 21A 0 ~ 60A 0 ~ 40A 0 ~ 21A
RATED POWER 720W 960W 1008W 720W 960W 1008W
RIPPLE & NOISE 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 11 ~ 15V 23 ~ 30V 46 ~ 60V 11 ~ 15V 23 ~ 30V 46 ~ 60V
DC INPUT VOLTAGE RANGE 19 ~ 72VDC 72 ~ 144VDC
EFFICIENCY 84% 88% 90% 85% 89% 92%
DC CURRENT 23.5A/48VDC 11.6A/96VDC
INRUSH CURRENT ----- 100A/96VDC
OVERLOAD 105 ~ 125% rated output power
Protection type: Constant current limiting, unit will shut down o/p voltage after about 5sec. Re-power on to recover
OVER VOLTAGE 16~19V 30.8~35.2V  62~68V 16~19V 30.8~35.2V  62~68V
Protection type: Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
WORKING TEMP. -20 ~ +60°C (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85°C  , 10 ~ 95% RH
TEMP. COEFFICIENT ±0.02%/°C(0 ~ 50°C )
SAFETY STANDARDS IEC60950-1 CB approved by TUV
WITHSTAND VOLTAGE I/P-O/P:2KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 °C/ 70% RH
DIMENSION 295*127*41mm (L*W*H)
PACKING 1.94Kg; 6pcs/12.6Kg/1.15CUFT



Mechanical Specification:

Meanwell SD-1000L-12 1000W 19~72V Input 24V 36V 48V 72V DC To 12V DC Step Down Buck Converter

Other Series for Choose:

More Products for Choose:

Meanwell SD-1000L-12 1000W 19~72V Input 24V 36V 48V 72V DC To 12V DC Step Down Buck Converter

Warehouse & Shipping

Meanwell SD-1000L-12 1000W 19~72V Input 24V 36V 48V 72V DC To 12V DC Step Down Buck Converter

Application

What our Power Supply can do for you?

Meanwell SD-1000L-12 1000W 19~72V Input 24V 36V 48V 72V DC To 12V DC Step Down Buck Converter

Certifications

What Certification do we have?

Meanwell SD-1000L-12 1000W 19~72V Input 24V 36V 48V 72V DC To 12V DC Step Down Buck Converter

FAQ

Q1. Are you original Mean Well Power Supply?

A: Yes, We sell 100% Genuine Mean Well. And there are 2 method to identify:
Method 1: The Original Brand Logo is 'Mean Well', not 'MiWi' 'MeanWell' or 'MingWei' etc.
Method 2: Each product has an unique Serial No. on it, which can be checked in
Mean Well official website. (For more information, please contact our sales. )



Q2: Do you offer guarantee for the products?

A: Yes, we offer 2 ~ 7 years warranty.
If the goods have quality problem during warranty period, we provide maintenance service.
If you have using problem, welcome to
contact us for help.


Q3. Can I have a sample order firstly? What is your MOQ limit?

A: Yes, sample order is acceptable. And we do not have MOQ limit. Welcome to inquiry.


Q4. What about the lead time and shippment?
A: For common type like
APV, LPV, ELG, LRS, DR, MDR series, we have enough stock. Sample Order can be delivered within 3 days, Bulk Order can be delivered within 3~7 days after payment, not common type need 10~35 days after payment, for detail lead time, please contact our sales.
For shipping, we often use DHL, FedEx, UPS, and TNT. And they take 3-5 days to arrive. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost.


Q5: What is your payment terms?

A: We accept pay via Bank Transfer, Paypal and Western Union.

For bulk order, if the lead time is long, we also accept 30% in advance, and 70% balance before shipping.
We also accept Trade Assurance online to get 100% guarantee for your orders.

(For more details, please contact us)



Q6. How to proceed an order ?

A: 1. Inquiry: Tell us your requirements, such as model No, Quantity and delivery address...

2. Quotation: We will quote you soon according to your requirements.

3. Confirmation: If quotation is OK, we will send PI to you for payment.

4. Payment: After your payment, please give us your bank slip, then we can arrange goods for you soon.

5. Delivery: Once get your payment and goods all ready, we will delivery goods soon, and tell you the tracking number or Vessel No. then (For more details, please contact us.)
