Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Недорогое гидравлическое небольшое портативное якорное сверлильное оборудование
- Категория: Mining Machinery >>>
- Поставщик: Beijing,Jincheng,Mining,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 7116.53 $* | 7472.27 $* |
| Aug-19-2025 | 7056.83 $* | 7409.66 $* |
| Jul-19-2025 | 5920.51 $* | 6216.13 $* |
| Jun-19-2025 | 6937.4 $* | 7284.41 $* |
| May-19-2025 | 6040.70 $* | 6342.6 $* |
| Apr-19-2025 | 6817.54 $* | 7158.20 $* |
| Mar-19-2025 | 6757.7 $* | 7095.88 $* |
| Feb-19-2025 | 6698.35 $* | 7033.94 $* |
| Jan-19-2025 | 6638.94 $* | 6970.90 $* |
Характеристики

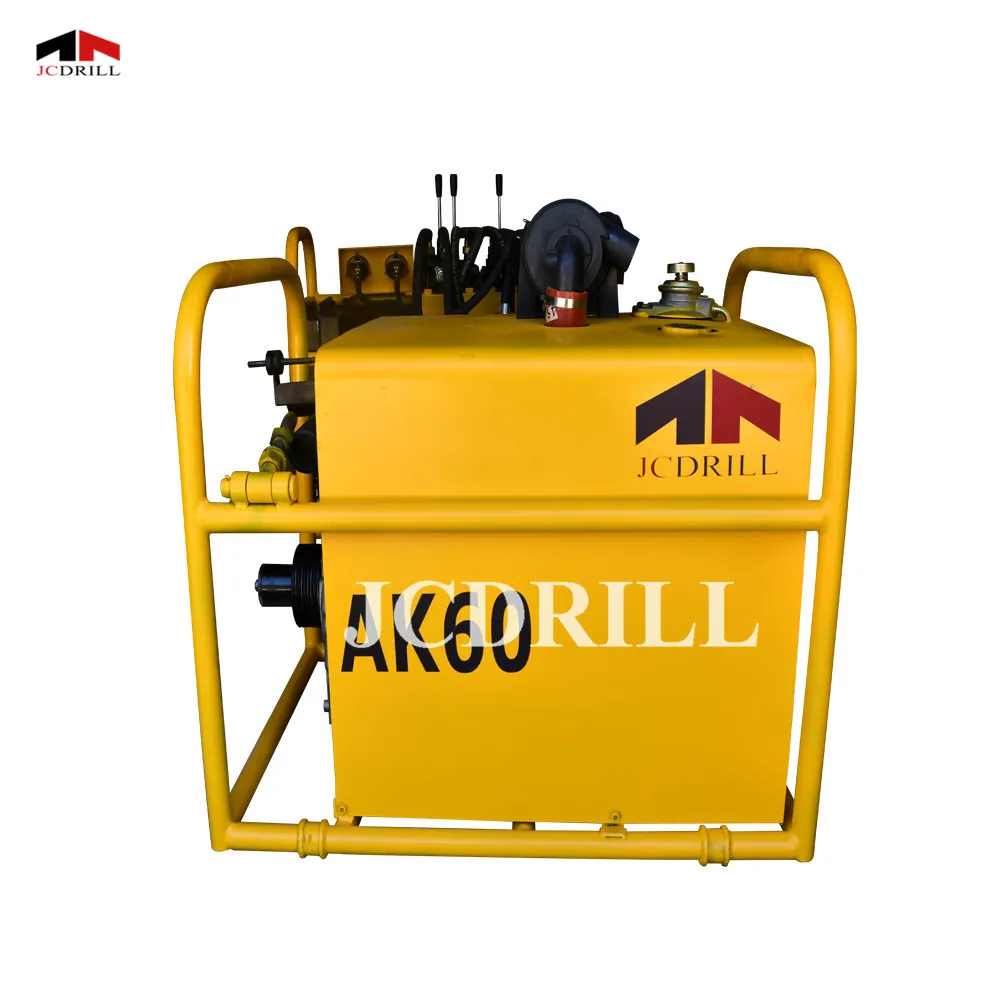

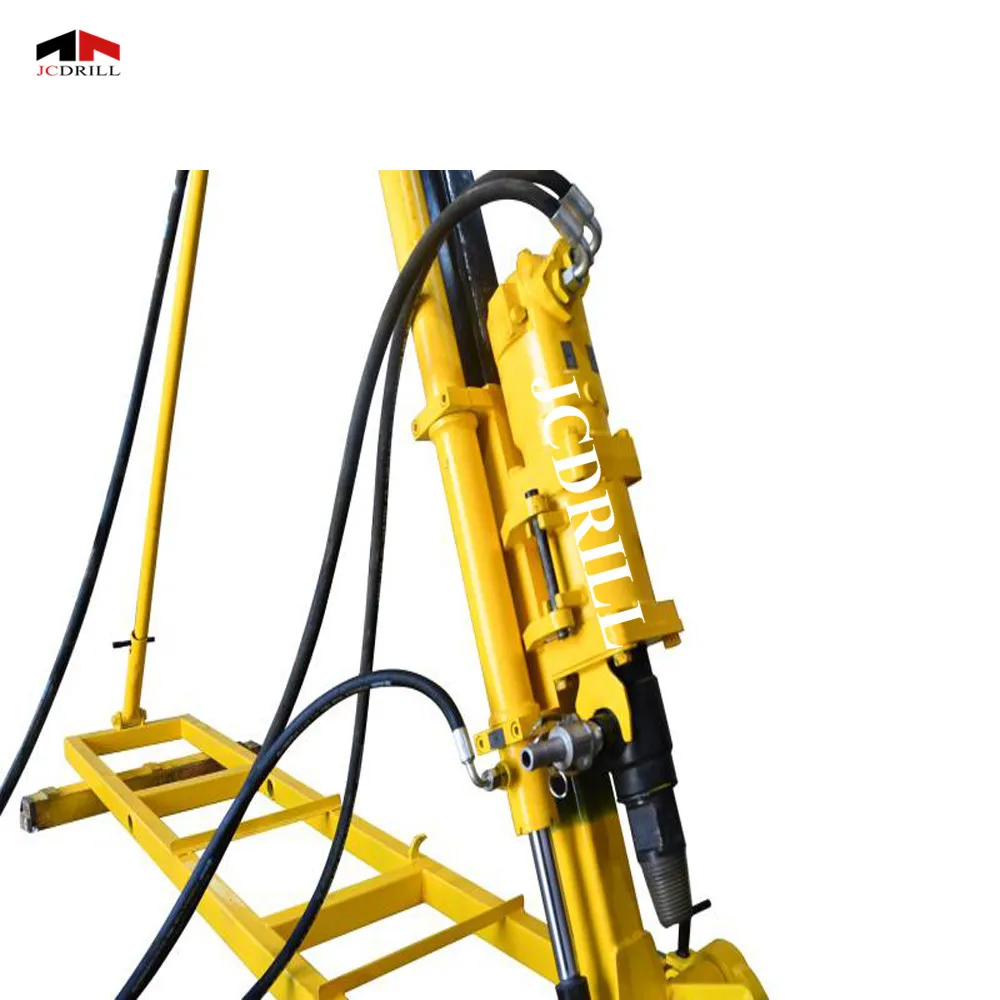

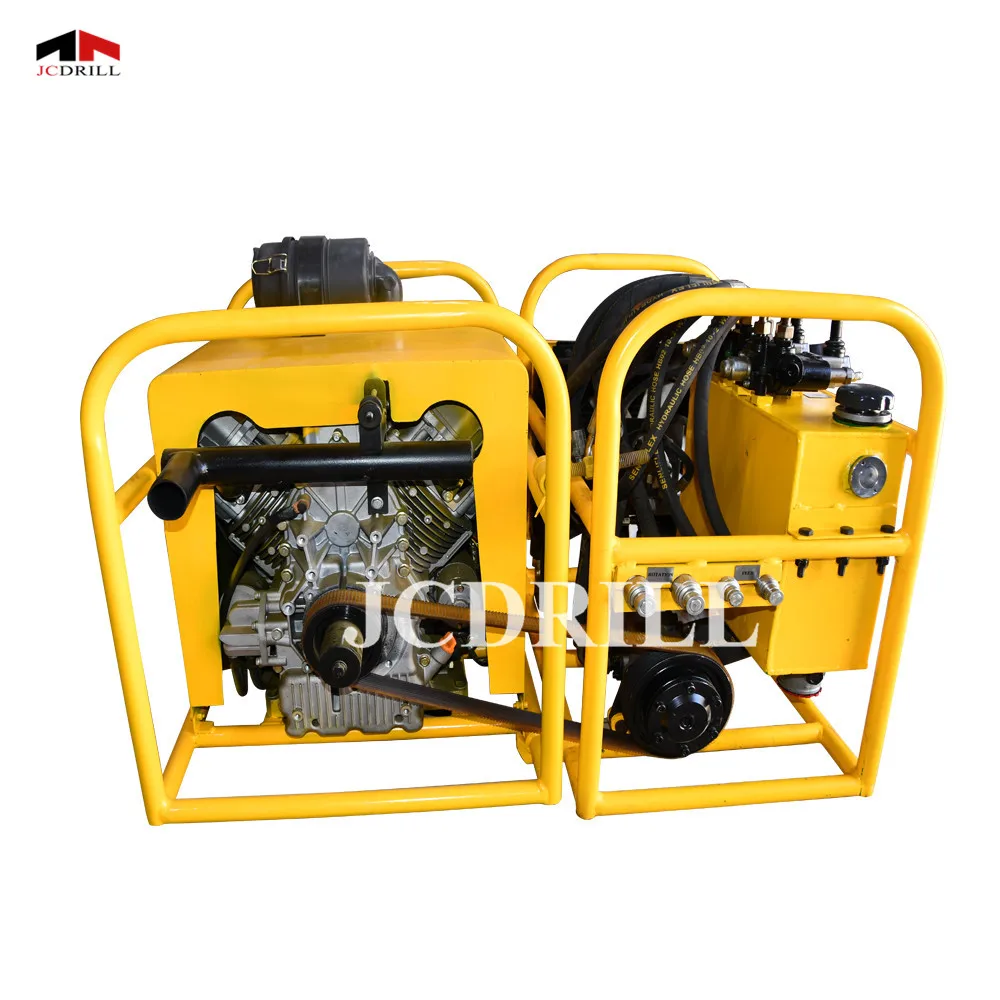

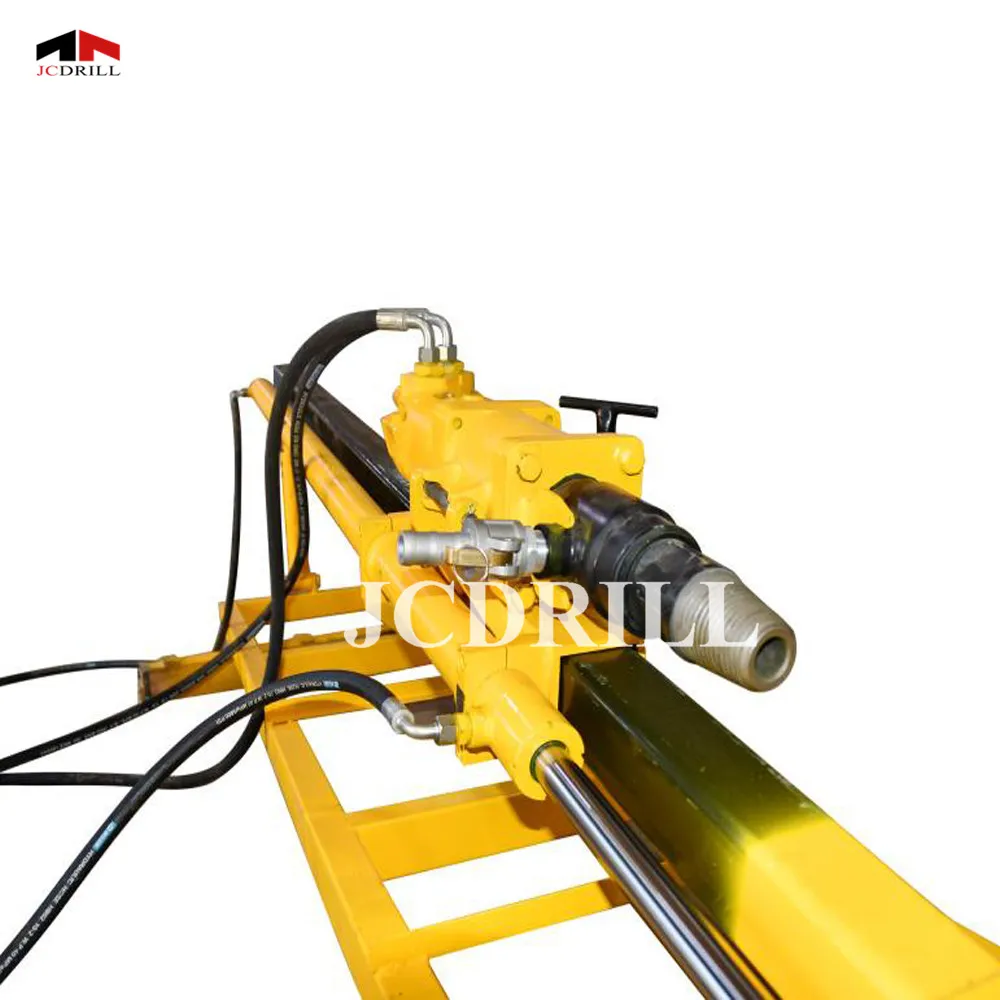

Low Cost Hydraulic Small Portable Anchor Drill Equipment for sale
Application
AK-60 construction Anchor Drilling rigis used for drilling anchor holes in deep base pit of high building, anchor and reinforce side-slope for water conservatory project, water power station project, railways and highways. Especially used for drilling anchor holes in high position side-slope protection and drainage holes.
Characteristics
AK-60 construction Anchor Drilling rig is a full hydraulic operated top drive power head drill. This engineering drilling rig is used to drill heavy duty pretension anchor hole at side slope of water power station, railway or highway projects, as well as drainage holes. It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill small size water well and high- pressure jet grouting hole. Rig is already widely used in various projects such as water power stations situated in Yunnan, Guangxi, Sichuan, Guizhou and Hubei provinces, and expressways as well such as Ninbo-Taizhou-Wenzhou (in Zhejiang), Huangshan-Hangzhou (in Zhejiang), Dali-Baoshan (in Yunnan).It has become the first priority for medium-duty anchoring-reinforcing projects in China.
Specification
Features
1. The construction drilling rig has great drilling capability, wide range of application , rapid drilling speed and high drilling efficiency, as well as powerful ability of eliminating accident.
2. Extension mechanism in the output spindle of top drive power head protects drilling tools effectively. It can increase the hole inclination angle range and drill elevation angle hole, while setting the top drive power head and hole top plate toward the opposite direction.
3. A set of front-mounted adjustable columns on drill frame is used for adjusting the height of mast front-end, which makes it convenient to align with working position.
4. Rig structure is separate group design, it assures good disassembility , rapid and convenient mount and transport, better working environment and lower labor strength as well as remote control and operation.
5. Mast can be fixed on staging immediately without drill frame with auxiliary parts (horizontal axle and buckles), which makes it possible for greatly reduce rig weight and fastener transport.
6. The imported hydraulic motor, other main assembly preferentially selected home made reputed and high quality products ensure its stable running performance, reliable product quality and long service life. It has good interchangeability due to the high grade of standardization and seriesization of wearing parts.
7. Full hydraulic drive and operate, stepless shift, simple operate, convenient maintain and few wearing parts.
8. It can be used with various drilling method such as carbide bit drilling, anger drilling, DTH hammer drilling, follow-up casing drilling etc.
Packaging&Shiping
Service
In our after sales service system, We establish excellent control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
Warranty | Spare parts |
| Every machine issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition. | JCDRILL is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services
|
About Us
JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig,Mud pump and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and excellent service network, which establish our brand "JINCHENG" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
Certification
FAQ
Q: Are you original manufacturer? | Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
| A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. | A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|
Q: How long will the delivery time take? | Q: How about after sales service? | Q:Spare Parts When You Need Them
|
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
| A: 365×24 Year-round Service | A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
|
