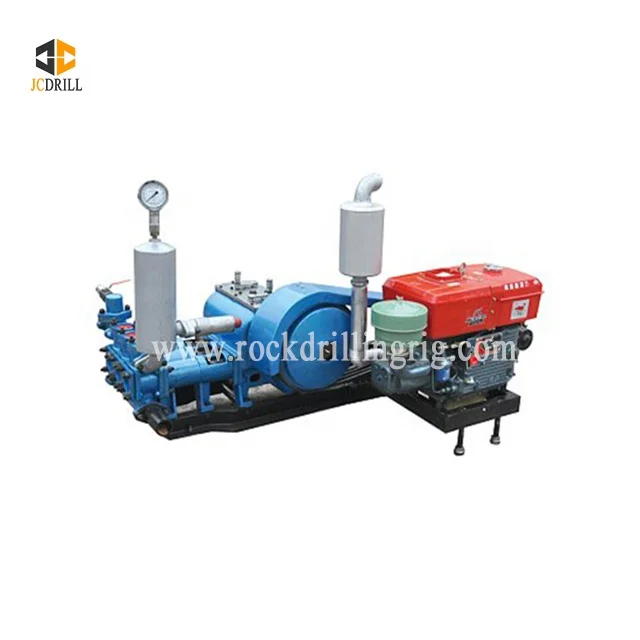

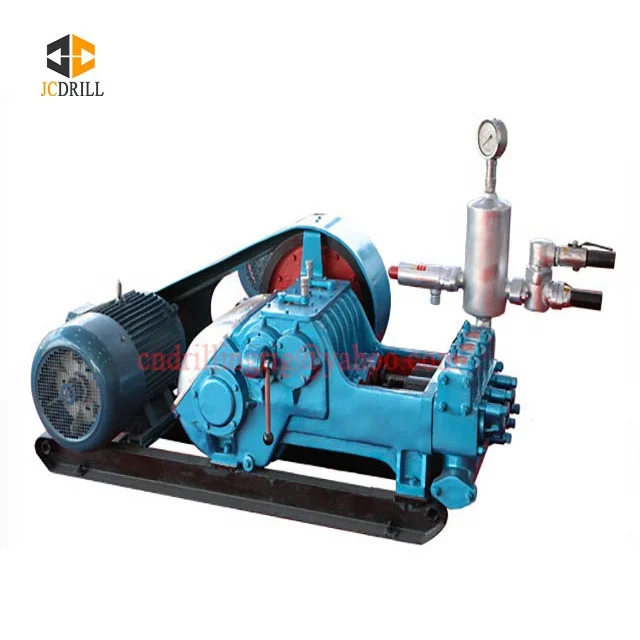

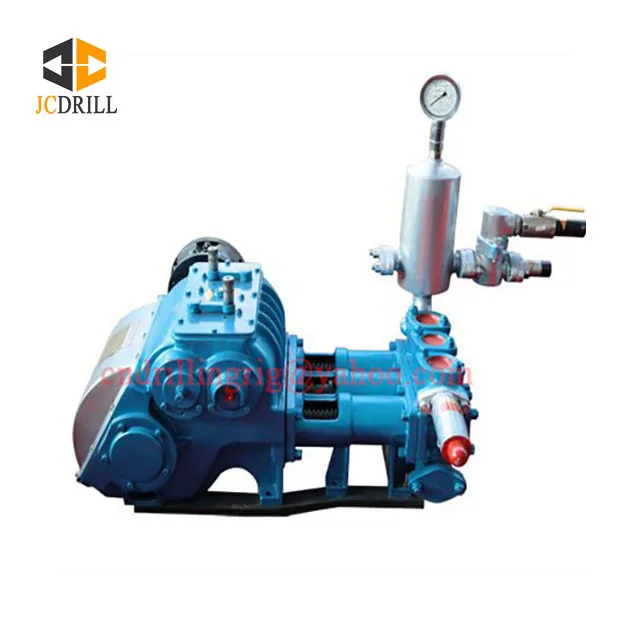

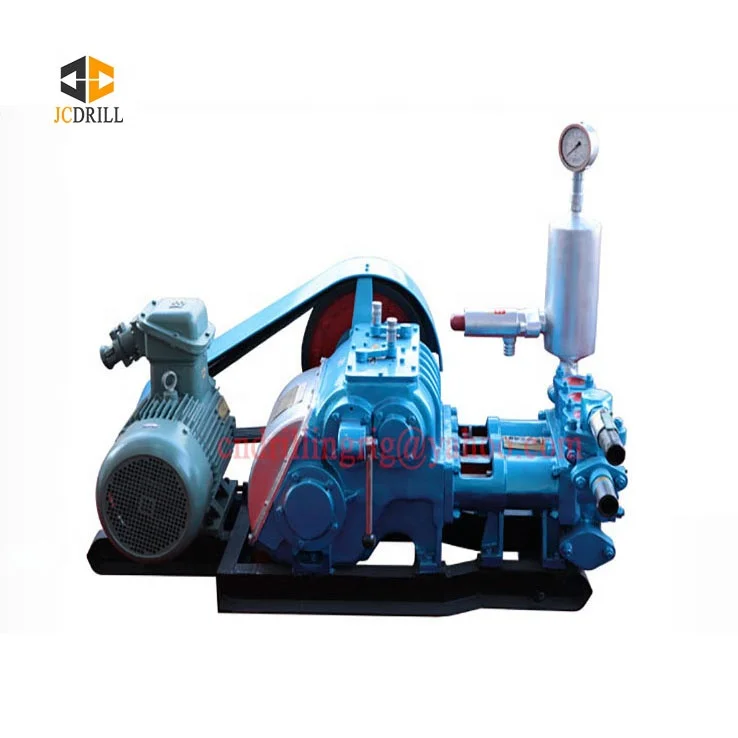

Multi-functional Hydraulic Movable Small Drilling Mud Pump

BW160/BW200/BW250 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure,lift much,less engergy consumption,easy operation,high quality and duarable,easy to move,especially for mountain terraces of irrigation.

They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

BW-200 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.



Drilling rig and mud pump application range:

 1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Exploration: Coal mining exploration, Ore exploration;

3. Water well : Small hole diameter water well drilling;

4. Pipe-installing : Geothermal pipe-installing for heat pump;

5. Foundation piling: Small-diameter hole foundation piling drilling.

Model NO	BW160	BW200	BW250
Type	horizontal single cylinder double action reciprocating piston pum	horizontal type two cylinder double action pump	horizontal triplex  reciprocating single acting piston pump
cylinder daimeter	95mm	80,65mm	80,65,70mm
piston stroke	85mm	85mm
frequency of stroke	165 times/min	145 times/min	200 times/min
flow rate	160 l/min	200;125 l/min	250,166,200 l/min
pressure	1.3mpa	4,6mpa	2.5,4,5,6,7mpa
power input	5.88kw	14.7kw/20hp	22kw
diameter of discharge pipe	50mm	65mm	76mm
diameter of discharge pipe	40mm	37mm	51mm
overall dimensions(L*W*H)	1110*725*965mm	1050*630*820mm	1100*995*650mm
weight	200kg	300kg	760kg

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Jincheng provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of “Survival by quality, Development by credit’’.

We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and perfect service network, which establish our brand “JINCHENG” a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.

With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
