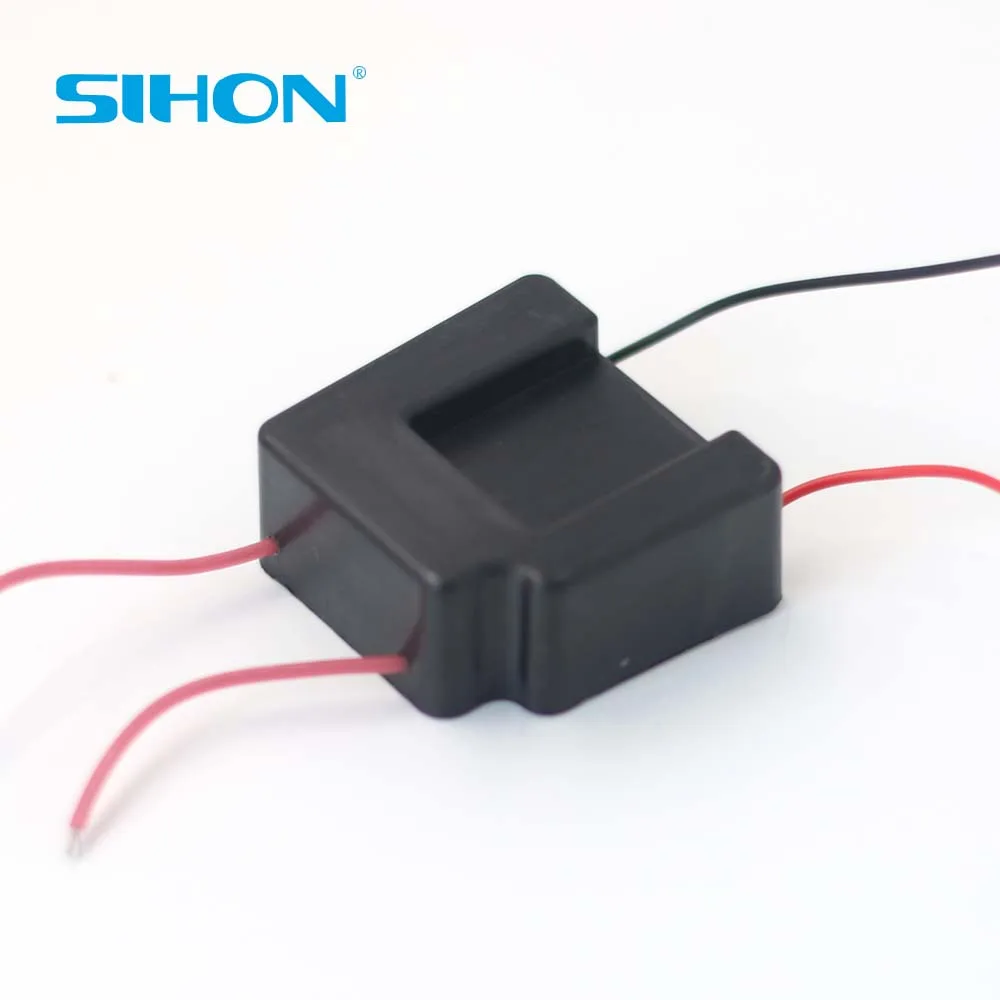

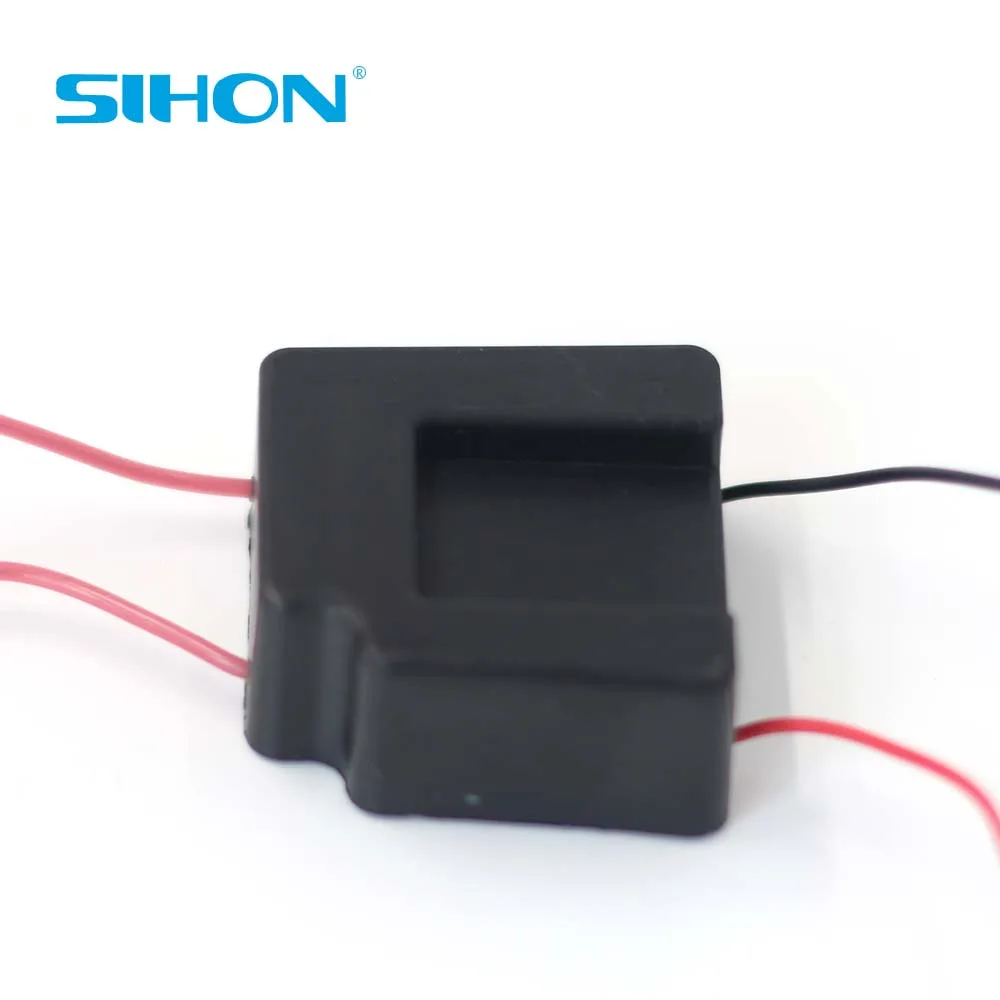

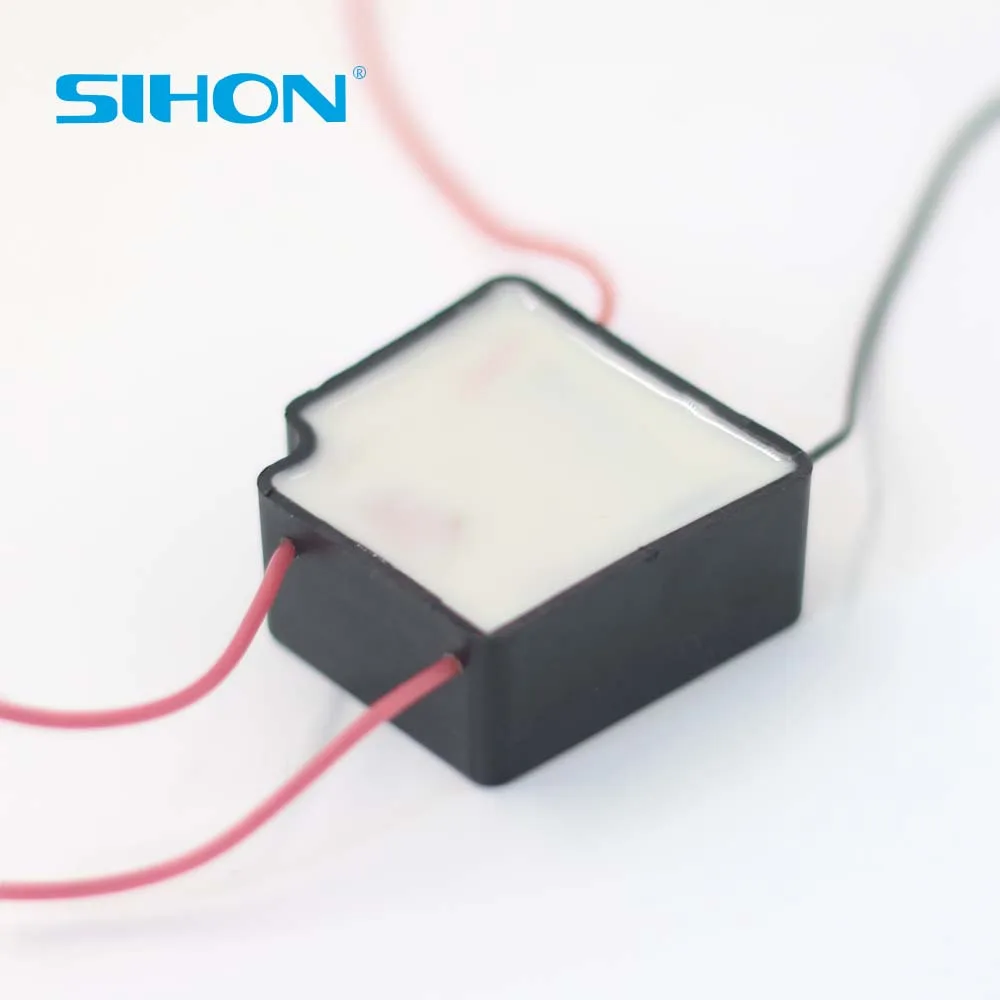

DC 6V to 40KV Step up Flyback Transformer High Voltage

Описание и отзывы

Трекер стоимости

Характеристики

1)View and size:60.5mm*30.5mm*30.5mm

2)Length of power input line( white):230mm:length of red line:220mm

3)Length of high voltage output line:330mm;length of blue white wire:235



2 Electricity parameter:

1),Input voltage:DC3V   Working current: 2.0V-3A

2),Distance of ignition:6mm    Output voltage:80KV MAX

3),Time of continuous ignition: 30min

4),Weight:120g

5),Working voltage range: DC5.2V-6.8V

6),Continuous working period can be not less than 30min when working at rated voltage 6V,  continuous working period can be not less than 25min when working at the voltage range of 5.2V-5.9V and 6.1-6.8V

7),Working environment temperature:5°C-45°C ,non-working environment temperature: 95 °C
