Product Description

Self propelled concrete mixer/Self Loading Concrete Mixer Truck/Mobile concrete mixer

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

SPECIFICATIONS FOR 4.0M3 SELF-LOADING CONCRETE MIXER
Mixing drum
capacity : 4.0M3,  14m3 concrete output/h, mixing speed: 3 gears both positive & inversion turns; maxing slewing angle of the drum: 270 degree.
Engine paramters
Yuchai 4108 Turbo , Rated power/Speeds: 95kw (129HP)/ 2400rpm.
Drive system
hydraulic component( variable stroke pump) : Danvers
two grades gear transmission : road/off road, 4 wheel drive
Speeds
 low gear speed: 0-9.5km/h, high gear speed : 0-28km/h
Cabin
front cabin with rops &fops design
Hydraulic sytem
2 variable stroke pumps provide power separately to car drive and mixer.
2 constant rate pumps provide power to drum slewing , brake, water.
cooling: water/air
Joystick
all working operation designed in one joystick
Bucket
capacity: 0.6m3 hydraulic controlled door
Chute
adjustable hydraulic controlled vertical 15 degree movement, horizontal free movement
Water sytem
water pump with high pressure washing gun
Climbing angle
30 degree with full load
Brake
wet brake, parking brake with gear box
Tires
off-road engineering tire 16/70-20 PR16
Steering
front axle steering, all hydraulic
inner steering radius: 1988mm/4130mm
outer steering radius:3767 mm/6030mm
Electric system
battery :2X12V    120Ah, provide lighting and ignition
Fuel tank
110L
Hydraulic oil tank
80L
Carframe
 all steel welding
Weight
off load:8t, full load :18t
Weighing system
equipped with high precision concrete weighing system & micro printer for detailed data of weight price, date etc.

Main Features

1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.

Detailed Image

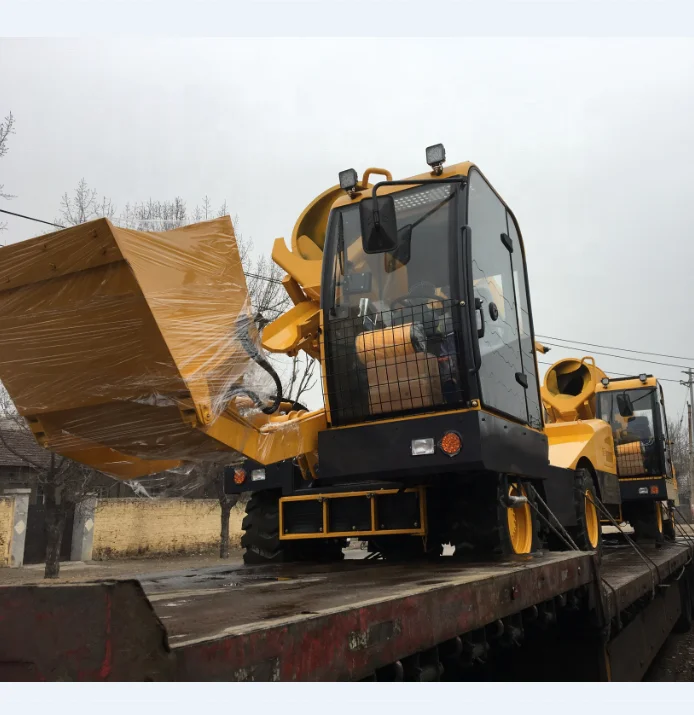

Packing & Delivery
Packaging
Size
7500 (L) * 2700 (W) * 4760 (H)
Weight
8300KG



Packaging Details
One 40's HC container can pack 1 unit with disassemble the cabin, drum, tires, etc. by Sea.
Packaging
Size
7500 (L) * 2700 (W) * 4760(H)
Weight
8300KG



Packaging Details
One 17.3M truck can pack 3 units with assembled by land.
Certifications
