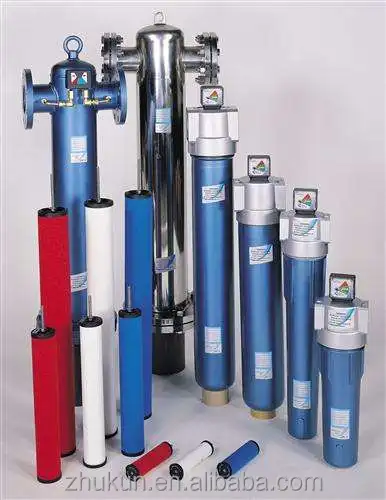

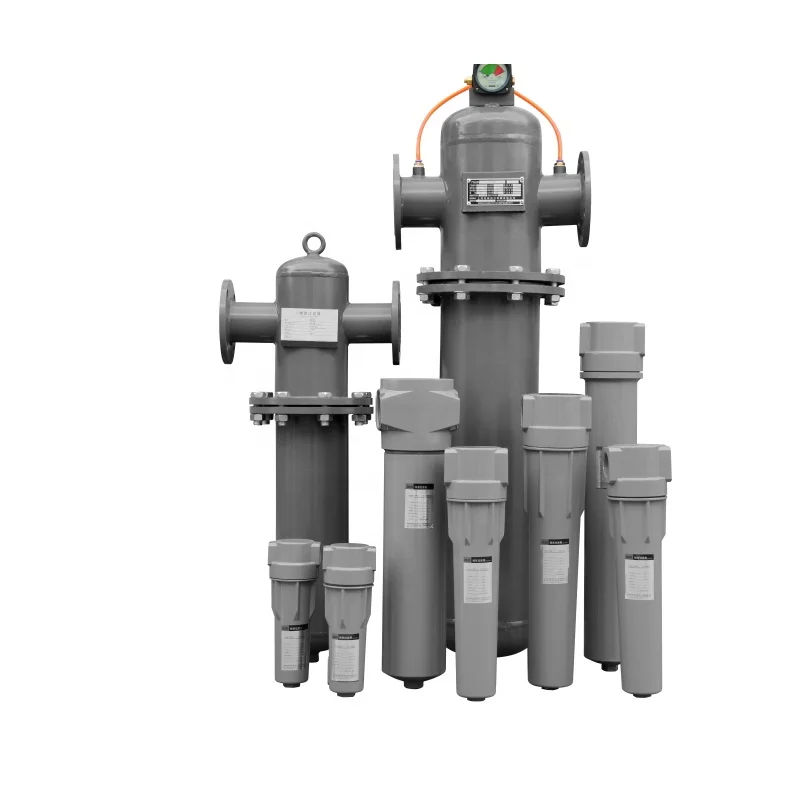

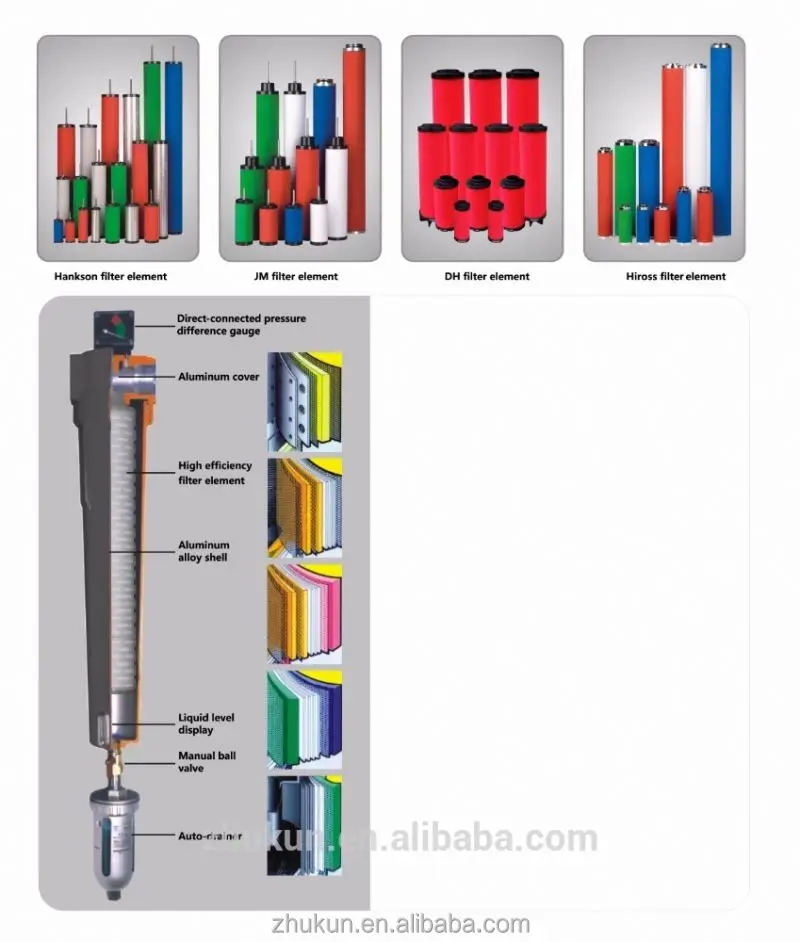

Точный воздушный фильтр для системы воздушного компрессора после сушки

The level of filter

Performance

C level (E9)

Pre-filter

Filtering the liquid and solid particles more than 3 micron

Residual oil content: 5ppm

Initial pressure drop: 0.007Mpa

 pressure drop of saturated water vapor: 0.01Mpa

T level(E7)

Main pipeline filter

Filtering the liquid and solid particles more than 1 micron

Residual oil content: 0.5ppm

Initial pressure drop: 0.014Mpa

 pressure drop of saturated water vapor: 0.014Mpa

Shall be installed C level filter before this.

A level(E5)

Efficient oil removal filter

Filtering the 0.01 micron or larger liquid and solid particles and the 99.99% oil mist.

Residual oil content: 0.01ppm

Initial pressure drop: 0.01Mpa

 pressure drop of saturated water vapor: 0.02Mpa

Shall be installed T level filter before this.

F level(E3)

Super-efficient oil removal filter

Filtering the 0.01 micron or larger liquid and solid particles and the 99.99% oil mist.

Residual oil content: 0.001ppm

Initial pressure drop: 0.015Mpa

 pressure drop of saturated water vapor: 0.04Mpa

Shall be installed A level filter before this.

 H level(E1)

active carbon filter

 Filtering the residual oil vapor  and other peculiar smell in the compressed air

Residual oil content: 0.003ppm

Initial pressure drop: 0.01Mpa

Shall be installed F level filter.

Model

Air Flow (Nm3/min)

Air Connections

Dimensions (mm)

Weight (kg)

C/T/A/F/H-001

1.5

Rc1"

300*100

1.5

C/T/A/F/H-002

2.6

Rc1"

300*100

1.7

C/T/A/F/H-003

3.8

Rc1.5"

370*199

2.5

C/T/A/F/H-006

6.8

Rc1.5"

500*100

3

C/T/A/F/H-008

8.5

Rc2"

600*140

4.5

C/T/A/F/H-010

11.5

Rc2"

600*140

5

C/T/A/F/H-013

13.5

Rc2"

800*140

7.5

C/T/A/F/H-015

17

DN65

800*380

65

C/T/A/F/H-020

23

DN80

920*380

70
