Характеристики
DC 12V Infinite Cycle Delay Timing Timer Relay ON OFF Switch Loop Module with LED Display
- Adopt MCU as the main chip, high timer precision and reliable performance
- Cycle mode: Connect for a period of time, and disconnect for a period of time, infinite loop
- A wide time range to meet your general using needs, both "on" time and "off" time are adjustable
- Can be used to control the reciprocating stroke, or repetitive power on and off for equipment and products burn-in test
- Suitable for timer operating equipment, repetitive testing circuit and fish tank intermittent pump
Product description

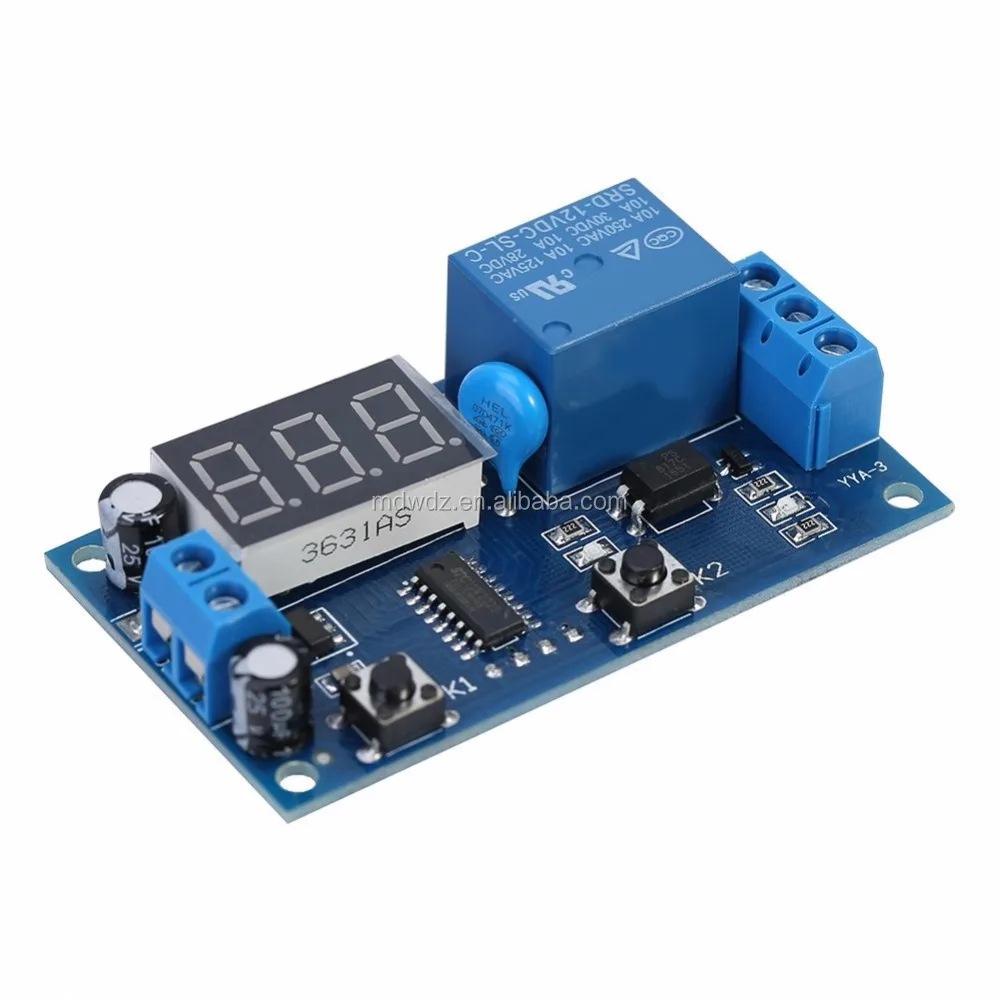

This is a cycle delay timer module with LED display. The module adopts MCU as the main chip, so it has high timer precision and reliable performance. Its working voltage is DC 12V and working current is 50mA. You can use it to control the reciprocating stroke, or repetitive power on and off for equipment and products burn-in test. Moreover, it can be widely used in timer operating equipment, repetitive testing circuit and fish tank intermittent pump.
Specifications:

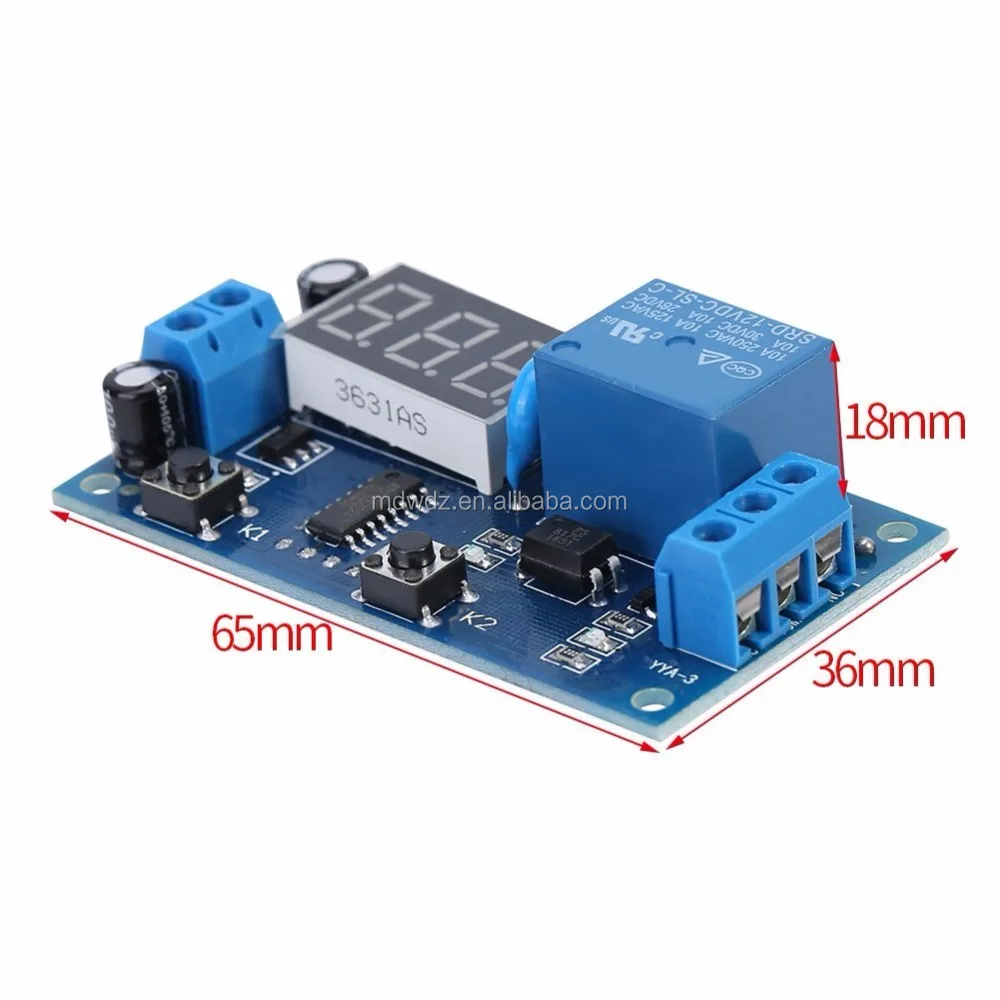

Size: 65mm×36mm×18mm

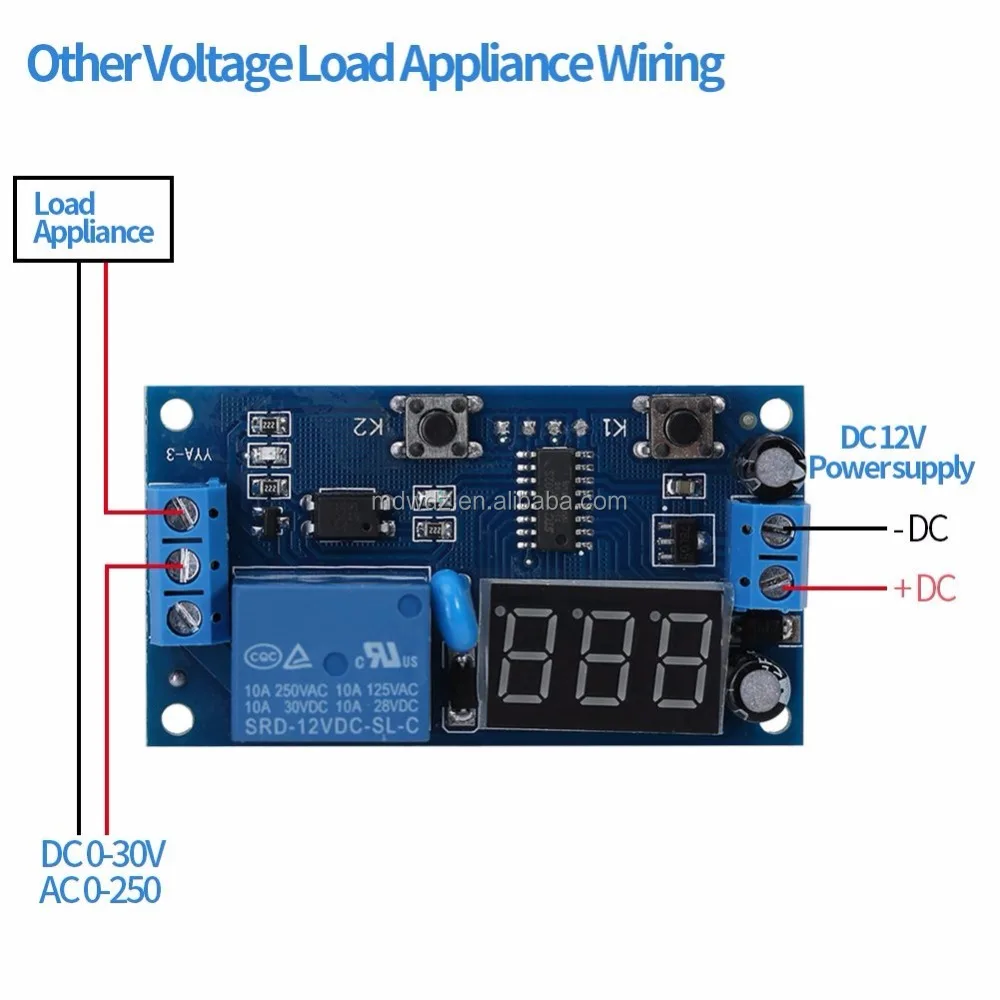

Output Capacity: DC 5V~30V, AC 220V 10A
Quiescent Current: 20mA
Working Current: 50mA

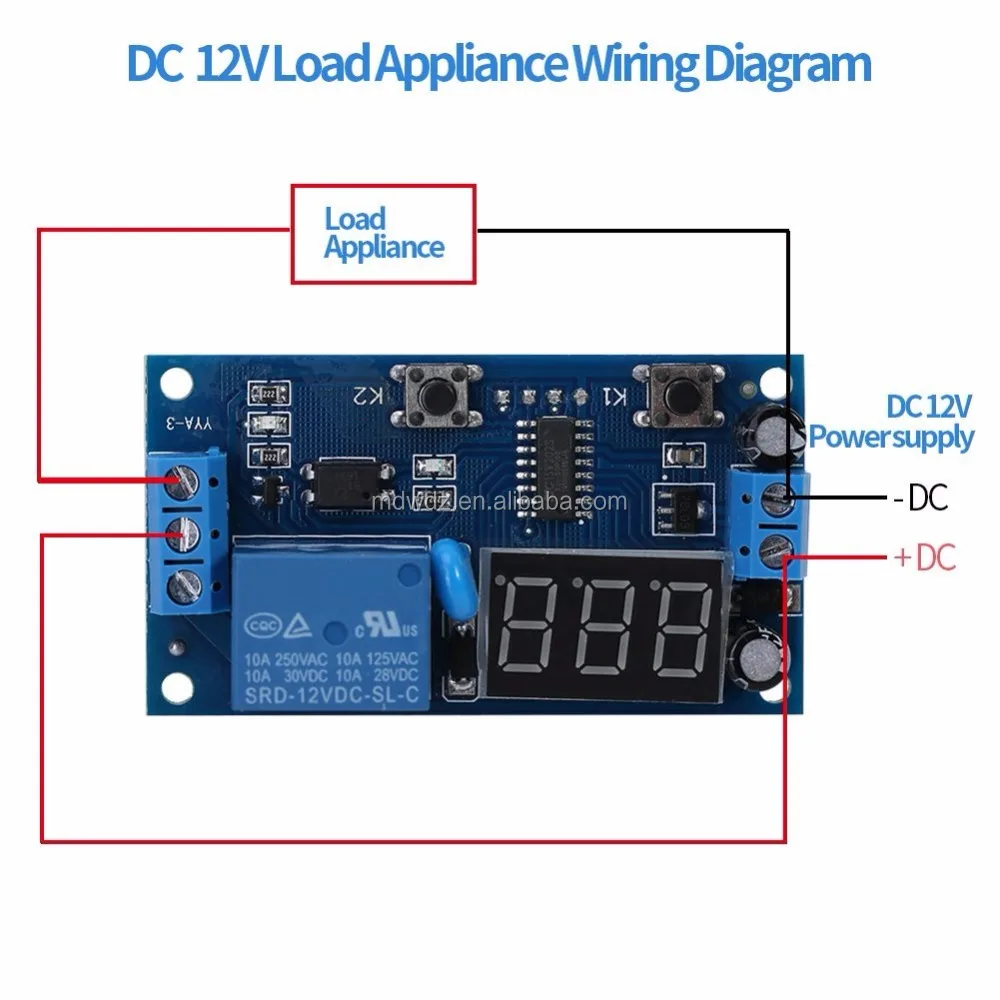

Working Voltage: DC 12V(fluctuate between 10V~16V won't be affected)
Operating Temperature: -40℃~85℃
