C Z Purlin Shape Frame Roof Steel Purling Making Machine Automatic C Purling Roll Forming Machine
Product Description
Equipment components:
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
C Z Purlin Roll Forming Machine Main parameters
1.Echnical parameters
1.
Configurations
Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
2.
Control System
PLC Inverter Encoder Touch Screen
3.
Main Frame
400mm H-Beam
4.
Total Power
22 kw
5.
Power Supply
380V, 3-Phase,50Hz
6.
Forming Speed
12-24m/min
7.
Roll Station
18 stands
8.
Roller Diameter
80mm
9.
Effective Width
80-300mm
10.
Feeding Thickness
1.5-3.0mm
11.
Backboard Thickness
20mm
12.
Cutter Standard
GCr12
13.
Roller Standard
Gcr15#
14.
Overall Size
About 8500×1000×1400mm
15.
Total Weight
About 10T
16.
Custom
According to customer's requirements
NOTE: All technical parameters can be changed according to user s need, and only as a reference.
2.C Z Purlin Roll Forming Machine Components specification
(1) Manual Uncoiler
Max.Capacity:5T
(2)Pre- Cutting Device& Pre-Punching Device
It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.
Cutting length tolerance:±2mm
Material:GCr12 with quenched treatment 60-62°C
(3)Hydraulic System
Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.
Power: 22 KW
(4)Control System
It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.
Computed mode: automatic or manual
(5)Encoder
The counter gauges length, and modulates pulses.
(6)Simple Stack
It is used for loading the formed plate.

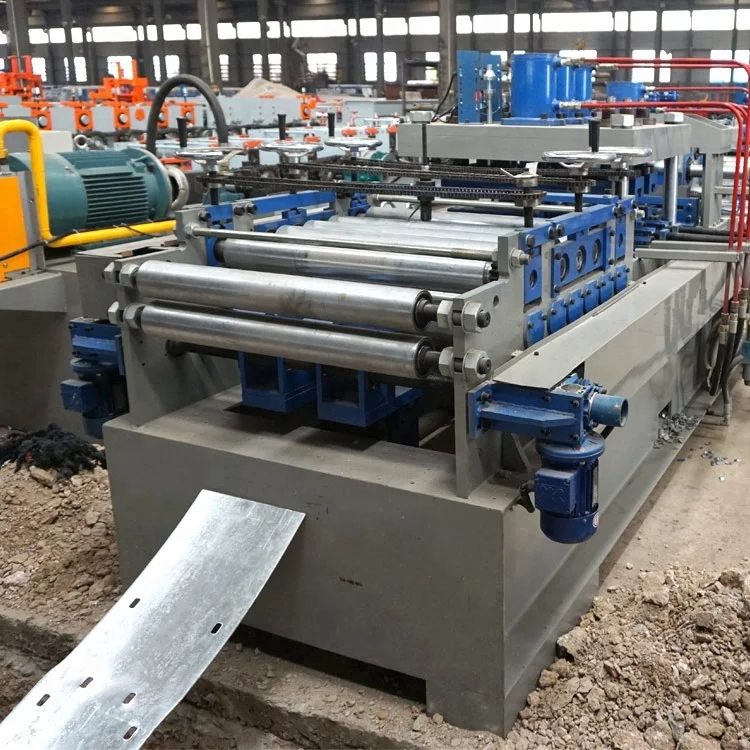

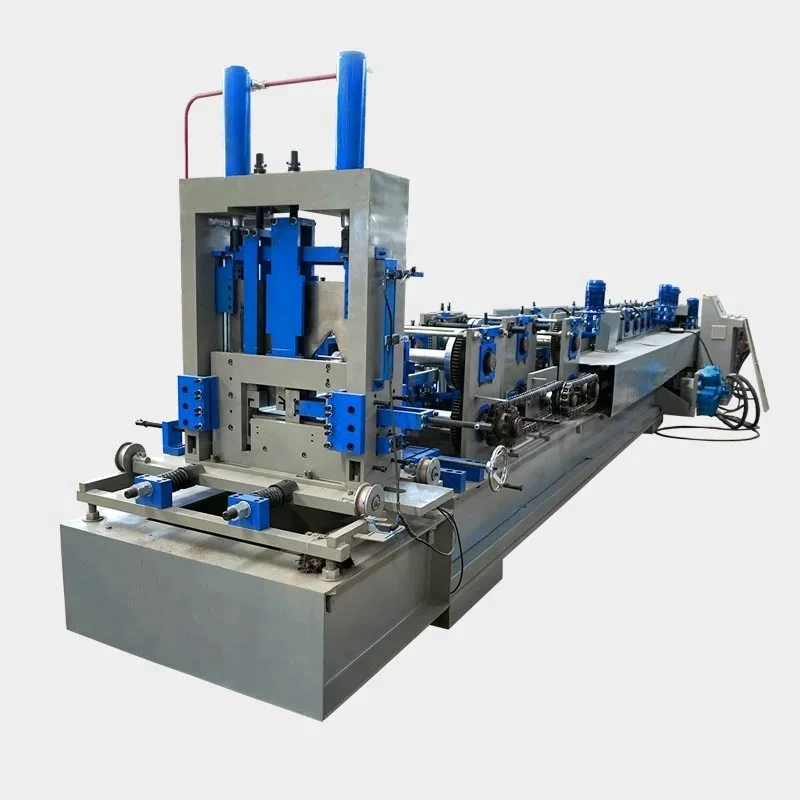

Product Pictures

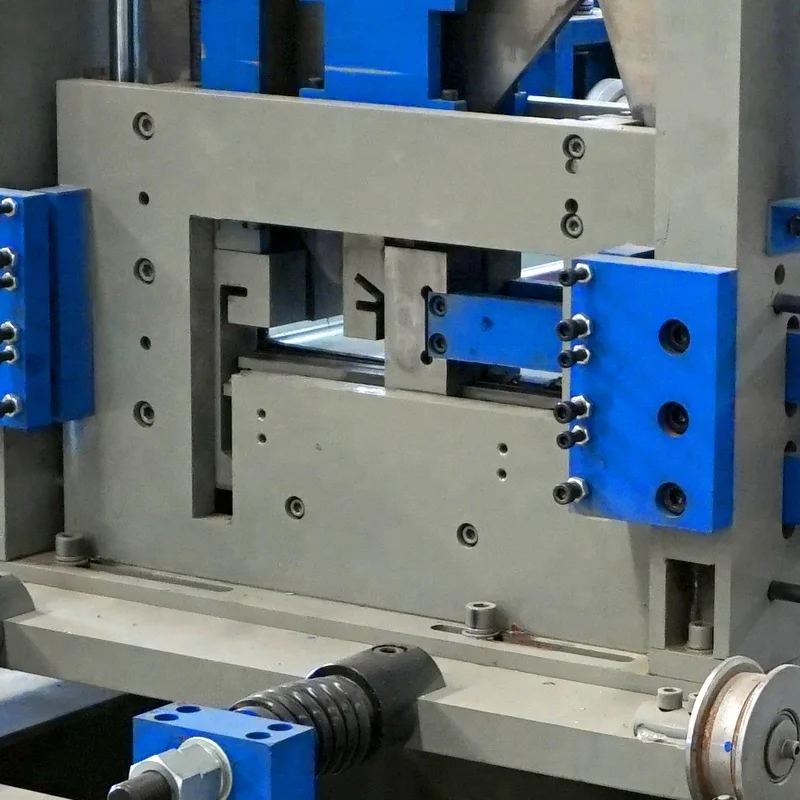

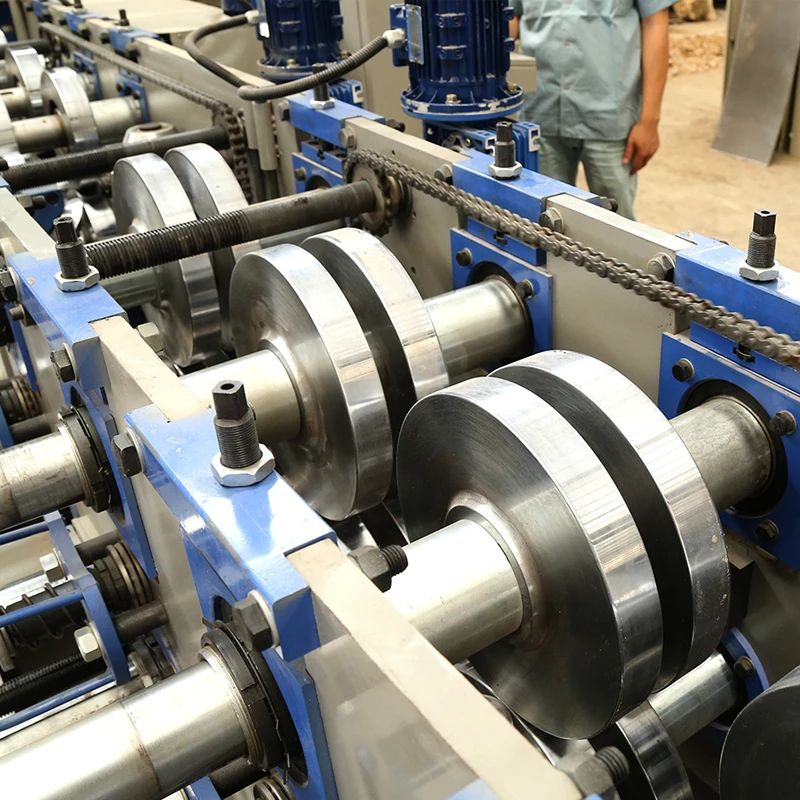

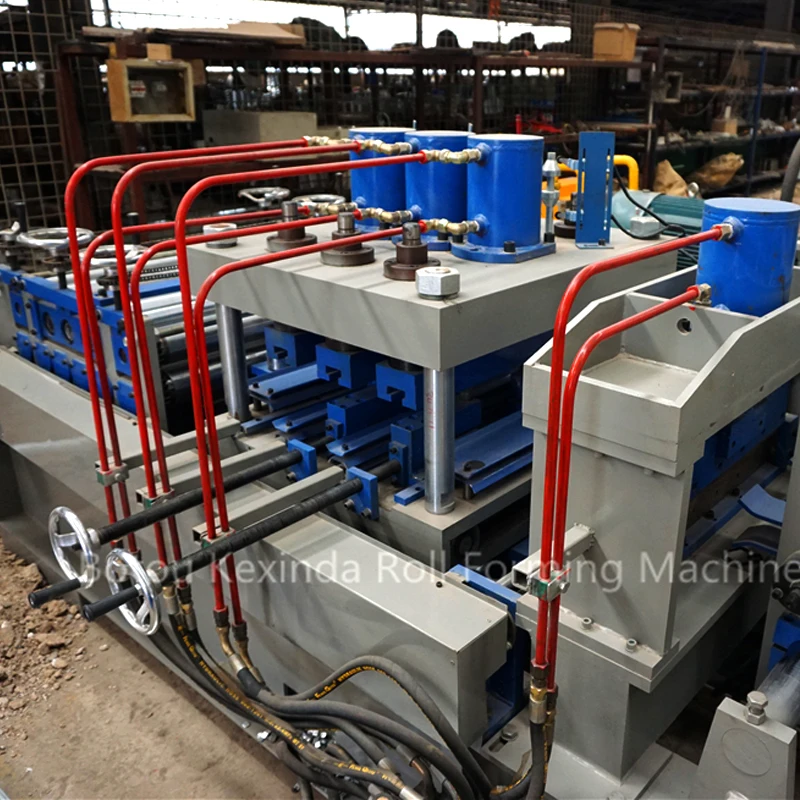

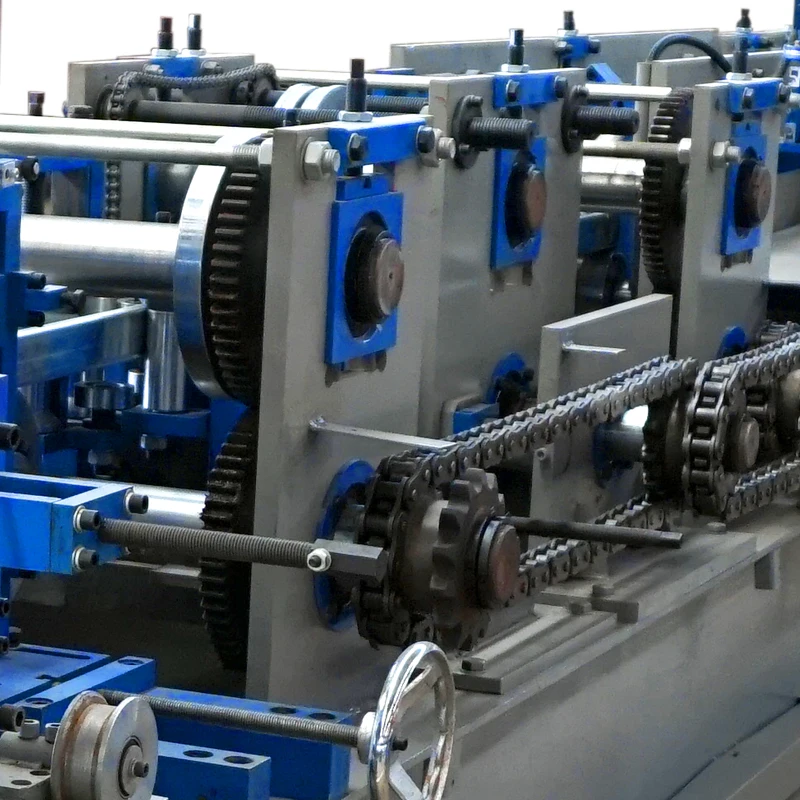

Detailed Images
