New Surspider electric Cordless Concrete power Tools /rebar tying machine/ rebar

"Surspider" Intelligent Rebar Tier Make the Rebar Tying so easy.

Rebar tier can be widely used in buidings, bridges, roads, railways, heat floor, swinning pool and even other special projects. the rebar tier take place of manual rebar tying, it imporoves the work effiency and save labor cost.

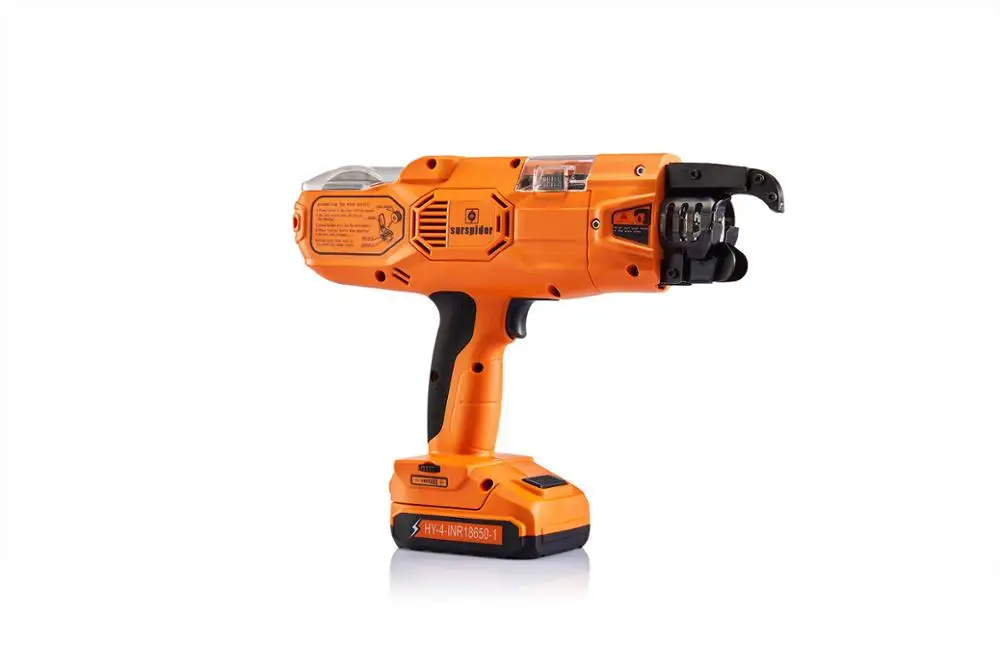

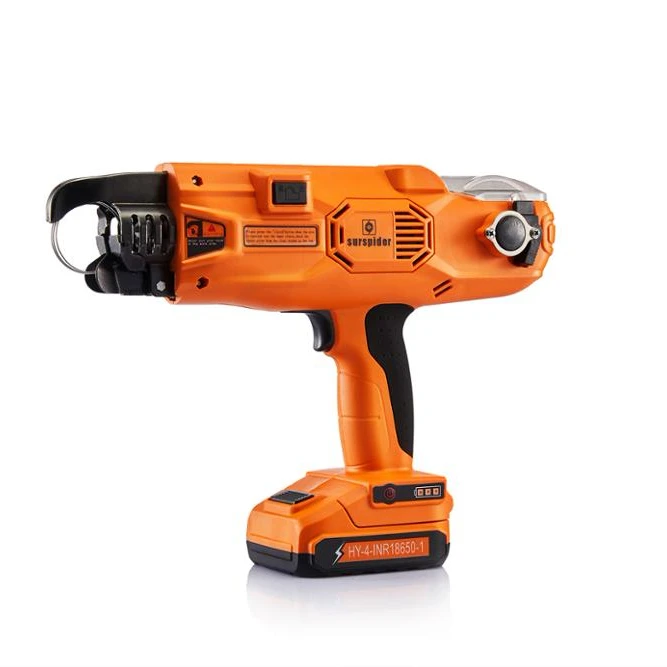

Surspider ZKZ-40A Cordless Rebar Wire Tier Parameter
Item No.	ZKZ-40A	ZKZ-25A
Dimension(mm):	315x225x68	300x225x68
Weight(kg):	1.45	1.45
Voltage (V):	14.4	14.4
Tying range(mm):	26-40	12-24
Tying speed(s):	0.8	0.8
Tying wraps :	3	2
Ties per full standard battery(pcs):	1100	2000
Ties per full advanced battery(pcs):	3500	6200

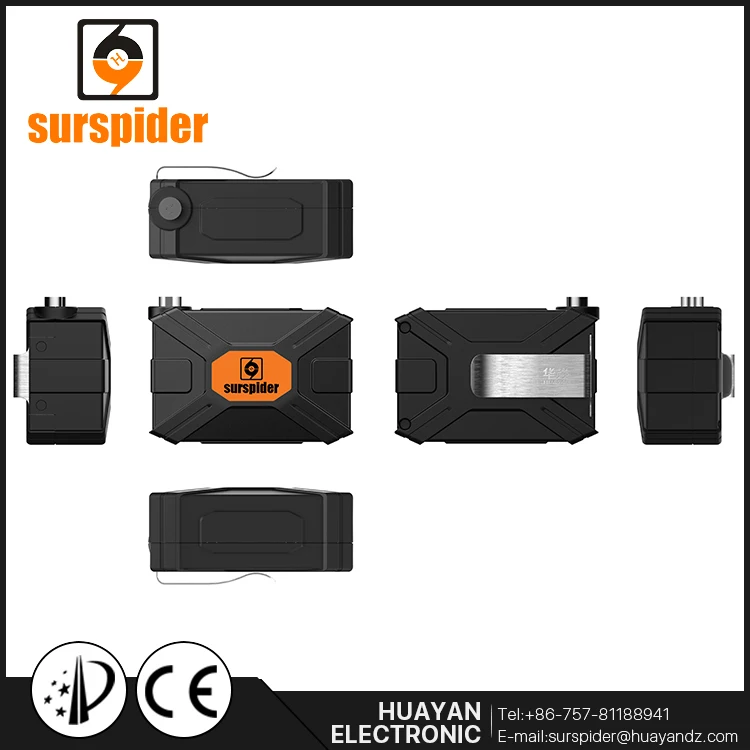

Battery
Item	Standard Battery	Advanced Battery
Voltage(V):	14.4	14.4
Battery Capacity(Ah):	2.0	6.0
Charging Time(H):	2.8	2.7

Other Accessories

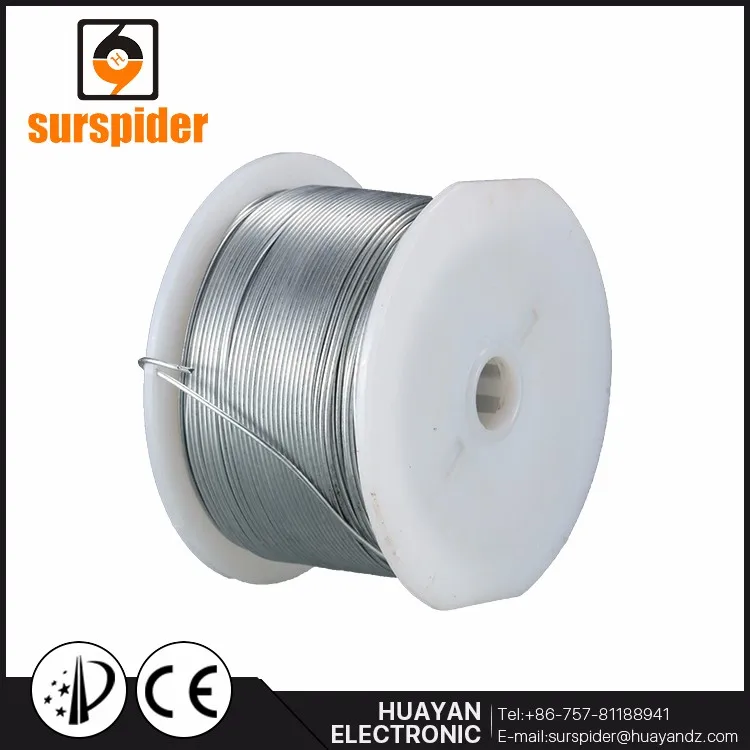

Double Charge		Wire Coil
Model No.:	HY-CH-14.4V2.9A-1	Diameter(mm):	0.8
Input Voltage/Current:	100-240VAC 50/60HZ 0.8A	Length(Meter):	100
		Net Weight:	390
Output Voltage/Current:	16.8V DC 2.9A	Ties/Scroll:	ZKZ-40A    147 ZKZ-25A    283

Contact Info:

cecile(at)surspidertool.com

whatsapp+86 135 3579 8771

Advantages



21 Certificates & Patents

Invention Patent:

         1. on wire Twisting mechanism of rebar tying tool. the certificate No. in China is ZL 2014 1 0787970.0.

         2. on Wire sending mechanism of rebar tying tool. the certificate No. in China is ZL 2014 1 0788235.1.



Utility Moder Patent:

        1. on wire scroll locking mechanism of rebar tying tool, the certificate No in China is ZL 2015 2 0248889.5.



Appearance Design patent:

         1.  about the portable battery pack. the certificate No. in China is Zl 2015 3 0333052.6.

      2. about the rebar tying tool. the certificate No. in China is ZL 2015 5 0332805.1.

Rebar Tier certificate:  CE + RoHS

         1. CE on rebar tier , about the EMC Directive 2014/30/EU, the model No. is ZKZ-25A / ZKZ-40A

         2. RoHS on rebar tier, about the RoHS Directive 2011/65/EU. the model is ZKZ-25A/ZKZ-40A

Li-polymer Battery Certificate: CE + RoHS

         1. CE Tested according to EN55032:2012/AC:2013 & EN55024:2010, the battery model is 3-ICR18650-1.

         2. CE Tested according to EN55032:2012/AC:2013 & EN55024:2010, the battery model is 3-ICR18650-3.

         3. the contect is about RoHS Directive 2011/65/EU, the battery model is 3-ICR18650-3.



Double Charger for Li-ion Batery: CE

        1. Content is about the LVD Directive 2014/35/EU. the certificate is HY-CH-12V3A-1.

         2. The content is about the EMC Directive 2014/30/EU. the charge model is HY-CH-12V3A-1.

Packaging & Shipping

Shipping Info

Packaging--Rebar Tier	Pcs/ Box	Packing Size (CM)	CBM	GW (kgs)
	1pcs/ Suit Box	36 x31x12	0.014	4.5
	5 pcs / carton	55x36x31	0.06	20
	120pcs / Pallet	110x110x134 5 Carton Boxes / Layer Total 4 Layers	1.62	490
	150pcs / Pallet	110x110x165 5 Carton Boxes / Layer Total 5 Layers	2.0	610







COMPARING WITH OTHER

Brand	Suspider Tier	Japanese Tier	Other Chinese Tier
Weight	1.15kg	3kg	1.8 kg
Intelligent Level	Full automatic intelligent operation, single motor for all function, portable, fast and efficient	Automatic operation, double motor for all function, heavy and low efficiency	Semi-automatic operation, low good tie rate, low efficiency
Wire Length Per Tie	40 cm	60 cm	45 cm
Working Time Per Charge	3-12 hours	2 hours	1-1.5 hours
Heat Dissipation	Built-in radiator, very good effect	Natural cooling, normal effect	Natural cooling, normal effect
Water Resistant	Good water resistant, can work in  rainy day	Non-waterproof	Non-waterproof
