Мини-горшок для изготовления ювелирных изделий 1

Specification

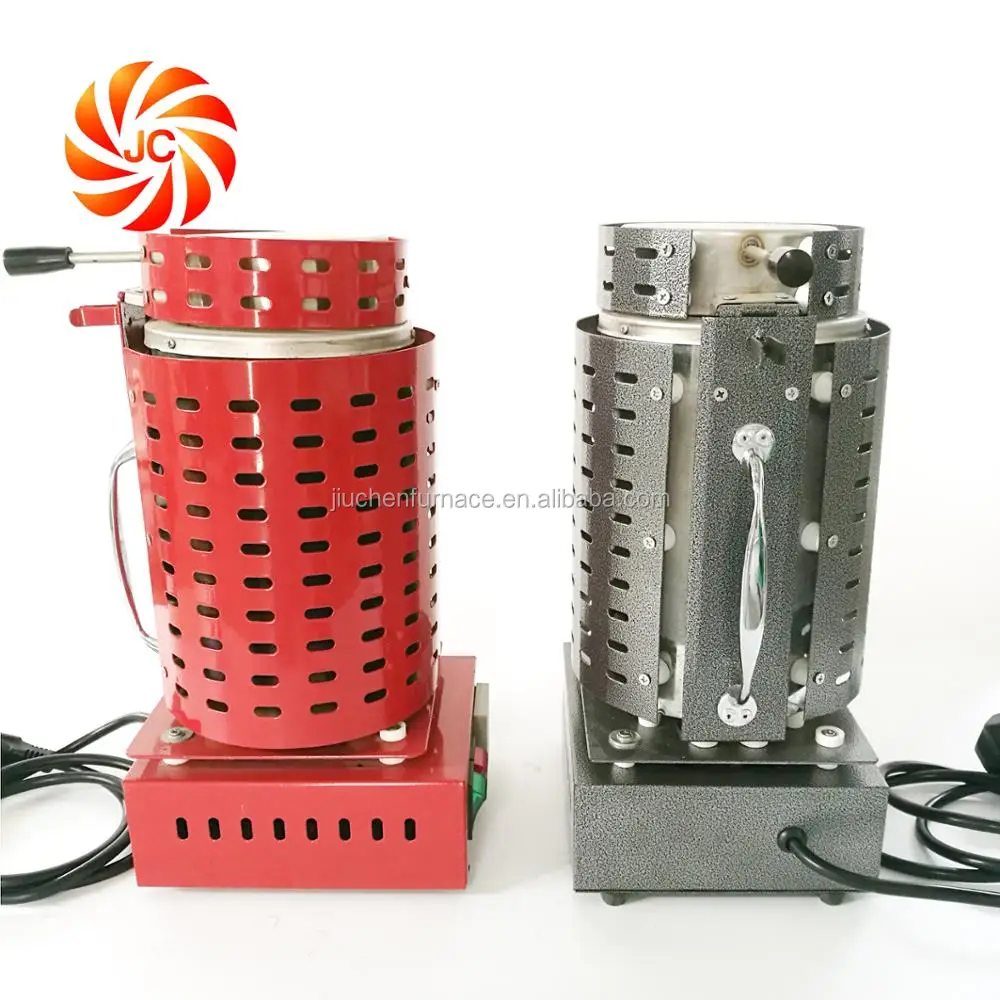

Jewelry Smelting Pot is an ideal supporting unit for Jewellery Casting, Gold & Silver Refining, Alloying, etc.  It is Available with 1 Kg,2Kg,3Kg,4Kg melting capacity. This melter is well designed for easy and safe operating,This Jewelry Smelting Pot comes with a High Quality Graphite Crucible, Crucible Holding Tong, and Safety Gloves We are professional manufacturer and supplier of Gold Melting Furnace in China.

• Tilt-pour feature ensures a clean, smooth pour into your flask or mold.
• Brushed steel and powder-coated steel housing for long shop life.
• LED display with touchpad digital readout allows precision temperature control to 2102°F (1150°C)
• Insulated lid holds heat in and keeps oxygen out for a cleaner melt.

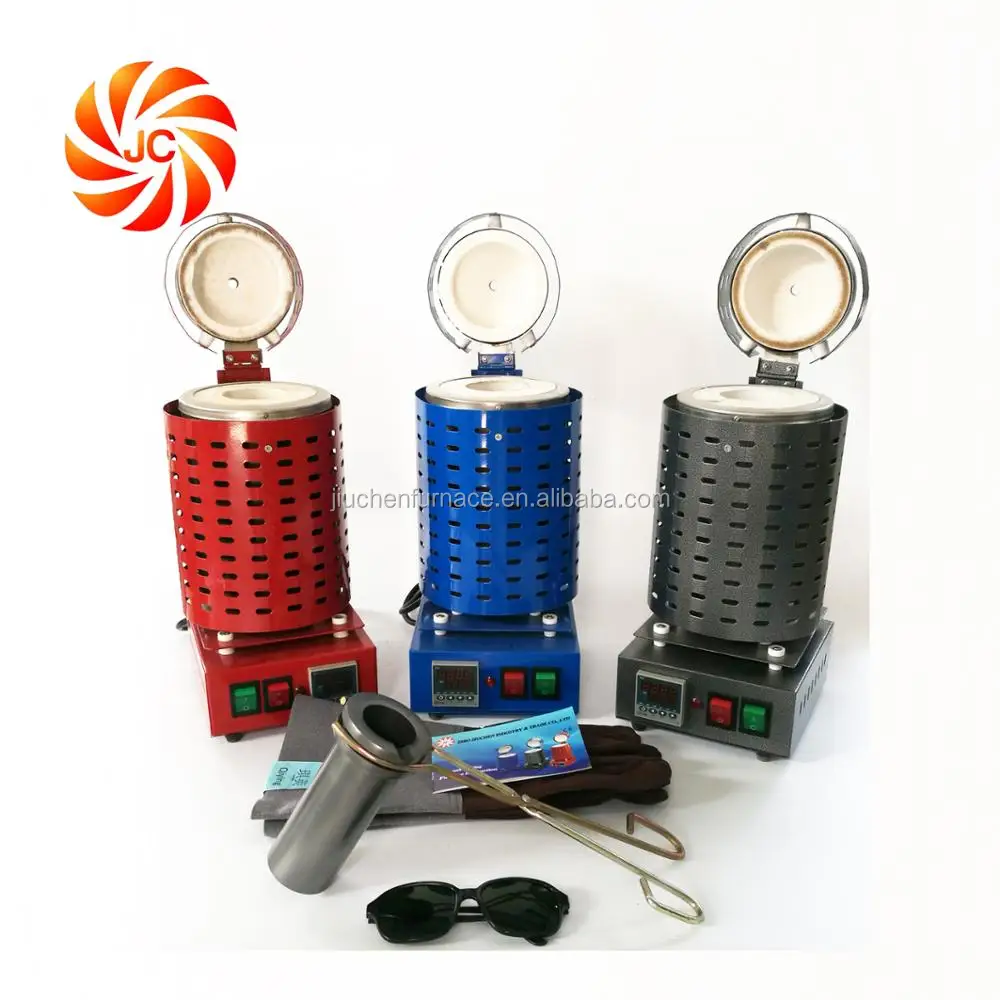

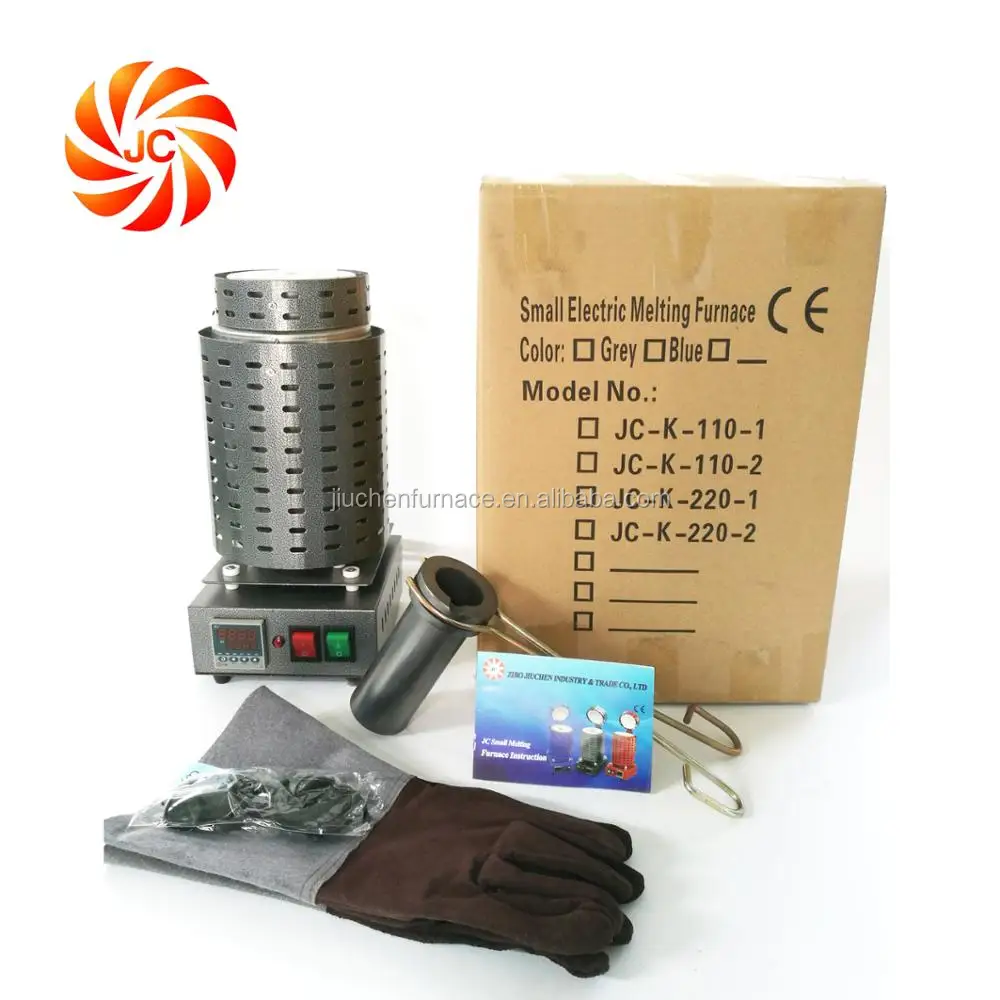

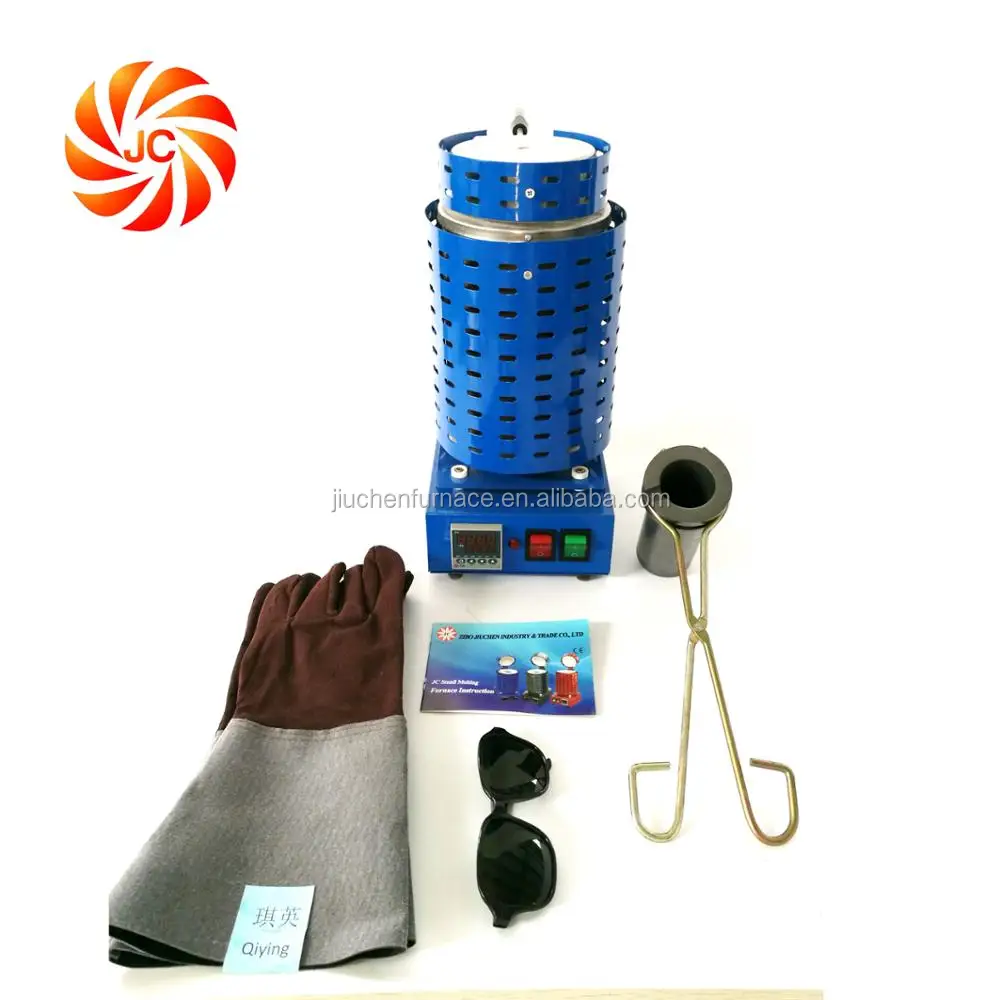

Package included:

Model JC-K-220-2(220V 1.5kw) Red,Blue ,Gray color is optional
1- 1kg graphite crucible
1-crucible tongs.

1-Strring Rod.
1-replacement fuse.
1-insulating heat glasses.
1- gloves.

High Quality Heating Elements

It comes with durable construction and made of double walled stainless steel.

Small Electric Furnace adapts Silicon carbide as heating element.

For enhanced thermal efficiency ceramic fiber is used between outer and inner chambers.

The temperature is regulated by a microprocessor based digital controller which ensures temperature stability of +/-1°C.

 For safe operation of the equipment, over temperature controller protects the heating elements.

 Heating elements are easy to replace, made of international standard quality material and fluxes resistant.

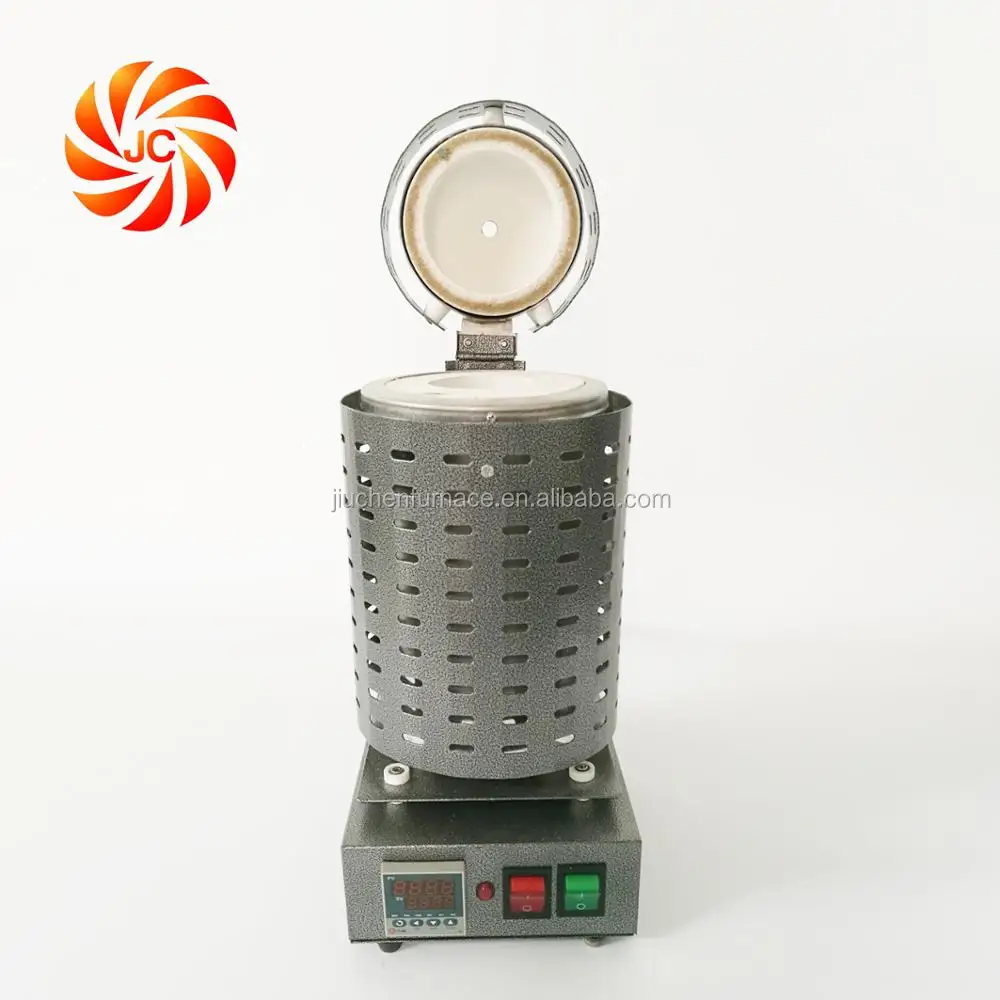

Jewelry Smelting Pot Details

JIUCHEN Furnace Adopts new advanced SIC material with no crack no distortion under normal temp 1-1250℃,which prevents disadvantage of short work life with traditional ceramic fiber, quartz chambers.

Other similar furnace adopts traditional chamber material:ceramic fiber, quartz with easy crack and distort after use 2-3 times,which easily lead to short circuit and reduce work life.

Jewelry Smelting Pot Features

 1.Furnace controls are easy to use and allows precision setting of any desired temperature.

2. It utilises a thermocouple which is used by the temperature controller to control the “ON” time, for the furnace to reach the desired temperature.
 3.Once the desired temperature is reached, it will maintain that temperature by the controller switching the power to the furnace “ON” or “OFF” as required, in order to maintain the desired temperature.
4.The tongs wrap around the crucible top recessed ring, allowing a safe method of removing the crucible for pouring.
An insulated lid lowers down onto the top of the crucible, reducing heat loss.

Note: One furnace standard package including one 1kg crucible.

One furnace can use 1kg 2kg 3kg 4kg crucible

Dimension Drawings for 4kg crucible

Setting the required temperature
