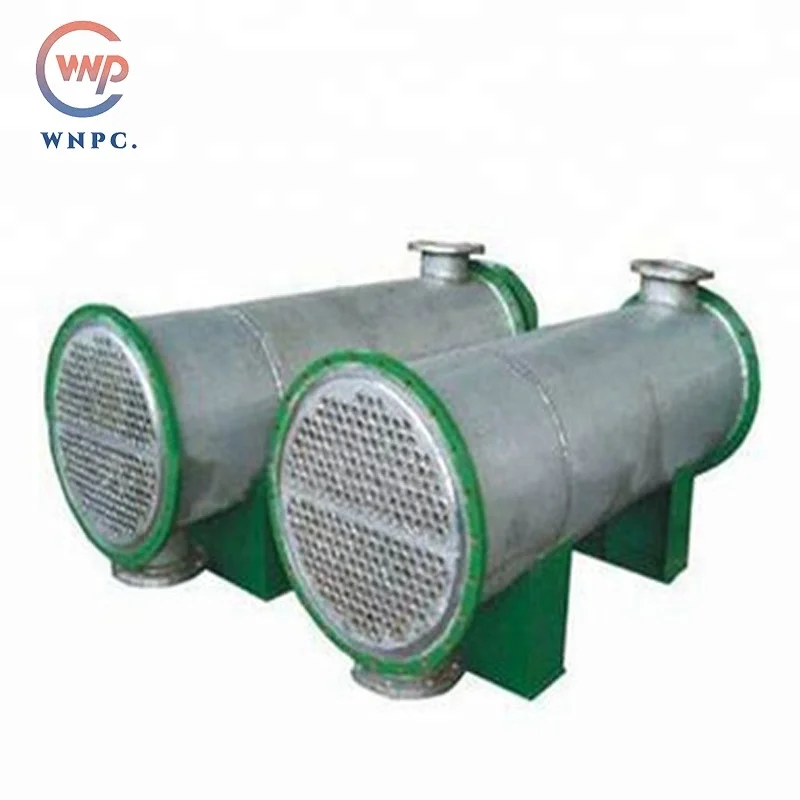

Корпус и трубчатый теплообменник по индивидуальному заказу
- Категория: Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Wuxi,Nanquan,Pharmaceutical,Chemical,Container,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2380.44 $* | 2499.59 $* |
| Aug-16-2025 | 2360.29 $* | 2478.3 $* |
| Jul-16-2025 | 1980.66 $* | 2079.98 $* |
| Jun-16-2025 | 2320.63 $* | 2436.61 $* |
| May-16-2025 | 2020.4 $* | 2121.19 $* |
| Apr-16-2025 | 2280.47 $* | 2394.56 $* |
| Mar-16-2025 | 2260.39 $* | 2373.70 $* |
| Feb-16-2025 | 2240.38 $* | 2352.3 $* |
| Jan-16-2025 | 2220.85 $* | 2331.50 $* |
Характеристики
Product posters
Shell And Tube Heat Exchanger/customized Shell And Tube Heat Exchanger And plate Exchanger
| Nominal diameter | Number of passes | tube Quantity | Heat exchange area Nominal value/calculated value | Tube passage cross-sectional area Flow rate (m/hr) at 0.5m/sec | pressure (MPa) | |||||
| Tube length (m) | Φ25*2.5 | |||||||||
| 1500 | 2000 | 3000 | 4000 | 6000 | Φ25*2 | |||||
| 159 | 1 | 14 | 1.5/1.62 | 2/2.17 | 3/3.27 | 0.0044/0.0049 | 7.92/8.82 | 0.25 | ||
| 219 | 1 | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.1 | 0.0082/0.0090 | 14.76/16.20 | 0.6 | |
| 273 | 1 | 44 | 5/5.08 | 7/5.18 | 10/10.26 | 14/13.72 | 21/20.63 | 0.0138/0.0152 | 24.84/27.36 | 1.6 |
| 2 | 40 | 5/4.62 | 6/6.19 | 9/9.33 | 12/12.47 | 19/18.76 | 0.0063/0.0069 | 11.24/12.42 | 2.5 | |
| 325 | 1 | 60 | 7/6.93 | 9/9.28 | 14/14.00 | 19/18.71 | 28/28.13 | 0.0018/0.0208 | 33.84/37.44 | 0.6 |
| 2 | 56 | 6/6.47 | 9/8.66 | 13/13.05 | 17/17.46 | 36/26.26 | 0.0088/0.0097 | 15.84/17.46 | 1 | |
| 400 | 1 | 119 | 14/13.47 | 18/18.41 | 28/27.76 | 37/37.10 | 55/55.8 | 0.0374/0.0412 | 67.32/74.16 | 1.6 |
| 2 | 110 | 13/12.70 | 17/17.02 | 26/25.66 | 14/34.20 | 50.51.58 | 0.0173/0.0190 | 31.14/34.20 | 2.5 | |
| 500 | 1 | 185 | 45/4.15 | 55/57.68 | 85/86.74 | 0.0581/0.0641 | 104.58/115.38 | |||
| 2 | 180 | 40/41.99 | 55/57.68 | 85/86.74 | 0.0283/0.0312 | 50.94/56.16 | ||||
| 600 | 1 | 269 | 60/62.7 | 85/83.88 | 125/126.13 | 0.0845/0.0932 | 152.10/167.76 | |||
| 2 | 266 | 60/32.05 | 80/82.94 | 125/14.72 | 0.0418/0.0461 | 75.24/83.98 | ||||
| 700 | 1 | 379 | 90/88.41 | 1120/118.17 | 175/177.71 | 0.0091/0.1313 | 214.38/236.34 | |||
| 2 | 358 | 85/83.51 | 110/111.62 | 165/167.85 | 0.0562/0.0620 | 101.14/111.60 | ||||
| 800 | 1 | 511 | 120/119.20 | 160/159.16 | 240/239.60 | 0.1605/0.1770 | 288.90/318.60 | |||
| 2 | 488 | 115/113.83 | 150/152.16 | 230/228.81 | 0.0767/0.0845 | 138.06/152.10 | ||||
| 900 | 1 | 649 | 150/151.39 | 200/202.36 | 305/304.3 | 0.2039/0.2248 | 367.02/404.46 | |||
| 2 | 630 | 145/146.96 | 195/196.44 | 295/295.40 | 0.0990/0.1091 | 178.20/196.38 | ||||
| 1000 | 1 | 805 | 185/187.78 | 250/251.00 | 375/377.45 | 0.2529/0.2788 | 455.22/501.74 | |||
| 2 | 792 | 185/184.75 | 245/246.95 | 370/371.36 | 0.1244/0.1374 | 223.92/246.96 | ||||
