Горячая Распродажа машина для запечатывания трещин/машина бетонных соединений/машина трещин на

Описание и отзывы

Трекер стоимости

Характеристики

Product Application

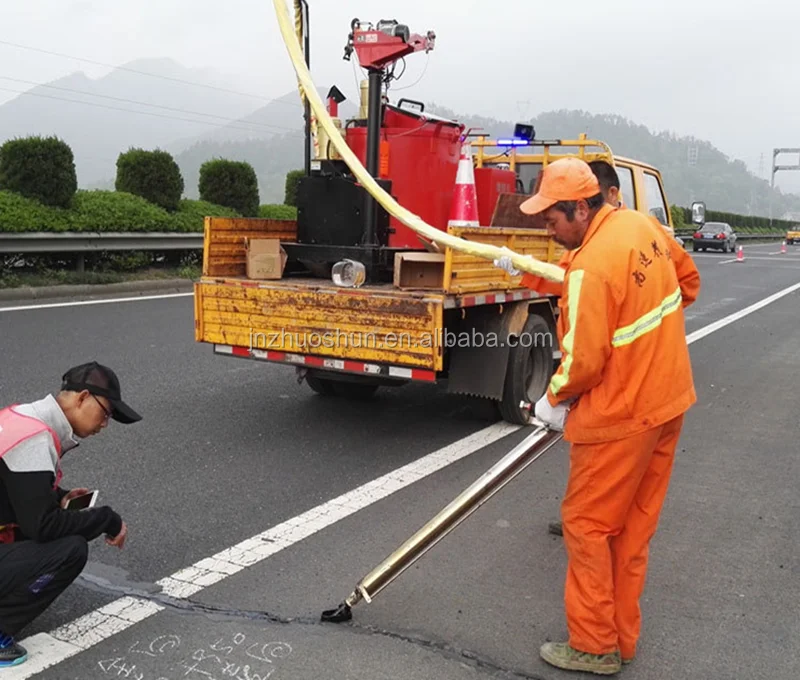

Designed for medium and large cracks and cracks appeared after the initial opening of the road highway, national and provincial, county and township road, urban roads and airports repair after emerging through the slot machine slot with special sealant pouring pavement to ensure that the overall performance of the road, to extend the service life of the road.

Model	ZS-100L
Hopper volume	100L
mode of discharging	The asphalt pump feed or Holding a seal tube
heating method	Italian Riello 445T1 combustor
The temperature control	Automatic temperature control system
Irrigation sewing speed	20m/min
The length of electric heating tube	5m
Moving mode	Hand push&pull-type
stirring method	electric stirring
power	2.2KW Honda engine
Overall dimensions	1750*7860*1200mm
Weight:	220KGS

Main Features

1,security, and user-friendly design
Light truck tires bearing system, greatly improving the safety performance of walking, the tail has a thermal reactor for heat insulation put pouring gun positions, the feed pump switch on pouring gun operating handle, it’s easy to operate construction.
2,temperature control box
Double digital liquid crystal temperature controller: time display and adjust the temperature of the heat conduction oil temperature, sealing temperature and temperature of the tube, the temperature display is intuitive and accurate.
3,filling gun
The original design of the electric control switch on the handle of the filling seam can be controlled by the remote control of the material pump and reduce the waste of sealant.
4,heat conduction oil system
The fuse is used to heat the oil in the heat of the hot melt kettle, indirect heating, the temperature can be adjusted according to the need, automatic constant temperature system, will not burn the material.
5,special geometry of the combustion chamber
The flame is blown to the combustion chamber with a 45 degree angle of the oblique angle, not directly contact with the hot melt kettle, the air in the hot air chamber, and the combustion is full, and the heat utilization rate is high.
6,discharge hose
According to the need of 270 degrees of freedom rotation, long service life, flexible pipe bending fully meet the road maintenance and construction of horizontal and longitudinal cracks in the actual work needs, to ensure the largest construction area.
7,the lowest loading height
Operating position and low filler mouth, feeding mouth with anti splash board, improve the safety of feeding operation, material box and hose are heat insulation material, avoid scald operator.
8,electric mixer
The mixer adopts the brand variable speed motor, the structure is simple, easy to use, easy to maintain.
9,walk way - trailer, hand push walking
Small size, light weight, trailer / push can walk, only two people will be able to carry out construction.
