Характеристики



• Characteristics: HOWO four-point susending cab, safe and comfortable; mature all-wheel drive technology, good off-road performance. All models have the alternative of right steering-wheel
• Scope of application: work in oil field, mine, for firefighting and forest4×4 All-WHEEL DRIVE TRUCK

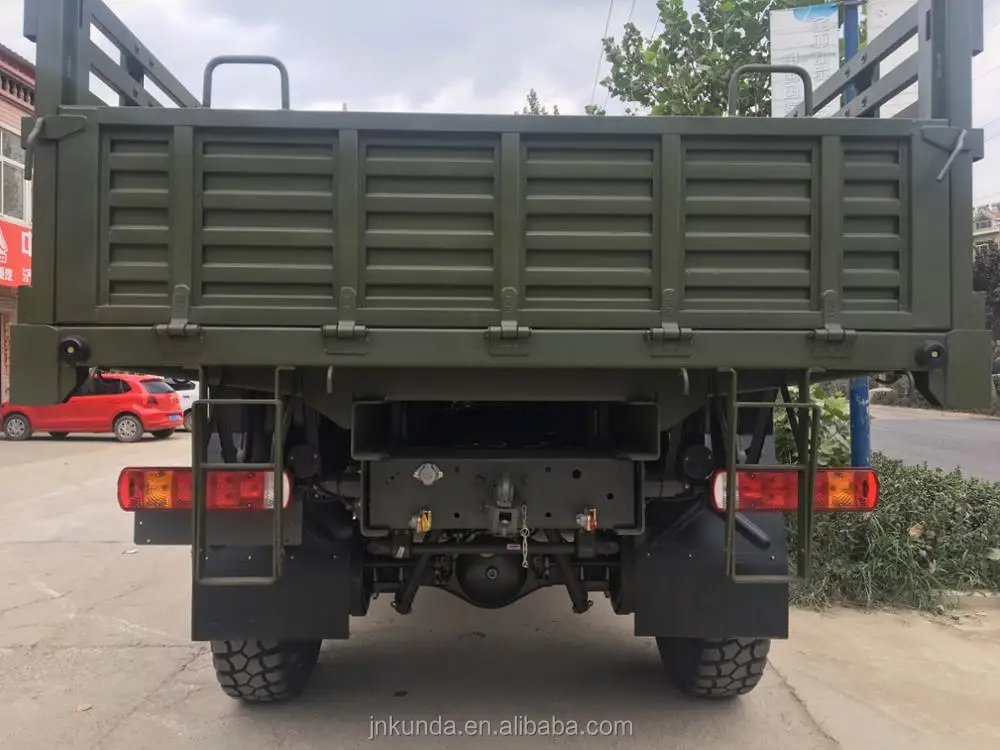

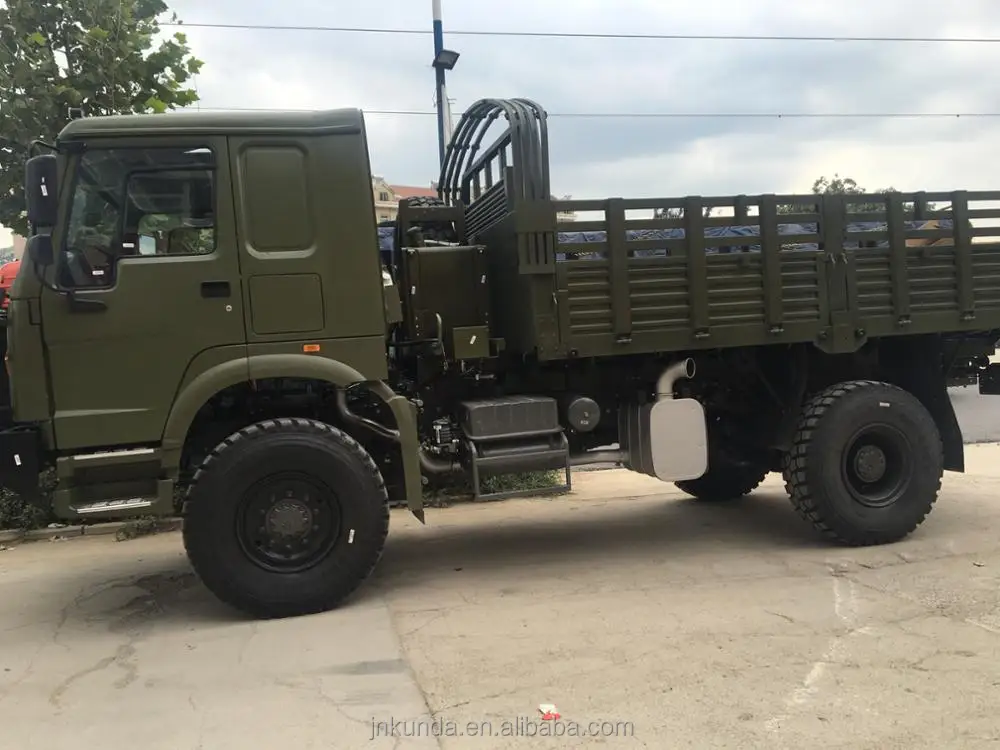

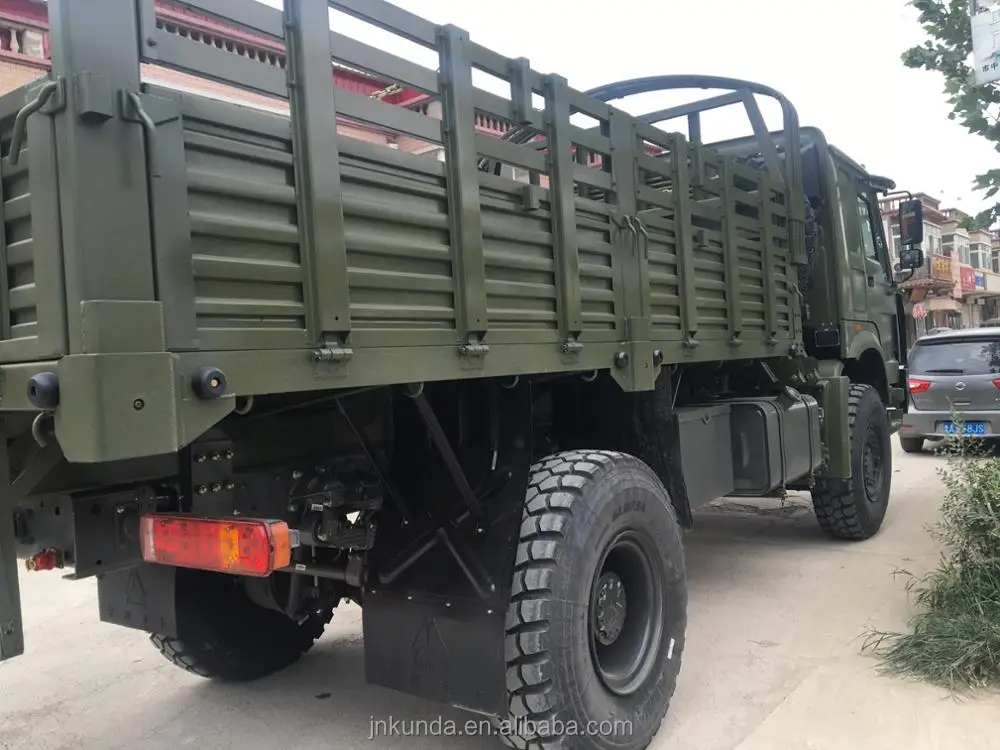

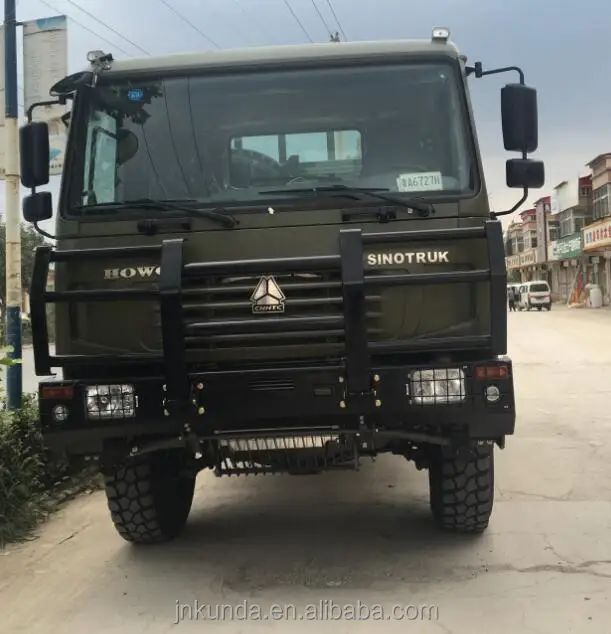

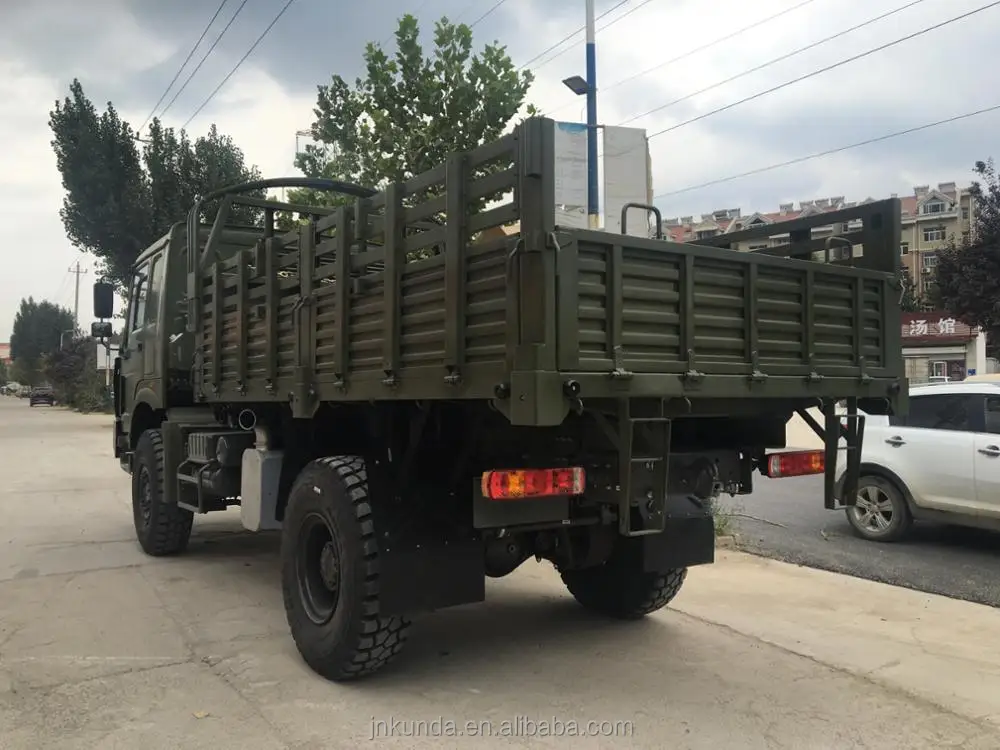

  HOWO 4×4 all-wheel drive series of cross-country vehicles are the series of products developed by CNHTC by applying world advanced auto technologies, mature and reliable assemblies.



  HOWO 4×4 all-wheel drive vehicles are equipped with CNHTC WD615 Euro III turbo-charging, water cooling diesel engines (Euro II as optional as required by the customers). HOWO 4×4 all-wheel drive vehicles come up with three major series in transportation, tipper and tractors with the powers ranging from 270 to 380Ps; the passive safety performance of the cabin has reached world advanced level and the cabin installation adopts four point suspensions, with lateral stabilizing devices made available for higher driving comfort; CNHTC HW transmission, diaphragm spring clutch, 1200/2000 transfer case, reinforced front and rear drive axles, WABCO brake system, ZF steering gear and other advanced assemblies are all equipped in place while CAN bus communication technology and VDO electrical instrument are used to enhance the reliability of the electric system. The brake system adopts VOSS quick plugging connectors to ensure the sealing performance of the brake system for better safety.



  HOWO 4×4 all-wheel drive vehicles can be used for military transportation, various oil transportation and filing and various equipment transportation chassis, which are suitable for army, oil field, mine, forestry, fire fighting operations and the purpose for retrofitting.


  Main Technological Parameters



  Truck model		ZZ2167M4327C1	ZZ2167M4627C1	ZZ2167M5227C1	ZZ2167M5627C1	ZZ3167M4327C1	ZZ4187N3727C1
  Dimension(mm)		7768*2496*3110	7768*2496*3110	9160*2496*3110	9548*2496*3110	9642*2496*3110	6228*2496*3110
  Gross weight(kg)		16000	16000	16000	16000	16000	18000
  Total weight(kg)		7950	8000	7830	7880	7700	8150
  Max speed(km/h)		76	76	76	76	76	75
  Wheelbase(mm)		4300	4600	5200	5600	4300	3650
  Engine	Model	WD615.92C	WD615.92C	WD615.92C	WD615.97C	WD615.92C	WD615.95C
  	Rated engine power(kw/r/min)	198/1900	198/1900	198/1900	221/1900	198/1900	249/1900
  	Max torque	1190/1200-1500	1190/1200-1500	1190/1200-1500	1340/1200-1500	1190/1200-1500	1490/1200-1500
  Clutch		430 C-type diaphragm spring clutch					430 B-type diaphragm spring clutch
  Transmission	Type	HW15170C					HW19710C
  	Ratio	10.73 7.98 5.91 4.38 3.29 0.45 1.82 1.35 1.00 0.75 R1 10.49 R2					14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.8 1.34 1.00 R1 13.91 R2 3.18
  Drive axle		STR steel front steering drive axle, ST16 rear drive axle, ratio 5.73
  Steering		ZF8098
  Transfer case	Mode	1200					2000
  	High/low ratio	1.00/1.75					0.89/1.536
  Brake type		service braking; dual circuit compressed air brake; parking brake(hand brake),spring energy air cut brake
  Cab		HW76 Cab
  Electric system		VDO electric system. 24V. Negarive grounded
  Trie		12.00-20	12.00-20	12.00-20	16.00-25	12.00-20	12.00-20
  Fuel Tank(L)		400
  Option WD615.97C engine model		ZZ2167M4327C1	ZZ2167M4627C1	ZZ2167M5227C1	ZZ2167M5627C1	ZZ3167M4327C1
  Option WD615.96C engine model		ZZ4187N3727C1
