Модуль камеры PDAF OV16880 OmniVision sensor 16MP


Поделиться:


Цена:1 759,74 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 2234.53 $* 2279.58 $*
Jul-16-2025 1812.2 $* 1848.31 $*
Jun-16-2025 2199.48 $* 2243.64 $*
May-16-2025 2181.91 $* 2225.2 $*
Apr-16-2025 1741.97 $* 1776.85 $*
Mar-16-2025 2146.74 $* 2189.76 $*
Feb-16-2025 2128.81 $* 2171.63 $*
Jan-16-2025 2111.98 $* 2153.26 $*

Характеристики

Product Description

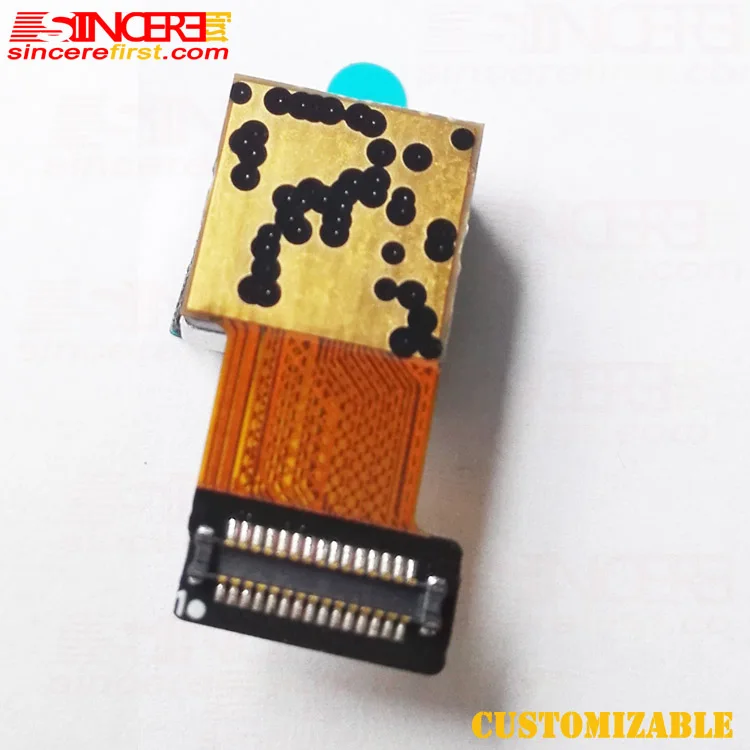

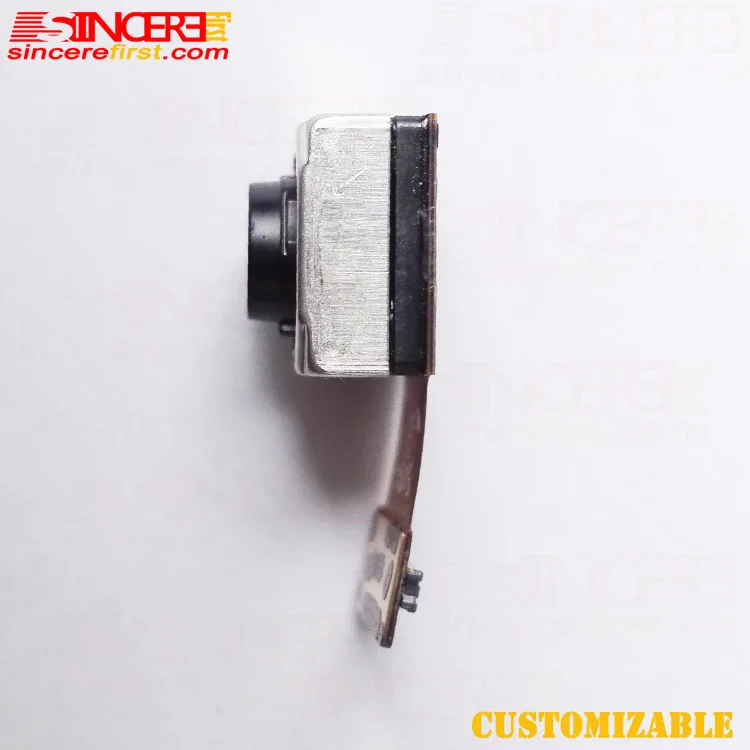

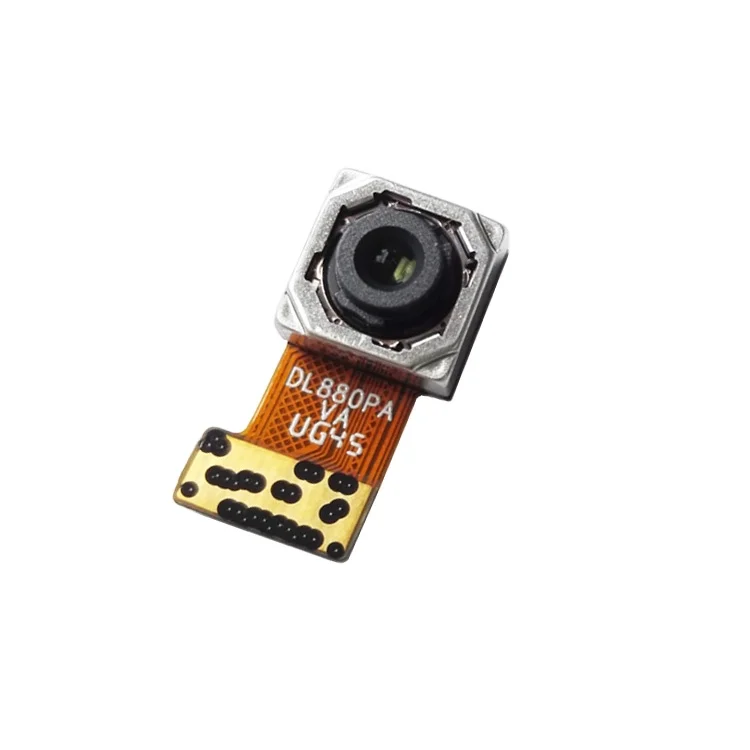

1/3.06 inch PDAF Camera Module 16MP OV16880 sensor Cmos Camera Module

SDA-DL880PA Key Parameter
F.NO
2.6
Chip Type
OV16880
View Angle
47.3°
Array Size
4672X3504
Focusing Range
10cm~ ∞
Sensor Size
1/3.06 inch
EEPROM
GT24C64A
VCM
BLM-CL09-A

The OV16880 is currently in mass production.OmniVision's high performance OV16880 is a 1/3.06-inch 16-megapixel image sensor built on OmniVision's PureCel®Plus-S stacked die technology. Utilizing an advanced 1-micron pixel, the sensor brings ultra-high resolution image and video capture, as well as advanced features such as phase detection autofocus (PDAF), to slim smartphones and tablets.
The OV16880 PureCel®Plus-S image sensor is capable of capturing 16-megapixel (4672 x 3504 pixels) images at 30 frames per second (fps), thus allowing burst photography and zero shutter lag at full resolution. Additionally, the sensor is capable of capturing 4K video at 30 fps, 1080p video at 90 fps, and 720p video at 120 fps.
The sensor can fit into an 8.5 x 8.5 mm module with a z-height less than 5 mm.
OmniVision's PureCel®Plus-S sensors utilize buried color filter array (BCFA) and deep trench isolation (DTI) technology, which dramatically reduces pixel crosstalk and improves signal-to-noise ratio to produce superior images and video. Additionally, this technology enables a slimmer module design by allowing larger chief ray angle (CRA) lenses without degradation of image quality.

Best Quality Assurance
1 year Replacement!
10 years warranty!
We only provide theoriginal new items, 100% make sure the best quality!
All products have been checked and packaged in good condition before dispatch!
Contact Us
Why Choose Us

China's leading manufacturer of optical products.

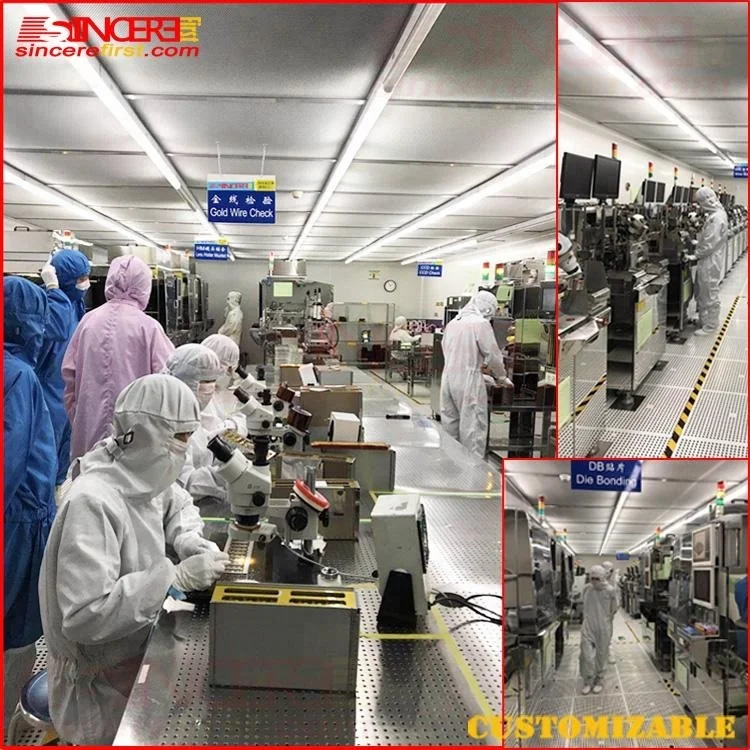

Our factory is a Leading high-tech enterprise in integrated optical device manufacturer and optical imaging system solution provider since 1992's foundation. The headquarter lies in Guang Dong China, totally 33, 350 squaremeter which combine manufacture with export right in China.

The camera modules and finished fashionable product take up general market both at home and abroad.

Main Features & Advantage
1. Top Quality & advanced technology: Our Factory is a good and professional manufacturer of CMOS Camera Module products. We provide high quality and compatible CMOS Camera Module products for different requests and wishes from clients. Our excellent supply of world-class quality and manufacture are based on modern facilities and quality control for CMOS Camera Module products.
We Professional produce CIF, VGA, 2million,3 million, 5 million, 8 million, 12 million, 16 million, 21 million, 22 million, 23 million,24 million pixel camera module. We also could do according to customer's specific requirements.
The CMOS Camera Module has very compact size and is widely applied in Mobile phone, Artificial Intelligence,uav drone,smart home,Iris recognization,Gesture Recognition,Machine Vision,3D printer camera solution,2D Barcode Recognition,Optical Imaging System,Infrared Imagers for Industry,Digital Still Camera, DV, PDA/Handheld, smart toy, PC Camera, Security Camera, Automotive Camera, etc.

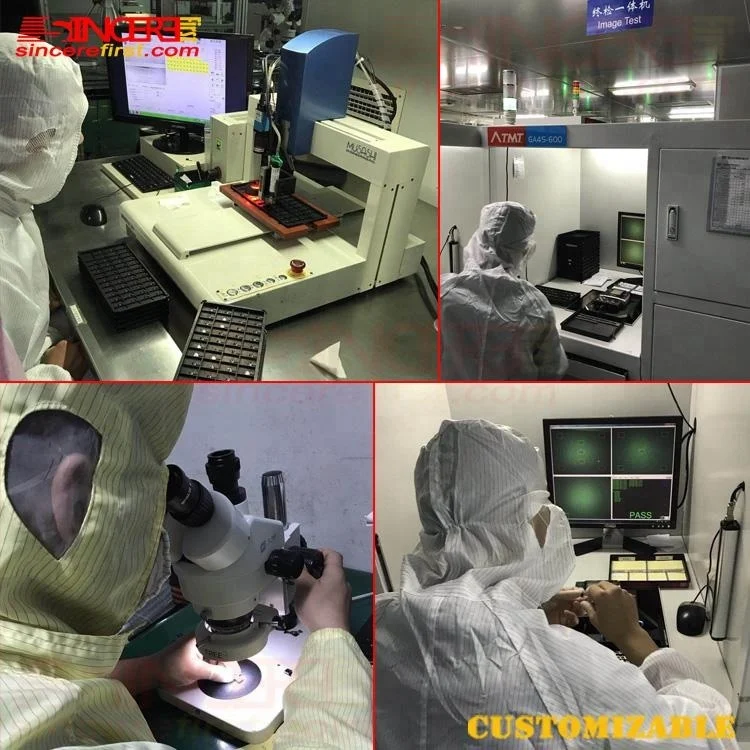

We use OVT sensor, Aptina sensor, Samsung sensor, Panasonic sensor, SONY sensor and some snesors which are made in China. Also we have SMT lines, CSP lines and COB lines.

2. Unbeatable Price: We always ensure high price performance to benefit our customers.

3. Excellent Service:We treat clients as friend and aims at building long term business relatiionship.Please call us and look forward to cooperating with you.

Our Services
1. For all your inquires about us or our Camera module , we will reply you in detail within 12 hours
2. We own professional team have professional attitude to recommend products and services, introducing the Camera module for you.
3. Our Camera module have various type and function , We will recommend the exact model to you according to your requirements ;
4. We offer OEM services. Can print your own logo on the Camera module
5. We have very experienced engineers, can help you better use our Camera module .
6. Timely Delivery: Your order shall be shipped once finished .
