С автоматическим погрузчиком CNC машина для резки металлических

Описание и отзывы

Трекер стоимости

Характеристики

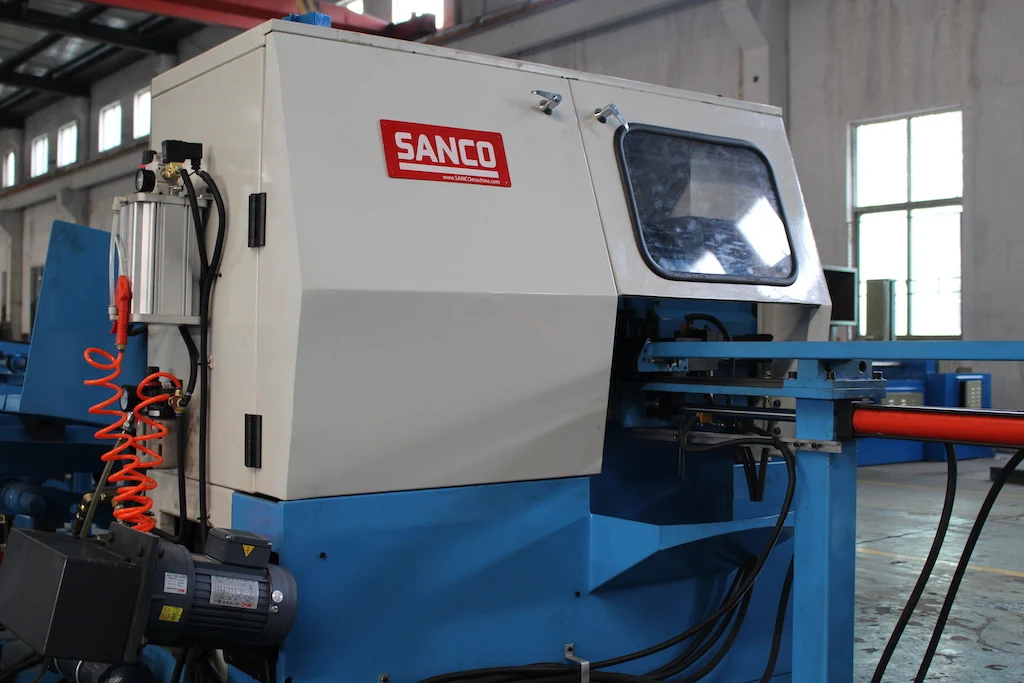

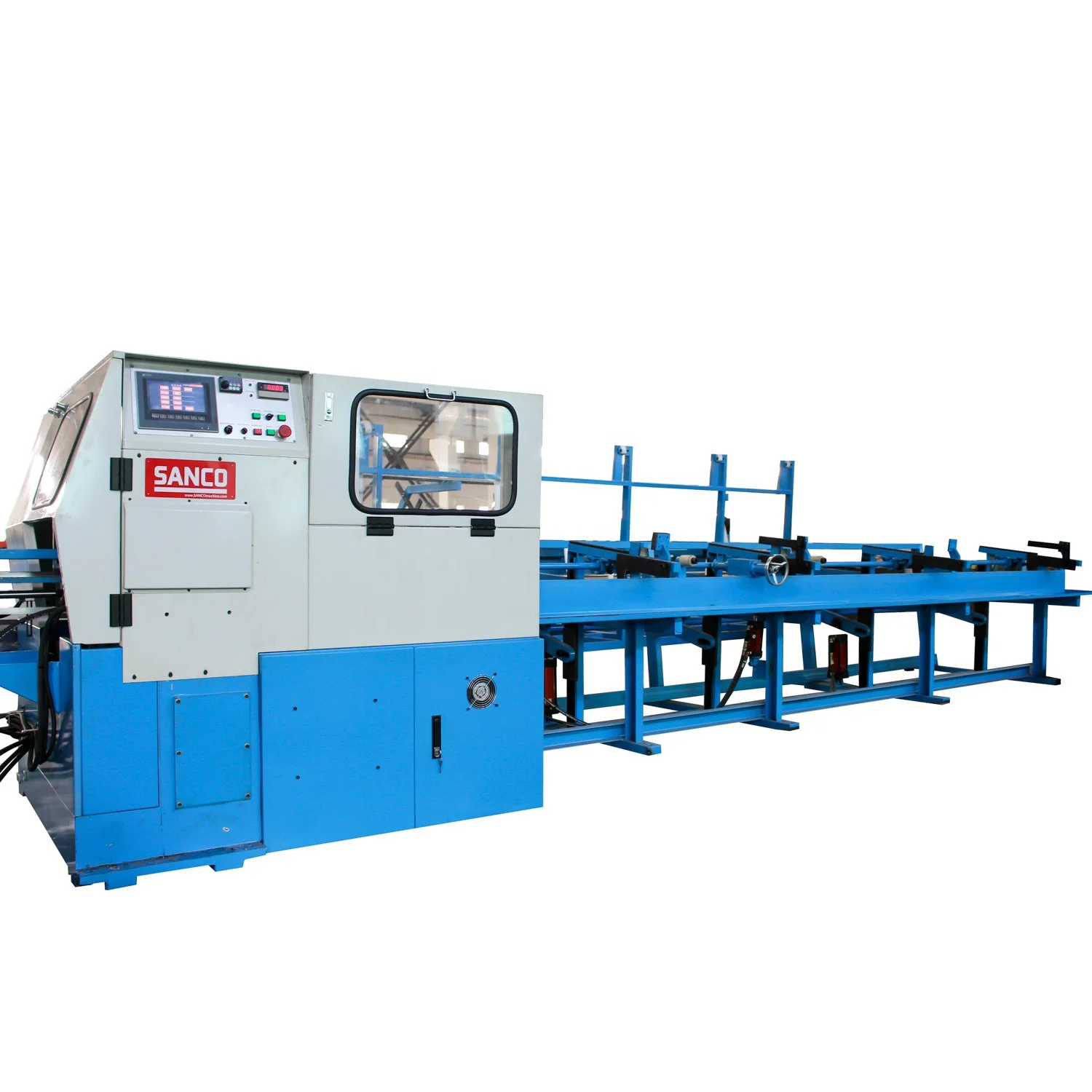

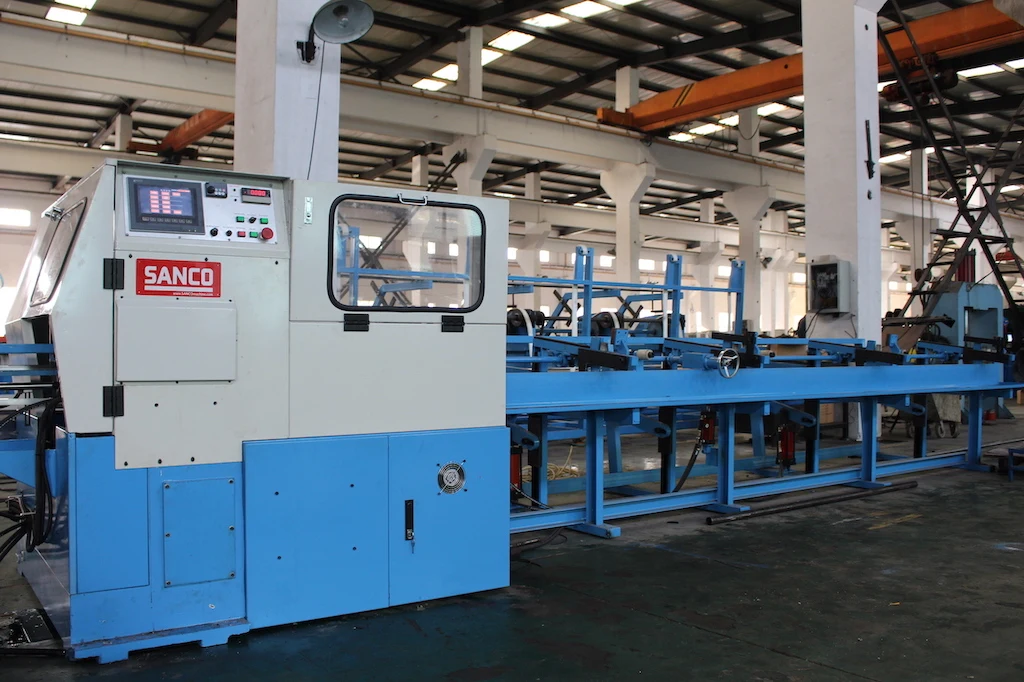

High Efficiency CNC Metal Cutting Machine with Magazine Loader

Max. cutting capacity: 100mm

Min. cutting capacity: 8mm

TCT saw blade dia.: 315/360

Cooling method: Oil mist cooling and lubrication(Italian ILC blade lubrication system)

Main motor: 11kw(4p)

Blade feeding mode: Servo control

Blade retraction speed: 100mm/s

Blade feeding speed:0~80mm/s

Workpiece feeding: Servo motor drive

Workpiece feeding speed: 400mm/s(rated speed); 600mm/s(Max. speed)

Workpiece clamping: Front vices clamping include horizontal and top clamping; back vice clamping is only horizontal clamping.(back vice top clamping is optional equipment)

Cut off length: >10mm

Stub bar length : 8~50mm

Tail length: 100mm+X

Workpiece length(which could be on the supporting rack): max. 6500mm(we could do special order if the workpice is more than 6500mm)

Supporting rack loading capacity: 4000kgs

PLC control

Machine weight: 4500kgs(including the workpiece supporting rack)





Advantages:

 High accuracy: ±0.05mm (cutting accuracy and feeding accuracy)

 High speed: 6 seconds to cut off steel solid bar (diameter: 50mm/2 inch)

 Fully automatic: automatically loading materials, automatically clamping materials,

                            automatically feeding materials, automatically cutting materials.

 High efficiency: 4800 pieces per day (8 hours) =60/6*60*8=4800 pieces.

 High degree of finish: 3.2-6.4, very smooth, no need to mill or grind it.

 Energy saving: 1 machine can do the same amount of work as 6 band saw machines.

 Human resource saving: 1 worker can operate 6 machines at the same time.



Working calculation:

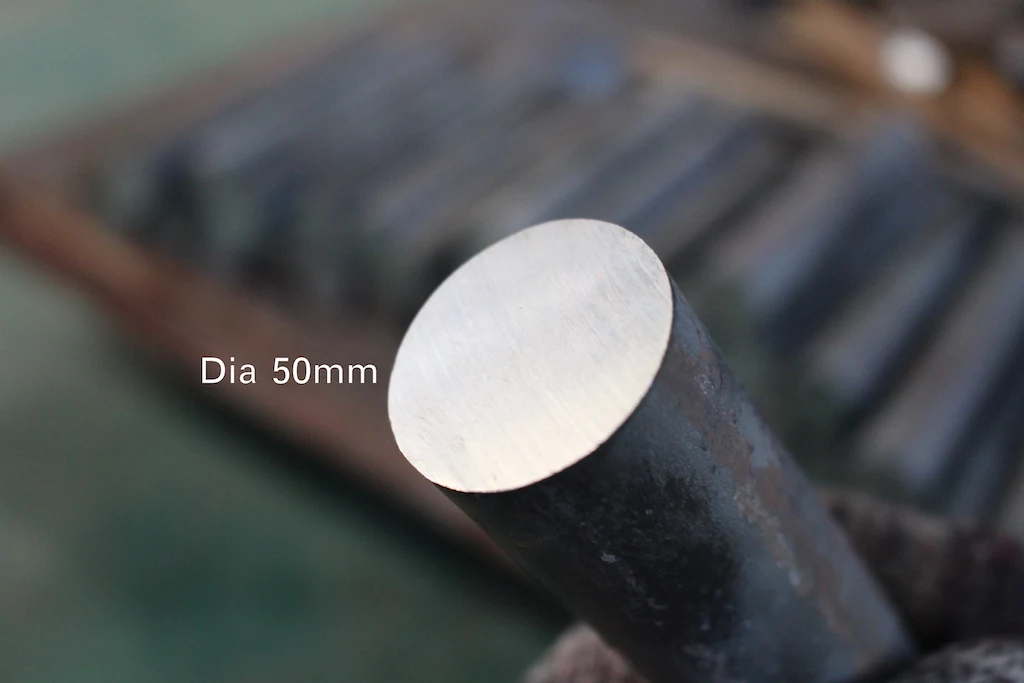

 Steel bar diameter: 50mm

 Cutting speed: 6 seconds per piece

 Cutting quantity per day (8 hours)=10*60*8=4800 pieces

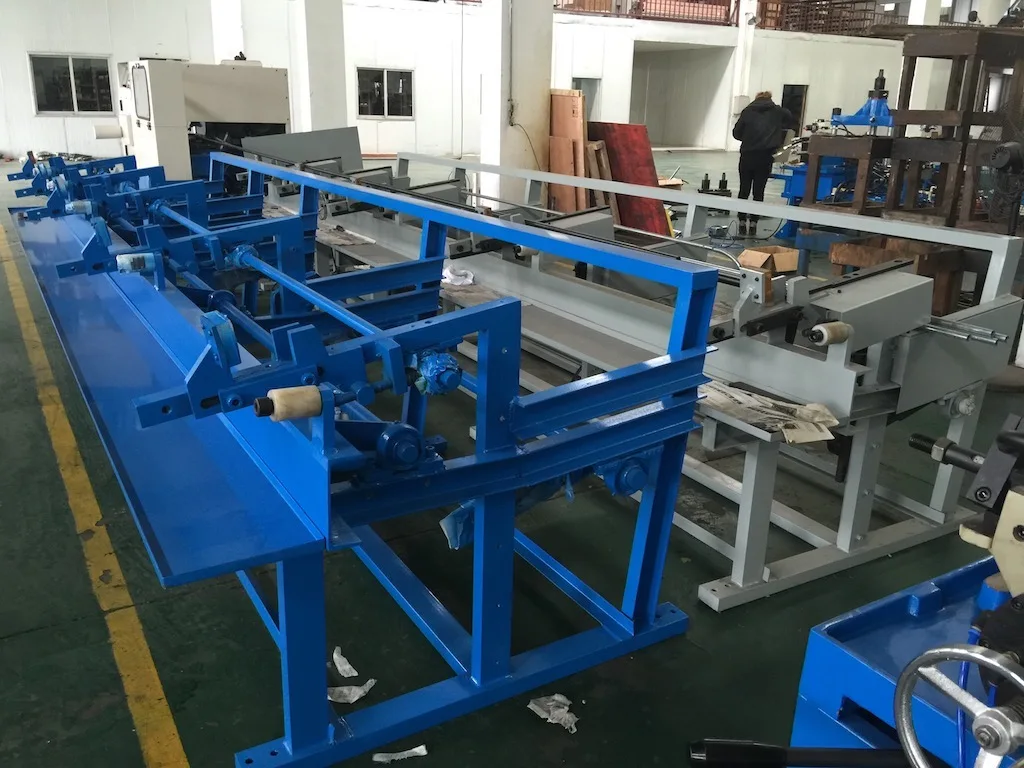

 Working steps: loading bars to automatic loading device, then set length you want, then operate it.

 Can working 24 hours without human operation.

 Suitable for mass production.

 Widely used to manufacture gear, bearing, standard car accessory





Configuration of Parts:





1	PLC	Mitsubishi (JAPAN)
2	Servo motor	Mitsubishi (JAPAN)
3	Feeding servo drive	Mitsubishi (JAPAN)
4	Cutting servo motor	Mitsubishi (JAPAN)
5	Cutting servo drive	Mitsubishi (JAPAN)
6	Motor protector	Mitsubishi (JAPAN)
7	Oil pump	TAIWAN
8	Oil motor	ABB or Siemens
9	Touch Screen	Weinview
10	Solenoid valve	Yuken
