Product Description

The 60KA surge protector OBV5-B60 meet the type 1+2 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions. The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current. If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary. In addition, the QR code printed on the arrestor allows direct access to the online installation instructions.

+ Connectable lightning current and surge arrestors

+ High arresting capacity up to 50 kA (10/350μs)

+ Visual status display

+ Available with optional remote signalling

+ Vibration-proof

+ Combination arrestors for buildings with lightning protection

+ Simple standard hat rail mounting

+ Labelled connections

+ Usable in systems with lightning protection class 3+4

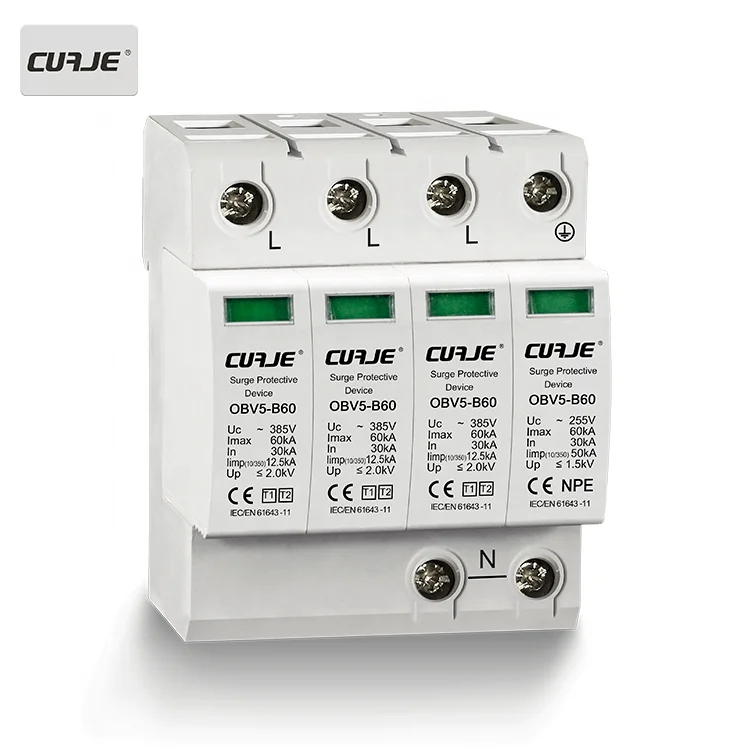

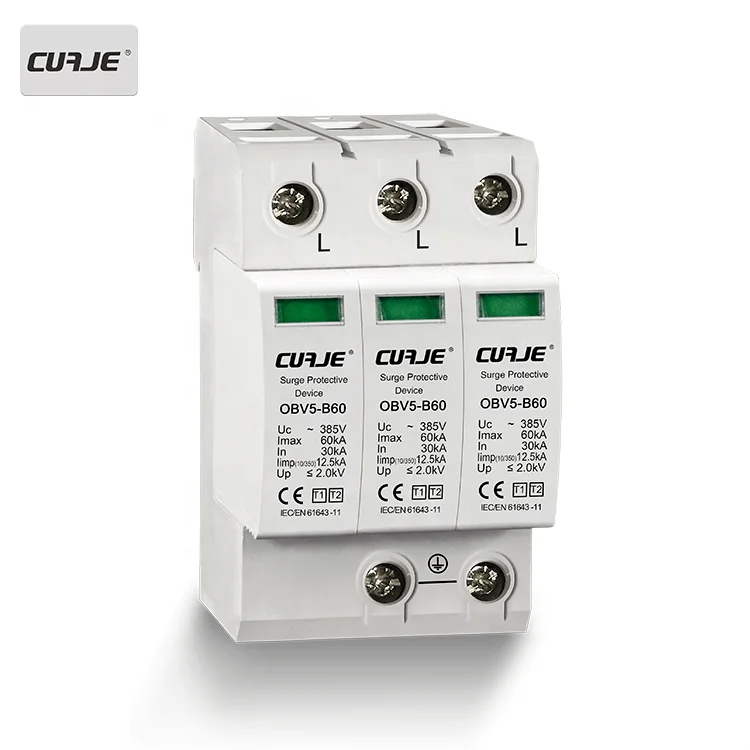

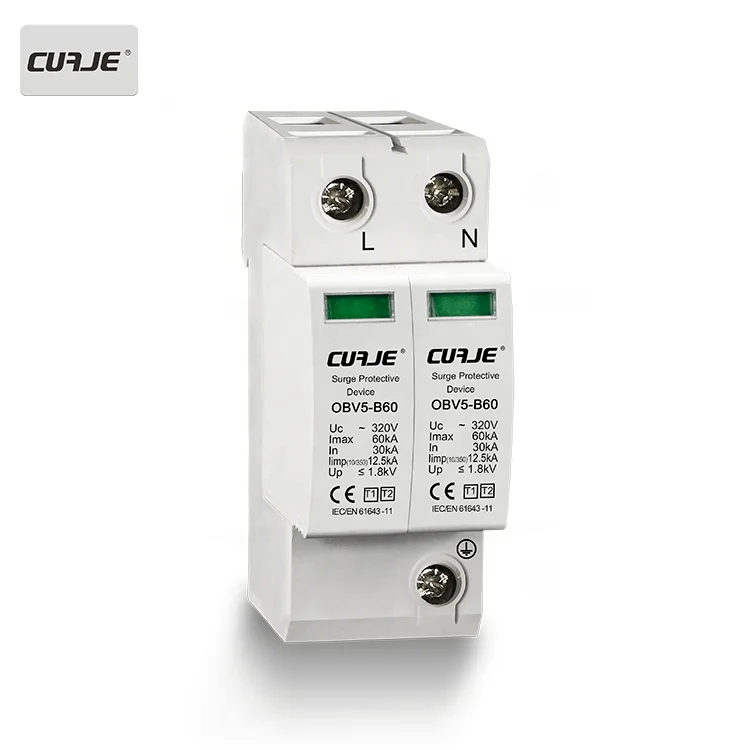

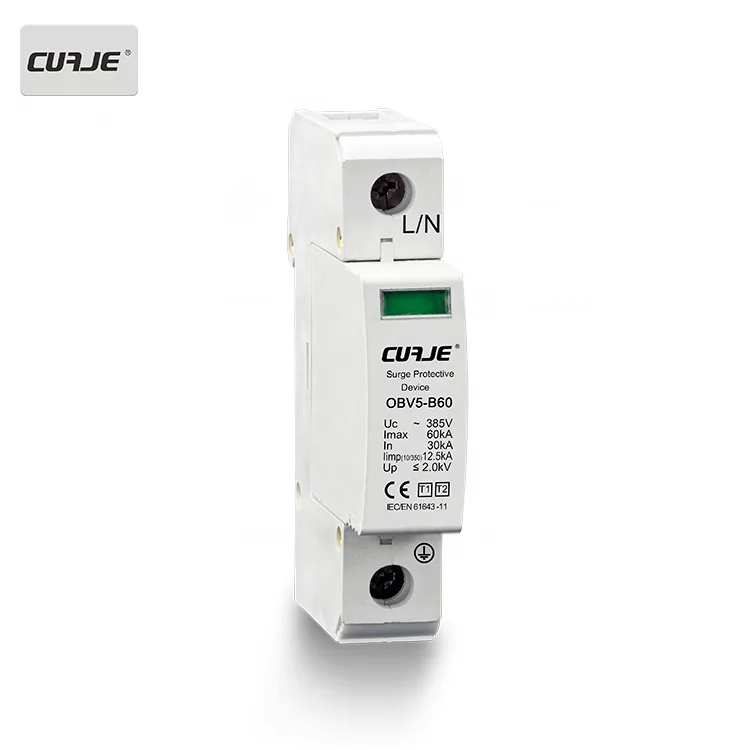

Model: OBV5-B60
Maximum continuous voltage AC	U_c	V	275/320/385/440
SPD to EN 61643-11			Type 1+2
SPD to IEC 61643-1			class I+II
Lightning impulse current (10/350μs)	I_imp	kA	12,5
Nominal discharge current (8/20µs)	I_n	kA	30
Maximum discharge current (8/20µs)	I_max	kA	60
Voltage protection level	U_p	kV	<1,5/1,8/2,0/2,2
Response time	t_A	ns	<25
Maximum back-up fuse		A	125
Temperature range	ϑ	°C	-40℃~+85℃
Protection rating			IP 20
Max. cable cross-section flexible (fine-wire)		mm²	25
Max. cable cross-section rigid (single wire/multi-wire)		mm²	35
