Характеристики

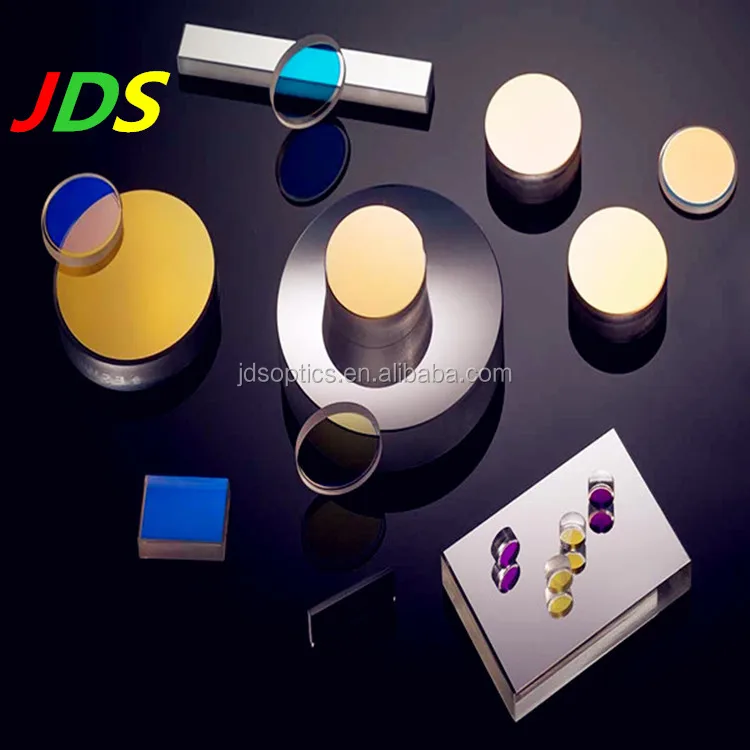

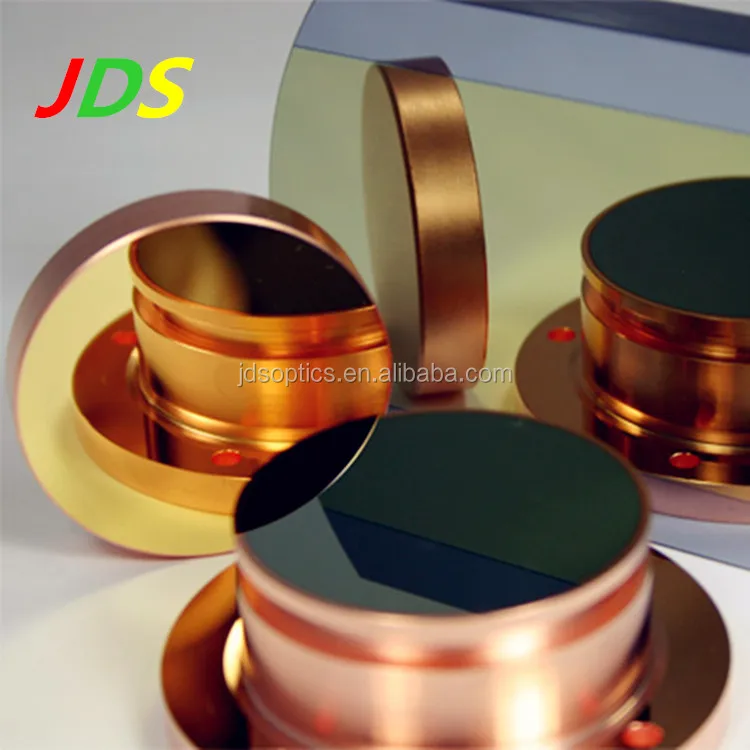

Optical convex concave Protected Silver aluminum Gold mirror
Product Parameter
JDS Optics :
- Low Loss Dielectric Coatings
- >98% Reflectance
- All Common Argon-Ion Laser Wavelengths
Laser Line Mirrors are available for each of the most common Argon-Ion laser wavelengths. Each mirror is designed for a 45° angle of incidence and features a laser quality substrate. The durable dielectric coating ensures greater than 98% reflectivity over the entire lasing range of Argon-Ion lasers, with peak reflection of greater than 99.8% at the center of the range. Contact us for custom requirements.
Note :There are so many options, in fact, that we offer many of our mirrors in a semi-custom format, where you choose the wavelength, diameter, angle of incidence, and sometimes even the curvature. This allows you to find the perfect fit on a short lead time for common applications like Nd:YAG, Ti:sapphire, fiber and diode lasers, as well as laser line and partially reflecting mirrors.
In addition to catalog and semi-custom mirrors, we also work regularly with OEM customers to create custom mirrors specifically for their systems. Shape, dimensions, substrate material, and radius of curvature can all be customized. Any of our robust, high performance coatings can be applied at your choice of wavelength and angle of incidence, or we can design a coating to fit your exact spectral needs. With mirrors capable of withstanding as high as 40 J/cm2 of pulsed power at 1064 nm, and over 40 years of experience in designing and manufacturing laser optics, we can create the right mirror for you.
Capabilities
| Standard | Custom Optionss | |
|---|---|---|
| Types |
| Cylinders, prisms, and other custom shapes |
| Materials | N-BK7, UV-grade fused silica, zerodur | MgF2, CaF2, Suprasil 1, optical crown glass, Infrasil 301, N-BAK1, zerodur, silicon |
| Diameter | 12.7 to 101.6 mm | 3 to 300 mm |
| Radius of curvature | Concave: 0.075 – 5.00 m Convex: 0.50 – 1.00 m | Other radii |
| Angle of incidence | 0°, 45° | Other AOI’s |
| Coatings |
|
|
| Quality | Laser quality | See manufacturing tolerances below |
Mirror Manufacturing Capabilities
| Surface Tolerances | Precision | Laser Quality | High Precision |
|---|---|---|---|
| Surface Quality (scratch - dig) | 40 - 20 | 10 - 5 | 5 - 2 |
| Surface roughness (Å, RMS) | 20 | 5 | 1 |
| Surface Figure (P-V @ 633 nm before coating) | λ/2 | λ/10 | λ/25 |
| Dimensional Tolerances | Commercial | Precision | High Precision |
| Diameter (mm) | +0.000 / -0.250 | +0.000 / -0.100 | +0.000 / -0.010 |
| Length & width (mm) | ± 0.050 | +0.000 / -0.125 | +0.000 / -0.010 |
| Thickness (mm) | ± 0.250 | ± 0.100 | ± 0.010 |
| Angular deviation | < 5 arc min | ≤ 1 arc sec | ≤ 0.5 arc sec |
| Centration (ETV, mm) | 0.05 | 0.01 | 0.005 |
| Clear Aperture | ≥ 85% | ≥ 90% | ≥ 95% |
| Spherical Tolerances | Commercial | Precision | High Precision |
| Spherical irregularity (P-V @ 633 nm before coating) | λ/2 | λ/5 | λ/100 |
| Spherical radius (fringes) | 5 | 3 | 0.5 |
** Note: The general tolerance specifications above are intended to guide determination of appropriate tolerances based both on relative cost and manufacturability. Part-specific tolerances will vary depending on size, material, shape and aspect ratio. Tighter tolerances may be possible, so please contact us to discuss your custom specifications. All specifications do not need to be from a single column, though trade-offs may be required in order to meet the desired combination of cost and performance.
